OCBS-T218 Automatic Omni-directional 1d 2d Desktop USB Barcode ScannerOCBS-T218 Automatic Omni-directional 1d 2d Desktop USB Barcode ScannerOCBS-T218 Automatic Omni-directional 1d 2d Desktop USB Barcode ScannerOCBS-T218 Automatic Omni-directional 1d 2d Desktop USB Barcode Scanner

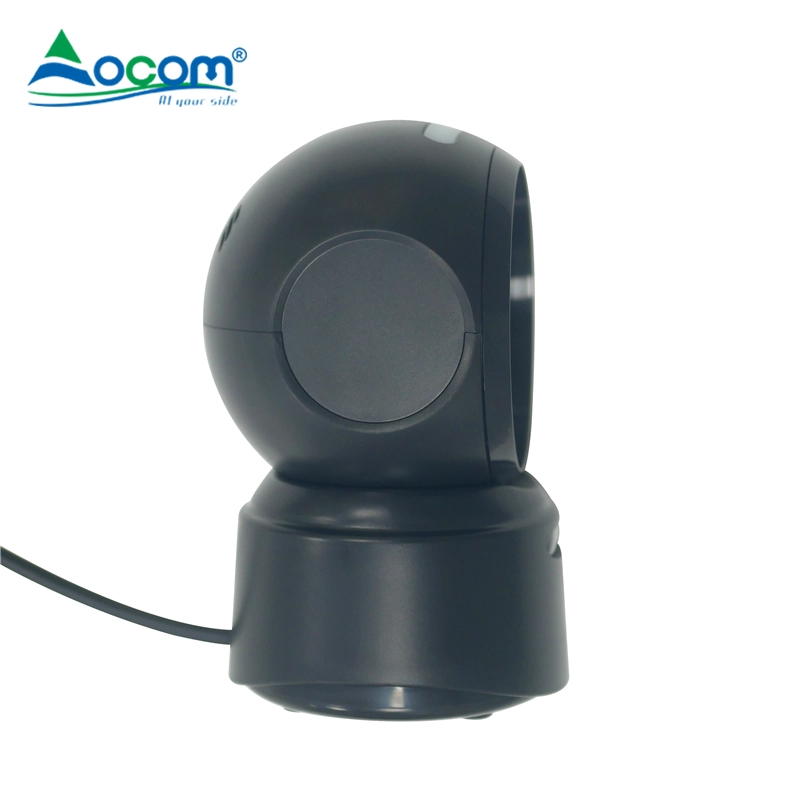

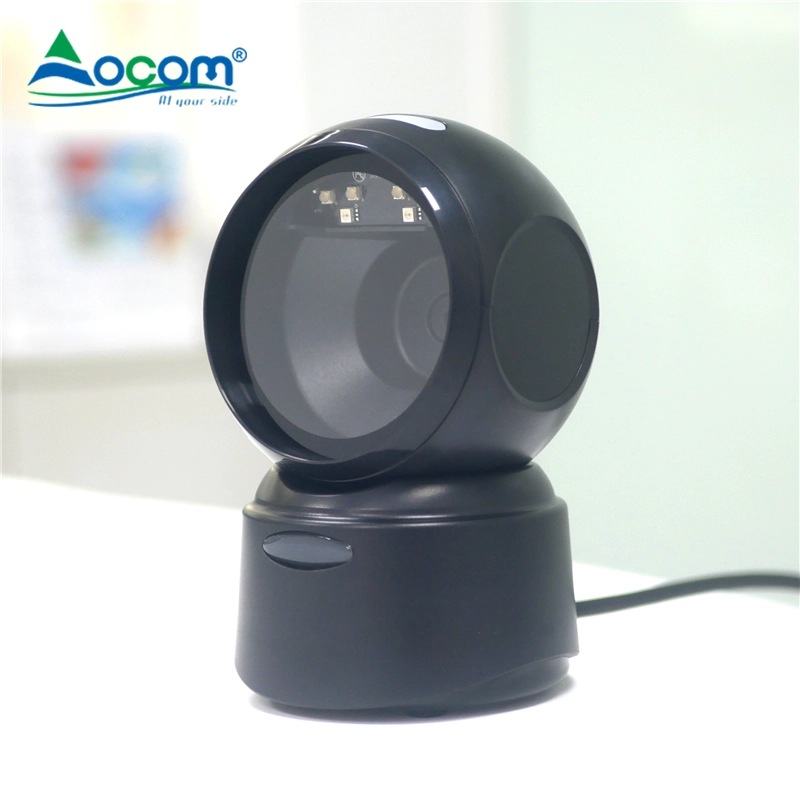

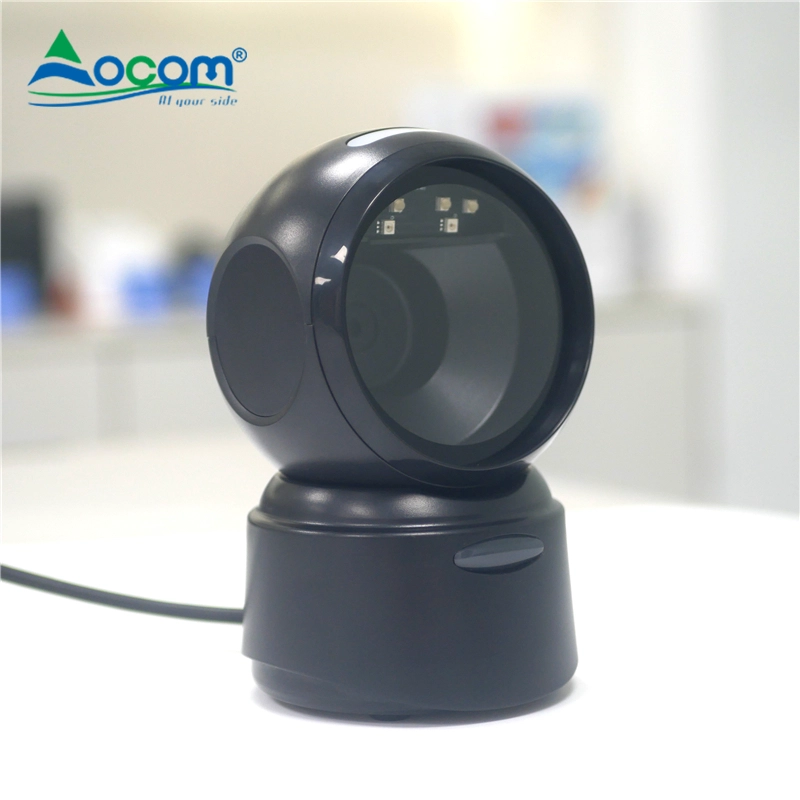

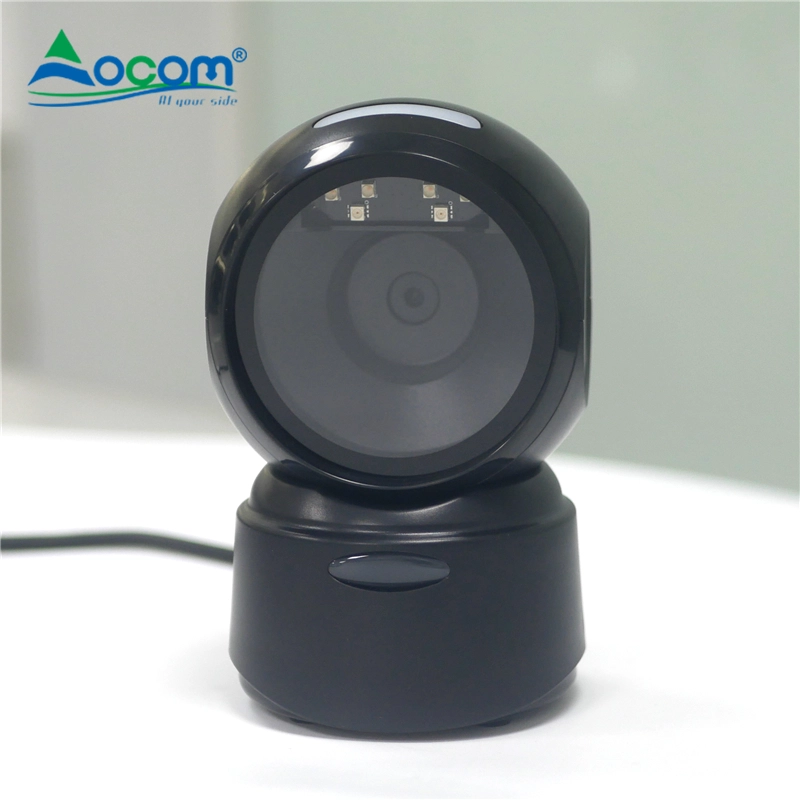

OCBS-T218 Automatic Omni-directional 1d 2d Desktop USB Barcode Scanner

  • Support Multiple kinds of 1D and 2D barcodes
  • 4mil scanning resolution
  • 640*480 CMOS Sensor
  • Easy to scan screen barcodes

OCBS-T218 Automatic Omni-directional 1d 2d Desktop USB Barcode Scanner



Features

Support Multiple kinds of 1D and 2D barcodes
4mil scanning resolution
640*480 CMOS Sensor
Easy to scan screen barcodes



Specification

General



Model

OCBS-T218

Interface

USB

Operating Voltage

5V

Starting Curent

315mA

Current

Work  320mA     Standby  235mA

Shock specification

Design to withstand 1.2M drops

Performance



Sensor

CMOS 640*480 pixels

Light source

(Aimer) Blue color LED, (Illumination) Red color LED

Field of view

39° (H)x29°(V)

Resolution

>/= 4mil

Scan Angle

Pitch        ±65°@ 0°Roll and 0° Skew

Roll         360°@ 0°Pitch and 0° Skew

Skew        ±65°@ 0°Roll and 0° Pitch

Symbol Contrast

20% minimum reflective difference

Ambient Light Immunity

0-100,000 Lux

Typical Depth of Field

Code39(5mil):0mm-70mm,Code39(13mil):0mm-170mm

QR(20mil):0mm-110mm,Alipay (QR 30mm*30mm):0mm-300mm

Decoding ability

1D:Codabar,Code 39,Code 32 Pharmaceutical (PARAF),

Interleaved 2 of 5,NEC 2 of 5,Code 93,Straight 2 of 5 Industrial,Straight 2 of 5 IATA,Matrix 2 of 5,Code 11,Code 128,GS1-128,UPC-A,UPC-E,

EAN/JAN-8,EAN/JAN-13,MSI,GS1 DataBar Omnidirectional,GS1 DataBar Limited,GS1 DataBar Expanded,China Post(Hong Kong 2 of 5),Korea Post

2D:DOTCode,Codeblock-A,Codeblock-F,PDF417,MicroPDF417,

GS1 Composite Codes,QR Code,Data Matrix,MaxiCode,Aztec,HANXIN

code-opening by factory

Codabar,Code39,Interleaved2of5,NEC2of5,Code93,Code128,GS1-128,UPC-A,UPC-E0,EAN/JAN-13,EAN/JAN-8,GS1-DataBar,PDF417,QR,DM,Aztec

Physical



Weight

Gross:249g

Dimension

140.2*84*90.1mm

Package

122X165X105mm /343g

30 in 1 carton

525X430X360mm,11.8kg

Environment



Working temperature& humidity

0 to 45 degrees centigrade,  10%~80%   No condensation

Storage temperature& humidity

-20 to 60 degrees centigrade , 10%~90%  No condensation
