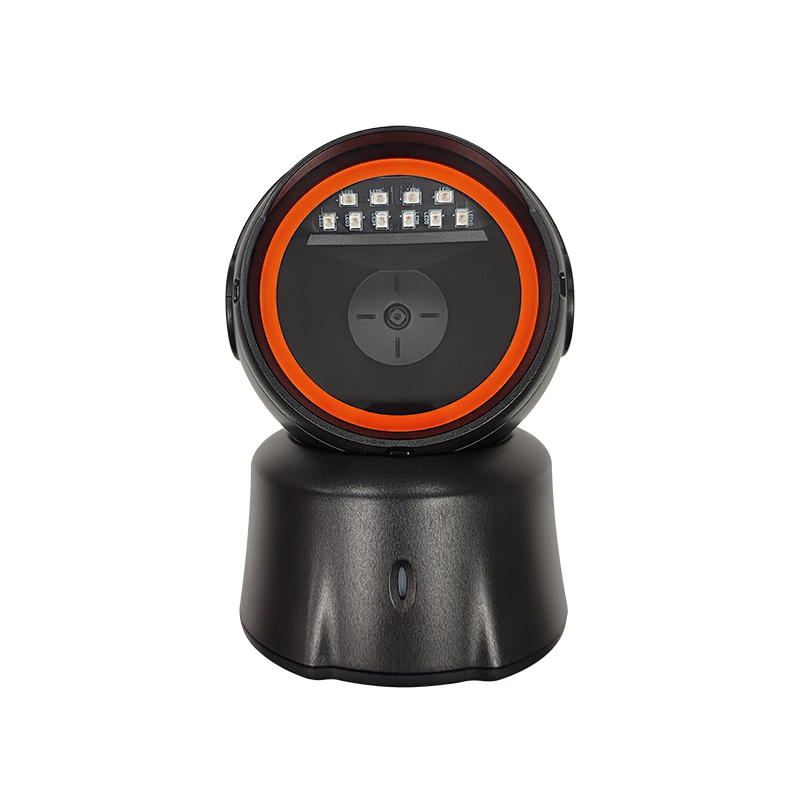

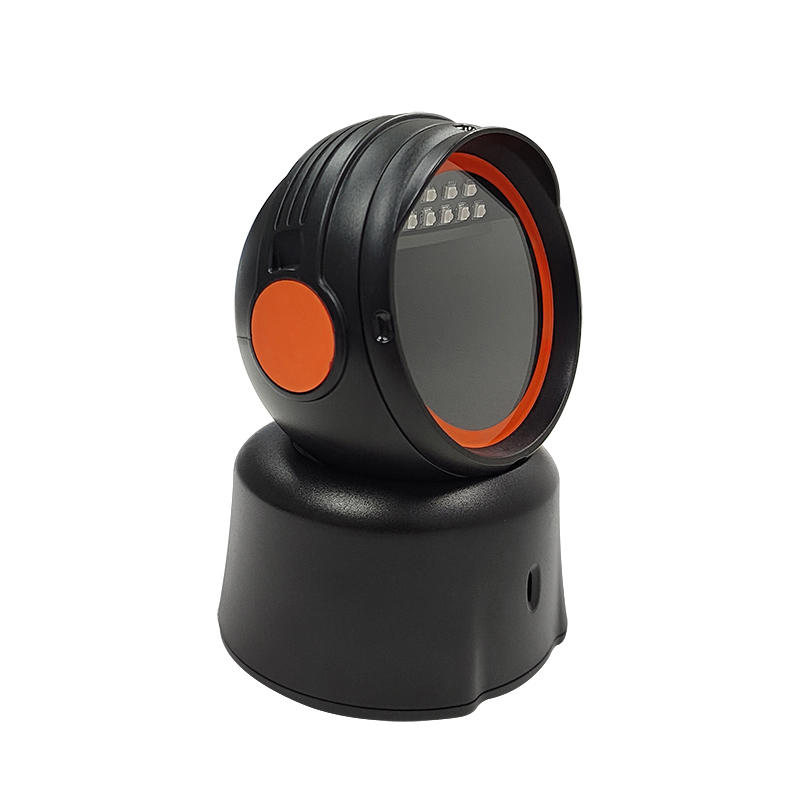

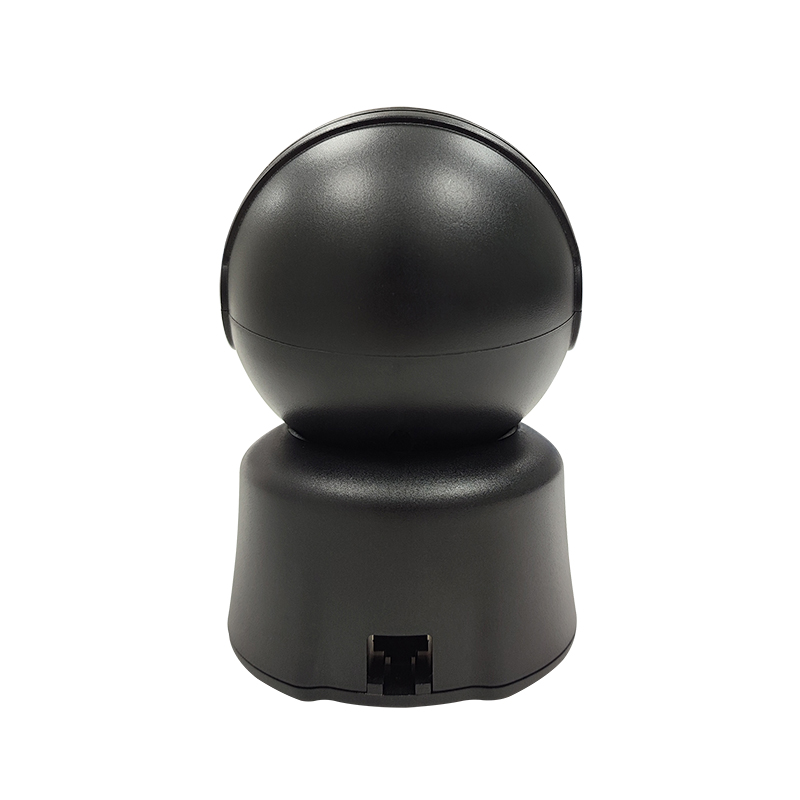

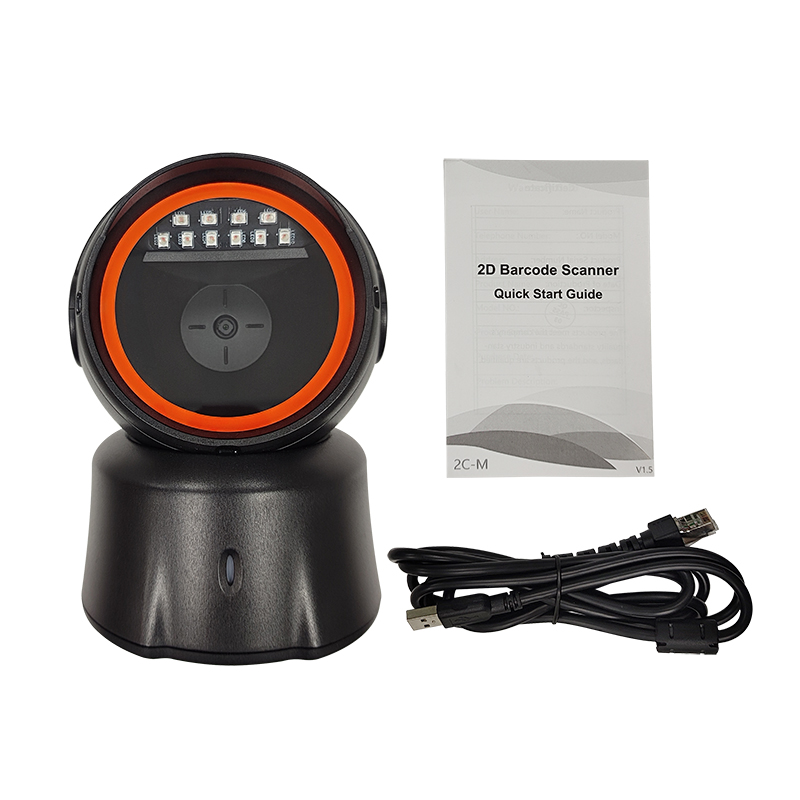

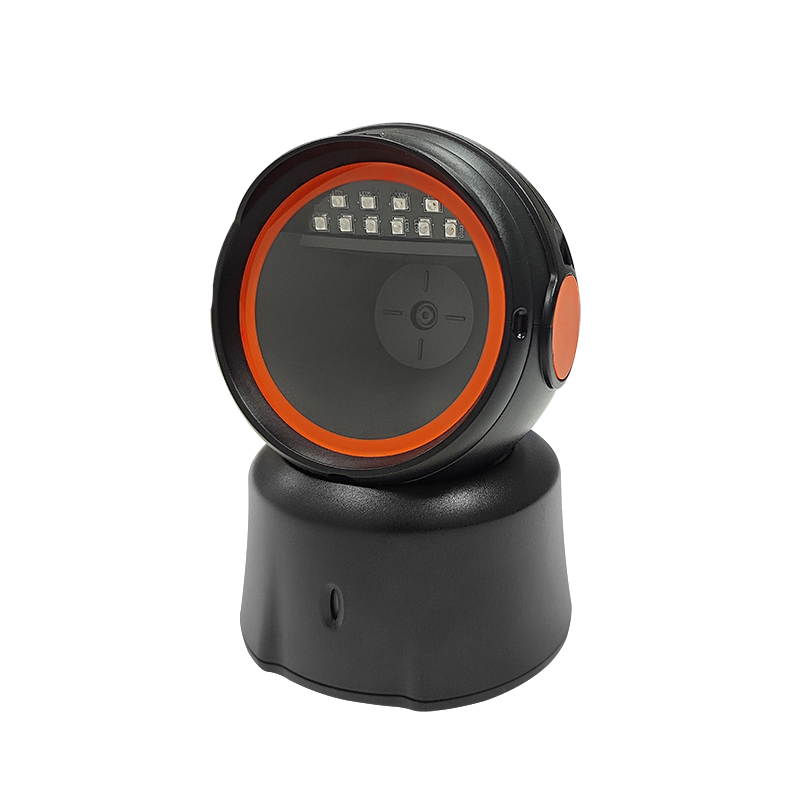

(OCBS-T220) 2D Omni-Directional Barcode Scanner

Global shutter sensor, 100FPS, CMOS imaging, flexible LED red light, automatic exposure;
Drive- free, plug and play, support multiple language;
Add hidden suffixes by barcode type, insert custom characters, replace any characters, and intercept barcode data by length;
Easy to read 1D/2D barcode, including film covering, reflection, blurring, wrinkles, color codes, screen codes, long barcodes, etc.

2D Omni-Directional Barcode Scanner

(M/N:OCBS-T220)

Features:

Stylish design and suitable for a variety of application scenarios 300,000 pixels;

Minimum resolution: 4mils;

Red LED for illuminating scanning surface;

Read all mainstream 1D&2D bar codes;

Quickly read various screen bar codes.

Specification

General
Model	OCBS-T220
Color	Black
Interfaces	USB,RS232(customized)
Cable	1.8M
Reading Indicators	LED/Buzzer
Input Voltage	5 VDC/1A
Current	115mA（Working）, 510mA(Max)
OS Support	Microsoft Windows/Linux/Android/IOS/MacOS
Drop Resistance	Withstands repeated drops from 1.5m/4.0 ft onto a concrete surface
Performance
Sensor	CMOS global shutter,640*480 Pixel
Pixel	300,000
Reading Precision	≥4mil/0.1mm（PCS90%,CODE 39）
Depth of Field	10mm~250mm（Different bar code range）
Decoding Speed	65CM/S
Illumination	Red LED
Scanning Mode	Auto,continuous
Reading Angle	Roll: ±360°，Pitch:±65°，Skew: ±60° (Test Conditions：CODE39,10mil/0.25mm,PCS90%)
Print Contrast Ratio(minimum)	≥15%
Ambient Illumination	Dark Environment，Indoor Natural Light
Typical Depth of Filed	Precision Barcode Depth of Filed 4mil CODE39 40mm—70mm 10mil CODE39 10mm—130mm 13mil UPC/EAN 10mm—160mm 20mil QR code 10mm—150mm etc..... (The minimum depth of field is determined by the barcode length and scanning angle. It depends on the print resolution, contrast and ambient light.)
Decoding Ability	1D:UPC-A,UPC-E,EAN-8,EAN-13,ISBN, ISSN, Code 128,GS1-128,ISBT, Code 39,Code 32, Code 93,Code 11,Codabar(NW-7),Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5(Straight 2 of 5),Standard 2 of 5（IATA 2 of 5）,NEC 2of 5, MSI 2D: QR Code, Micro QR Code, Data Matrix，PDF417, Micro PDF 417， MaxiCode, Aztec，HanXin Code, Pharma Code(One-Track), Codablock A, Codablock F, Dot Code Other composite code：GS1 Databar(Omnidirectional, Limited, Expanded)，GS1 Composite Code, TLC 39 Code. Chinese ID Card OCR , etc. Postal code：HongKong 2 of 5(China Post), Korea Post, Australian Post, British Post, USPS Intelligent Mail, Japanese Post, Planet Code, Postnet Code, UPU 4-State, KIX Code
Physical
Weight	Gross:450g
Package	170115110mm
Environment
Working Temperature& Humidity	0 to 45 degrees centigrade, 10%~80% No condensation
Storage Temperature& Humidity	-20 to 60 degrees centigrade , 10%~90% No condensation
