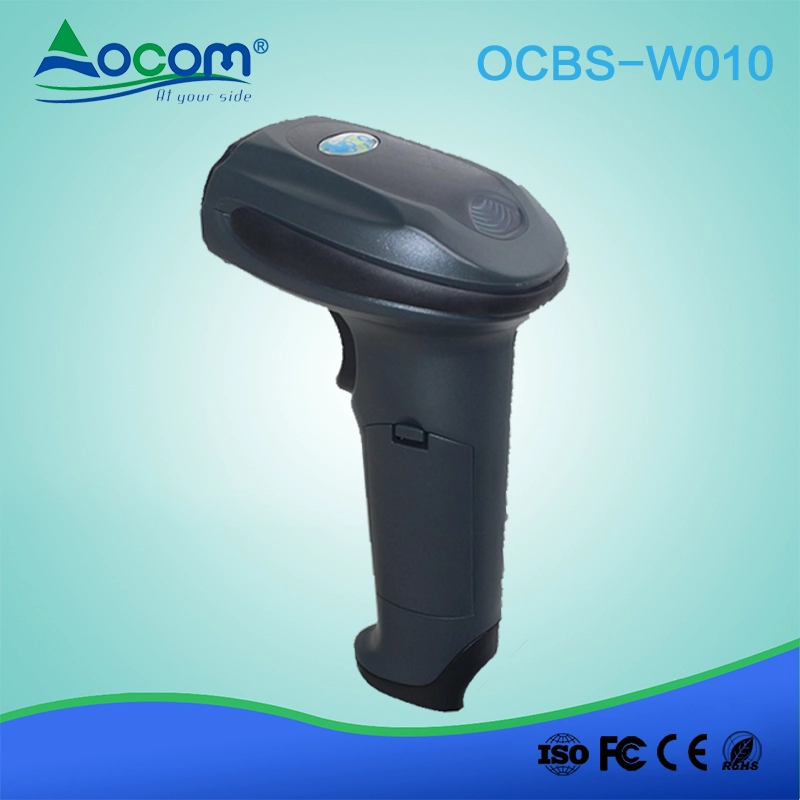

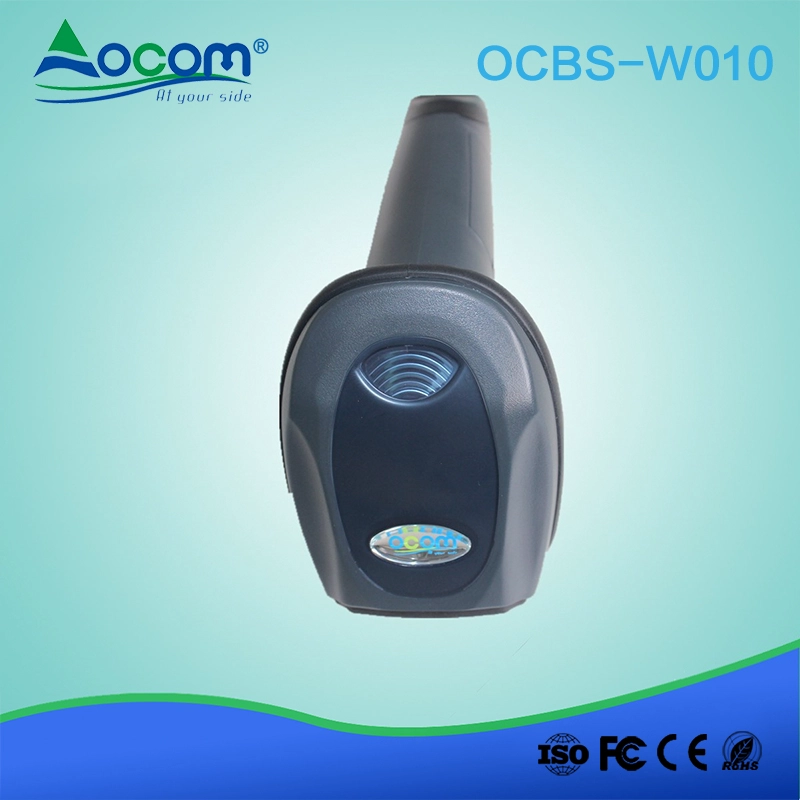

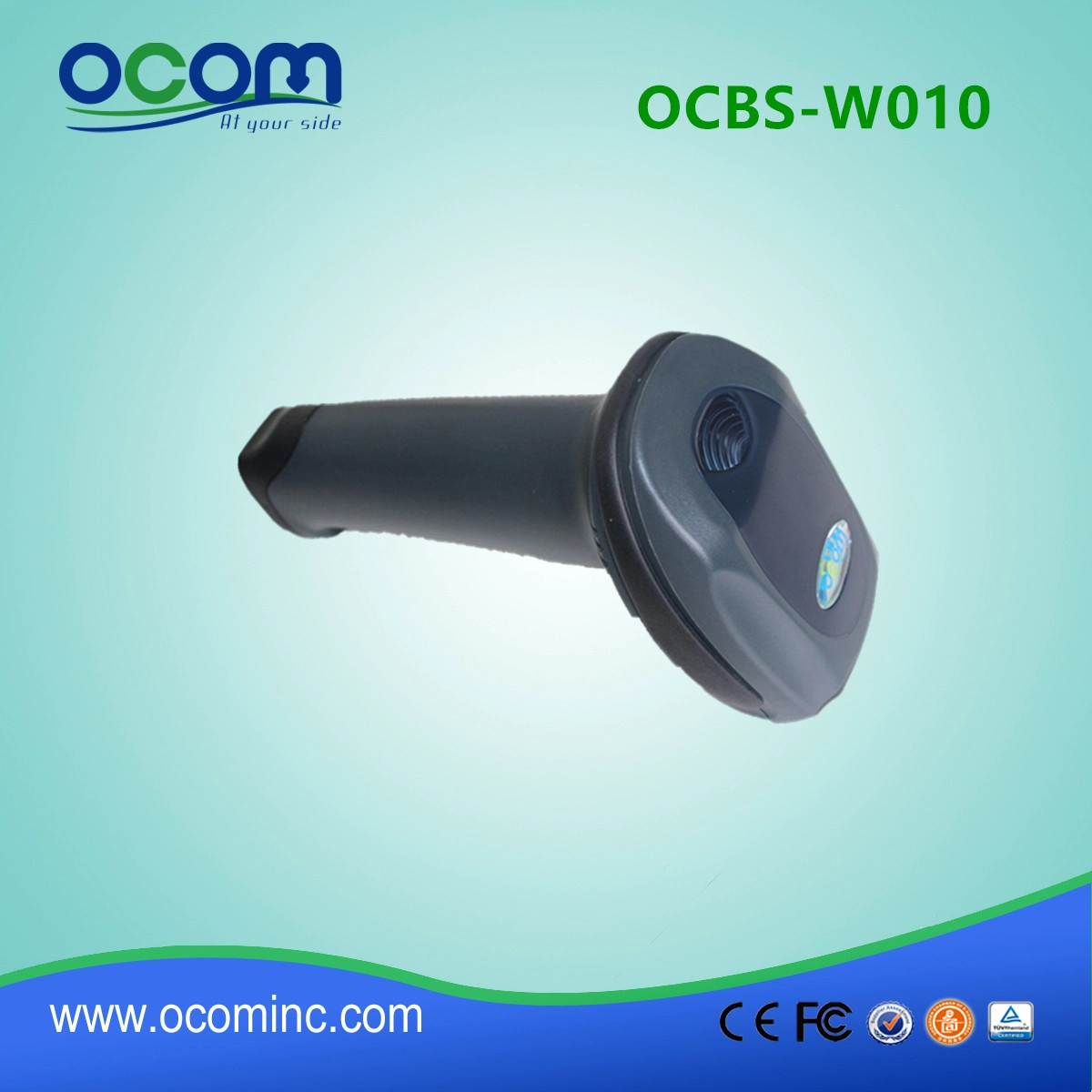

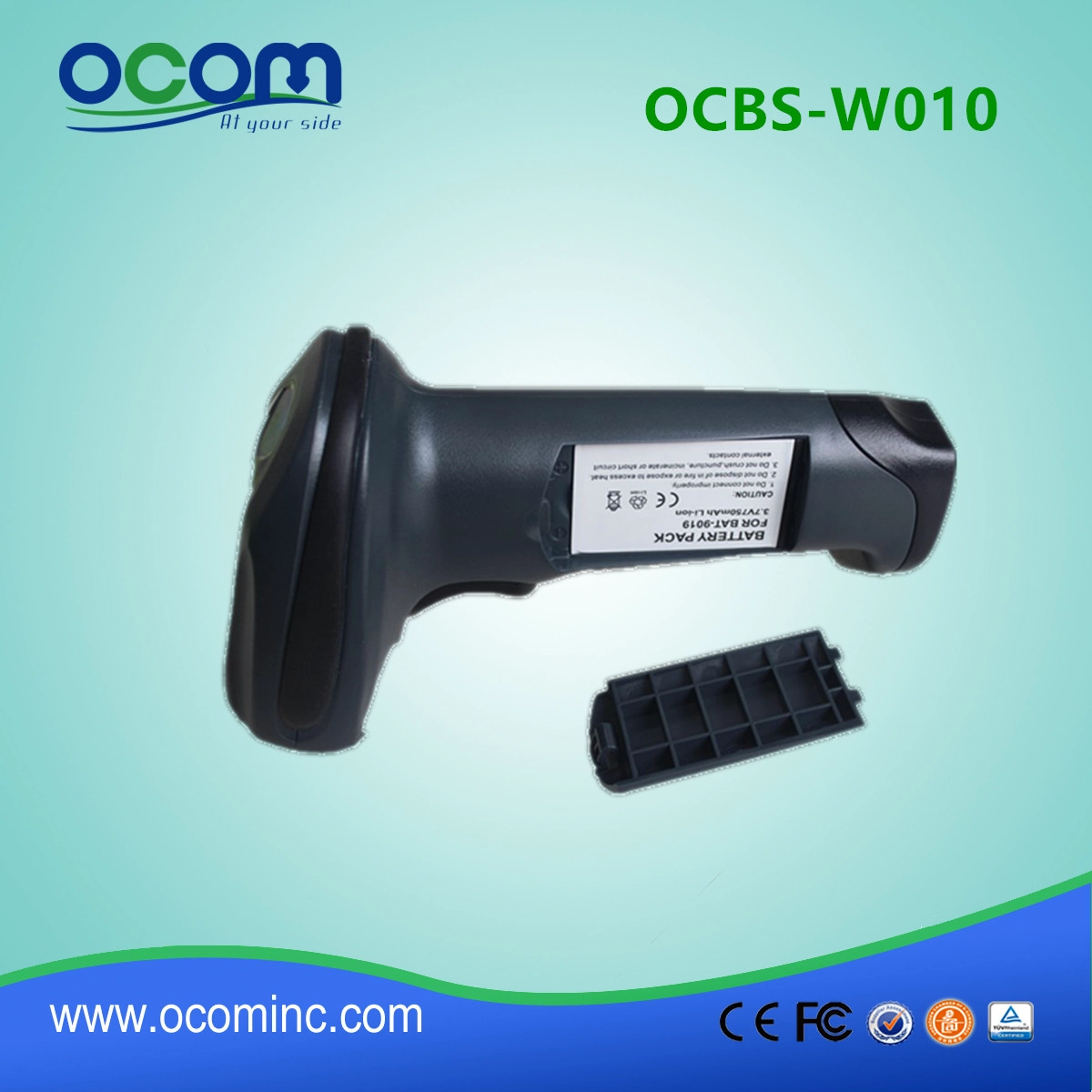

OCBS-W010 Warehouse cordless handheld 1d laser barcode scanner

  • 32bit decoding chip
  • Up to 200 scans/sec scan rate
  • Can scan broken barcodes and screen barcodes
  • Bluetooth communication mode, more flexible and portable
  • 8KB memory, can store thousands of barcodes

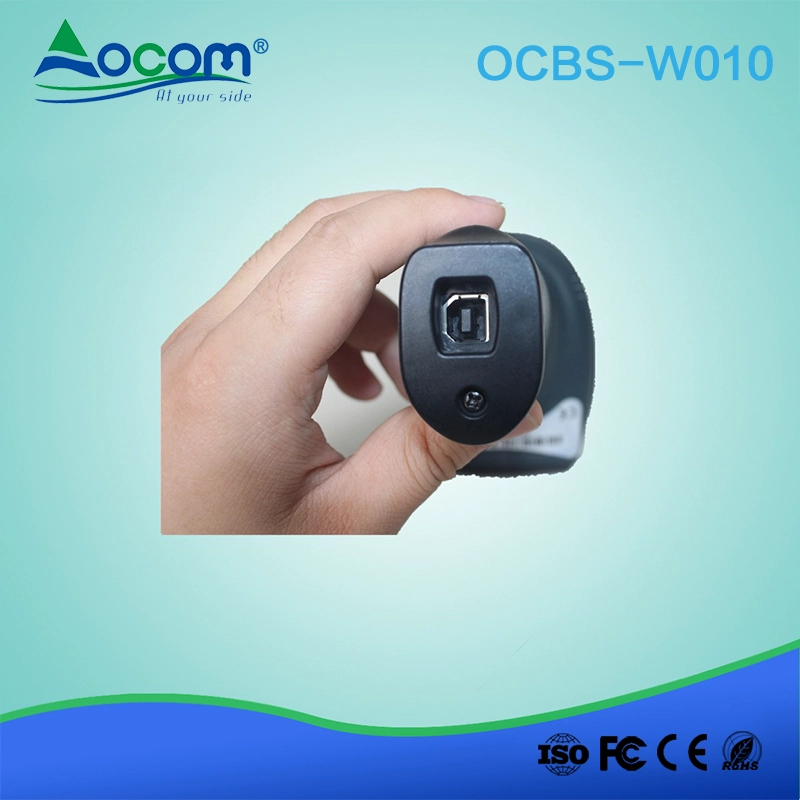

  • USB port can charger and communicate with PC

   USB cord Laser Barcode Scanner Comply Cord And 2.4g Wireless Or Bluetooth Communication


Model: OCBS-W010


FEATURE:

l  32bit decoding chip

l  Up to 200 scans/secscan rate

l  Can scan brokenbarcodes and screen barcodes

l  Bluetoothcommunication mode, more flexible and portable

l  5. 8KB memory, canstore thousands of barcodes

l  USB port cancharger and communicate with PC



Parameters:



Scanning Performance

Interface

2.4GHz&USB

decoding speed

200 Times/SEC

Read code system

EAN-13,EAN-8,UPC-A,UPC-E,ISSN,ISBN,Codabar,

Code 128,Code 93,ITF-6,ITF-14,Interleaved 2 of 5

Industrial 2 of 5,Matrix 2 of 5,GS1 Databar, Code 39,

Code 11,MSI-Plessey,Plessey

Read the precision

≥4mil

The light source

LED (610nm~640nm)

Read the depth of field

Code 39 5mil):65mm~175mm

EAN-13 (13mil)55mm~605mm

Barcode sensitivity

incline      ±60° @0°Roll and 0°Skew

rotate       ±30° @0°Pitch and 0°Skew

deflection   ±60° @0°Roll and 0°Skew

Symbol contrast

≥30% Differences with

Mechanical/electrical Parameters

Rated power

0.30W

Working voltage

3.2~3.6V DC

Electricity flow

working current  100mA

standby current   10uA

The power adapter

inputAC100~240V, 50~60Hz;

output :DC 5V ,1000mA

Appearance of size

168mm*93mm*72mm

Heavy volume

198g

Environmental Parameters

Working temperature

-20 ~ +60

Storage temperature

-40 ~ +85

Working humidity

5% ~ 95% ( No condensation)

Ambient light

0~100000LUX
