OCBS-W011 Bi-directional Wireless Bluetooth QR Code ScannersOCBS-W011 Bi-directional Wireless Bluetooth QR Code ScannersOCBS-W011 Bi-directional Wireless Bluetooth QR Code ScannersOCBS-W011 Bi-directional Wireless Bluetooth QR Code ScannersOCBS-W011 Bi-directional Wireless Bluetooth QR Code ScannersOCBS-W011 Bi-directional Wireless Bluetooth QR Code Scanners

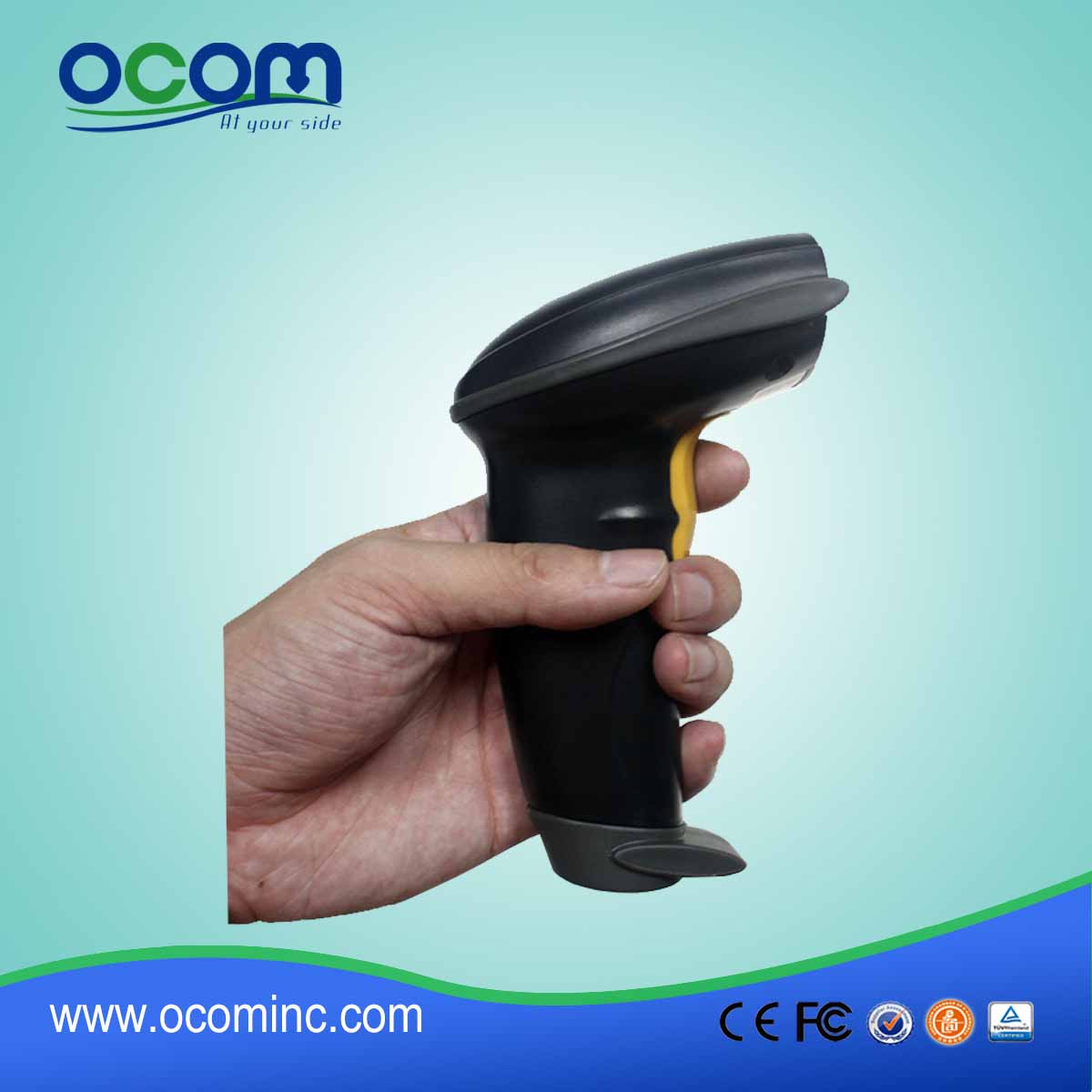

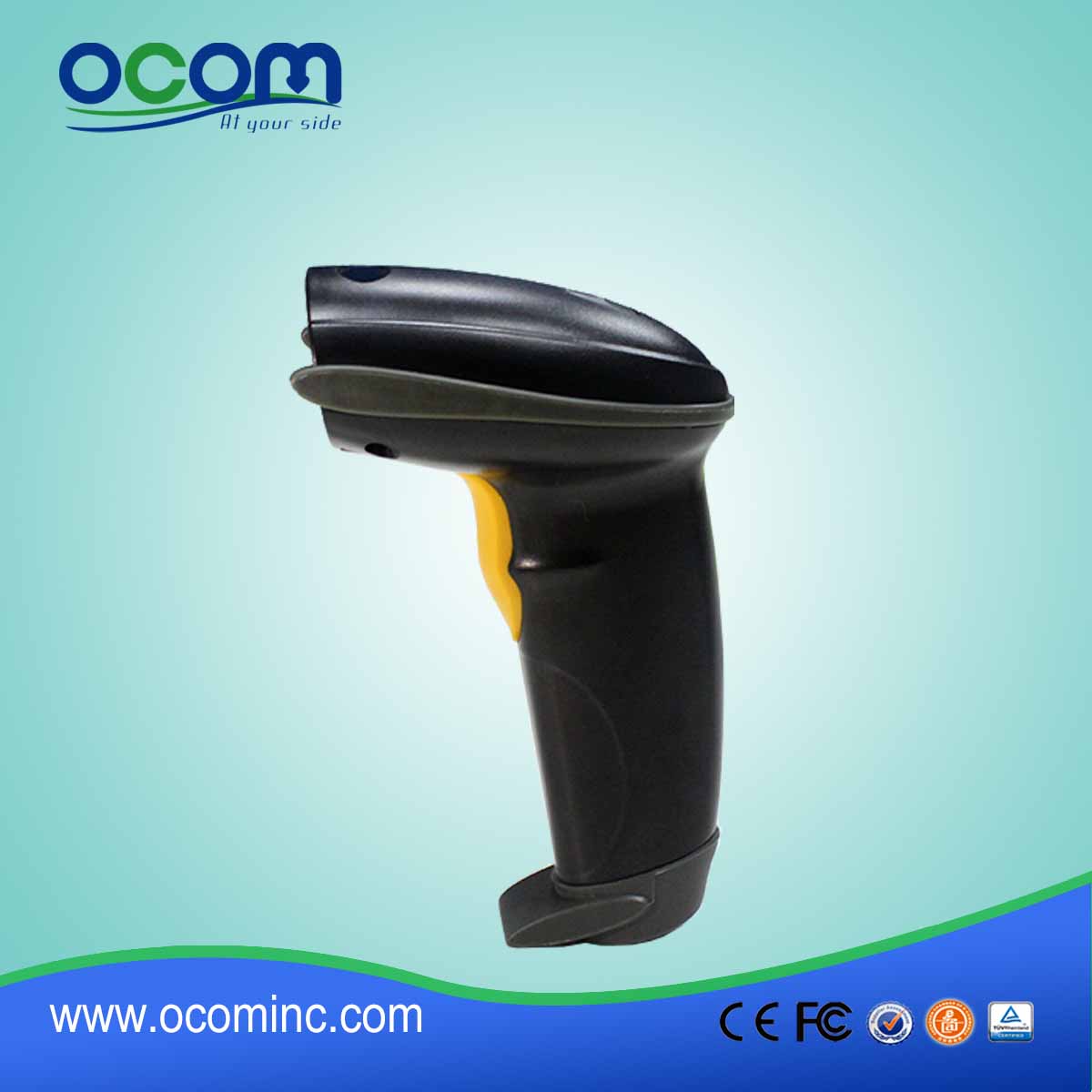

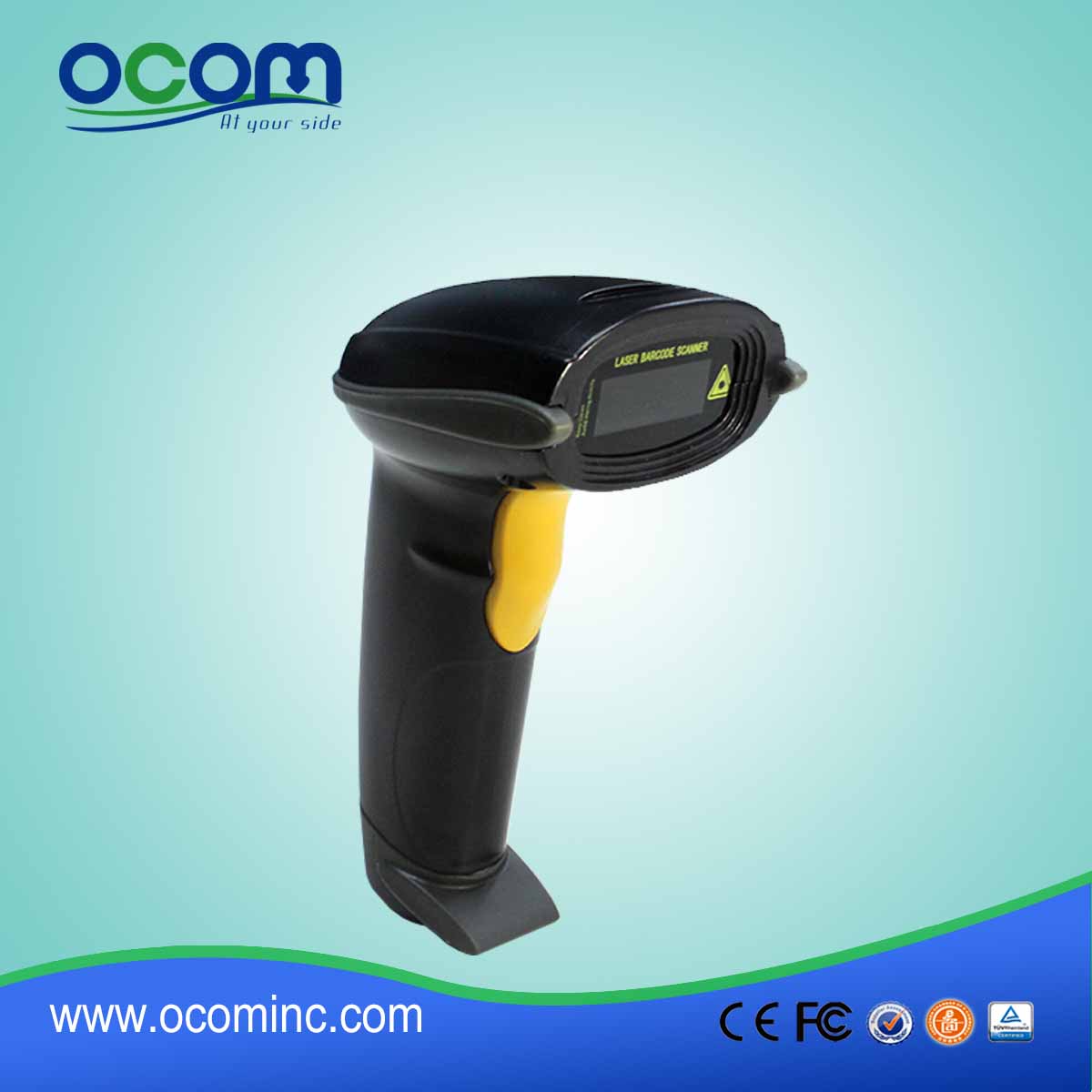

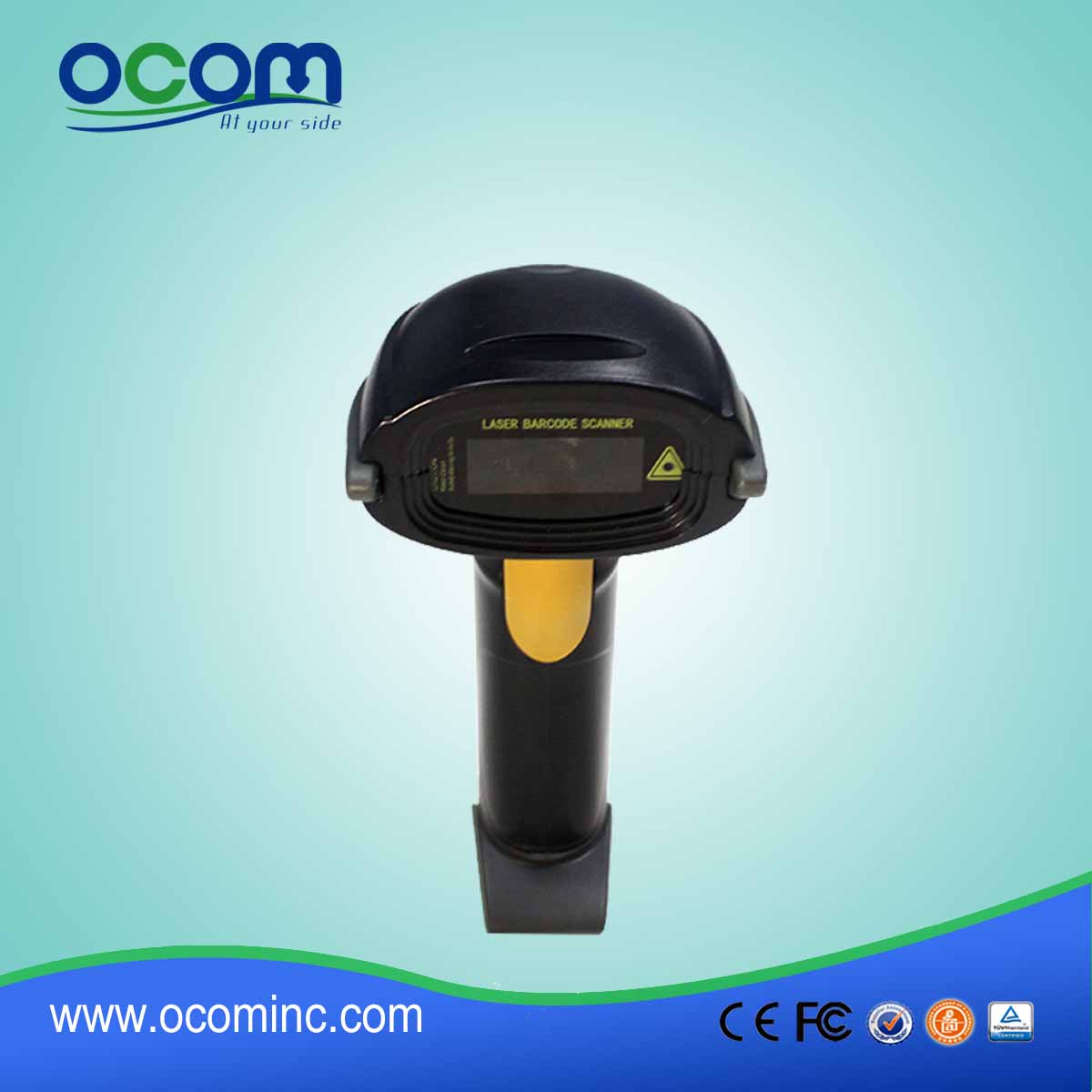

OCBS-W011 Bi-directional Wireless Bluetooth QR Code Scanners

  • Classic appearance;
  • High scan rate (100 scans/sec) and long reading distance;
  • Excellent decode capability;
  • Durable construction combined with future-proofing;
  • Grey and Black Color available
OCBS-W011 Bi-directional Wireless Bluetooth QR Code Scanners

Classic appearance;
High scan rate (100 scans/sec) and long reading distance;
Excellent decode capability;
Durable construction combined with future-proofing;
Grey and Black Color available



Bluetooth Wireless Laser Barcode Scanner Specification

Performance Characteristics
Light Source: Visible laser (650-670nm)
Scan Rate: 100 scans per second
Reading Distance 2.5 ~600mm (100% UPC/EAN)
Scanner Type: Bi-directional
Resolution: 0.10mm (4mil) at PCS 0.9
Print Contrast Minimum: 30%, minimum reflective difference (@650nm)
Error Rate: 1/3000000
Decode Capability: UPC/EAN, UPC/EAN with supplementals, UCC/EAN128, code 39, code 39 full ASCII, code 39 trioptic, code 128, code 128 full ASCII, codabar, interleaved 2 of 5,discrete 2 of 5, code 93, MSI, code 11, ATA, RSS variants, Chinese 2 of 5
Physical Characteristics
Interfaces Supported: 433MHz or Bluetooth Wireless communication, 433 version has a usb receiver,
USB port for battery charging
Wireless range 433M hz wireless: 300m in open area;
Bluetooth: 15m
Battery 900mAh,3.3V
Current: 100 mA
Idle Current: <40 mA
Power Source: USB cabel for Charging
Scanning Angle Inclination 45° Elevation 60°
Dimensions: L165mm X W63mm X H87mm
Weight: 129g (without stand)
Stand Optional
Color: Grey and black
User Environment
Operating Temperature: 0~40 deg C
Storage Temperature: -40~ 60 deg C
Humidity: 5~95% relative humidity, non-condensing
Electrostatic Discharge: Confirm to +/-15KV air discharge and +/-8KV of contact discharge
Drop Specifications: Withstands multiple 1.5m drops to concrete
Safe:
EMI/RFI: FCC Class A and CE
Laser Safety: CDRH class 2 laser product

Bluetooth Wireless Laser Barcode Scanner-OCBS-W011-B Discription

 China factory Bluetooth Wireless Laser Barcode Scanner-OCBS-W011,High scan rate (100 scans/sec) and long reading distance; Excellent decode capability;Durable construction combined with future-proofing;


China Factory Bluetooth Wireless Laser Barcode Scanner
