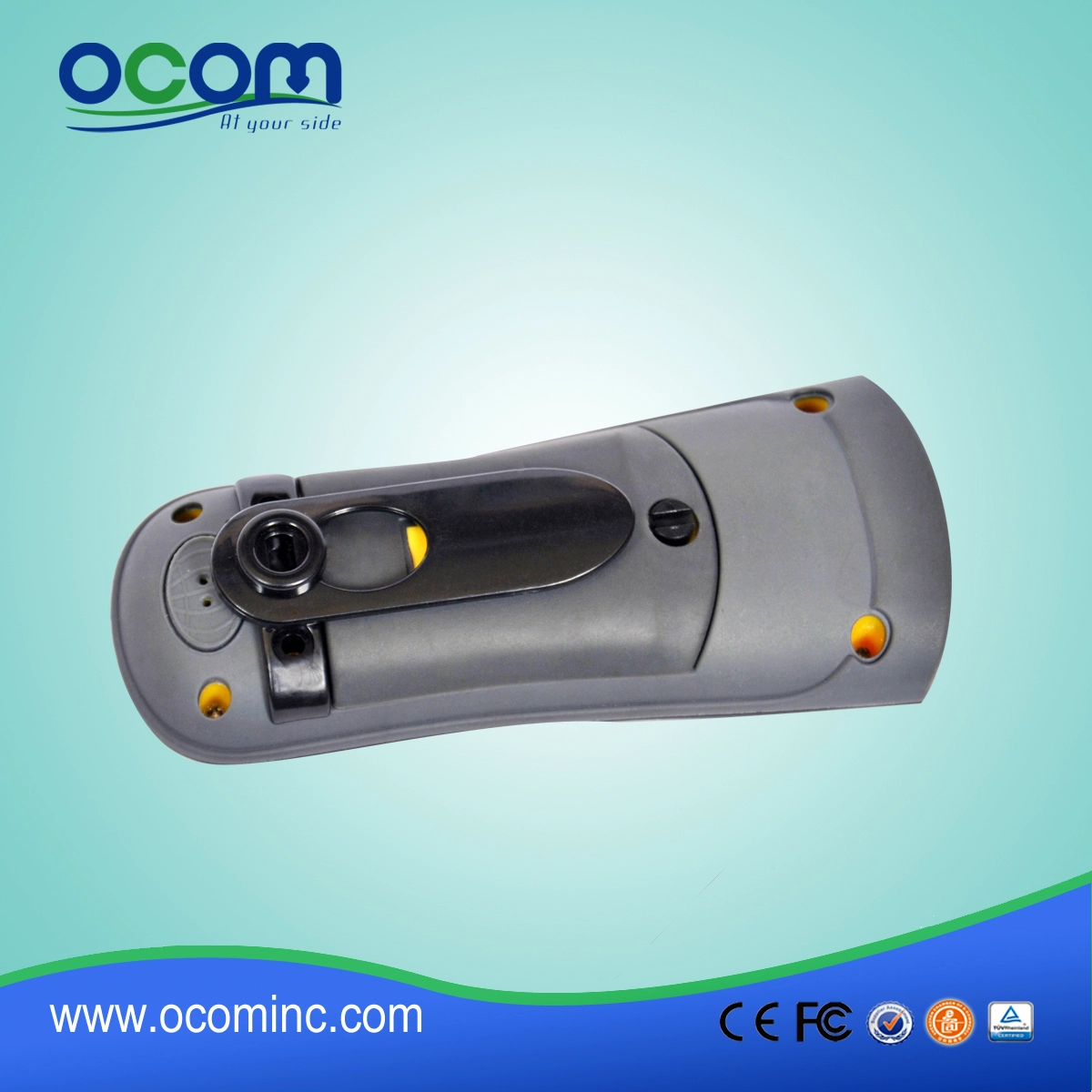

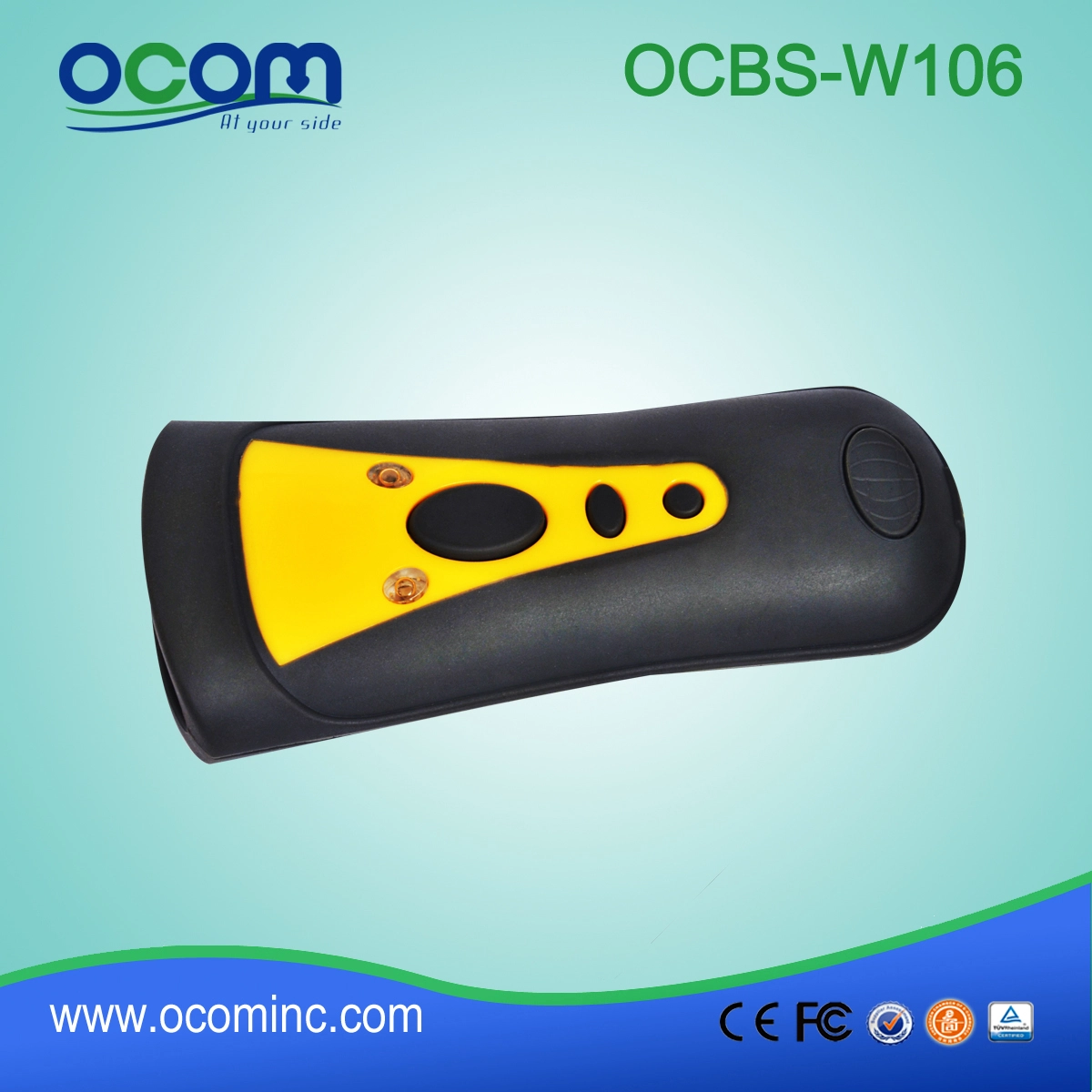

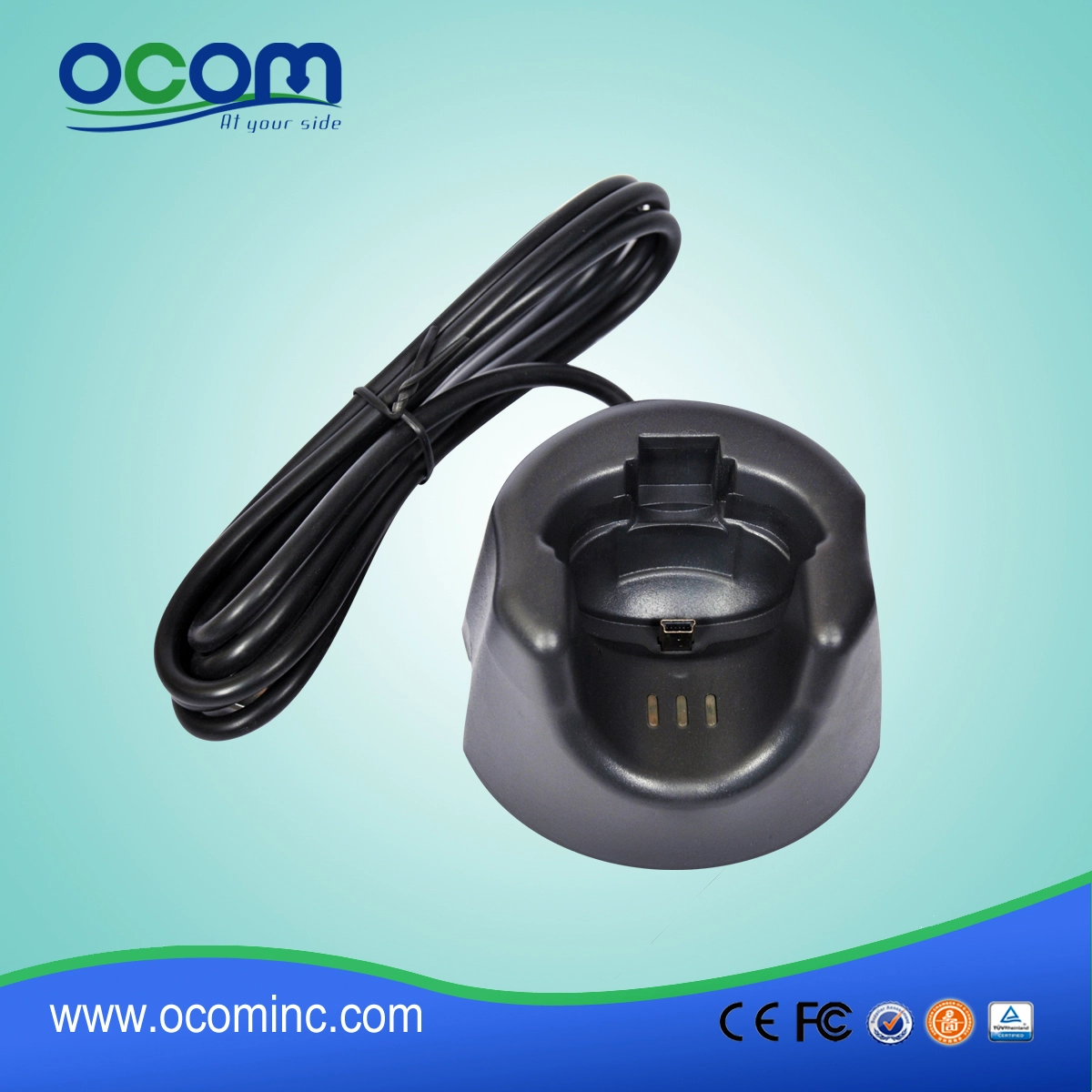

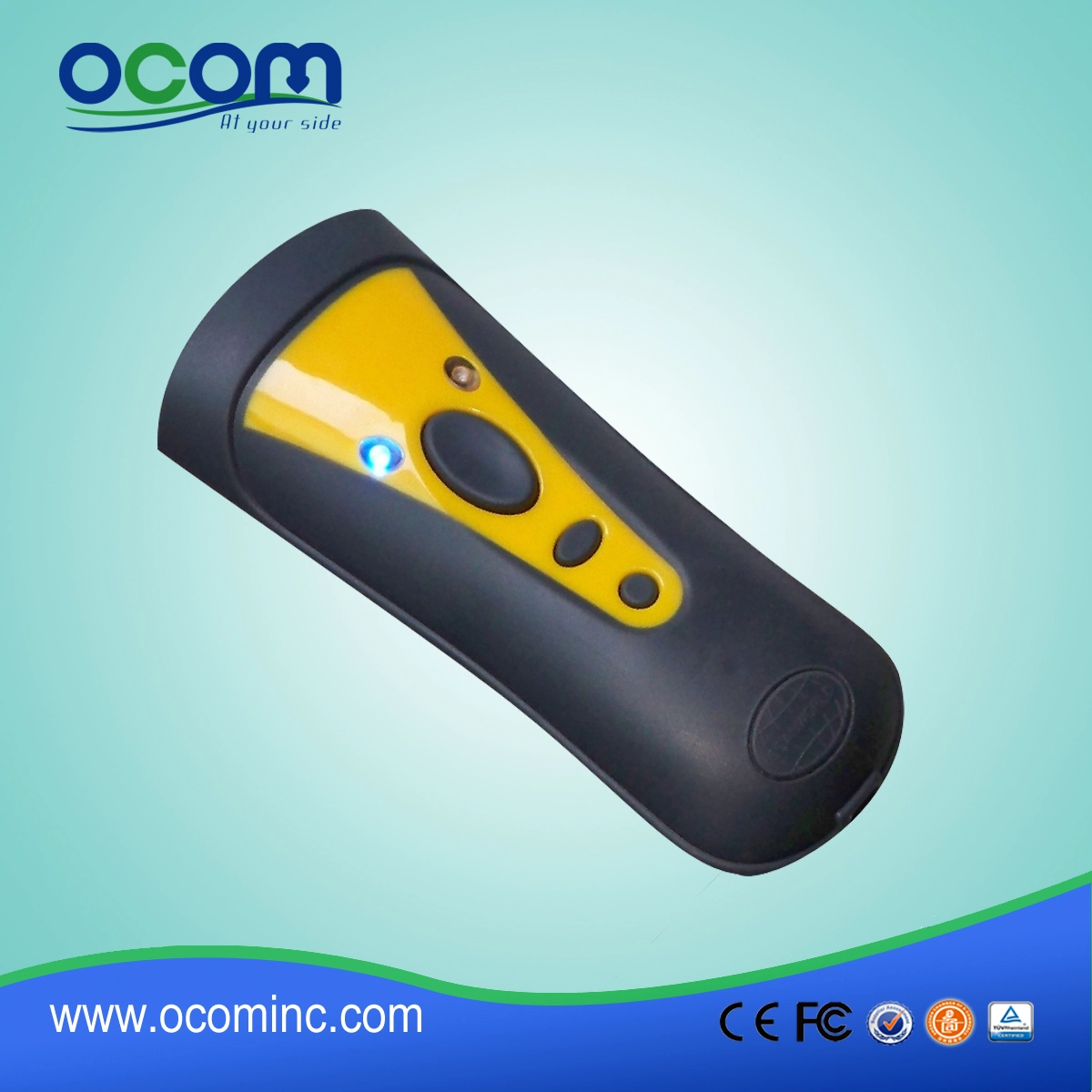

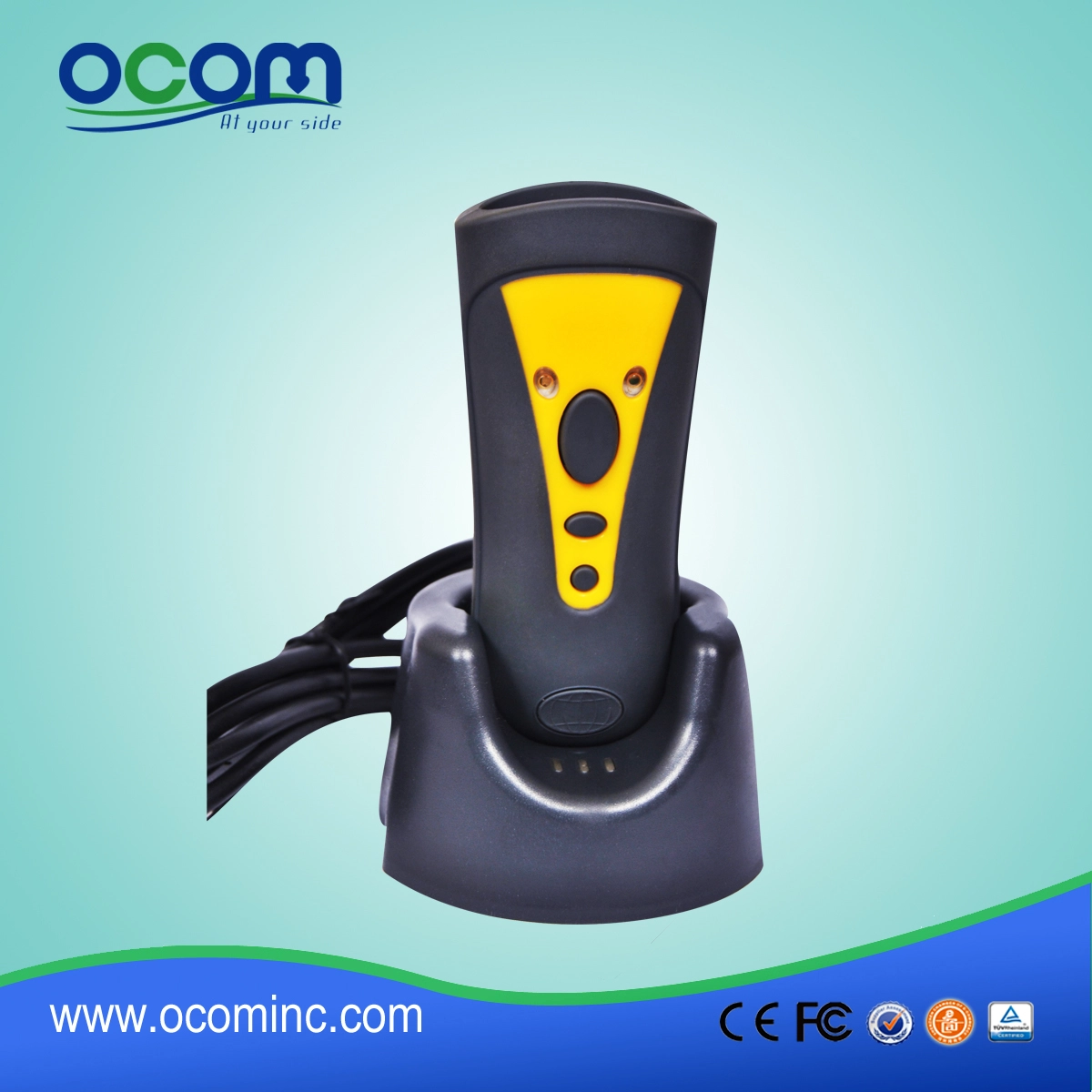

Mini Portable Bluetooth 1D Barcode Scanner(OCBS-W106)
- 1D and 2D optional:1D - Laser 650nm, 2D - CMOS 300K million pixels;
- Multiple Interfaces Support:USB,RS-232,PS/2;
- Impressive Scan Rate:1D -about 200SPS, 2D - 600MHz Processor;
- Durable Construction:2.5m Shock resistant;
- Lightweight Construction:216 grams with cable,110 grams without cable;
- Bluetooth Communication: Class I/II (10m/100m);
- Built-in SPP and HID;
- 512MB memory;
- Master/Slave Switchable;
- 900mAH Li-ion Battery;
|
Hardware |
||
|
2D CMOS |
||
|
Sensor |
CMOS 640x 480 |
|
|
Symbologies |
Most 1Ds and PDF 417,QR Code, Data Matrix, Maxi code, Aztec, etc. |
|
|
Reading Distance |
UPC/ EAN /13 mils |
30 to 205 mm |
|
Code 39/ 20 mils |
30 to 305 mm |
|
|
PDF 417 /10 mils |
50 to 155 mm |
|
|
Data matrix /15 mils |
52 to 155 mm |
|
|
1D LASER |
||
|
Light Source |
Visible laser diode, wavelength 650nm |
|
|
Scanner Rate |
200 scans per seconds(SPS) |
|
|
Resolution |
0.1mm(4mil) at PCS 0.9 |
|
|
Reading Distance |
1 to 80cm(resolution dependent) |
|
|
Tilt Angle |
45 Degree |
|
|
Skew Angle |
65 Degree |
|
|
PCS |
0.3 |
|
|
Power |
||
|
Voltage Requirement |
DC+5V 5% |
|
|
Peak Current |
98mA |
|
|
Idle Current |
63mA |
|
|
Environment |
||
|
Temperature
|
Operation:-10 Degree C -50 Degree C Storage:-20 Degree C-60 Degree C |
|
|
Humidity |
Operation:5%-95%( non-condensing) Storage:5%-95%( non-condensing) |
|
|
Shock |
2.5m drop on concrete surface |
|
|
EMI Generation |
FCC |
|
|
Safety |
CDRH class 1 laser product |
|
|
Ambient Light |
Max.10 ,000 Lux(FL) |
|
|
Physical |
||
|
Size |
123mmx54mmx29mm |
|
|
Weight |
216g(with cable) |
|
|
Cable Length |
1.8m |
|
|
Bluetooth |
||
|
Comm Dist |
10m/100m |
|
|
Communication |
Built-in SPP and HID |
|
|
Mode |
Master or Slave |
|
|
Current Consumption |
1 88mA |
|
|
Idle Current |
93mA |
|
|
Battery |
Li-ion 950mAH |
|
|
Working Hours |
>10 hrs |
|
|
Memory |
4M memory |
|
|
Ordering Information |
||
|
OCBS-W106 |
Mini Portable Bluetooth 1D Barcode Scanner |
|
|
OCBS-W206 |
Mini Portable Bluetooth 2D Barcode Scanner |
|
