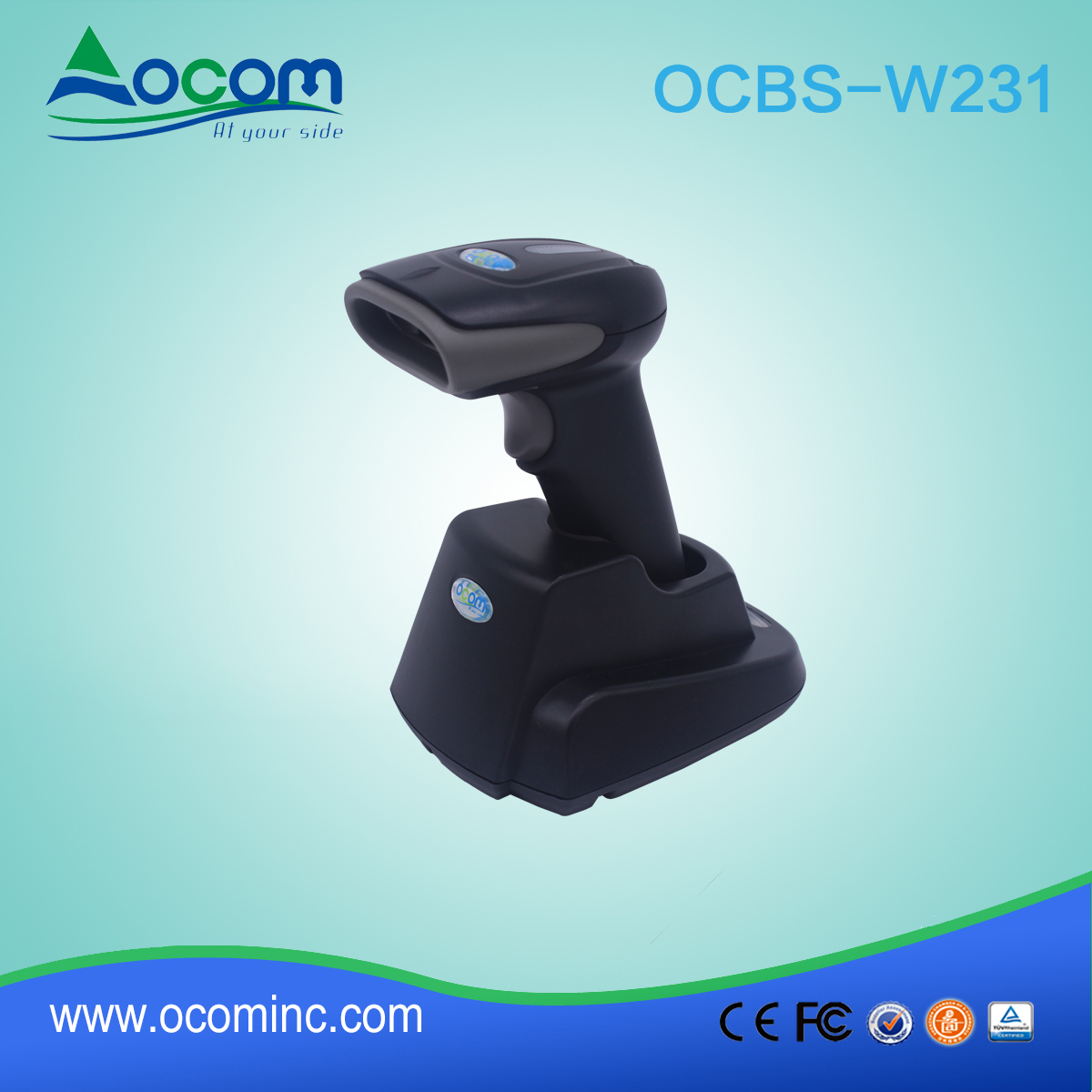

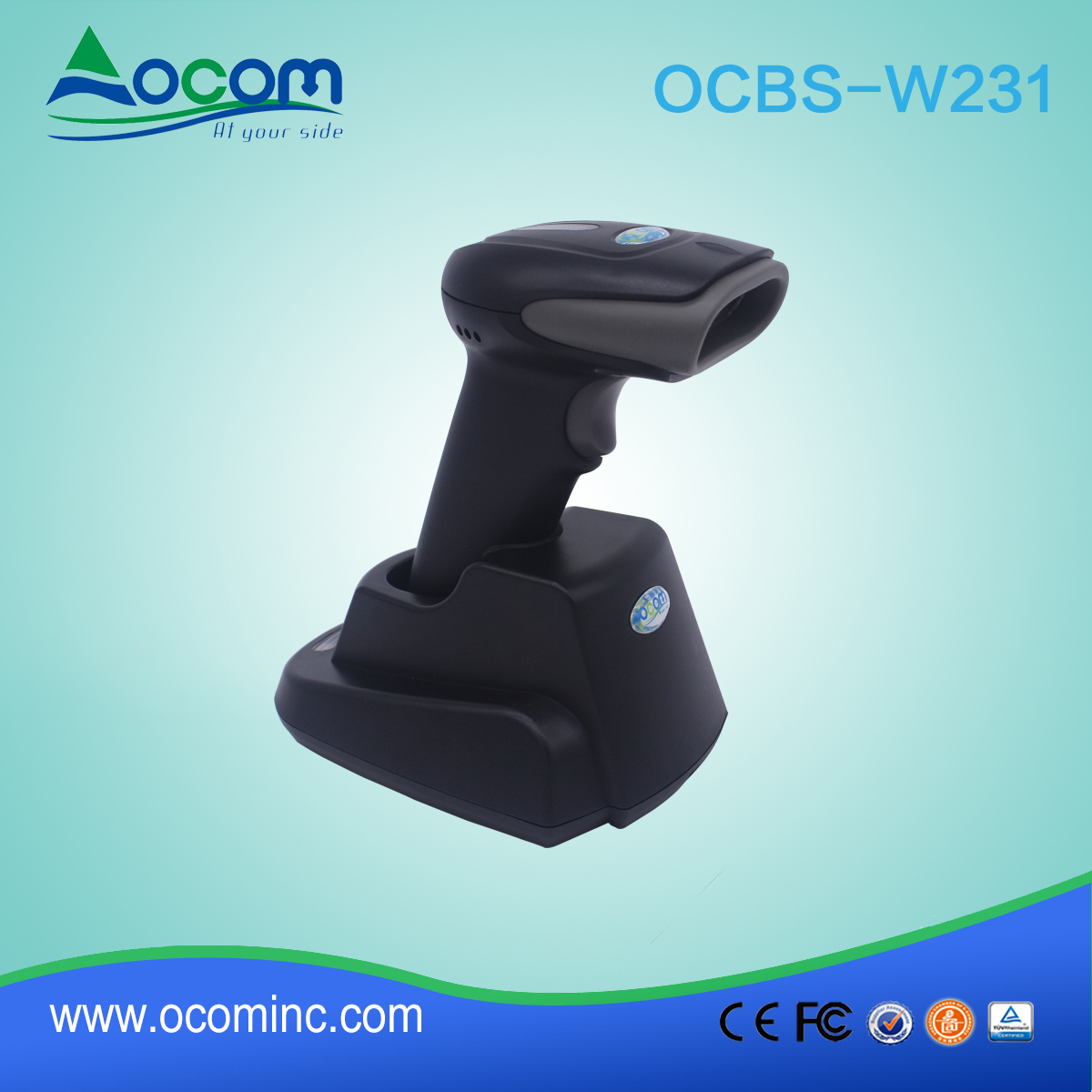

(OCBS-W231) Manual 2d barcode scanner with stand

Wireless range 433 MHz outdoor 300 m indoor, 100 m; The distance to the Bluetooth wireless outdoor 20 m and 10 m indoor;
Equipped with communication and charging stand
Soft plastic cover to protect the lens and an outline significantly improves the performance of anti-drop;
Bar codes on the screen of computers and mobile phones can be scanned;
You do not need drivers, plug and play;
You can store more than 10 000 pieces of data;
Multiple scanners can be connected to one receiver (433 MHz).

High quality 433 MHz or Bluetooth Wireless QR Code 2D barcode scanner with stand

Model: OCBS-W231-4/B

Features:
1, 433 MHz wireless communication distance 300 m outdoor, indoor 100 m; The distance to the Bluetooth wireless outdoor 20 m and 10 m indoor;
2, equipped with charging and communication
3, a soft plastic cover to protect the lens and an outline significantly improves the performance of anti-drop;
4, bar codes on the screen of computers and mobile phones can be scanned;
5, you do not need drivers, plug & play;
6, can store more than 10 000 pieces of data;
7, multiple scanners can be connected to one receiver (433 MHz).

Parameters:

Having a light source	617 nm LED
Light source lighting	625 nm LED
Scan angle	39 ° (H) 25 ° (V)
The angle of rotation	0-360 °
Elevation angle	65 °
Tilt angle	60 °
Print contrast	Higher than 25%
1 d	UPC/EAN, UPC/EAN with supplementals, BooklandEAN, ISSN, UCC coupon extended free Code128, GS1-128, ISBT 128, Code 39, code 39 full ASCII, Code 39 Trioptic, code 93, code 32, Code11, Matrix 2 5, Interleaved 2 of 5, discrete 2of 5, Codabar, MSI, 2, 5, Barvariants data, GS1, Korean 3 5, ISBT Concat
2D	Type of PDF417, MicroPDF417, complex codes, TLC-39, DataMatrix, Maxicode, QR code, Aztec, MicroQR
Interface	USB (Cable Wireless receiver)
Communication range	433 MHz: inside: 100 m; Outside: 300 m (max.) Bluetooth: Inside: 10 m; Outside: 20 m (max.)
Operating temperature	-10 degrees C-45 degrees C
Storage temperature	-20 ° C-65 ° C
Operating humidity	5-85%
Moisture content during storage	5%-95%
The durability of the	Can withstand a variety of 1.5 m to concrete
Power input	5 v DC, 280mA
Charging time	6 h
Battery	1500mAh
Luminance	Inside: 3,000 LUX max; Sunlight: max 86000 LUX
IP grade	Ip42
DECODE RANGES
A typical performance *			Typical operating ranges
			Focus range HD
Bar code type		The density of the symbols	Near	Much
The code 39		5.0 miles	5 mm	90 mm
100% of the UPCA BARCODES		13.0 miles	8 mm	200 mm
The code 39		20.0 miles	8 mm	250 mm
PDF 417		6.8 miles	5 mm	95 mm
The Data Matrix		10.0 miles	5 mm	110 mm
QR code for		20.0 miles	10 mm	150 mm
Resolution 1 d code 39		4 mil
The resolution of the 2D Data Matrix		10 mil
Material		ABS + PC
A dimension		Scanner (70 * 95 * 168 mm) Base (145 * 112 * 74 mm)
Net weight		Scanner 185 g Base 186 g
Ordering information:		OCBS-W231-4: 2d barcode scanner wireless 433 MHz from the cradle
		OCBS-W231-B: 2d scanner with barocde Bluetooth cradle
