OCBS-W232 Charging Base 2.4G Wireless Bluetooth 2D QR Barcode ScannerOCBS-W232 Charging Base 2.4G Wireless Bluetooth 2D QR Barcode ScannerOCBS-W232 Charging Base 2.4G Wireless Bluetooth 2D QR Barcode ScannerOCBS-W232 Charging Base 2.4G Wireless Bluetooth 2D QR Barcode ScannerOCBS-W232 Charging Base 2.4G Wireless Bluetooth 2D QR Barcode Scanner

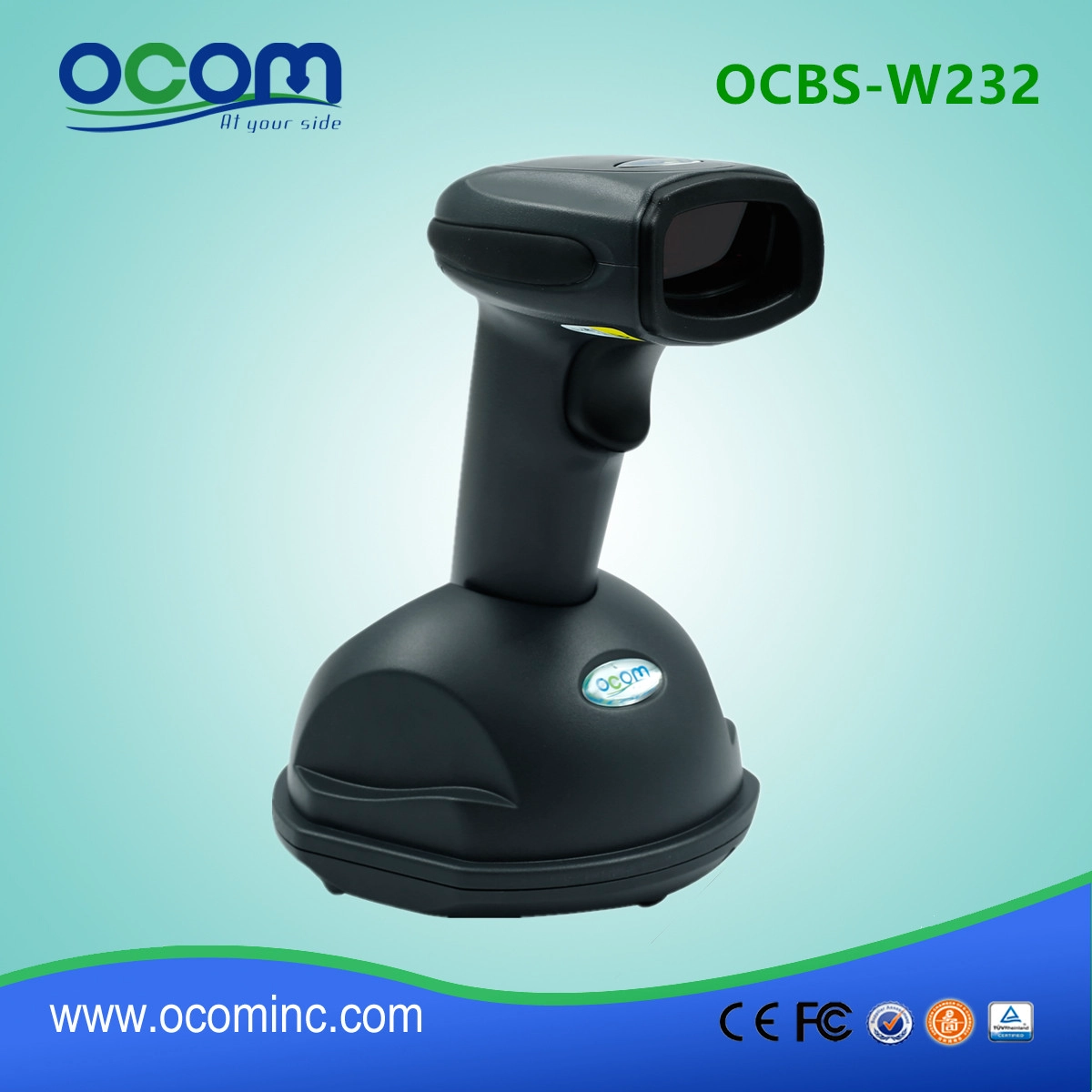

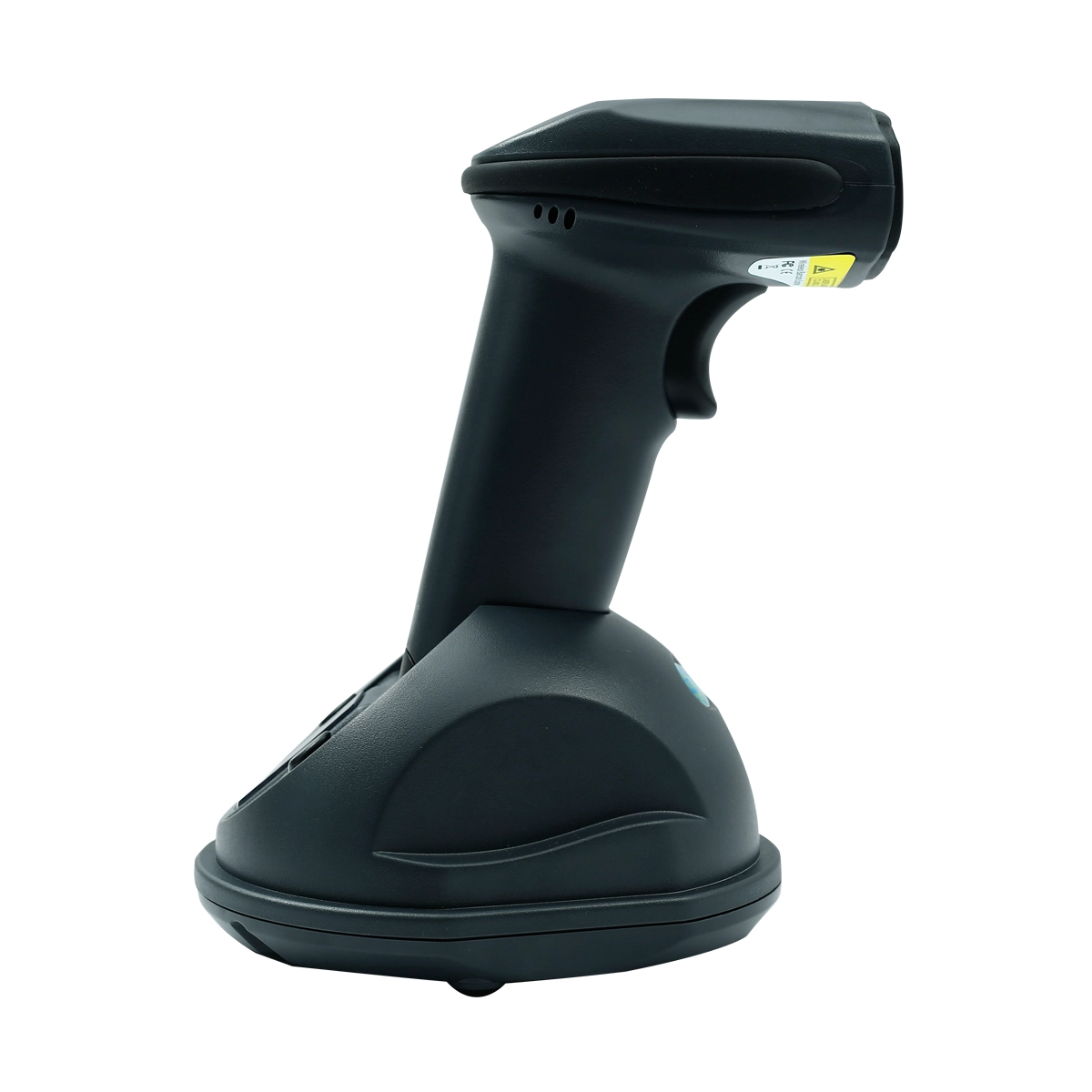

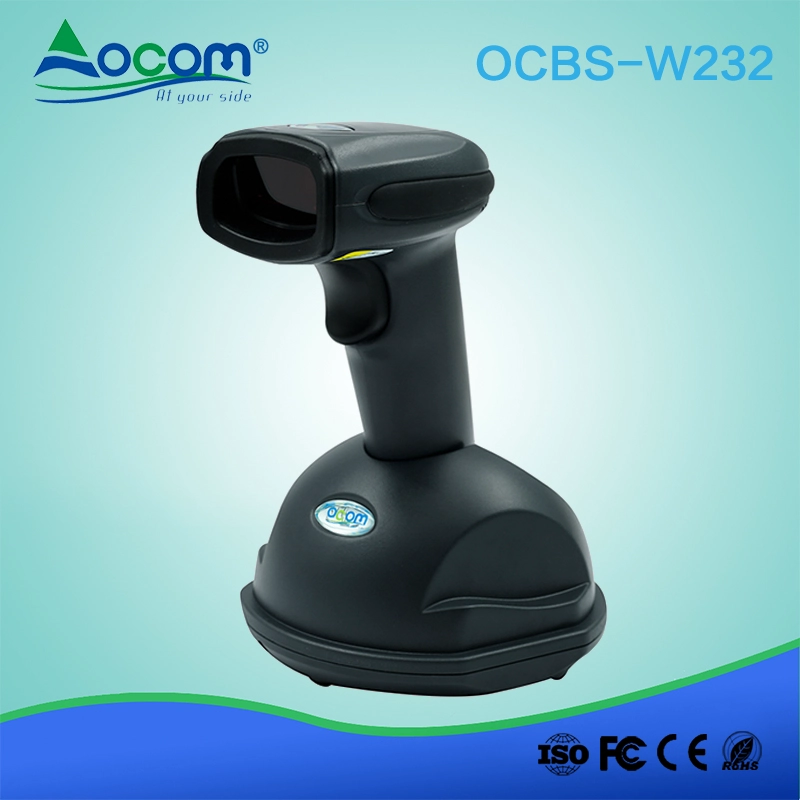

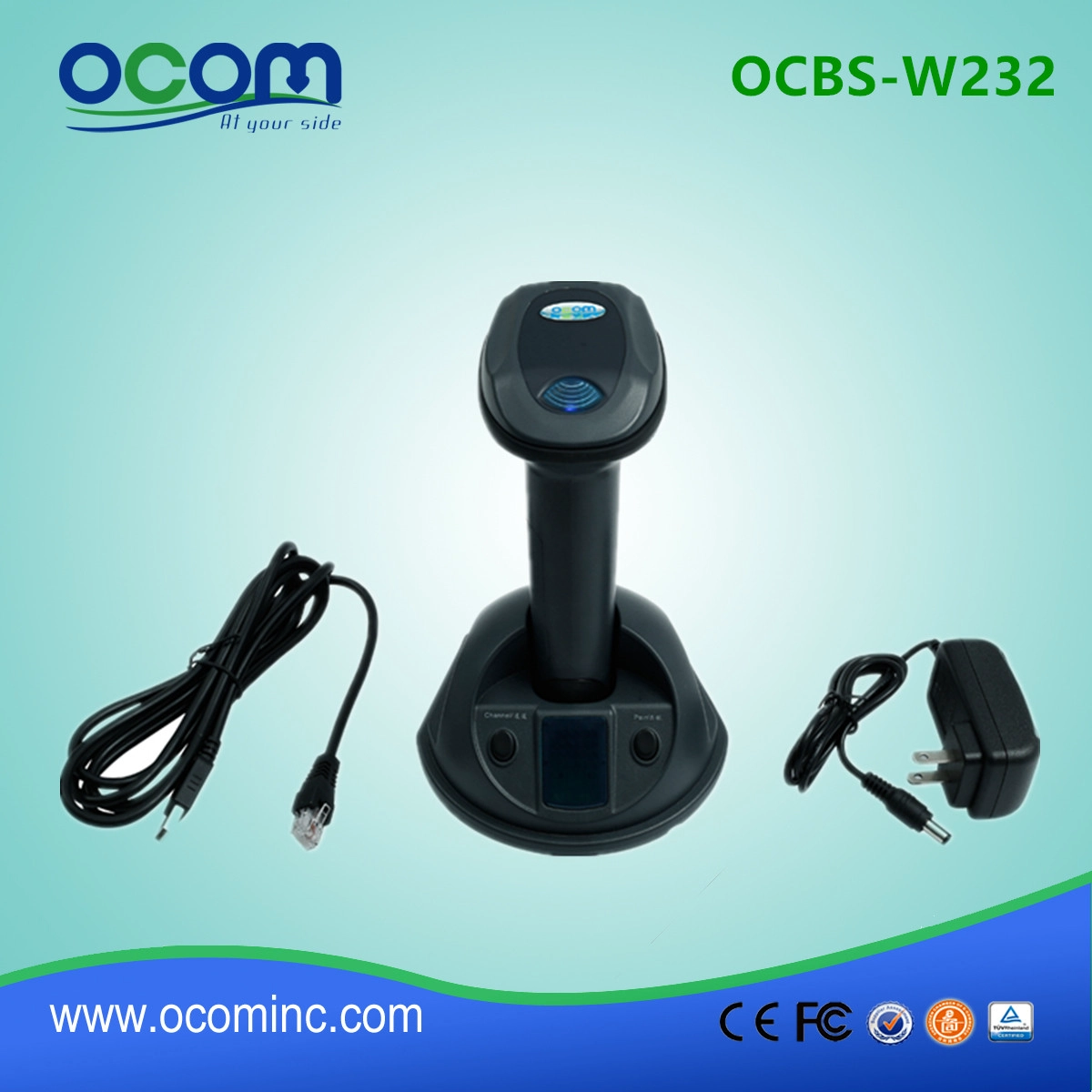

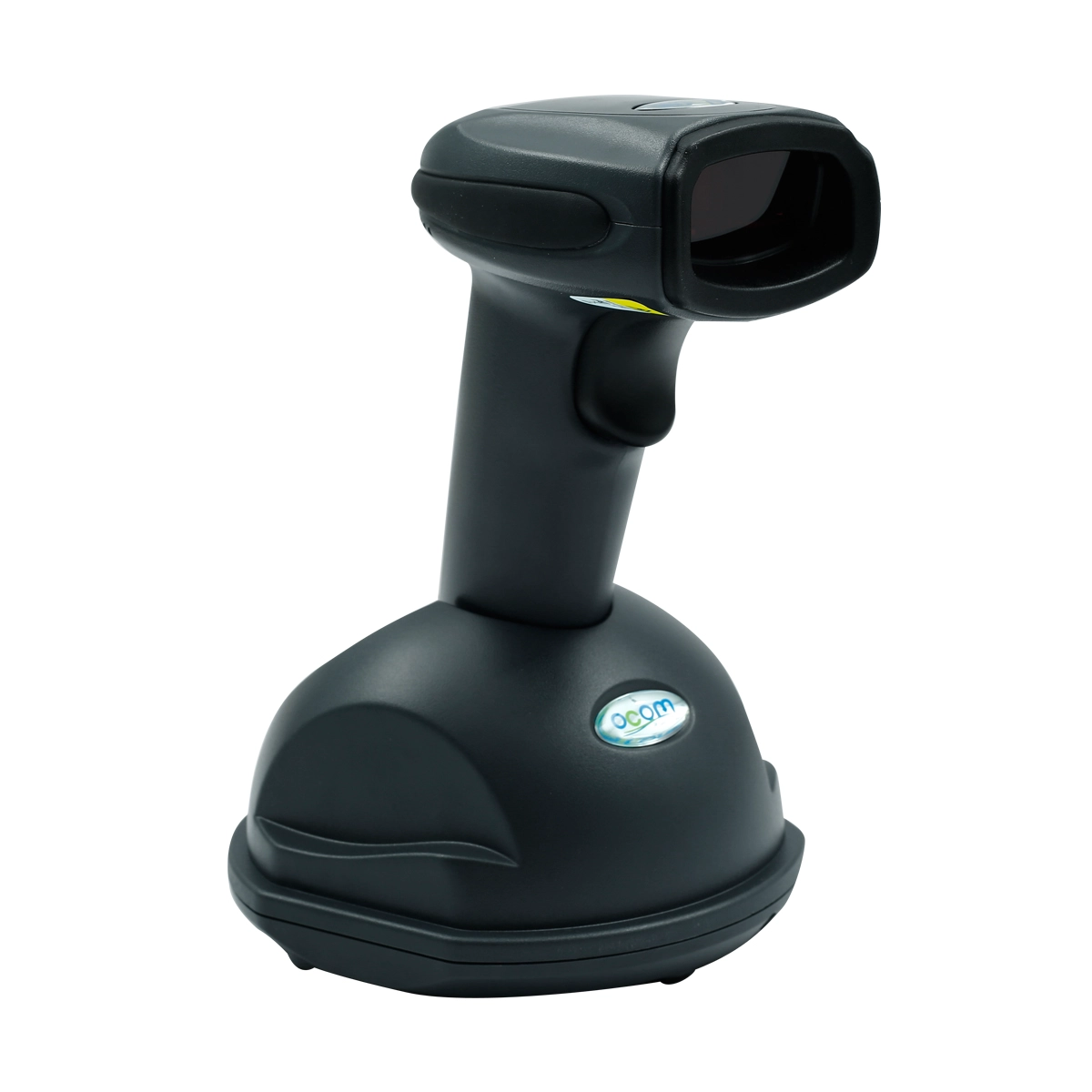

OCBS-W232 Charging Base 2.4G Wireless Bluetooth 2D QR Barcode Scanner

  • Integrated non-volatile memory;
  • 32bit decoder ensuring excellent decoding ability;
  • Compatible with both Bluetooth and 433MHZ wireless communications;
  • 433MHz wireless data transmission distance reaches 200m in open area;
  • Bluetooth wireless data transmission distance reaches 15m;
  • 433MHz wireless receiver can works with 100 scanners ;
  • Simple pairing mode, the user is more convenient;
  • Intelligent battery management system, real-time check the remaining battery;

433MHz&Bluetooth Wireless 2D Barcode Scanner

(ModelNo.: OCBS-W232)







Feature:



n Integratednon-volatile memory;

n  32bit decoder ensuring excellentdecoding ability;

n  Compatible with both Bluetooth and433MHZ wireless communications;

n  433MHz wireless data transmissiondistance reaches 200m in open area;

n  Bluetooth wireless data transmissiondistance reaches 15m;

n  433MHz wireless receiver can workswith 100 scanners ;

n  Simple pairing mode, the user ismore convenient;

n  Intelligent batterymanagement system, real-time check the remaining battery;





Specification:



PHYSICAL CHARACTERSTICS

Scan mode

Image type

Memory

128K

Scanner Dimensions(W * H * D)

168mm * 72mm * 93mm

Receiver Dimensions(W * H * D)

130mm*45mm*129mm

Material

ABS+TPR /Aluminium alloy

Weight

370g

Scanning Mode

Hand-held; Continuous Scanning Mode.

Indicator Light

LED Red and Blue

Buzzer

Buzzer Volume Adjustable

PERFORMANCE CHARACTERSTICS

Depth of Scan Field

10-450mmContrast 0.9  Density 0.25

Scan Speed

300 scans/sec

Scan Precision

0.10-0.825mm

Bit Error Rate

1/(5million)

Decode Capability

UPC/EAN, UPC/EAN with Supplementals, UCC/EAN128, Code39, Code 39 Full ASCII, Trioptic Code 39, Code 128, Code 128 Full ASCII, Codabar, Interleaved 2 of 5, Discrete 2 of 5, Code 93, MSI, Code 11, RSS variants, Chinese 2 of 5, MSI/Plessey, UK/Plessey, UCC/EAN 128, Chinese Code, GS1 DataBar (RSS) series,QR CODE,PDF417,DATAMATRIX

Battery

3.7V/750mAh,Li-ion

Charge Time

3.0 Hours

Scan Time

30 Hours

Current

95mA (working); 25mA(standby)

Angles

Pitch:60°; Tilt: 45°

Working Frequency

433MHz or Bluetooth

Base  Interface

USB

USER ENVIRONMENT CHARACTERSTICS

Temperature

-10 degree C to 45 degree C (Operating), -40 degree Cto 60 degree C (Storage)

Relative Humidity

5%-90%(Non-Condensing)

Drop Specification

Withstands repeated 1.5m drops to concrete surface

Ambient Illumination

0~100,000 LUX

Electrostatic Discharge

Conforms to ±12KV air discharge and ±6KV of contact discharge

Safety Certificate

CE, FCC, Class 2, RoHS
