OCBS-W234 2.4G 1/2D Raspberry pi Barcode Scanner Wireless Barcode ScannerOCBS-W234 2.4G 1/2D Raspberry pi Barcode Scanner Wireless Barcode ScannerOCBS-W234 2.4G 1/2D Raspberry pi Barcode Scanner Wireless Barcode Scanner

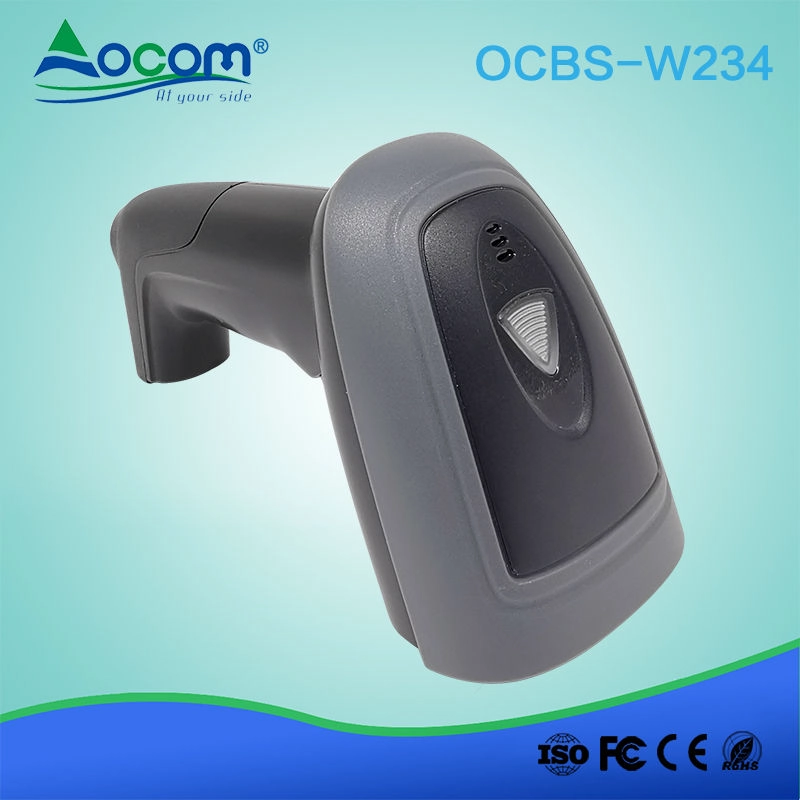

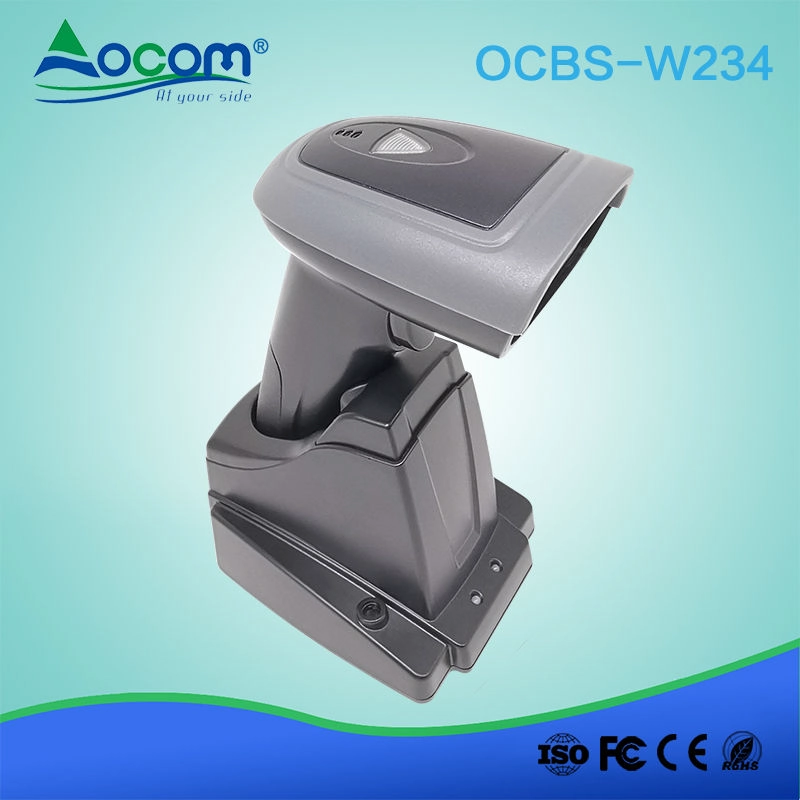

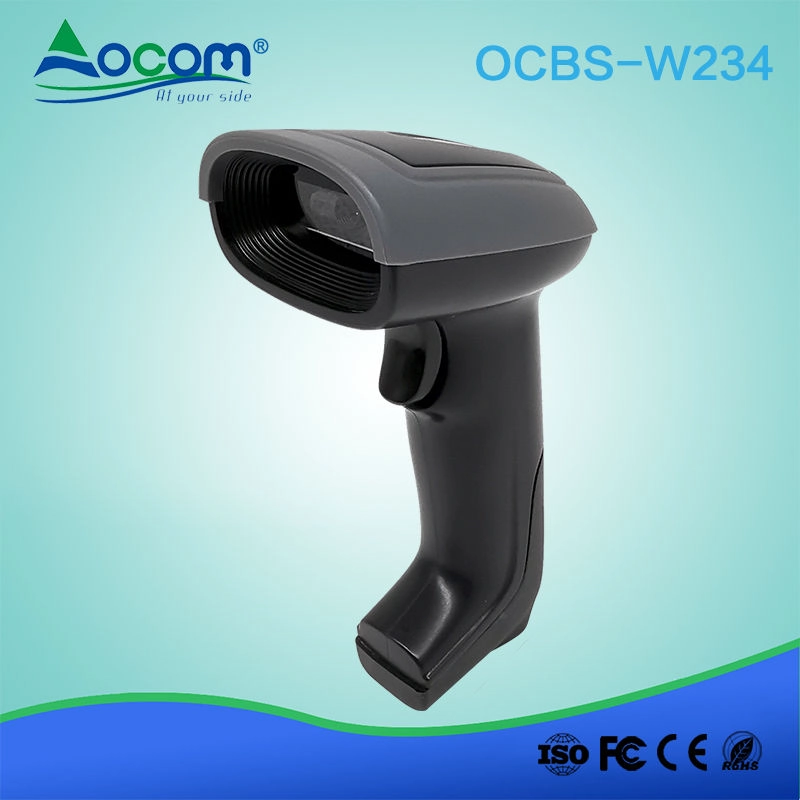

OCBS-W234 2.4G 1/2D Raspberry pi Barcode Scanner Wireless Barcode Scanner

  • Standard Long distance 2.4GHz Communication
  • Unblocked can transmit 80 meters
  • 1 million pixel high precision scanning engine
  • 190mA low power design can scan 40,000 times
  • Can work for more than 12 hours in a fully charged state
  • Standard charging and receive base
  • Big wireless buffer can transfer 1000 characters

OCBS-W234 2.4G 1/2D Raspberry pi Barcode Scanner Wireless Barcode Scanner

(M/N:OCBS-W234)



Features:



 Standard Long distance 2.4GHz Communication

 Unblocked can transmit 80 meters

 1 million pixel high precision scanning engine

 190mA low power design can scan 40,000 times

 Can work for more than 12 hours in a fully charged state

 Standard charging and receive base

 Big wireless buffer can transfer 1000 characters



PHYSICAL CHARACTERISTICS

Material

ABS+PC+TPU

Power supply

DC 5V ±5%

Operating current

190mA(operating mode)

battery

3.7V  2000mAH  18650  battery

Charging time

6.5hours

Full working time

>12 hours

Weight

170g±5g

PERFORMANCE CHARACTIESTICS

Wireless Method

2.4GHz

Transmission distance

50-80M

Light Source

Red LED Aim +white light LED

Storage

2M(about 40000 pieces  barcodes )(can be customized)

Decode capability

Codabar,Code11,Code39/Code93,UPC/EAN,Code128/EAN128,InterLeaved2of5,Matrix2of5,MSI CODE,Standard2of5.

QR CODE,DATA  MATRIX, PDF417

Resolution

Code39 5mil, QR 8.7mil, PCS45%

Depth of Field

5MIL   CODE39:       5--12   CM

15MIL  CODE39 :      4--25   CM

10MIL  CODE93 :      4--21   CM

15MIL  UPC/EAN:      4--25   CM

20MIL  QR :            4--25   CM

Scanning Speed

400times/sec

Error rate

1/500million

Setting Mode

Manual, Auto-sensing,Continuous Scanning

Scan Width

5 * 5 cm² -- 30 * 30 cm²

Prompting  Mode

Buzzer ,Indicator light(LED)

Print Contrast

Min 35%

Scanning Angles

Roll 0-360°, Pitch±65°, Yaw±60°

USER ENVIRONMENT

IP level

≥IP54

Operating Temp

0 to 50 ºC / 32 to 122 ºF

Storage Temp

0 to 50 ºC / 32 to 122 ºF

Operating Humidity

5 - 95% (non-condensing)

Storage Humidity

5 - 95% (non-condensing)

Electrostatic Protection

15KV

Shock Resistance

1.5M free fall on concrete surface
