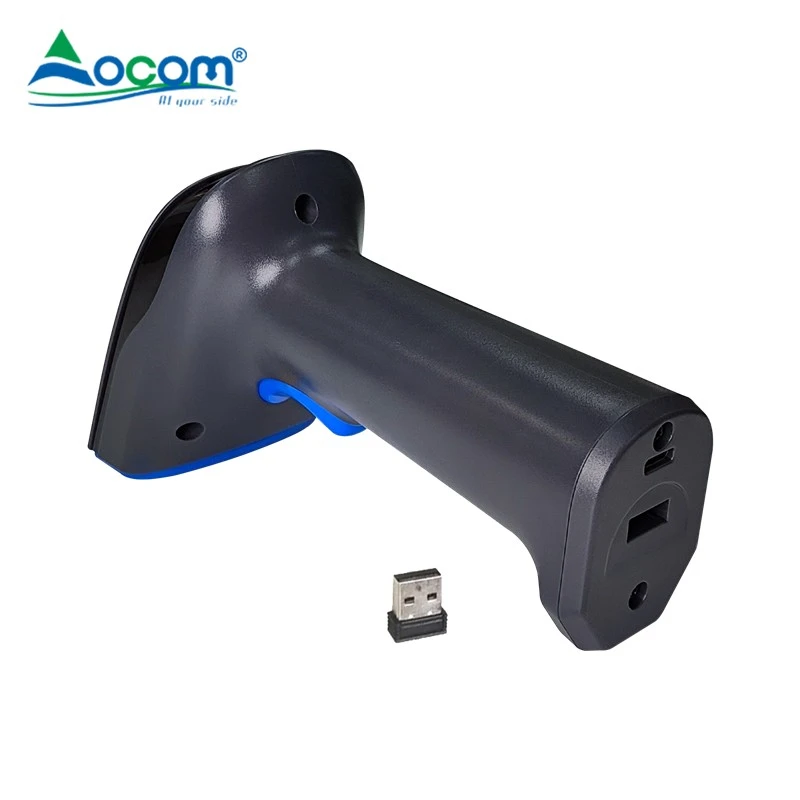

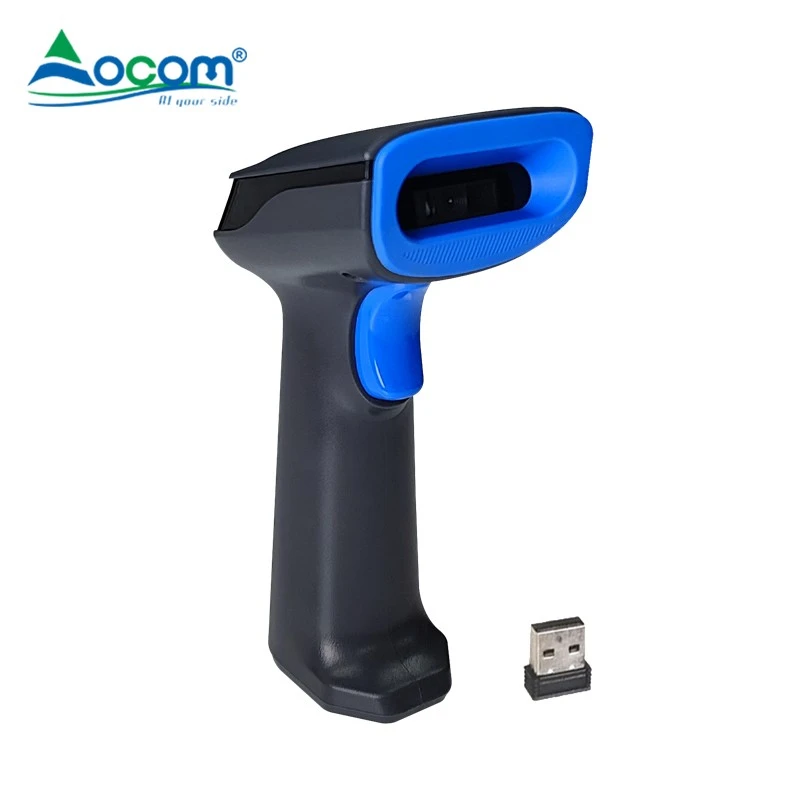

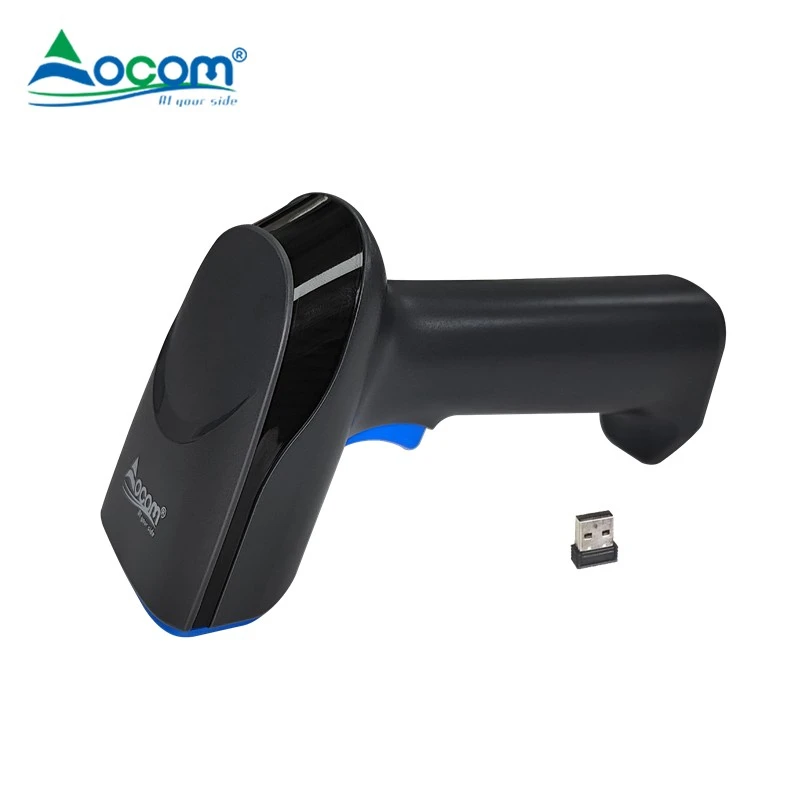

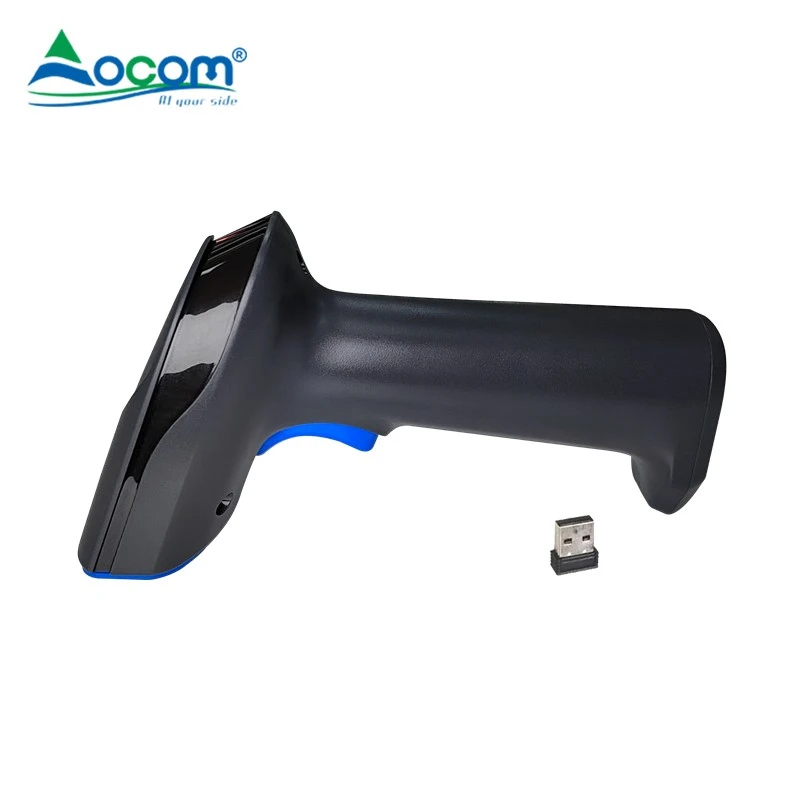

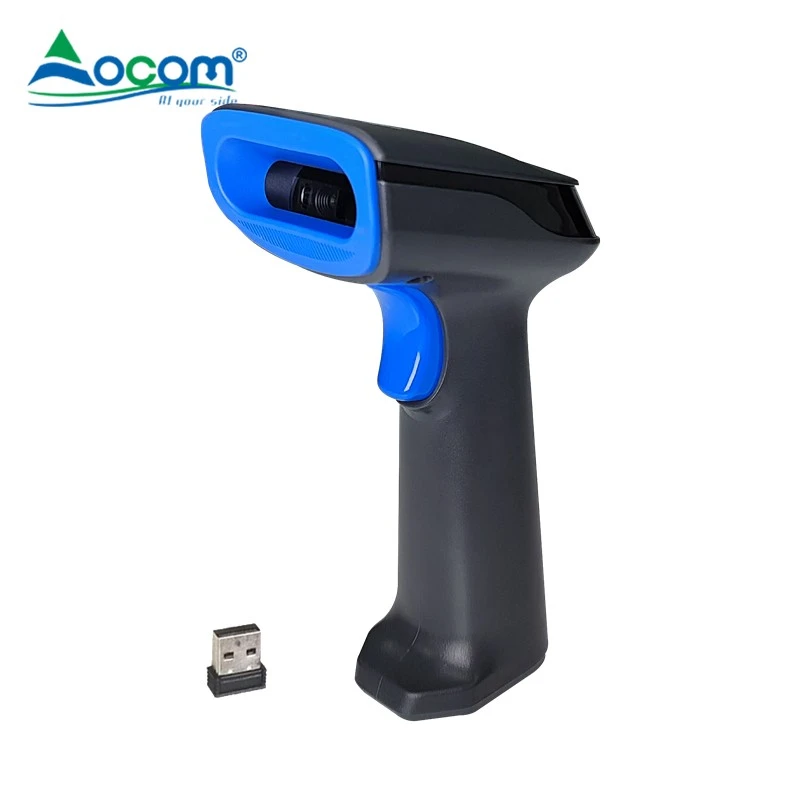

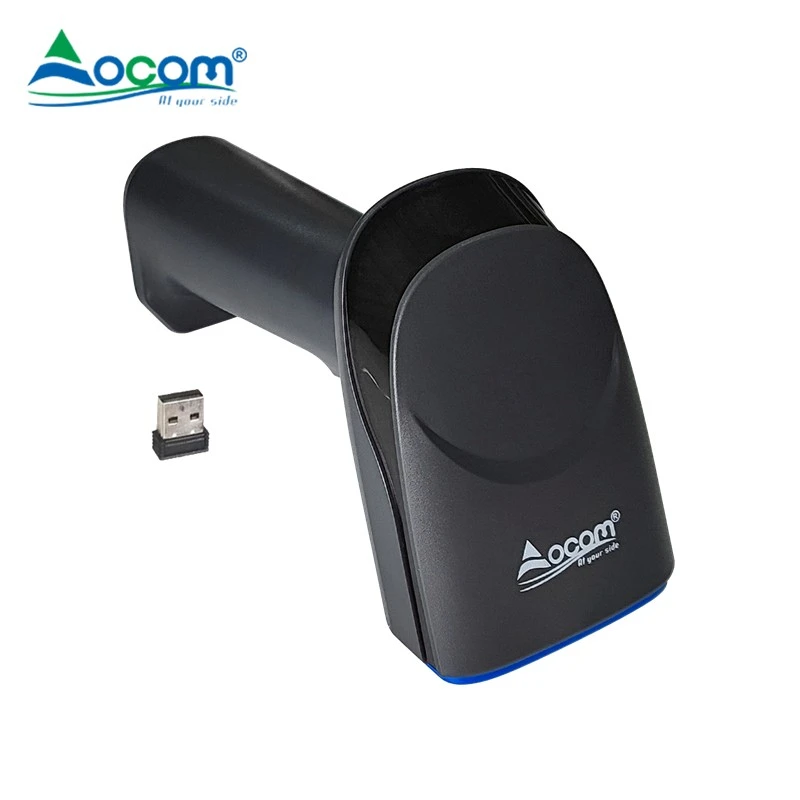

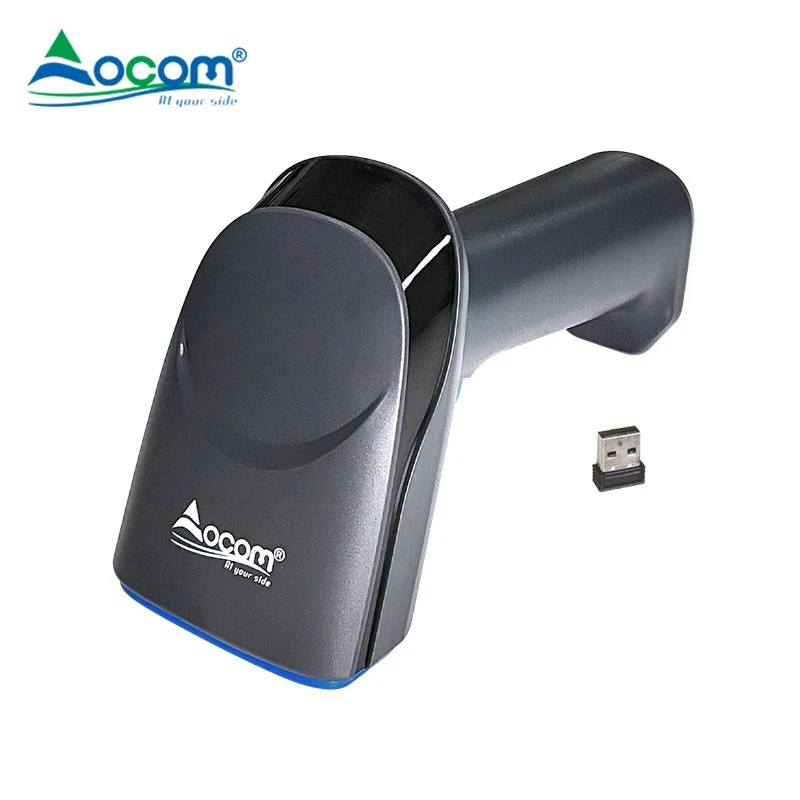

OCBS-W288 OCOM 1D 2D Wireless 2.4G and Bluetooth USB Qr Bar Code Reader Supermarket Handheld Barcode Scanner for POS Solutions
- Model: OCBS-W288
- Name: High Pixel 1D/2D Wireless Barcode Scanner
- Interface: USB+2.4G/USB+2.4G+Bluetooth
- Input Voltage: 3.3 VDC (+/-10%)/500mA
- Battery: 1800mAh
- Working time: 12hours
- CMOS Sensor: 640*480pixels,0.3MP rolling exposure
- Shock resistance: 1.2m free fall on concrete surface
- ESD Protection: 15KV air discharge
- Weight: Net: 157g
- Dimension: 160*64*86mm
Specification
|
General |
|
|
Model |
OCBS-W288 |
|
Color |
Black+Blue |
|
Material |
ABS+PC |
|
Current |
Working current(Standard):<195mA Standby current(Standard): < 130 mA |
|
Input Voltage |
3.3 VDC (+/- 10%)/500mA |
|
Interface |
USB+2.4G/USB+2.4G+Bluetooth |
|
Battery |
1800mAh |
|
Working time |
12 hours |
|
Charging time |
4 hours |
|
Reading Indicators |
LED light&Buzzer |
|
For 2.4G wireless communication |
|
|
Performance |
|
|
CMOS Sensor |
640*480pixels, 0.3MP global exposure |
|
Light Source |
LED White light |
|
Aiming Light |
Red dot |
|
Resolution |
4mil |
|
Trigger mode |
Manual,Continuous scanning,Auto-sensing |
|
Shock resistance |
1.2m free fall on concrete surface |
|
printing contrast |
≥15% |
|
Barcodes |
1D: All standard 1D codes including GS1 DataBar™ linear code can be automatically distinguished and decoded. 2D: Aztec Code; Data Matrix; MaxiCode; QRCode; HANXIN; MicroQR Code Stack code: GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; GS1 DataBar Composite; MicroPDF417; PDF417. |
|
Typical depth of Field |
Precision Barcode Depth of Field 13mil EAN-13 55mm—380mm 15mil CODE128 45mm—480mm 5mil CODE39 35mm—170mm 15mil QR 25mm—340mm (The minimum depth of field is determined by the barcode length and scanning angle. It depends on the print resolution, contrast and ambient light.) |
|
Reading Angle |
Pitch: 0-360°; Roll(Tilt): ±60°; Skew (Yaw): ±60° |
|
Physical |
|
|
Weight |
Net: 166g |
|
Dimension |
160*64*86mm |
|
Package box |
195*105*80mm/0.253kg |
|
50 in 1 carton |
560*410*430mm/14kg |
|
|
|
|
Working temperature& humidity |
0 to 45 degrees centigrade, 10%~80% No condensation |
|
Storage temperature& humidity |
-20 to 60 degrees centigrade , 10%~90% No condensation |
|
Model |
POS-1566-W |
|
Name |
15.6 inch Windows touch screen POS terminal |
|
Main screen |
15.6 inch touch screen monitor |
|
Resolution |
1366*768, 1920*1080 for option |
|
Brightness |
250cd/m2 |
|
View angle |
Horizon: 160; Vertical :150 |
|
Touch screen |
Multi-point projected G+G capacitive touch |
|
Sub-display |
11.6inch display W or W/o touch function, resolution 1366*768 |
|
Customer display |
2*20 VFD mounted to back cover for option |
|
Performance |
|
|
Motherboard |
Intel Core I5 4th CPU,other CPU need to be customized |
|
System Memory |
2*SO-DIMM DDR3L 1333/1600MHz 4GB , up to 16GB |
|
Storage device |
Msata SSD 128GB or higher, up to 512GB |
|
Audio |
On board Real-tech chip |
|
LAN |
10//100/1000Mbs, 1*Realtek RTL8111 LAN chip built in Mini PCI-E slot,support embedded WIFI module |
|
Optional WIFI&BT |
2.4G&5G WIFI ,BT 5.0 supported for option |
|
Speaker |
4ohm/2w*1 |
|
Operating System |
Support win10 /win11 |
|
Connectivity |
|
|
External I/O port (I5 4th) |
power button*1 |
|
12V DC in jack*1 |
|
|
LAN:RJ-45*1 |
|
|
2*USB3.0，4*USB2.0 |
|
|
COM(RS232) * 1 |
|
|
1*HDMI |
|
|
Audio out*1，1*Mic-in |
|
|
Package |
|
|
Weight |
Net 3.5kg(without power adaptor and power cord) |
|
Package with foam inside |
470*180*400mm/4.6kg |
|
2 in1 box |
485*365*405mm/10kg |
|
|
|
|
Operating temperature |
0 to 40 degrees centigrade |
|
Storage temperature |
-10 to 60 degrees centigrade |
|
Working humidity |
10%~80% No condensation |
|
Storage humidity |
10%~90% No condensation |
|
Accessories |
|
|
Power adapter |
100-240V/50-60HZ 1.5Amax AC power input ,DC12V/5A output adaptor |
|
Power cable |
Power cable plug compatible with USA /EU / UK etc and customized available |
