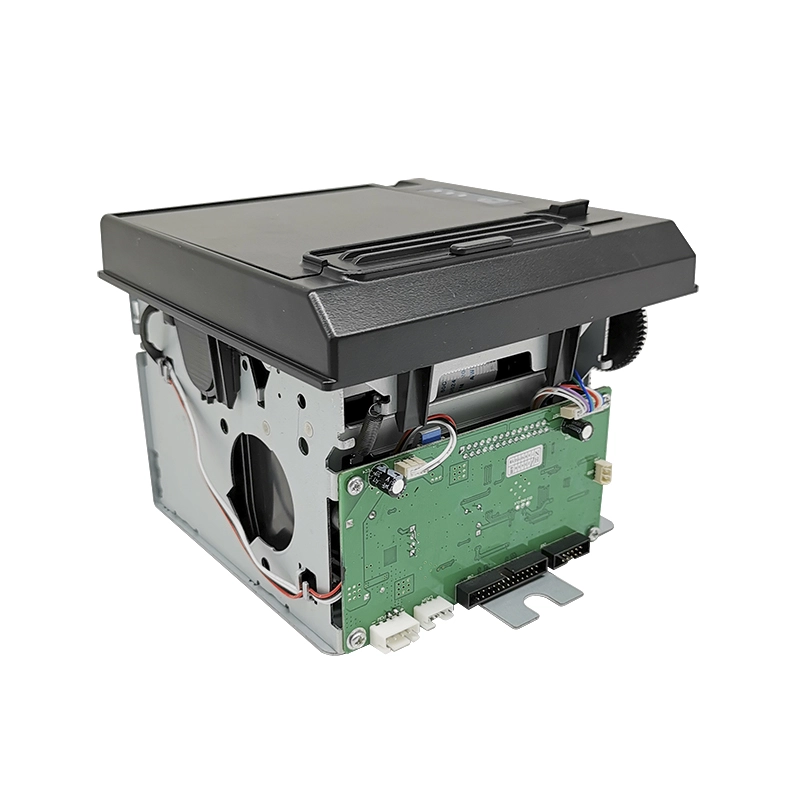

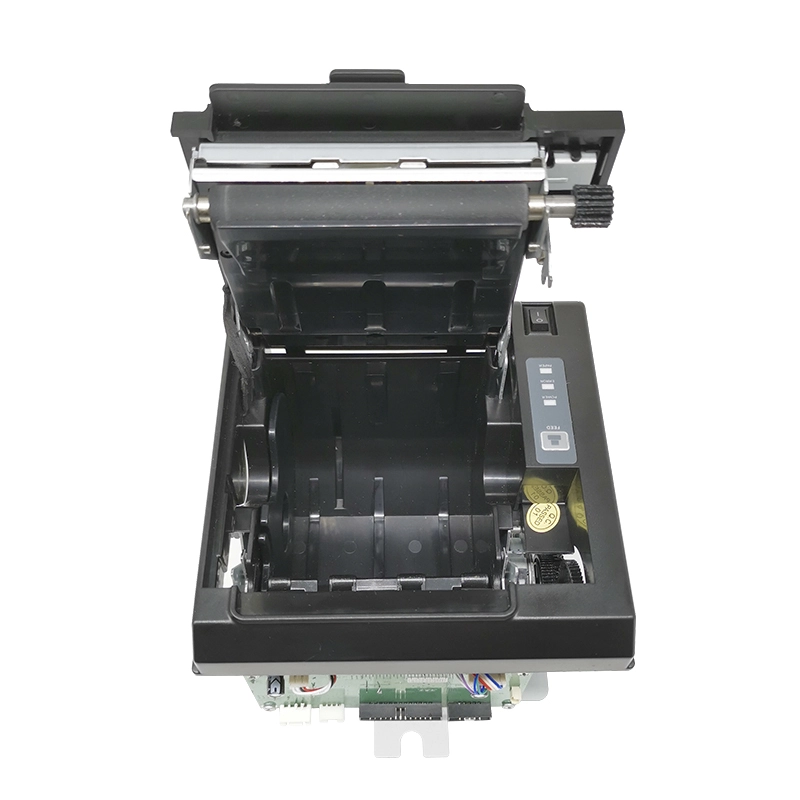

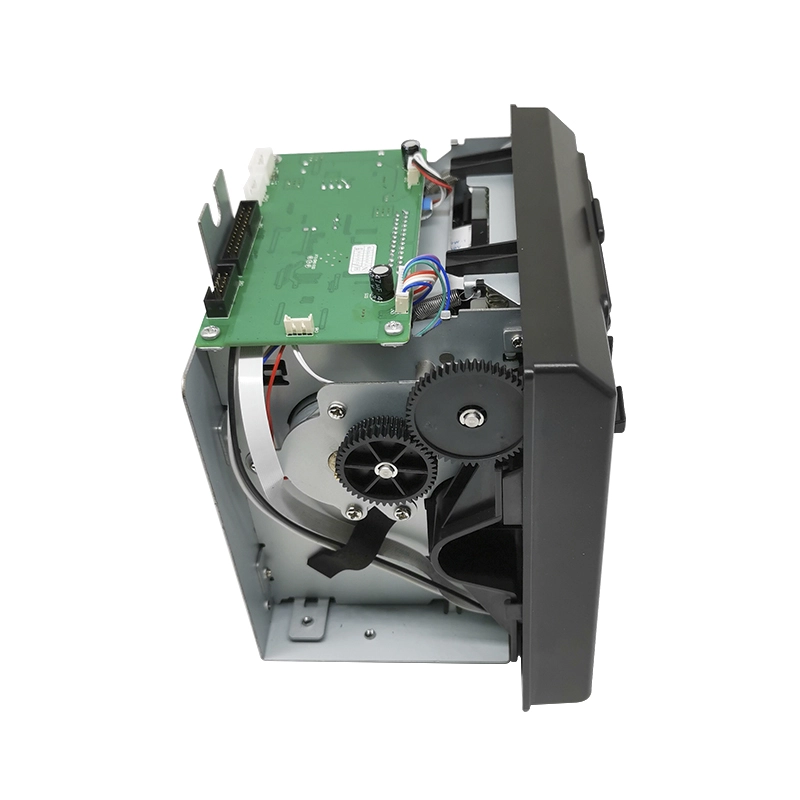

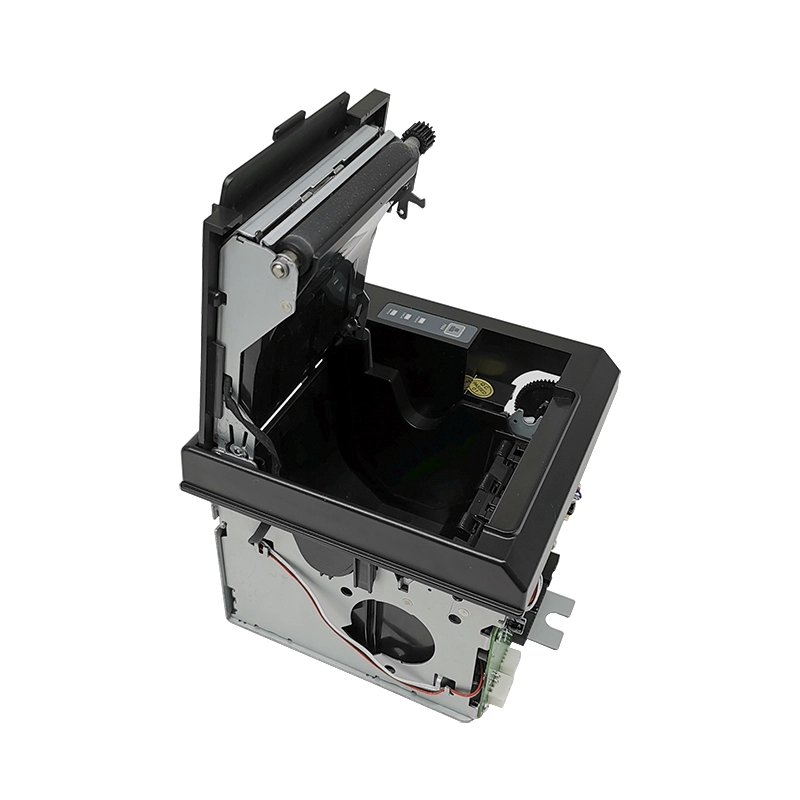

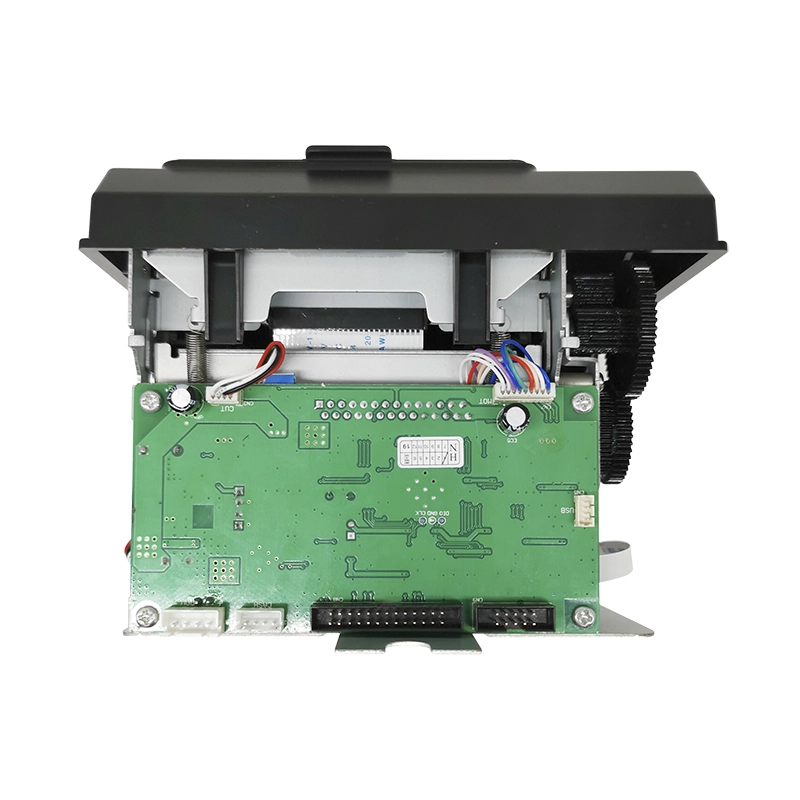

OCKP-8001 Vending machine 80mm 200mm/sec Embedded Thermal Printer
- 160mm/s printing speed,
- 80mm diameter oversized paper house
- 58 or 80mm paper house width adjustable
- Support Auto cutter
- Support multiple countries language code pages
- Support graphical printing
- Support NV logo storage and printing
- Support multiple 1D and 2D barcode printing
- Printer head life 100km,cutter life one million times
80/58mm high speed embedded thermal printer
(M/N:OCKP-8001)
l 160mm/s printing speed,
l 80mm diameter oversized paper house
l 58 or 80mm paper house width adjustable
l Support Auto cutter
l Support multiple countries language code pages
l Support graphical printing
l Support NV logo storage and printing
l Support multiple 1D and 2D barcode printing
l Printer head life 100km,cutter life one million times
|
Printing method |
Direct thermal |
|
Printing speed |
160mm/s |
|
Paper roll diameter |
Φ80mm |
|
Column capacity |
576 dots/line |
|
Paper thickness |
0.06~0.08mm |
|
Interface |
USB +RS232+parallel port |
|
Character |
GB18030 and multiple countries language code pages |
|
Character size |
ANK,Font A:1.5×3.0mm(12×24 dots) Font B:1.1×2.1mm(9×17 dots) |
|
Barcode types |
UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/CODE39/ITF/CODABAR/CODE93/CODE128 2D:QRCode /PDF417 |
|
Input buffer |
32K bytes |
|
NV Flash |
64K bytes |
|
Power adaptor |
DC24V/2.5A |
|
Cash drawer output |
DC 24V/2.5A |
|
Weight |
0.96KG |
|
Dimensions |
140×142×110.7mm ( D×W×H) |
|
Work environment |
Temperature (0~45) humidity(10~80%) |
|
Storage environment |
Emperature(-10~60℃) humidity(10~80%) |
|
Printer head life |
100km |
