OCOM 4G Full Netcom Android 14 Data Terminal with GMS Certificate
- Model:OCBS-M63S
- OS: Android 14 with GMS certification
- CPU:MTK8786,Octa-Core 2.0 GHz ,2*cortex A75+6*cortex A55
- MEMORY:4G RAM+64G ROM
- Extend Slot:Micro SD slot*1, support up to 256GB
- Nano SIM card slot*1
- Power supply: 5V/2.4A power adaptor
- PC Communication:Type C USB 2.0,support OTG and charging
- LED:Charging, Scan and System status
- Charging Time:0-90% <3 hours
- Operation Duration: 30 hours
- Data collection
- Scan Engine: Datalogic Authorized E3140
- 2D Aztec Code; China Han Xin Code; Data Matrix; MaxiCode;
- Micro QR Code; QR Code; EAN/JAN Composites; GS1 DataBar Composites;
- GS1 DataBar Expanded Stacked; GS1 DataBar Stacked;
- GS1 DataBar Stacked Omnidirectional; MacroPDF;
- MicroPDF417; PDF417; UPC A/E Composites
- 1D Auto discriminates all standard 1D codes including GS1
- DataBar™ linear codes.
- Post Australian Post; British Post; China Post; IMB; Japanese
- Post; KIX Post; Korea Post; Planet Code; Postnet; Royal
- Mail Code (RM4SCC)
- Wireless connectivity
- WLAN: 802.11 ac/a/b/g/n ,wifi dual band
- WWAN: GSM:B3/B5/B8
- UMTS:B1/B5/B8
- FDD-LTE:B1/B3/B5/B7/B8
- TDD-LTE:34/38/39/40/41
- Bluetooth:BLE 5.0
- GPS:GPS/Glonoss/Galileo/Beidou,Assisted GPS
- Physical Specifications
- LCD:4 inch, 800*480, visible under sunshine
- Touch:GFF Capacitive Touch, Dragontrail Glass
- Camera: Auto focus 8Mega, with flash LED,front 5Mega camera for option
- Keypad: 20 Numeric Keypad
- Left/Right Scan Key
- Back, HOME, Switch on the screen
- Receiver Support
- Speaker: Min 100db at 10cm-1KHz Voice
- Mic: Noise Reduction Mic
- Charging IO: USB type-C,
- Charging cradle
- Battery:Removable 5000mAh
- Battery life:500 cycle> 80%
- Dimension:165.86*67*19.22mm
- Weight:279g
Features:
Android 14 with GMS certificate,2G/3G/4G full netcom
TSMC's advanced process reduces heat and power consumption by 40%
4.0inch IPS LCD 360-degree full viewing angle
high configuration:4GRAM+64G ROM default,DDR4 RAM is 50% faster than DDR3
Professional optical design engine,1.3M Pixel(datalogic)
One-dimensional decoding <30 ms
Two-dimensional decoding <60ms
Specification
|
Model |
OCBS-M63S |
|
OS |
Android 14 with GMS certification |
|
CPU |
MTK8786,Octa-Core 2.0 GHz ,2*cortex A75+6*cortex A55 |
|
MEMORY |
4G RAM+64G ROM |
|
Extend Slot |
Micro SD slot*1, support up to 256GB |
|
|
Nano SIM card slot*1 |
|
Power supply |
5V/2.4A power adaptor |
|
PC Communication |
Type C USB 2.0,support OTG and charging |
|
LED |
Charging, Scan and System status |
|
Charging Time |
0-90% <3 hours |
|
Operation Duration |
30 hours |
|
Data collection |
|
|
Scan Engine |
Datalogic Authorized E3140 |
|
2D |
Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; |
|
|
Micro QR Code; QR Code; EAN/JAN Composites; GS1 DataBar Composites; |
|
|
GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; |
|
|
GS1 DataBar Stacked Omnidirectional; MacroPDF; |
|
|
MicroPDF417; PDF417; UPC A/E Composites |
|
1D |
Auto discriminates all standard 1D codes including GS1 |
|
|
DataBar™ linear codes. |
|
Post |
Australian Post; British Post; China Post; IMB; Japanese |
|
|
Post; KIX Post; Korea Post; Planet Code; Postnet; Royal |
|
|
Mail Code (RM4SCC) |
|
Wireless connectivity |
|
|
WLAN |
802.11 ac/a/b/g/n ,wifi dual band |
|
WWAN |
GSM:B3/B5/B8 |
|
|
UMTS:B1/B5/B8 |
|
|
FDD-LTE:B1/B3/B5/B7/B8 |
|
|
TDD-LTE:34/38/39/40/41 |
|
Bluetooth |
BLE 5.0 |
|
GPS |
GPS/Glonoss/Galileo/Beidou,Assisted GPS |
|
Physical Specifications |
|
|
LCD |
4 inch, 800*480, visible under sunshine |
|
Touch |
GFF Capacitive Touch, Dragontrail Glass |
|
Camera |
Auto focus 8Mega, with flash LED,front 5Mega camera for option |
|
Keypad |
20 Numeric Keypad |
|
|
Left/Right Scan Key |
|
|
Back, HOME, Switch on the screen |
|
Receiver |
Support |
|
Speaker |
Min 100db at 10cm-1KHz Voice |
|
Mic |
Noise Reduction Mic |
|
Charging IO |
USB type-C, |
|
|
Charging cradle |
|
Battery |
Removable 5000mAh |
|
Battery life |
500 cycle> 80% |
|
Dimension |
165.86*67*19.22mm |
|
Weight |
279g |
|
Package |
package |
|
Weight |
Gross：760g |
|
Package |
190*108*60mm |
|
Environmental Specifications |
|
|
Operation Temperature |
-25°C ~ +55°C |
|
Storage Temperature |
-30°C ~ +70°C |
|
Humidity |
10% ~ 90% |
|
Drop |
1.5m, concrete, 12 drops |
|
IP |
IP65 |
|
ESD |
±8kV Contact, ±15kV Air |
|
Keypad life cycle |
300K |
|

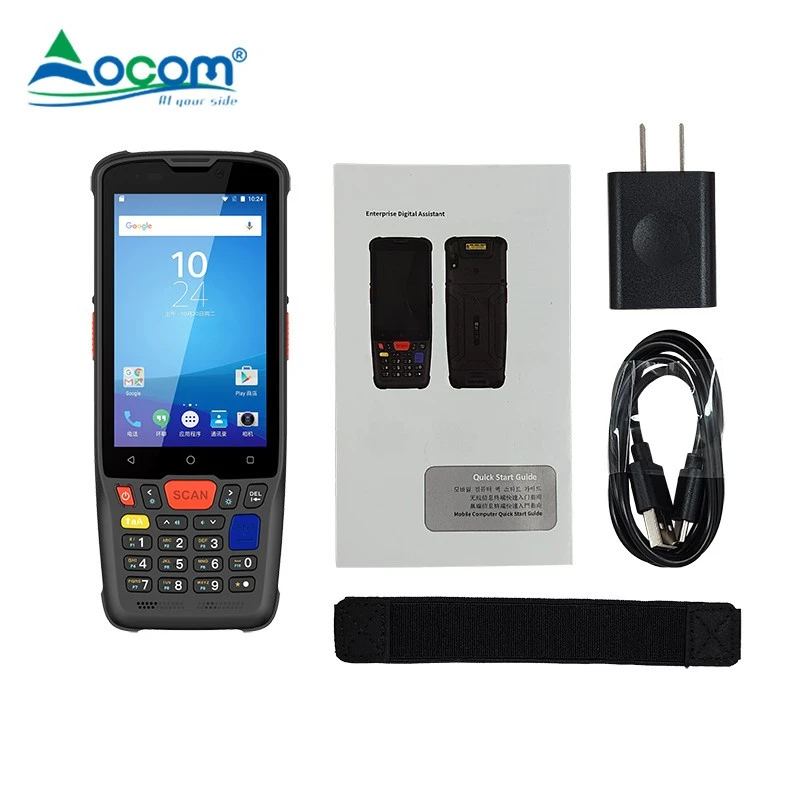

Accessories |
|
|
Optional |
Single host and battery charger*1 |
|
|
Silicon rubber case*1 |
|
|
4 in 1 host device charger*1 |
|
|
4 in 1 battery charger*1 |
|
|
Spare battery *1 |
|
|
Wrist strap*1 |
|
|
Shoulder belt*1 |
