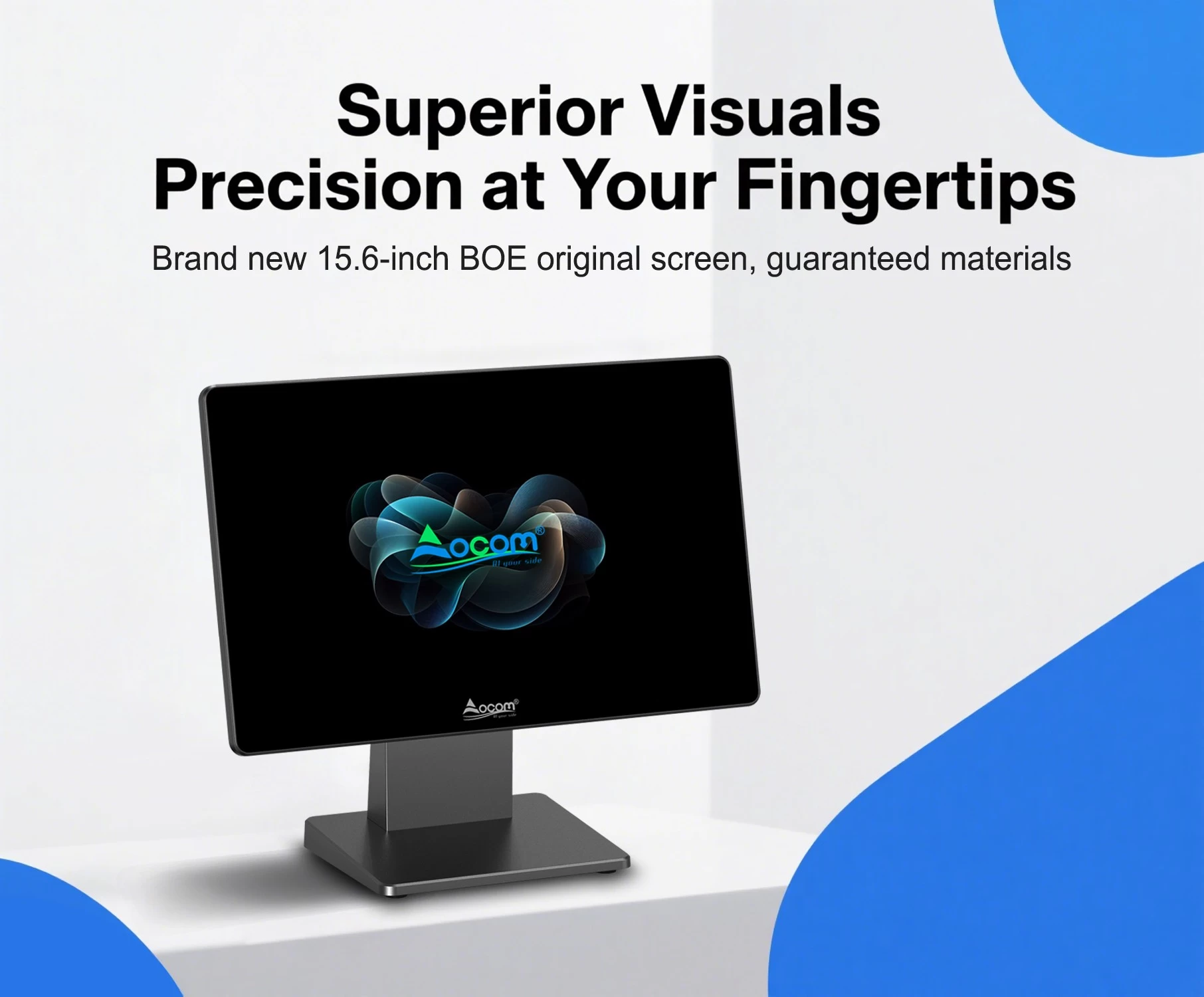

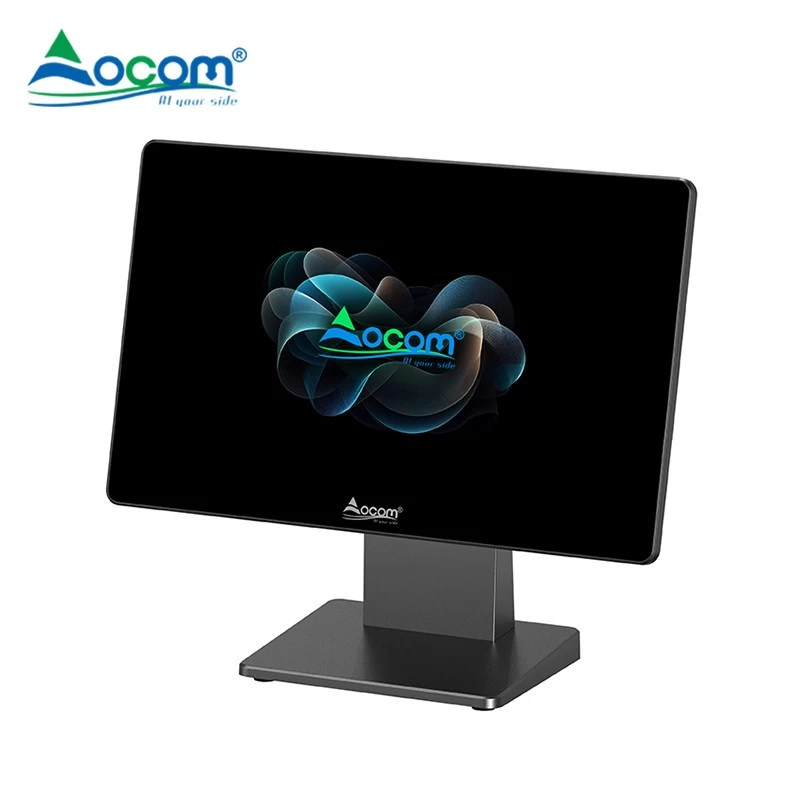

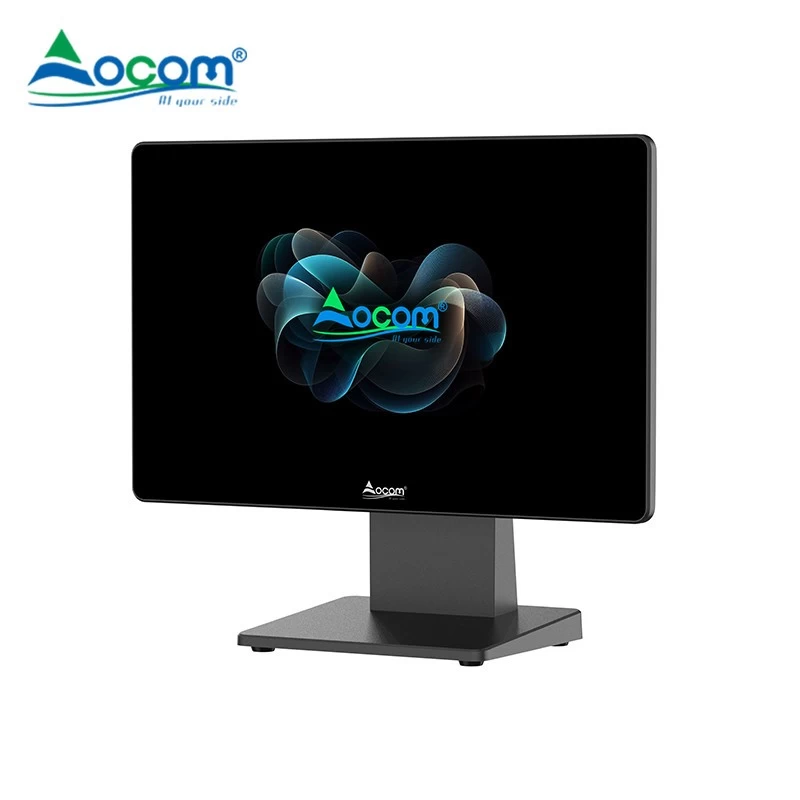

15.6 inch BOE brand new LCD screen
Multi-point projected capacitive touch panel

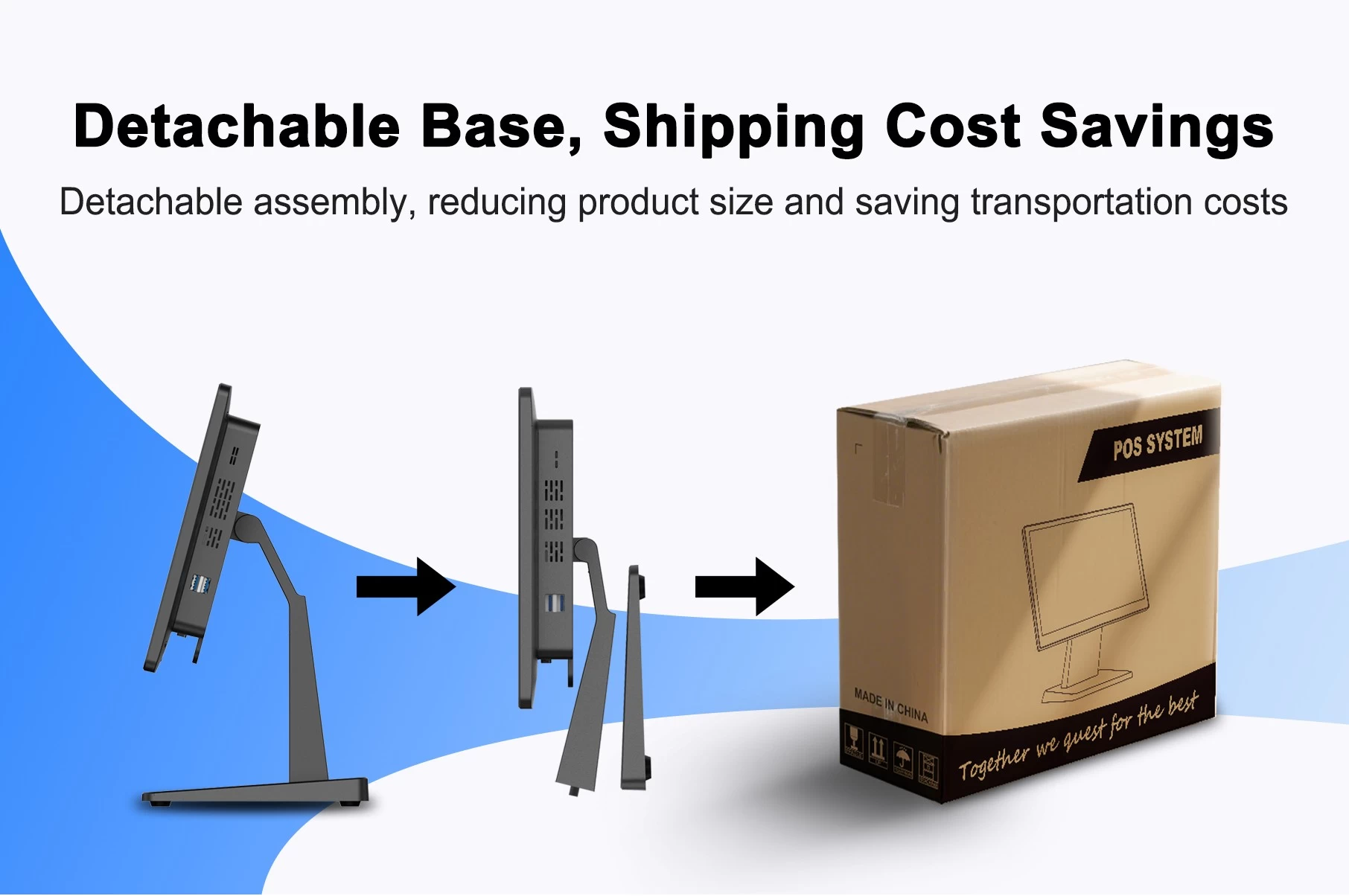

Removable bottom plate for smaller packaging and less shipping cost

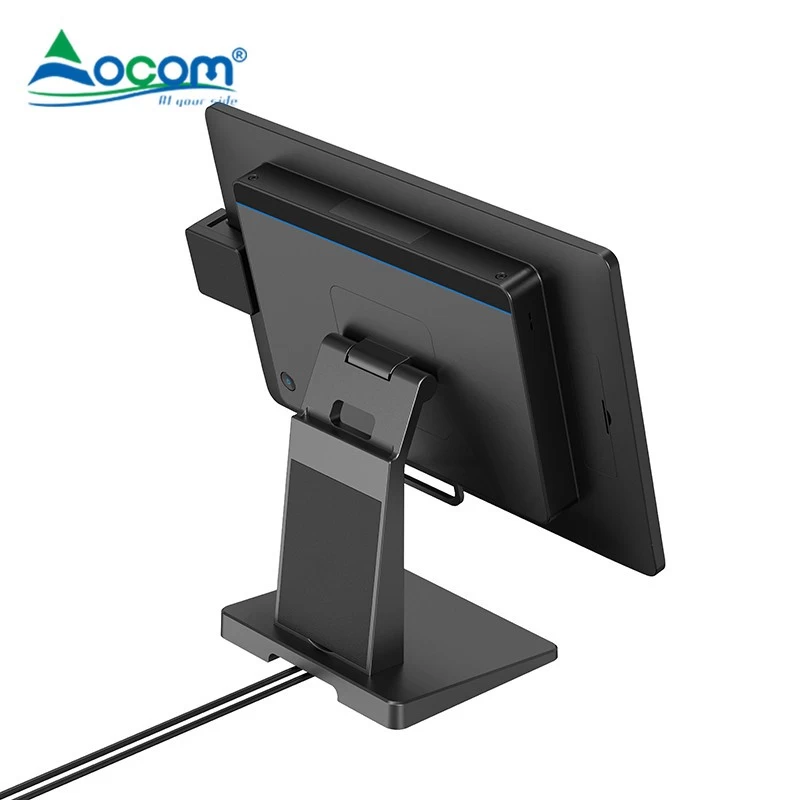

The main screen supports large angle rotation to meet any observation angle

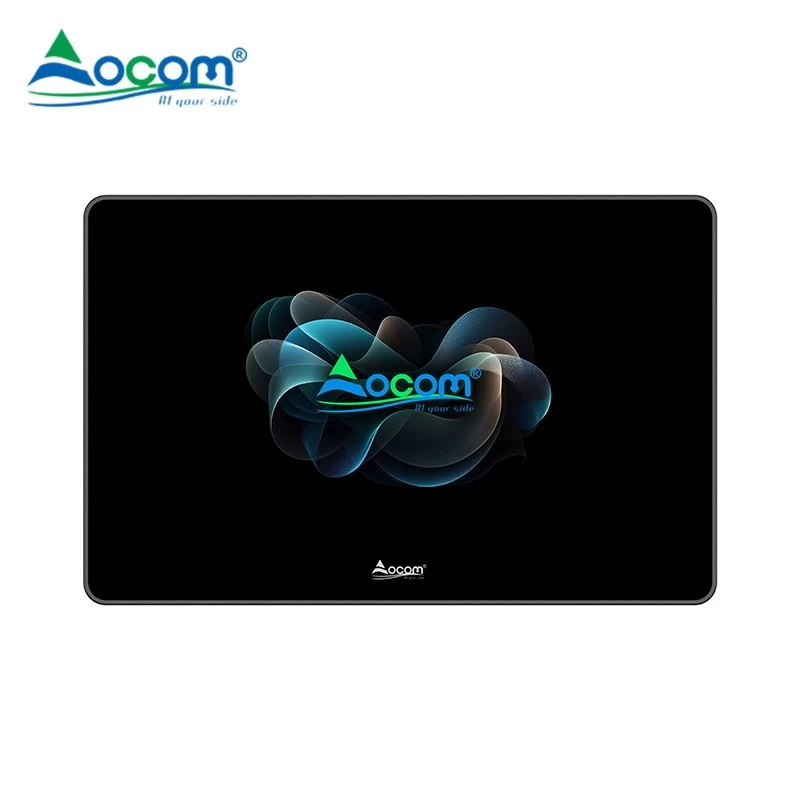

Border-less screen , the front protects against direct water splashes

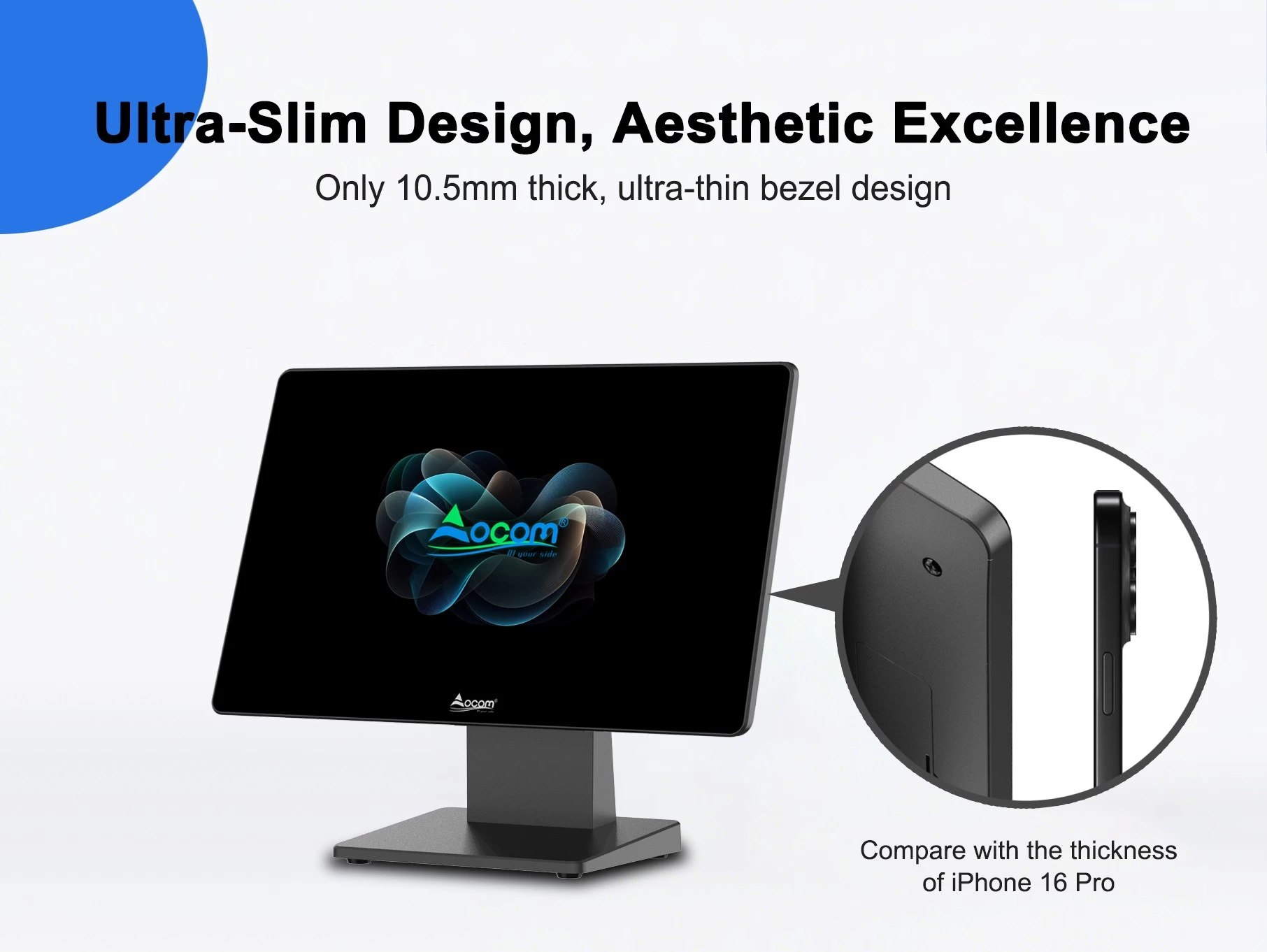

Ultra-thin body makes the product more concise and stylish
Thick and stable aluminum base

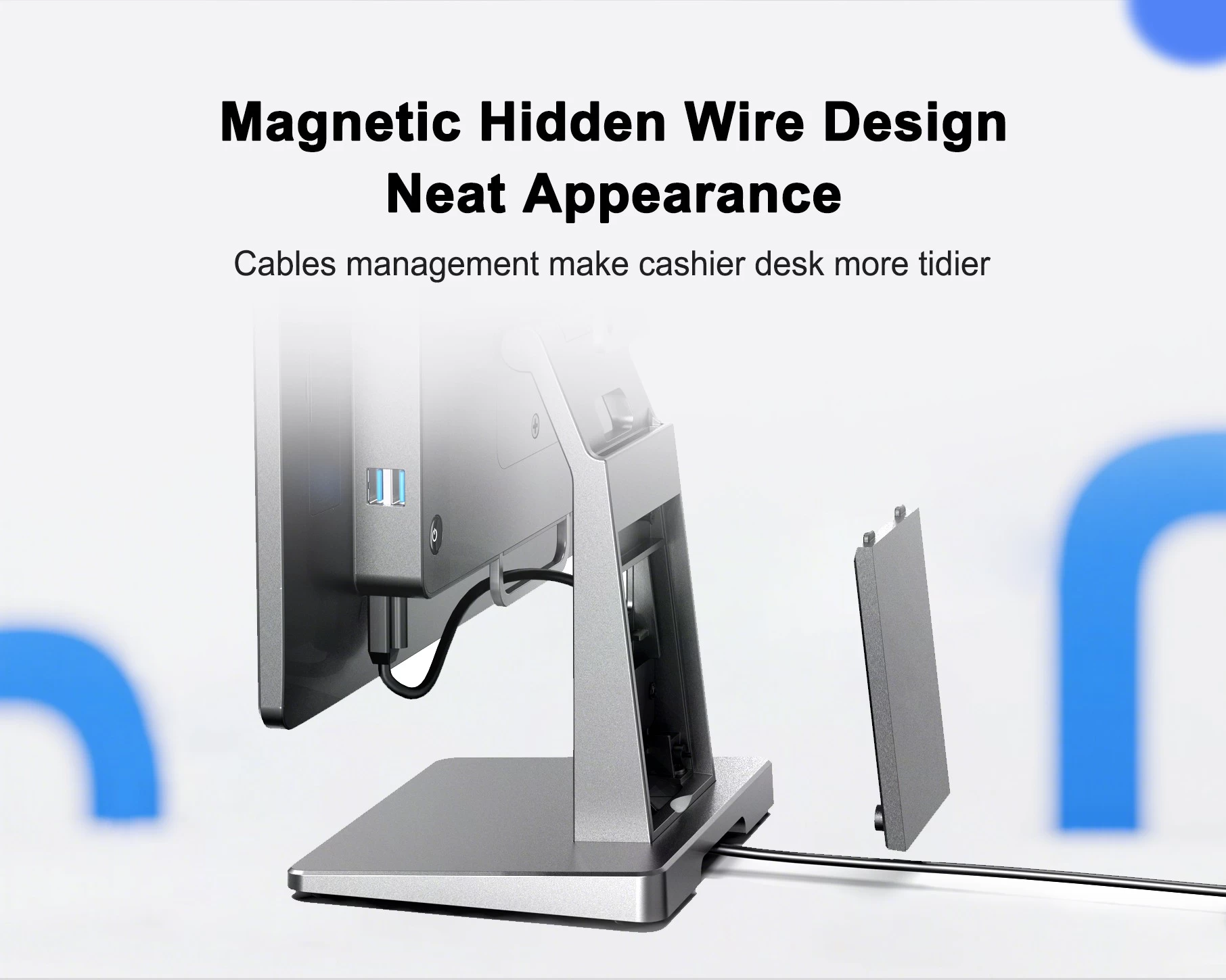

Cable slots inside the base make the cable more tidy

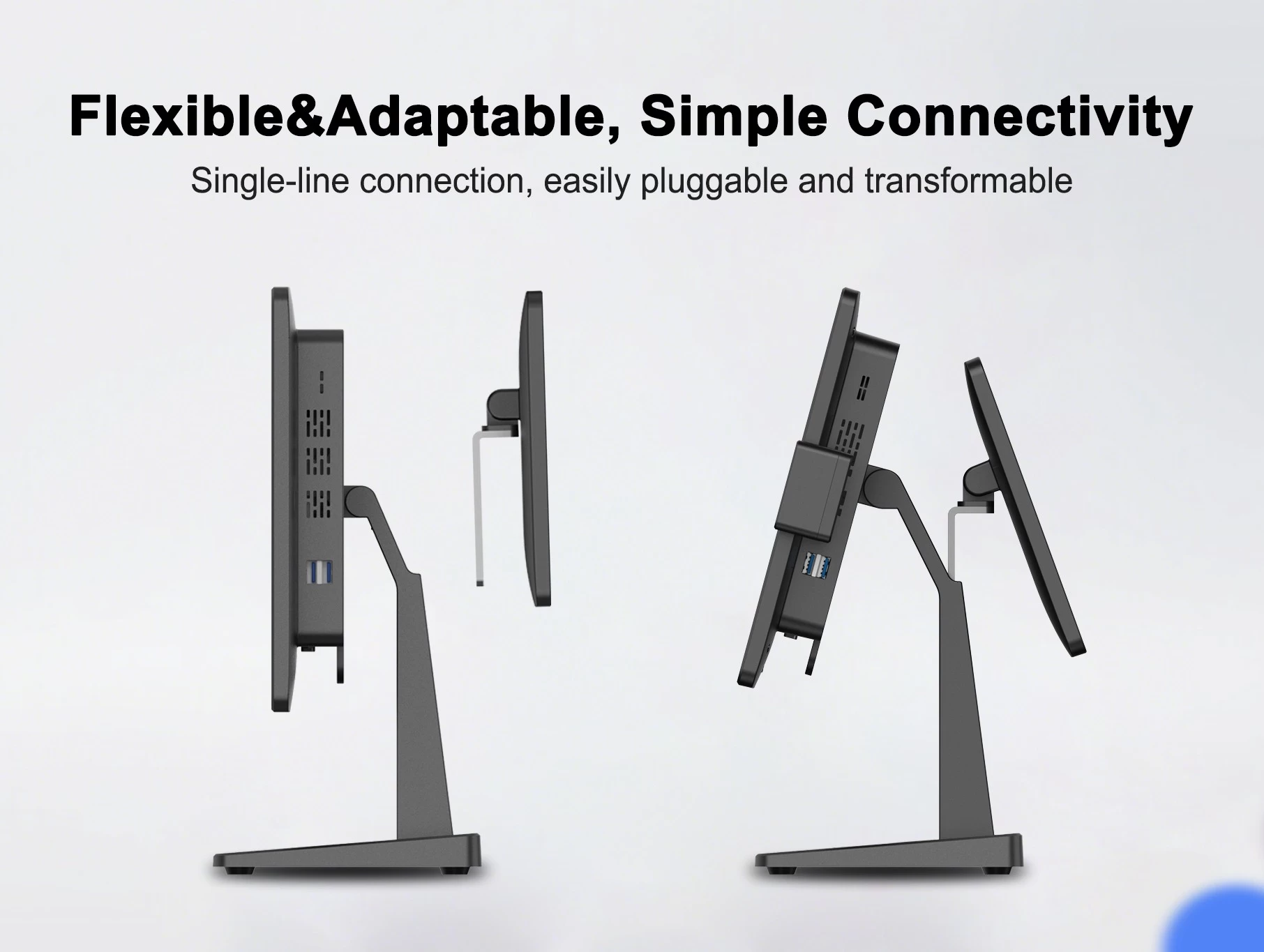

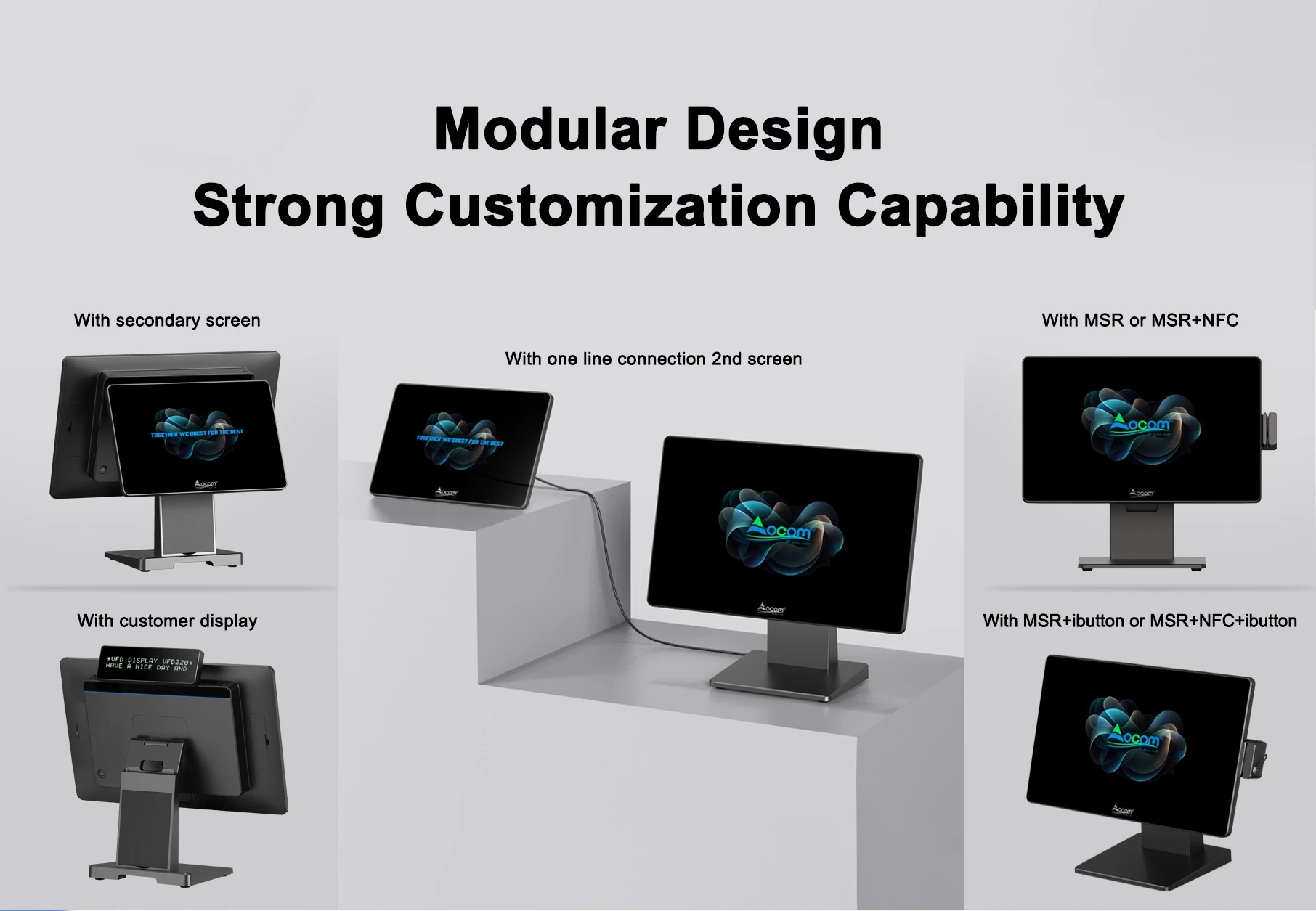

Customer display, secondary screen and MSR installation position is reserved on the shell

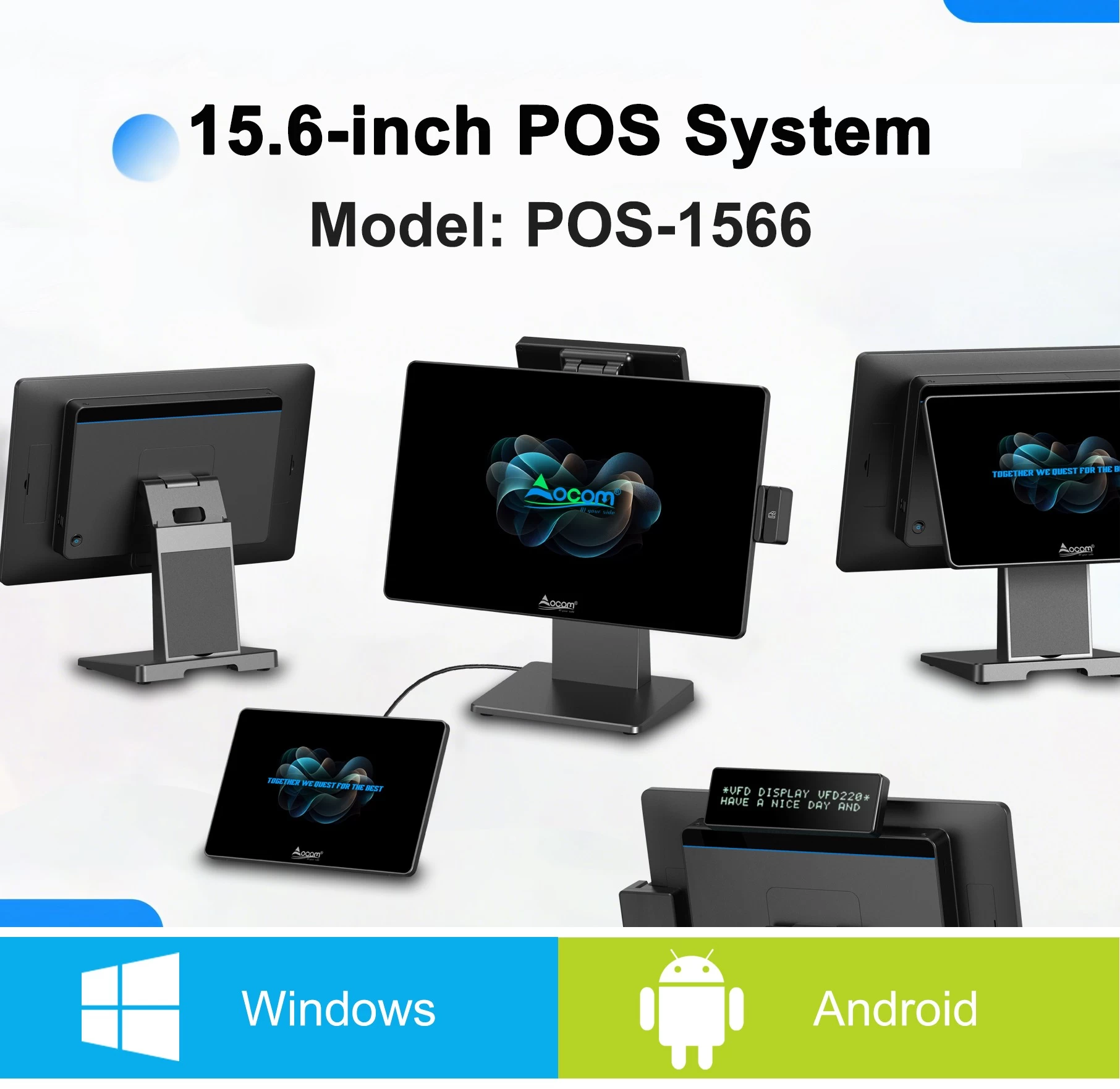

Model	POS-1566-W
Name	15.6 inch Windows touch screen POS terminal
Main screen	15.6 inch touch screen monitor
Resolution	1366768, 19201080 for option
Brightness	250cd/m²
View angle	Horizon: 160; Vertical :150
Touch screen	Multi-point projected G+G capacitive touch

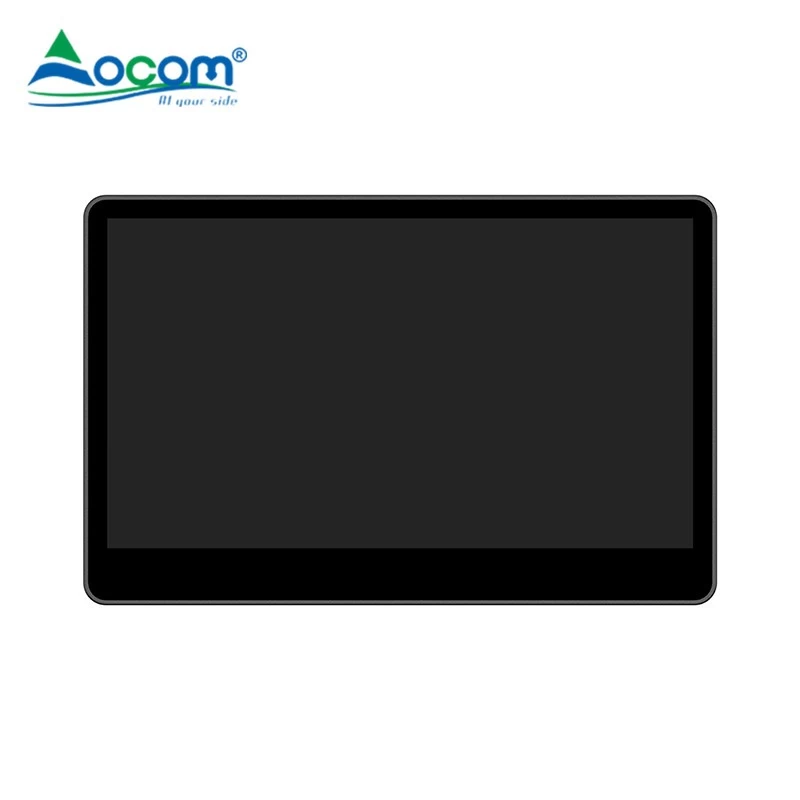

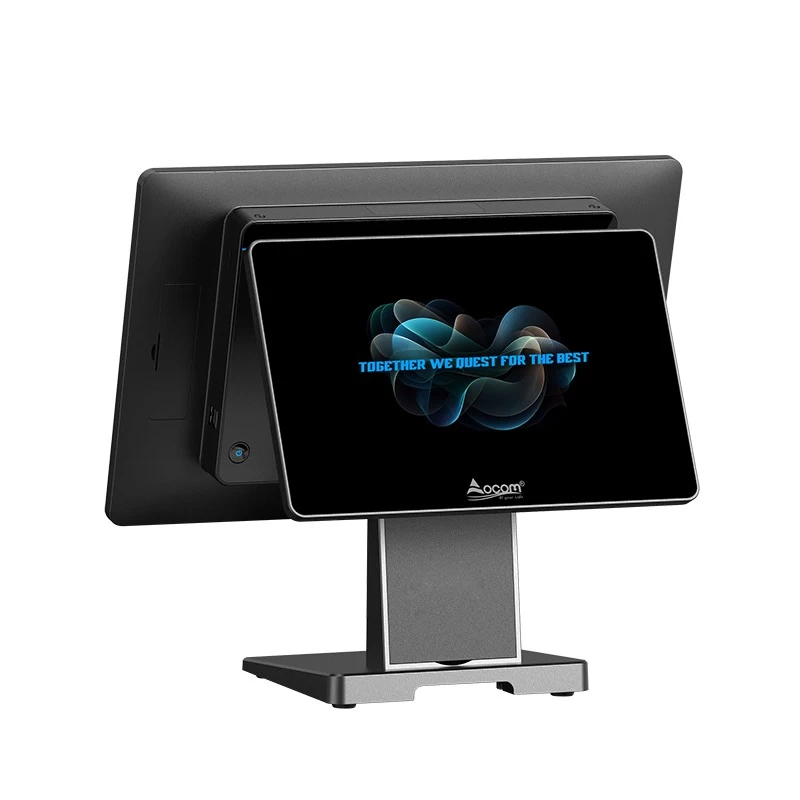

Sub-display	11.6inch display W or W/o touch function, resolution 1366*768

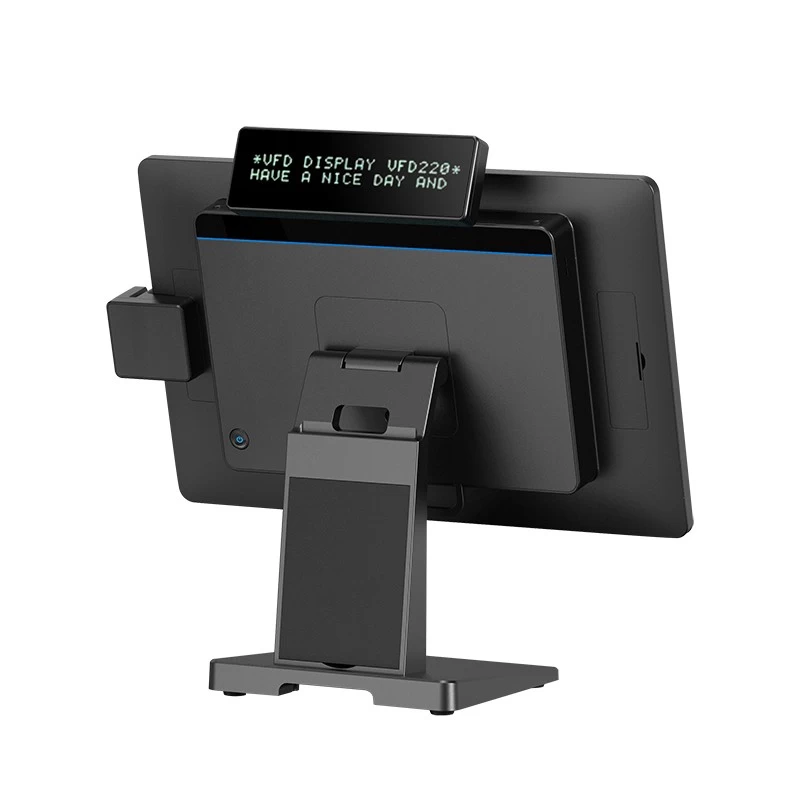

Customer display	2*20 VFD mounted to back cover for option
Performance
Motherboard	Intel Core I5 4^th CPU,other CPU need to be customized
System Memory	2*SO-DIMM DDR3L 1333/1600MHz 4GB , up to 16GB
Storage device	Msata SSD 128GB or higher, up to 512GB
Audio	On board Real-tech chip
LAN	10//100/1000Mbs, 1*Realtek RTL8111 LAN chip built in Mini PCI-E slot,support embedded WIFI module
Optional WIFI&BT	2.4G&5G WIFI ,BT 5.0 supported for option

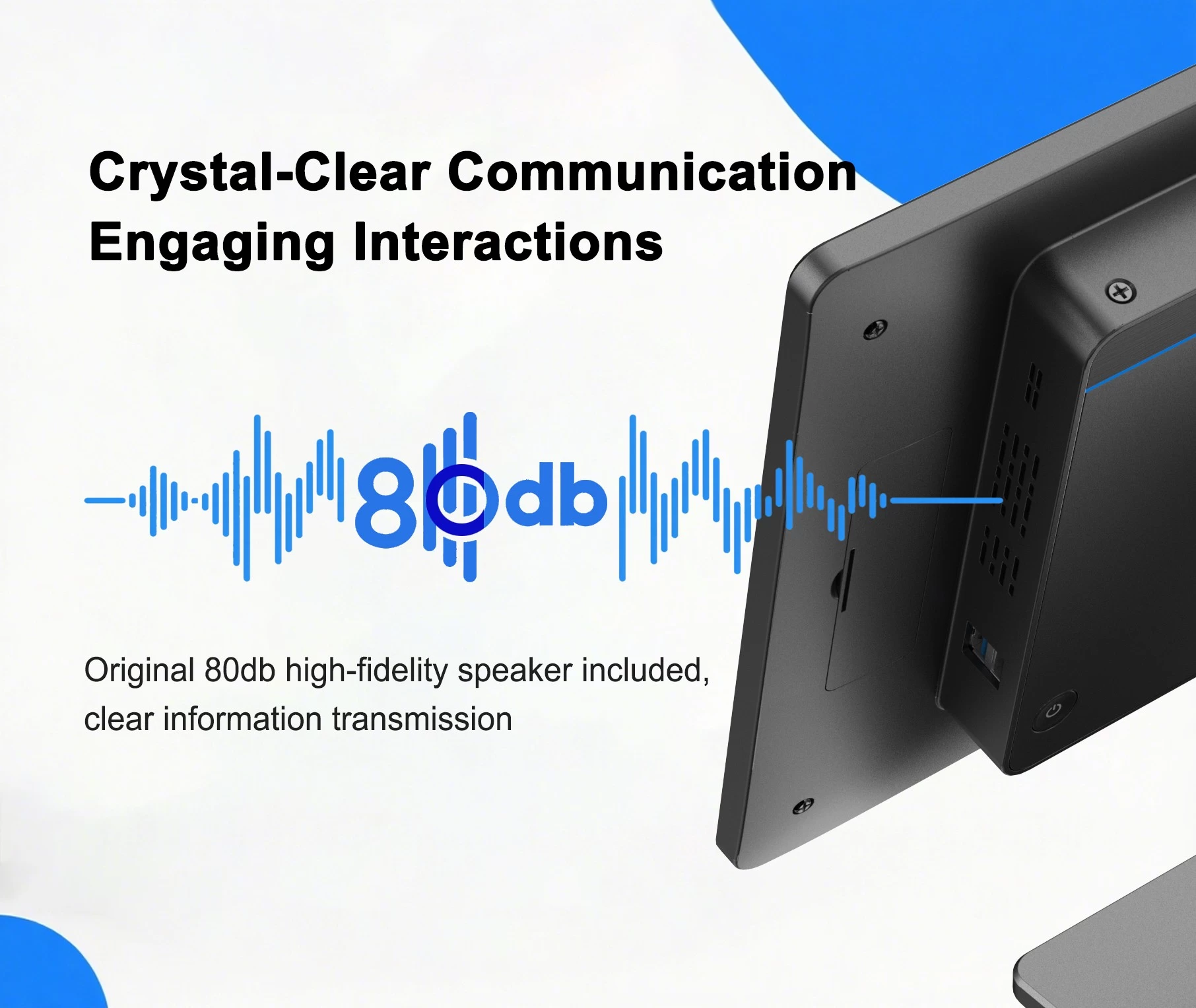

Speaker	4ohm/2w*1
Operating System	Support win10 /win11
Connectivity
External I/O port (I5 4^th)	power button*1
	12V DC in jack*1
	LAN:RJ-45*1
	2USB3.0，4USB2.0
	COM(RS232) * 1
	1*HDMI
	Audio out1，1Mic-in
Package
Weight	Net 3.5kg(without power adaptor and power cord)
Package with foam inside	470180400mm/4.6kg
2 in1 box	485365405mm/10kg
Environment
Operating temperature	0 to 40 degrees centigrade
Storage temperature	-10 to 60 degrees centigrade
Working humidity	10%~80% No condensation
Storage humidity	10%~90% No condensation

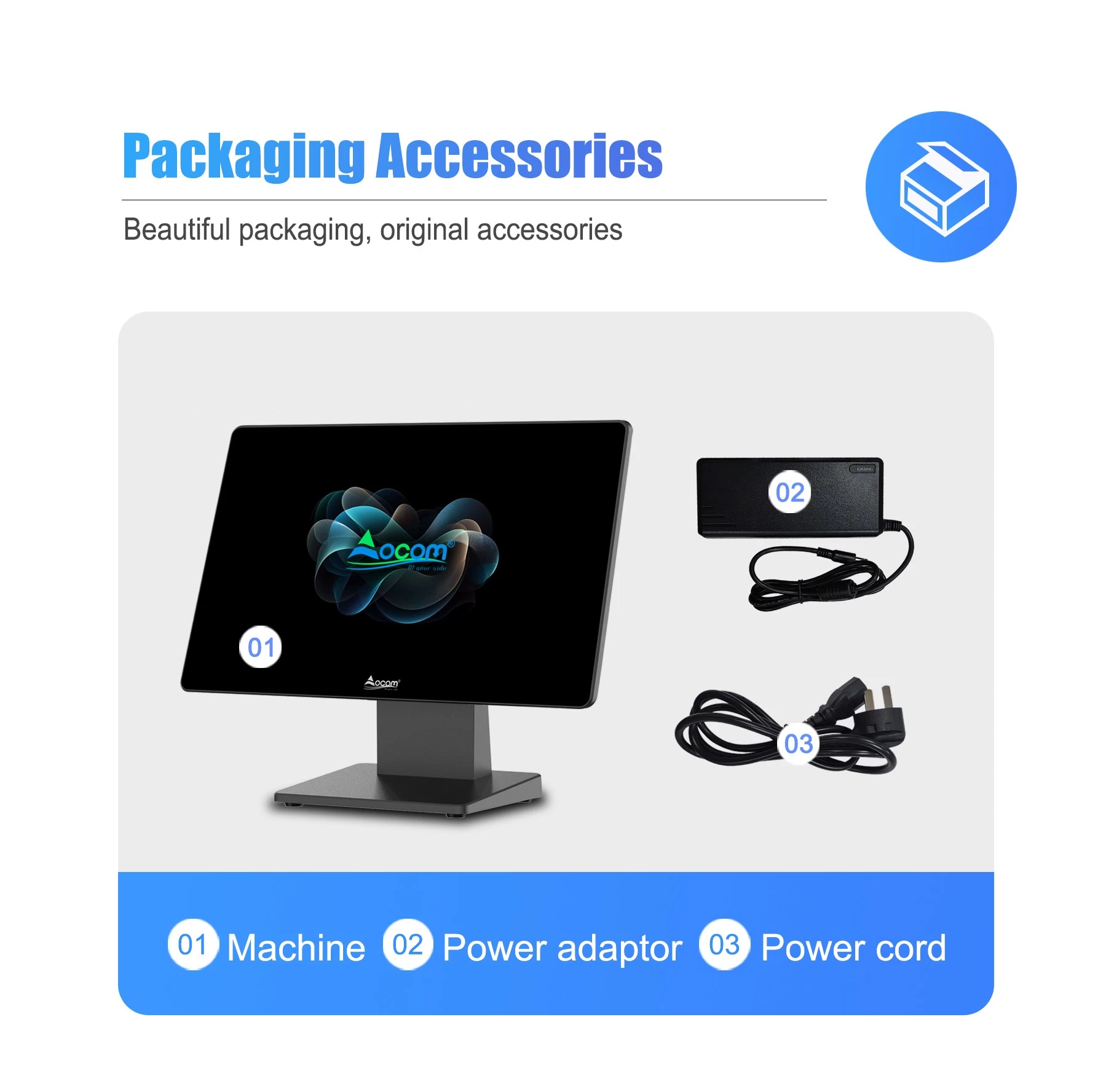

Accessories
Power adapter	100-240V/50-60HZ 1.5Amax AC power input ,DC12V/5A output adaptor
Power cable	Power cable plug compatible with USA /EU / UK etc and customized available
