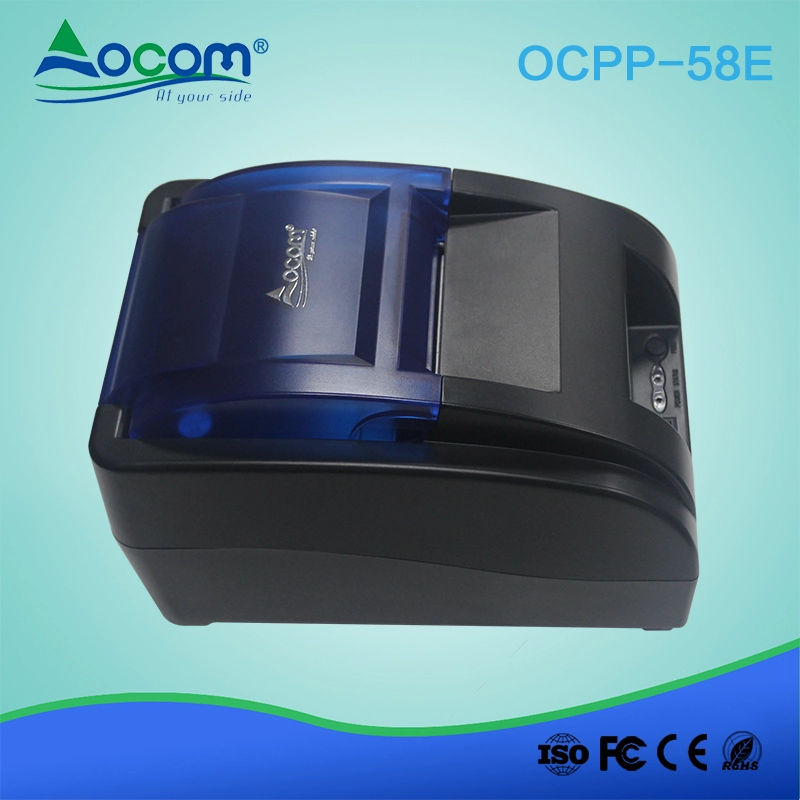

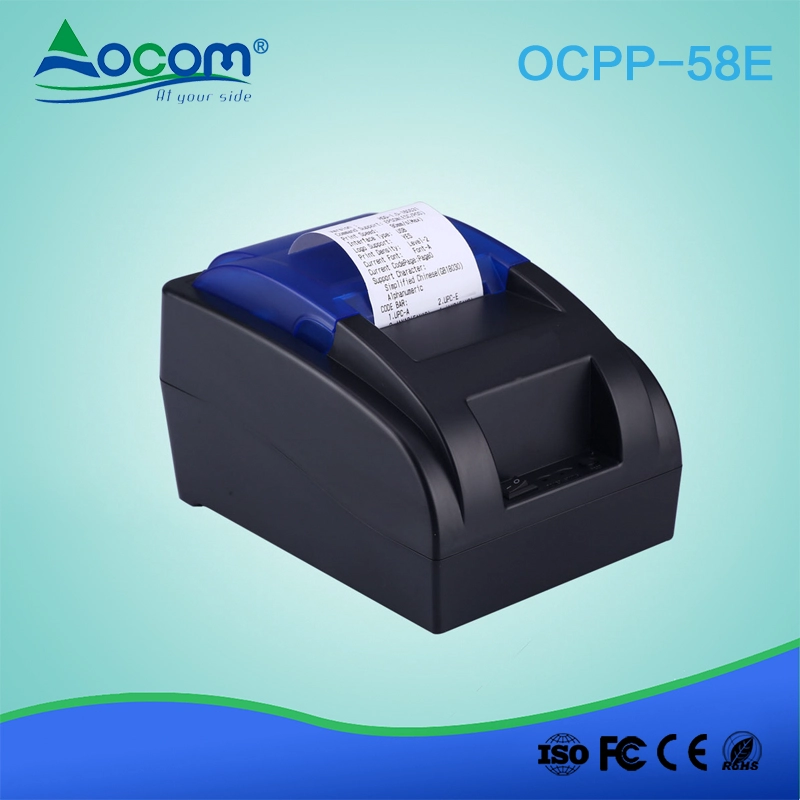

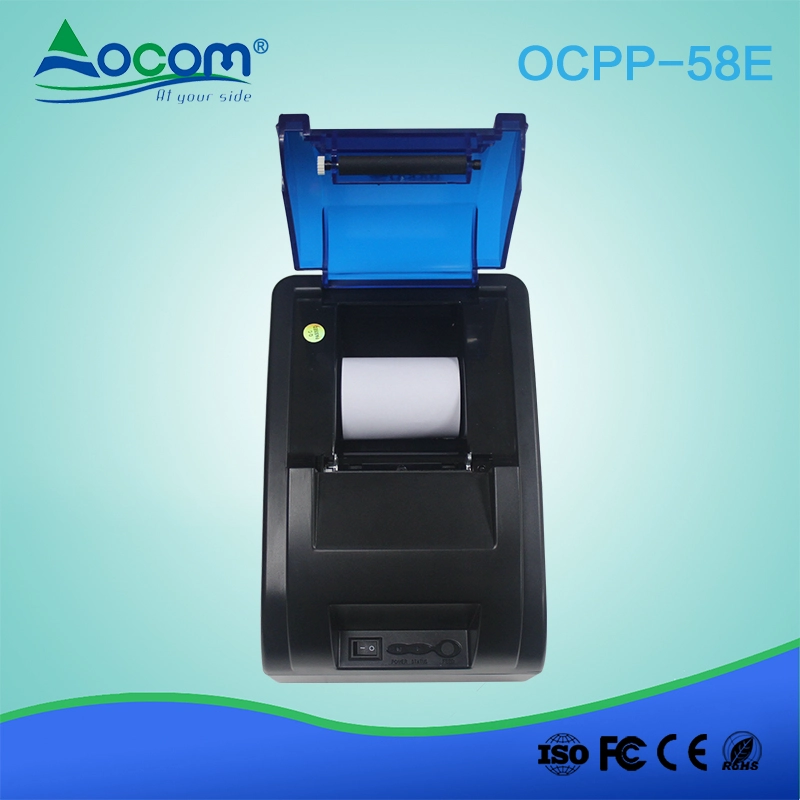

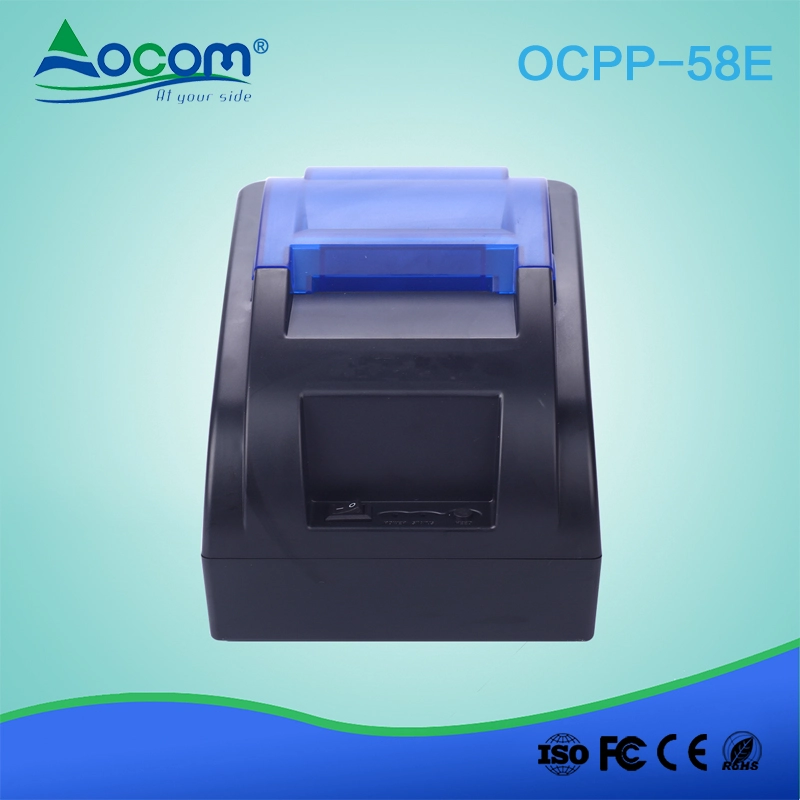

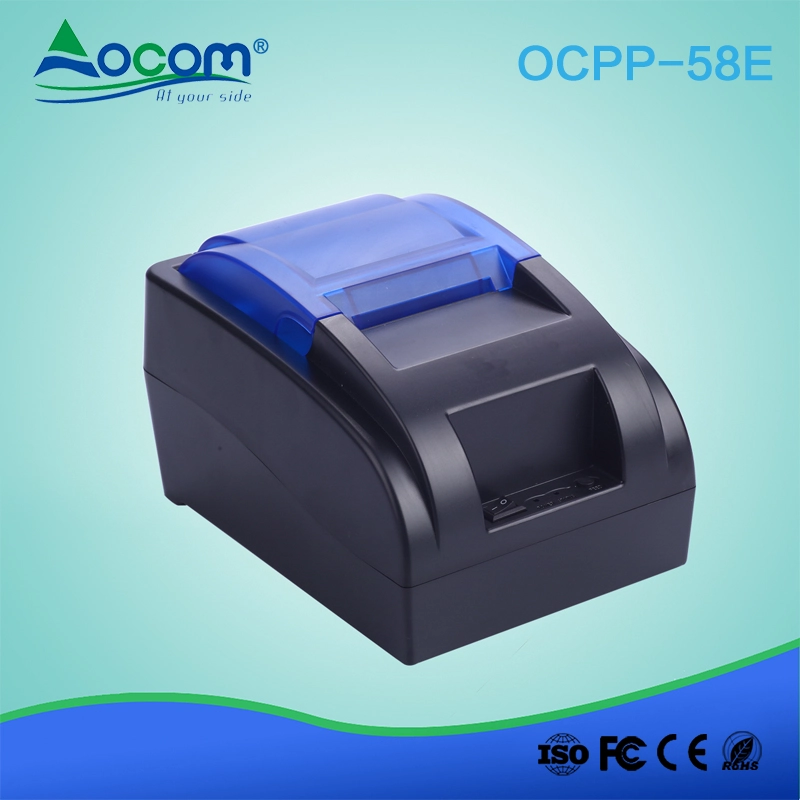

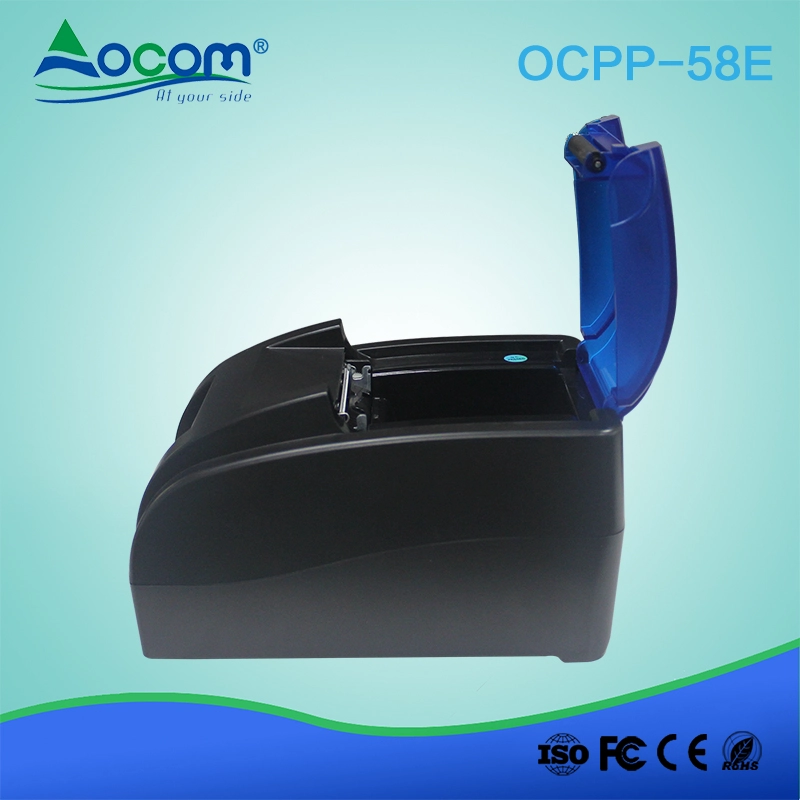

58mm barcode printing thermal receipt paper printer with inner power adaptor(OCPP-58E)
- 58mm Thermal Receipt Printer With Bult-in Power Adaptor
- Interface: USB, USB+LAN, USB+BT, USB+WIFI for options,
- Printing speed upto 90mm/s;
- Cutter: manual cutter
- MCBF(life): 50km;
- Support NV logo download printing
- Support multiple 1D/QR barcode printing (optional)
- Compatible with Android;Free SDK for Android
- Small size and elegant design;
- Compatible with ESC/POS command.
58mm barcode printing thermal receipt paper printer with inner power adaptor
(OCPP-58E)
Product Introduction:
OCPP-58E is a well-designed economic printer for common thermal bill printing ,this mold is with solid material,Exquisite workmanship.Transparent cover design, simple and fashion, easy for users to know the paper rolls’ Using status,OCPP-58E adopt built-in power supply,not only can save space,but also easy for users to configure and use the printers.It’s a very good choice for economical printing.
●Easy paper install structure,simple and convenient to operate
●Built-in power supply design, to save space and more convenient to configure;
●Transparent cover design, the user can know the paper roll’s using status anytime;
●Support GB18030 big font, easy to print uncommon characters
●Support multi language print, suitable for users all over the world;
●Support download and print LOGO&graphics ;
●Support Windows, Linux, Android and IOS system printing
Application Area：
Shopping malls, restaurants, stores, warehousing, taxation, banking, medical, postal
Parameters：
|
Items |
Parameters |
|
|
Print parameters |
Printing Method |
Thermal Line |
|
Printing Width |
48MM |
|
|
Resolution |
384dots/Line（8dots/mm，203dpi） |
|
|
Printing Speed |
90mm/Second |
|
|
Interface Type |
USB，USB+Bluetooth |
|
|
Line Spacing |
3.75 mm（Can adjust line spacing by command） |
|
|
Line No. |
Font A:32 character /Line Font B:42 character/Line Simple,traditional Chinese-16 lines |
|
|
Character |
Standard GB18030 simplified / traditional Chinese Fonts |
|
|
Character Size |
ANKcharacter，Font A：1.5×3.0mm（12×24dots） |
|
|
Bar code Character |
Extended character set |
PC437/Katakana/PC850/PC860/PC863/PC865 PC437/Katakana/PC850/PC860/PC863/PC865/WestEurope/Greek/ Hebrew/EastEurope/Iran/WPC1252/PC866/PC852/PC858/IranII/ Latvian/Arabic/PT151,1251/PC737/WPC/1257/ThaiVietnam/PC864/ PC1001/(Latvian)/(PC1001)/(PT151,1251)/(WPC1257)/(PC864)/ (Vietnam)/(Thai) |
|
Bar code |
UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)CODE39/ITF/ |
|
|
Graphics printing |
Graphics printing |
Supports bitmap download and print |
|
Paper |
Type |
Thermal Roll |
|
Width |
57.5±0.5mm |
|
|
Diameter |
≤60mm |
|
|
Feed Method |
Easy feed(Clameshell feed) |
|
|
Print commands |
Commands |
ESC/POS |
|
Power |
Power Adaptor |
Input：AC 100V-240V,50-60Hz Output：DC 12V/2A |
|
Casher Drawer output |
DC 12V/1A |
|
|
Buffer |
Input Buffer |
4K |
|
NV Flash |
40K |
|
|
physical characteristics |
Weight |
590g |
|
Dimension |
185*130*112(MM) |
|
|
Environment |
Working |
Temp：5 ~ 45℃， Humidity：10 ~ 80% |
|
|
Storage |
Temp：-10 ~ 50℃ ，Humidity：10 ~ 90%（No dew） |
|
Reliability parameter |
Print Head Life |
50KM（print density≤12.5） |
