OCPP-58E Factory Price  Mini 58mm thermal receipt printer for Cash RegisterOCPP-58E Factory Price  Mini 58mm thermal receipt printer for Cash RegisterOCPP-58E Factory Price  Mini 58mm thermal receipt printer for Cash RegisterOCPP-58E Factory Price  Mini 58mm thermal receipt printer for Cash RegisterOCPP-58E Factory Price  Mini 58mm thermal receipt printer for Cash RegisterOCPP-58E Factory Price  Mini 58mm thermal receipt printer for Cash Register

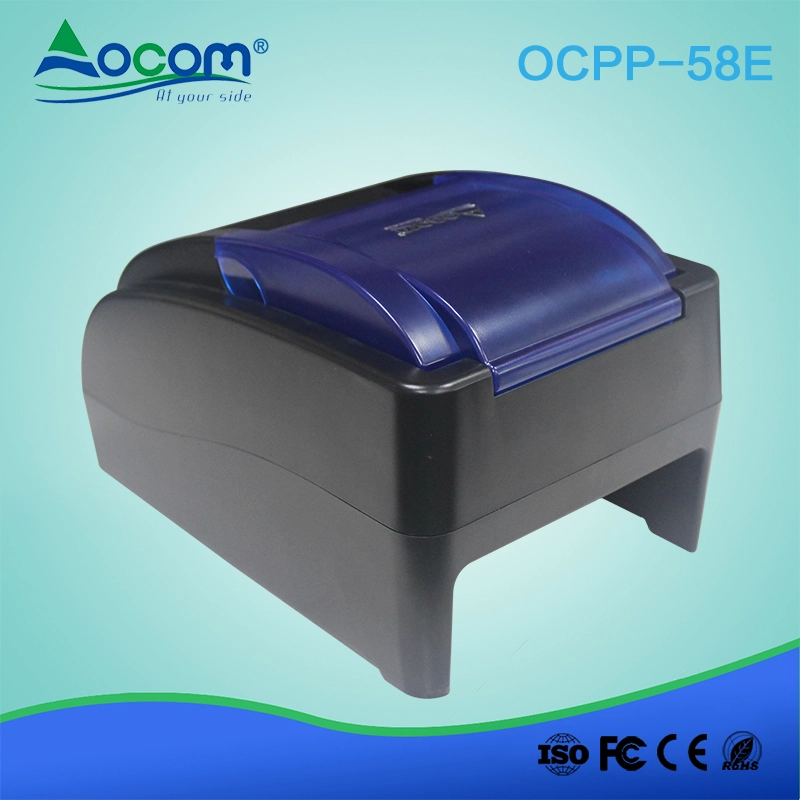

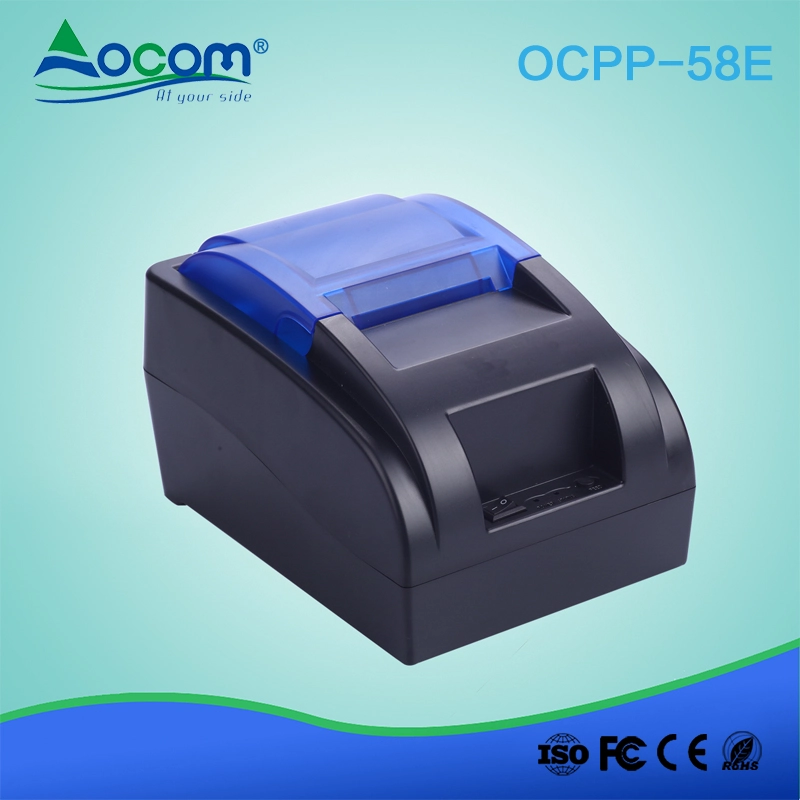

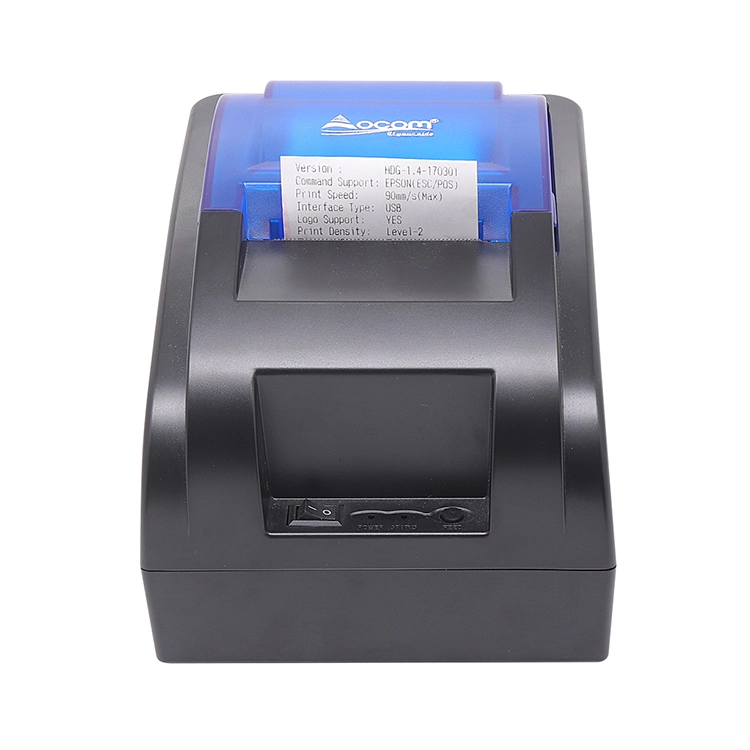

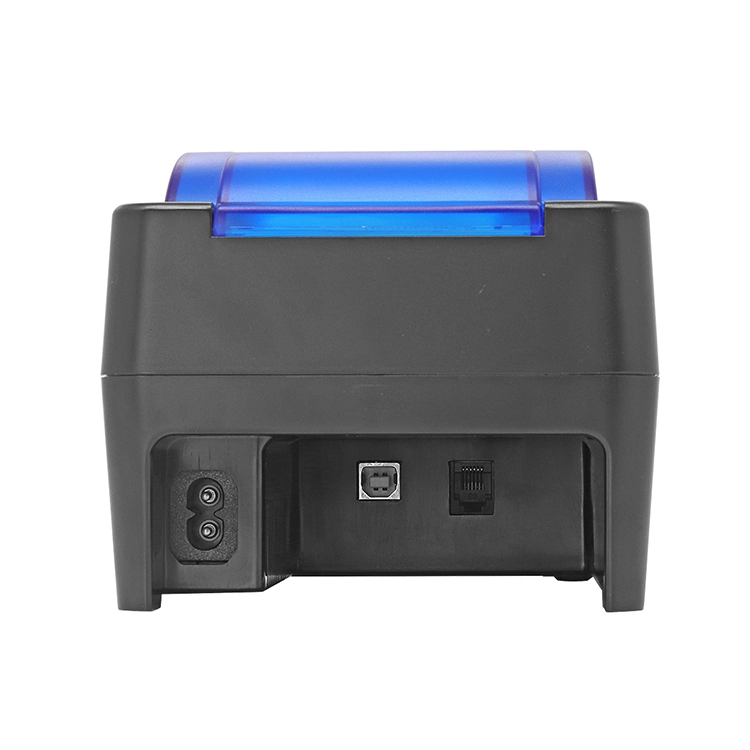

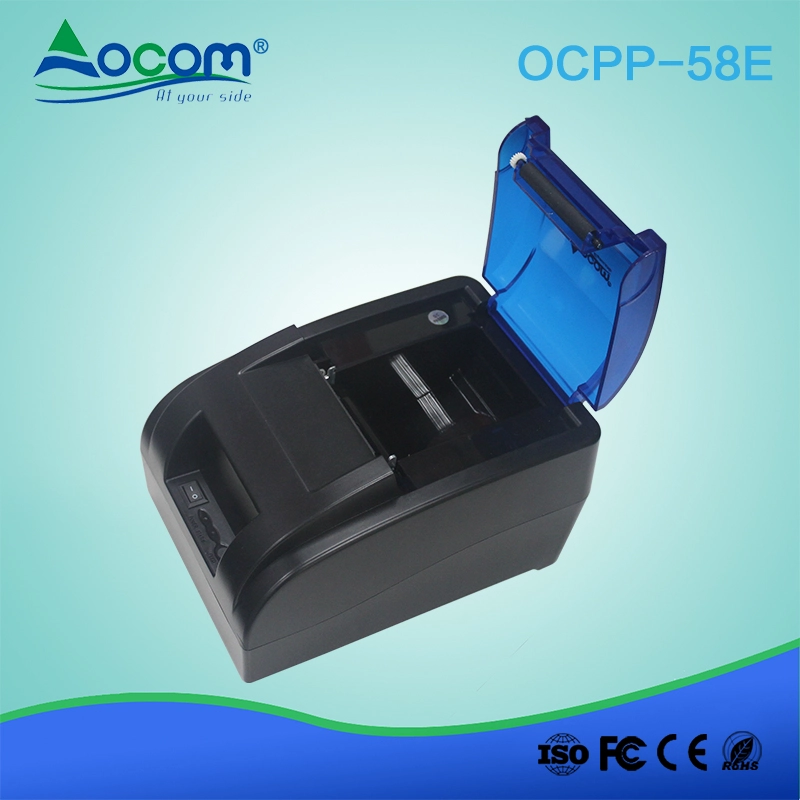

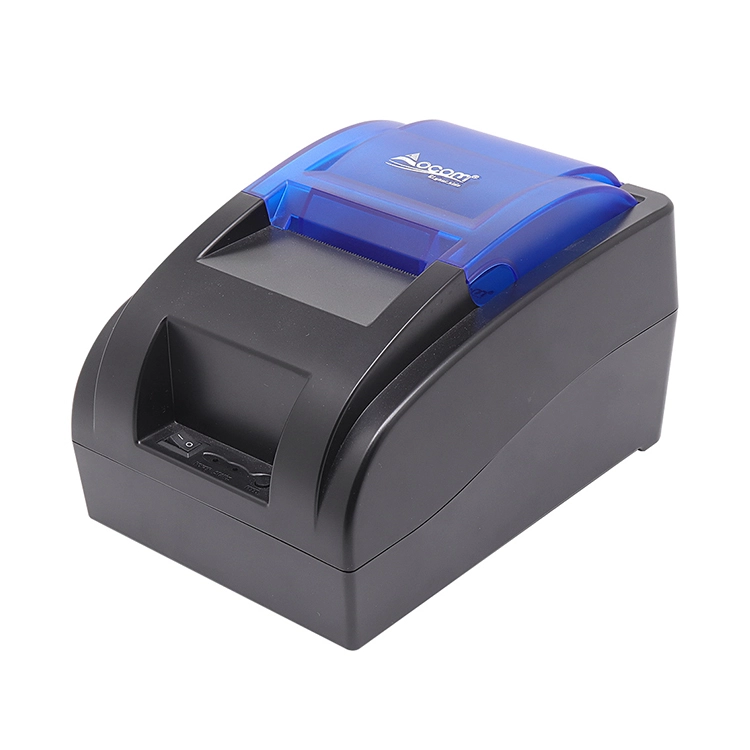

OCPP-58E Factory Price Mini 58mm thermal receipt printer for Cash Register

  • Simple and fashion,With solid material,exquisite workmanship.
  • Easy paper install structure,simple and convenient to operate
  • Built-in power supply design, to save space and more convenient to configure;
  • Transparent cover design, the user can know the paper roll’s using status anytime;
  • Support GB18030 big font, easy to print uncommon characters
  • Support multi language print, suitable for users all over the world;
  • Support download and print LOGO&graphics ;
  • Support Windows, Linux, Android and IOS system printing

 58mm Thermal Receipt Printer

(OCPP-58E)

Parameters:

Items

Parameters











Print parameters

Printing Method

Thermal Line

Printing Width

48MM

Resolution

384dots/Line(8dots/mm,203dpi)

Printing Speed

90mm/Second

Interface Type

USB,USB+Bluetooth

Line Spacing

3.75 mm(Can adjust line spacing by command)

Line No.

Font A:32 character /Line

Font B:42 character/Line

Simple,traditional Chinese-16 lines

Character

Standard GB18030 simplified / traditional Chinese Fonts

Character Size

ANKcharacter,Font A:1.5×3.0mm(12×24dots)
Font B:1.1×2.1mm(9×17dots) Simplified/Traditional Chinese:3.0×3.0mm(24×24 dots)

Bar code Character

Extended character set

PC437/Katakana/PC850/PC860/PC863/PC865/WestEurope/Greek/Hebrew/

EastEurope/Iran/WPC1252/PC866/PC852/PC858/IranII/Latvian/Arabic/PT151,1251

/PC737/WPC/1257/ThaiVietnam/PC864/PC1001/(Latvian)/(PC1001)/(PT151,1251)/

(WPC1257)/(PC864)/(Vietnam)/(Thai)

Bar code

UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)CODE39/ITF/
CODABAR/CODE93/CODE128

Graphics printing

Graphics printing

Supports bitmap download and print



Paper

Type

Thermal Roll

Width

57.5±0.5mm

Diameter

60mm

Feed Method

Easy feed(Clameshell feed)

Print commands

Commands

ESC/POS

Power

Power Adaptor

Input:AC 100V-240V,50-60Hz

Output:DC 12V/2A

Casher Drawer output

DC 12V/1A

Buffer

Input Buffer

4K

NV Flash

40K

physical characteristics

Weight

590g

Dimension

185*130*112(MM)

Environment

Working

Temp:5 ~ 45℃, Humidity:10 ~ 80%



Storage

Temp:-10 ~ 50℃ ,Humidity:10 ~ 90%(No dew)

Reliability parameter

Print Head Life

50KM(print density≤12.5)
