    (OCPP-763C) 76MM Dot Matrix Printer With Auto-cutter(OCPP-763C) 76MM Dot Matrix Printer With Auto-cutter(OCPP-763C) 76MM Dot Matrix Printer With Auto-cutter(OCPP-763C) 76MM Dot Matrix Printer With Auto-cutter(OCPP-763C) 76MM Dot Matrix Printer With Auto-cutter

    (OCPP-763C) 76MM Dot Matrix Printer With Auto-cutter

    • 76MM impact dot matrix receipt printer with automatic cutter;
    • Compatible with EPSON;
    • With Black mark detection function;
    • Serial+USB interface;
    • Support cash drawer kick out;
    • Easy operation and elegant appearance.
    76MM Dot Matrix Printer With Auto-cutter
    (Model: OCPP-763C)

    Features:

    76MM impact dot matrix receipt printer with automatic cutter;

    Compatible with EPSON;

    With Black mark detection function;

    Serial+USB interface;

    Support cash drawer kick out;

    Easy operation and elegant appearance.

    Specifications:

    Printing method

    9 pins serial dot matrix

    Print font

    FONT A: 33 or 35; FONT B: 40 or 42

    Column capacity

    400dots

    Character size

    ANK, Font A:9*9dots, Font B:7*9dots Simplified Chinese,
    traditional Chinese:16*16dots

    Character set

    Buyer option

    Character per line

    400dots

    Printing speed

    4.5lines/sec

    Receive buffer

    Selectable as 45 bytes or
    4k bytes using Dip switches

    Paper width

    75.5±0.5mm

    Copy capability

    One original and two copies

    Ribbon

    ERC-39

    MCBF(life)

    10,000,000 lines

    Driver

    Win9X/Win ME/Win2000/Win2003/WinNT/Win XP/Win Vista/Win 7/Linux

    CPU

    32 bit

    Storage environment

    Temperature (-10~60°c) humidity (10~90%)

    Working environment

    Temperature (0~50°c) humidity (10~90%)

    Dimension

    230X146X145mm

    Gross weight

    3.75KG

    Auto cutter

    Yes

    Paper end sensor

    Yes

    Paper thickness

    0.06-0.08mm

    Roll paper

    75.5±0.5mm*  φ65mm

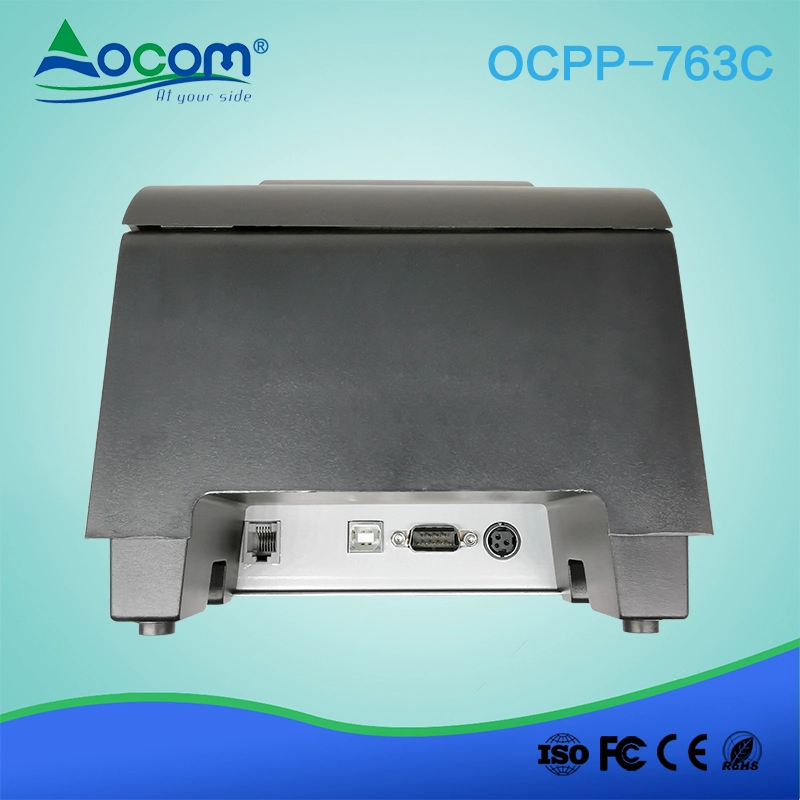

    Interface

    Serial+USB

    Command

    Compatible with EPSON

    Cash drawer control

    DC 12-24V/1A

    Power supply

    DC24V/2.5A



    Available Power Plug


    Product Details:










    Relevant documents:




    *Instruction Manual

    *Driver for all windows system

    *Driver for Linux

    *Printer Parameters Setting Tools

    *CD Files
