OCPP-763C 76mm USB Dot Matrix Printer Mechanism With CutterOCPP-763C 76mm USB Dot Matrix Printer Mechanism With CutterOCPP-763C 76mm USB Dot Matrix Printer Mechanism With Cutter

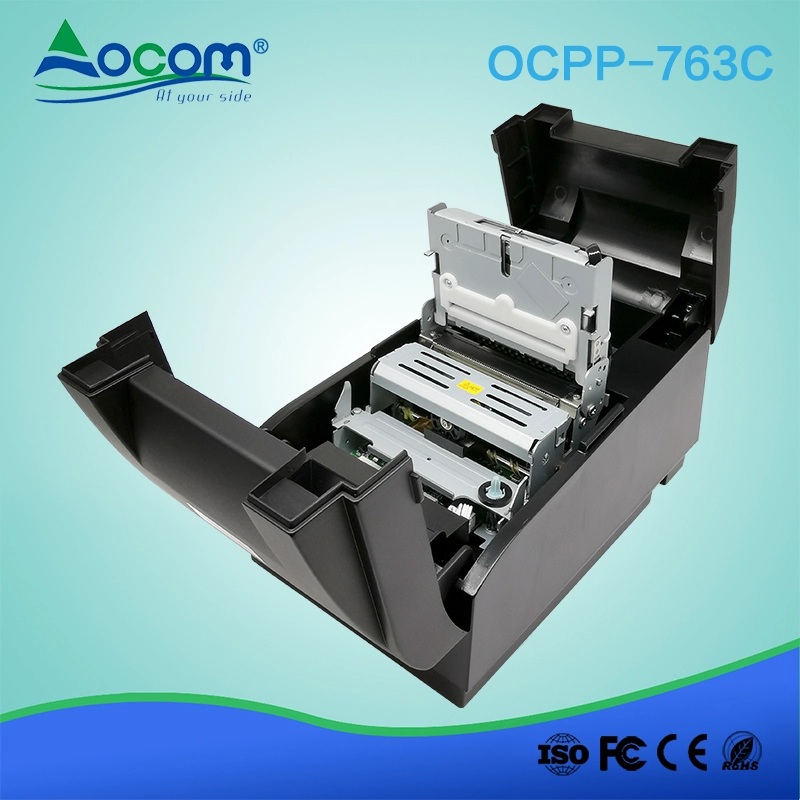

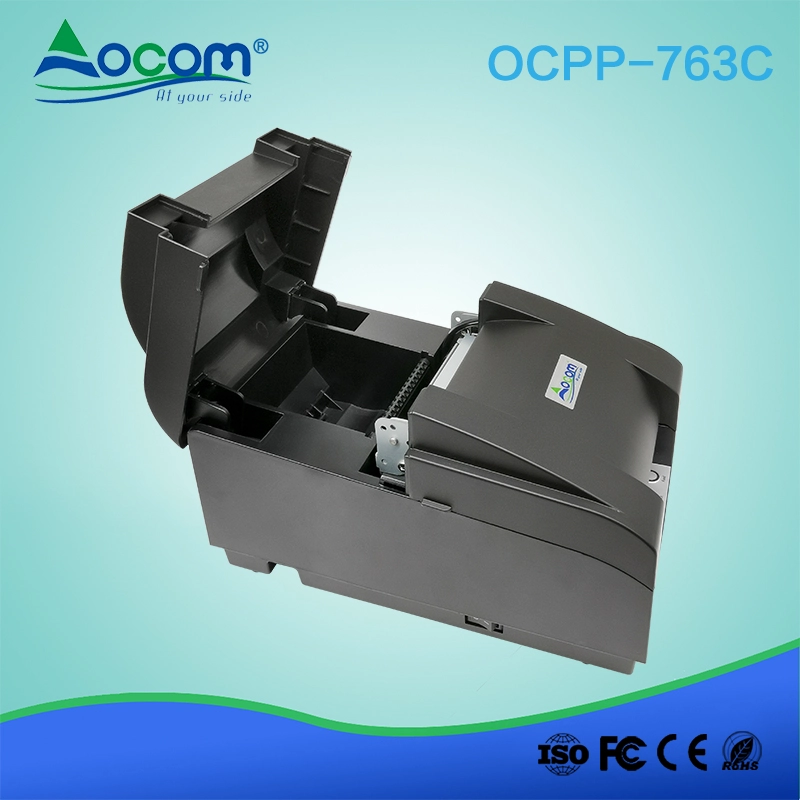

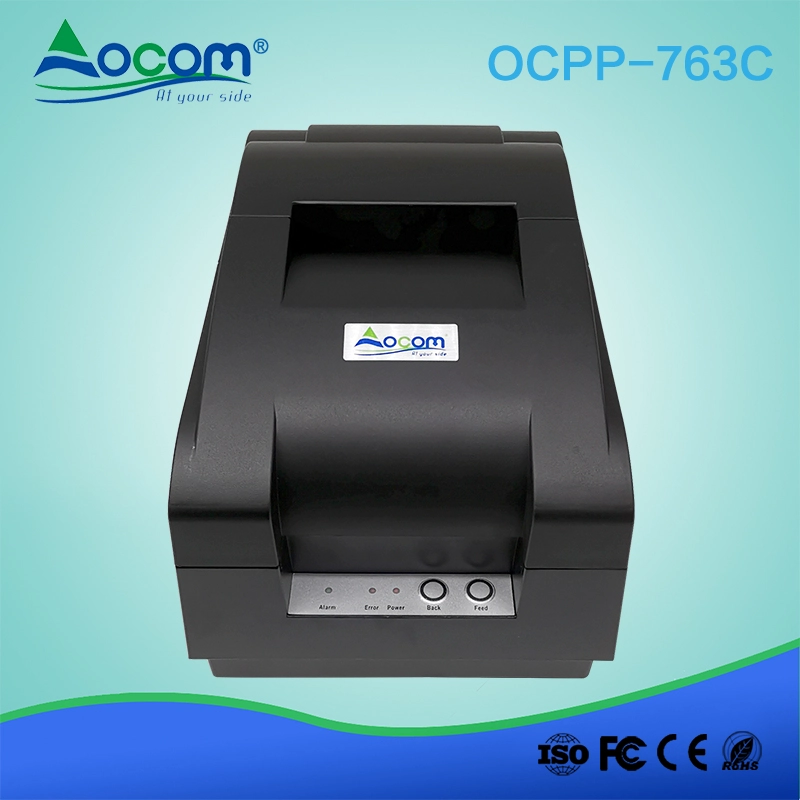

OCPP-763C 76mm USB Dot Matrix Printer Mechanism With Cutter

  • 76mm Impact Dot Matrix Recepit Printer With Auto-cutter
  • Interface: USB, Serial, Parallel, LAN for option;
  • Printing speed: 4.5 lines/s;
  • MCBF(life): 10 millions lines;
  • With black mark detection function;
  • One original and two copies supported;
  • Support cash drawer kicking out;
  • Easy operation and elegant design;
  • Compatible with ESC/POS command.

OCPP-763C 76mm USB Dot Matrix Printer Mechanism With Printer

(Model No. OCPP-763C)




Features:

 76MM impact dot matrix receipt printer with automatic cutter;

 Compatible with EPSON;

 With Black mark detection function;

 Serial+USB interface;

 Support cash drawer kick out;

 Easy operation and elegant appearance.


Specifications:

Printing method

9 pins serial dot matrix

Print font

FONT A: 33 or 35; FONT B: 40 or 42

Column capacity

400dots

Character size

ANK, Font A:9*9dots, Font B:7*9dots Simplified Chinese,
traditional Chinese:16*16dots

Character set

Buyer option

Character per line

400dots

Printing speed

4.5lines/sec

Receive buffer

Selectable as 45 bytes or
4k bytes using Dip switches

Paper width

75.5±0.5mm

Copy capability

One original and two copies

Ribbon

ERC-39

MCBF(life)

10,000,000 lines

Driver

Win9X/Win ME/Win2000/Win2003/WinNT/Win XP/Win Vista/Win 7/Linux

CPU

32 bit

Storage environment

Temperature (-10~60°c) humidity (10~90%)

Working environment

Temperature (0~50°c) humidity (10~90%)

Dimension

230X146X145mm

Gross weight

3.75KG

Auto cutter

Yes

Paper end sensor

Yes

Paper thickness

0.06-0.08mm

Roll paper

75.5±0.5mm*  φ65mm

Interface

Serial+USB

Command

Compatible with EPSON

Cash drawer control

DC 12-24V/1A

Power supply

DC24V/2.5A
