OCPP-80E---High quality 80mm thermal printer machineOCPP-80E---High quality 80mm thermal printer machineOCPP-80E---High quality 80mm thermal printer machineOCPP-80E---High quality 80mm thermal printer machine

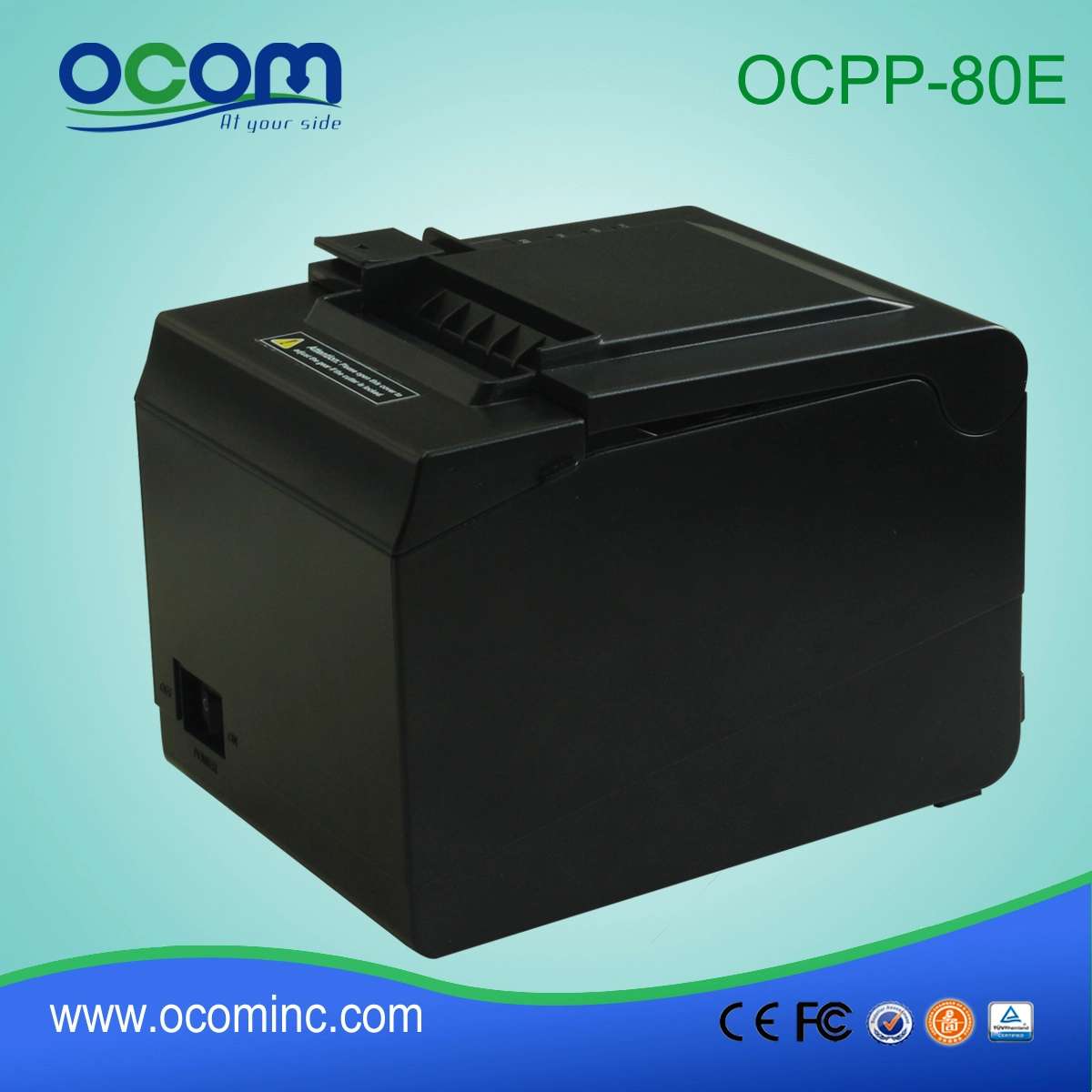

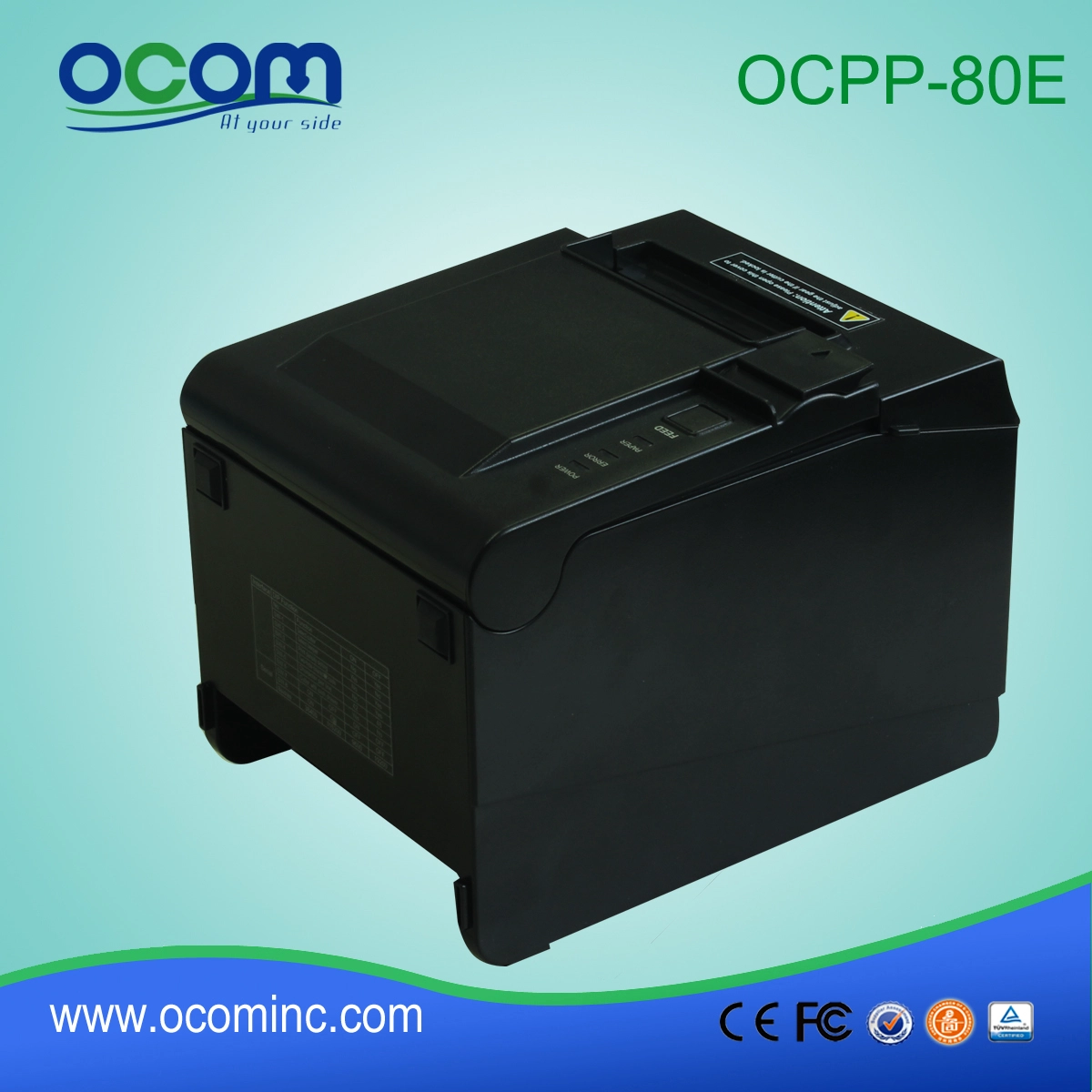

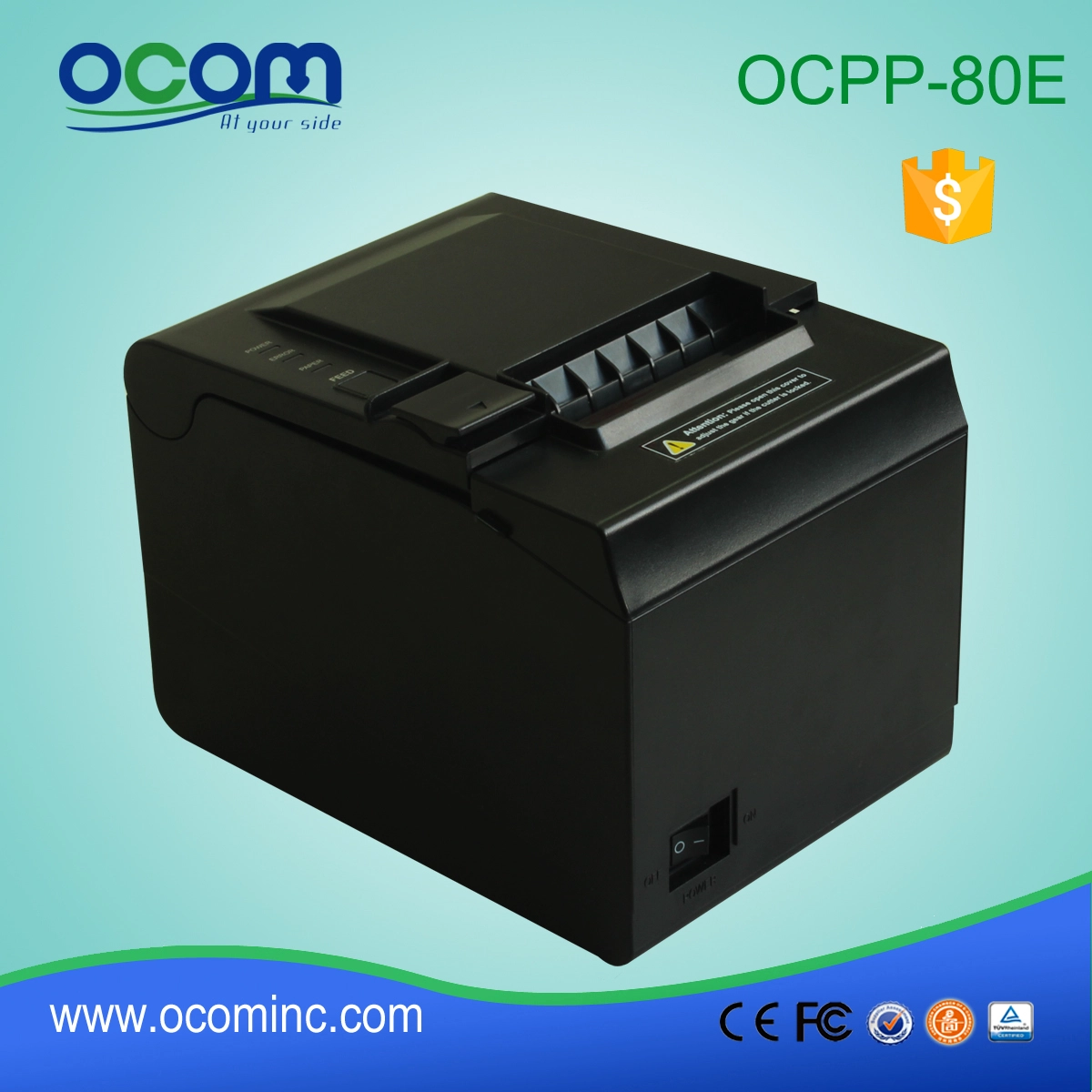

OCPP-80E---High quality 80mm thermal printer machine

  • Desktop or wall-mounted type for option.
  • Supports multi 1D barcodes and 2D codes printing.
  • 100M Ethernet port, ultra high speed data transmission.
  • Supports 256KB NV Logo storage and 2M big buffer memory.
  • Supports black mark detection and order reminding function, compatible with OPOS driver.
  • Supports printing status monitor and anti-losing order function.

80mm thermal pos printer with Auto Cutter



 Printing method:

    Direct thermal

 Printing speed:

    230mm/s、260mm/s

 Roll width:

    79.5±0.5mm

 Print diameter:

    Φ80mm

 Paper thickness:

    0.06-0.08mm

 Column capacity:

    576dots/line,512 Dots/line

 Line’s pacing :

    3.75mm(Adjustable by commands)

 Print command:

    Compatible with the ESC/POS command

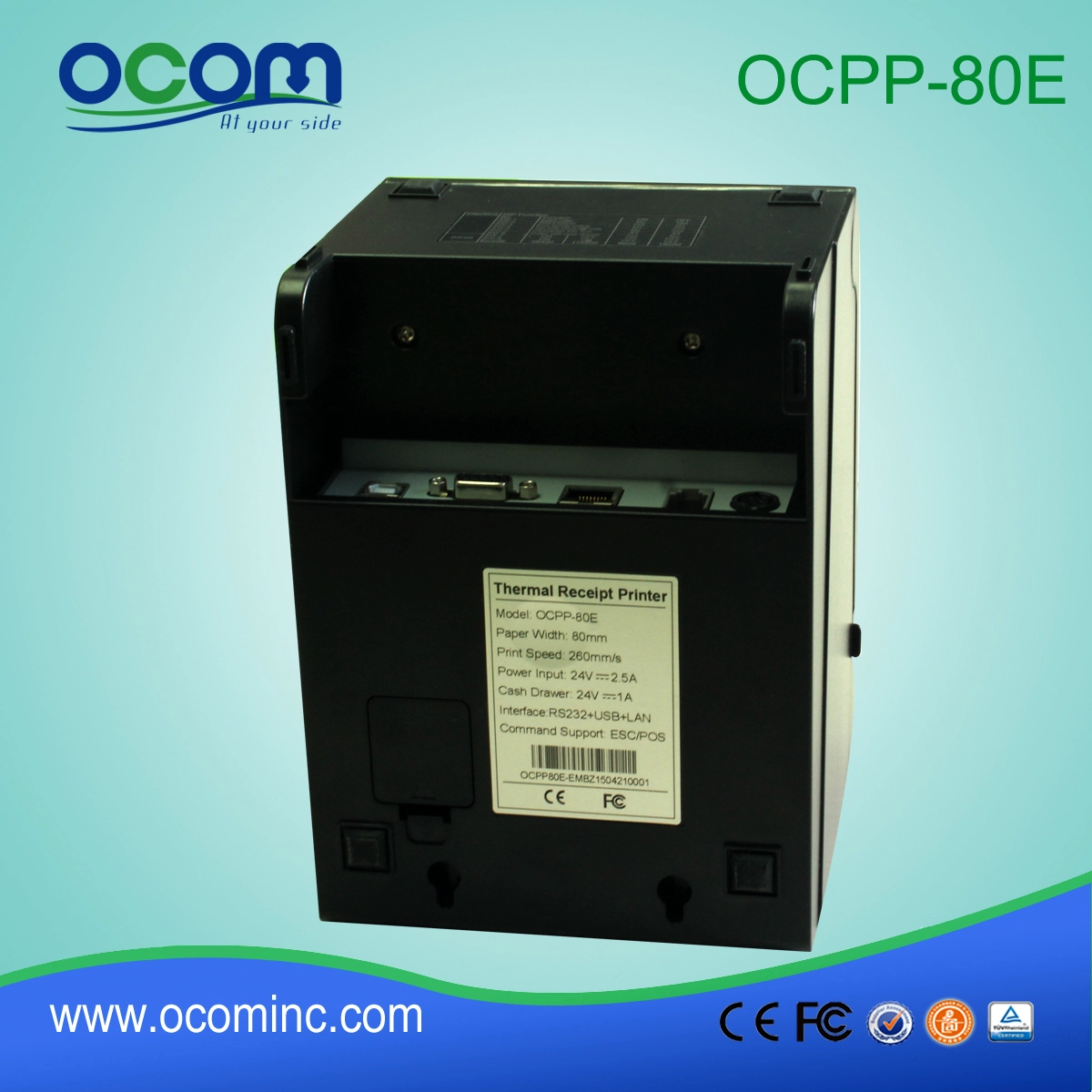

 Interface type:

    Serial+USB+Lan/36P parallel port/25P serial +USB/LAN

 Cutters life:

    1million cuts

 Print head life:

    100 km

 Input buffer :

    2048Kbytes

 NV Flash:

    256Kbytes

 Power adaptor:

    AC110V/240V、50~60Hz

 Power supply:

    DC 24V/2.5A

 Cash drawer supply:

    DC 24V/1A

Work environment:

Temperature(0~45) humidity(10~80%)(Non- condense)

 Work environment:

Temperature(0-45) degree centigrade, humidity(10-80%) Non- condense

 Storage environment:

Temperature(-10~60℃); Humidity(10~90%)

 Character size:

ANK,FontA:1.5*3.0mm/ FontB:1.1*2.1mm

 Barcode:

UPC-A/UPC-E/JA(EAN13)/JAN8(EAN8/CODE39/ITF

/CODE93/CODE128 QRCode

 Characters:

PC347(Standard Europe)、Katakana、PC850(Multilingual)、PC860(Portuguese)、PC863(Canadian-French)、PC865(Nordic)、West Europe、Greek、Hebrew、East Europe、Iran、WPC1252、PC866(Cyrillic#2)、PC852(Latin2)、

PC858、IranII、Latvian、Arabic、PT151(1251)
