(OCPP-80F) 80mm thermal receipt printer support Bluetooth and WIFI(OCPP-80F) 80mm thermal receipt printer support Bluetooth and WIFI(OCPP-80F) 80mm thermal receipt printer support Bluetooth and WIFI(OCPP-80F) 80mm thermal receipt printer support Bluetooth and WIFI

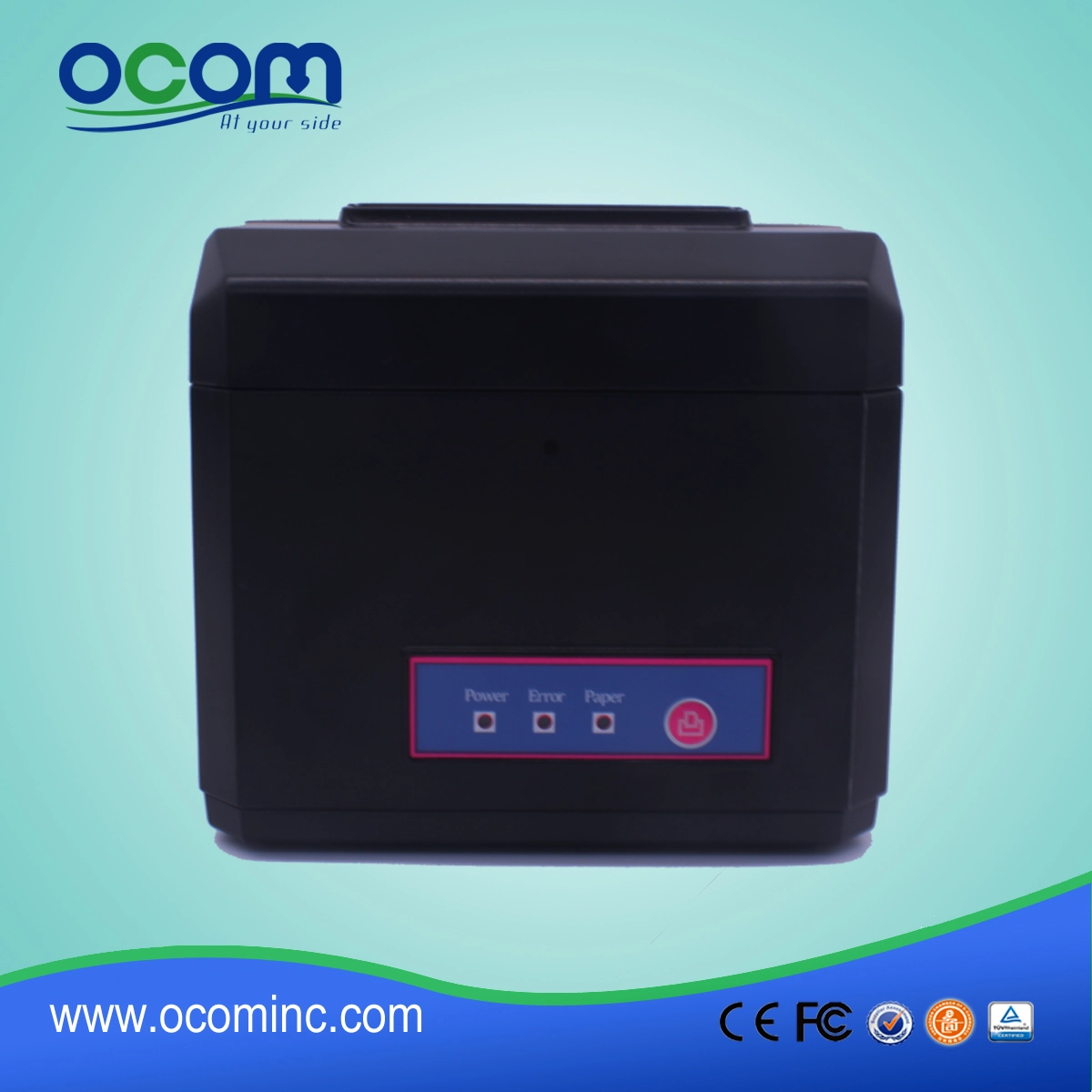

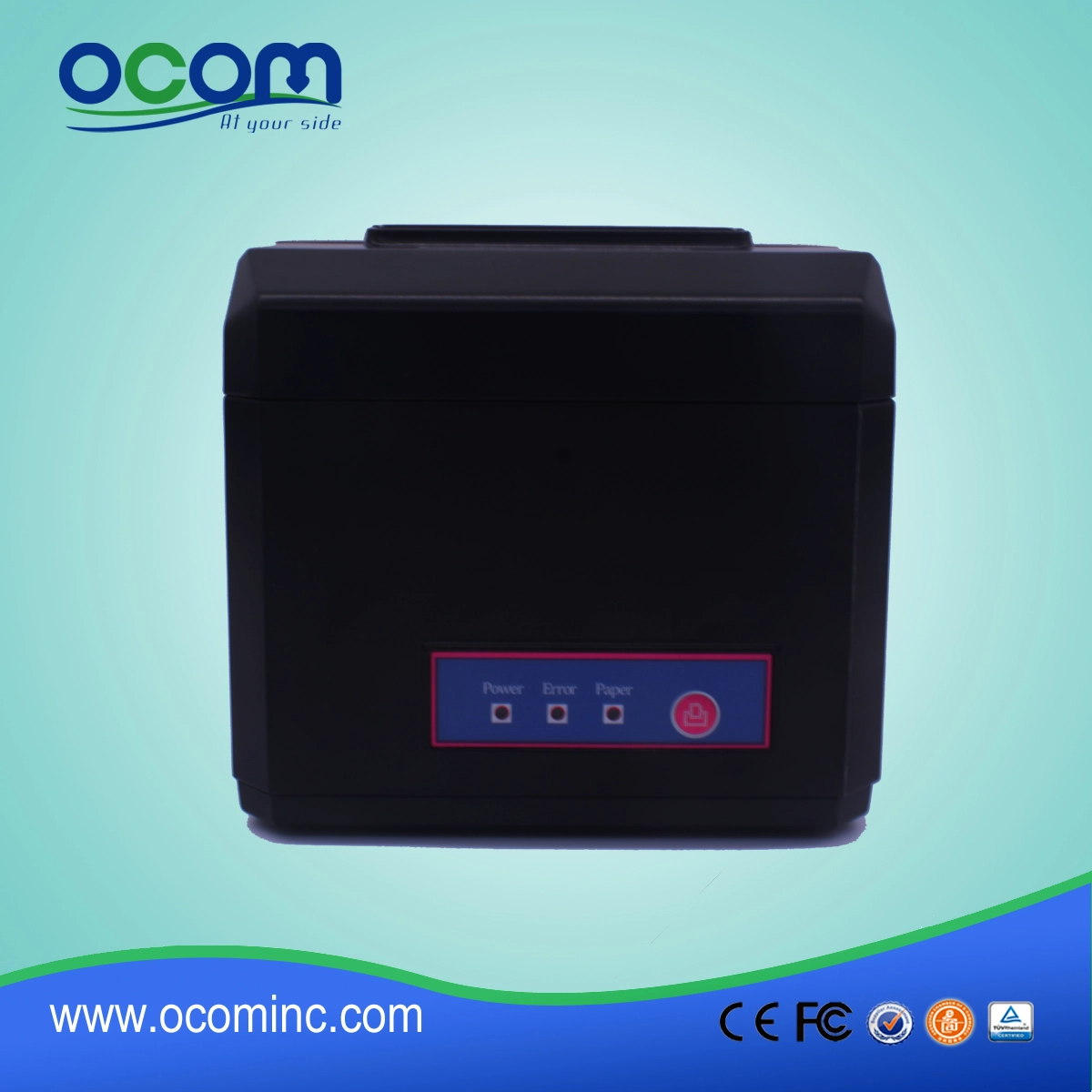

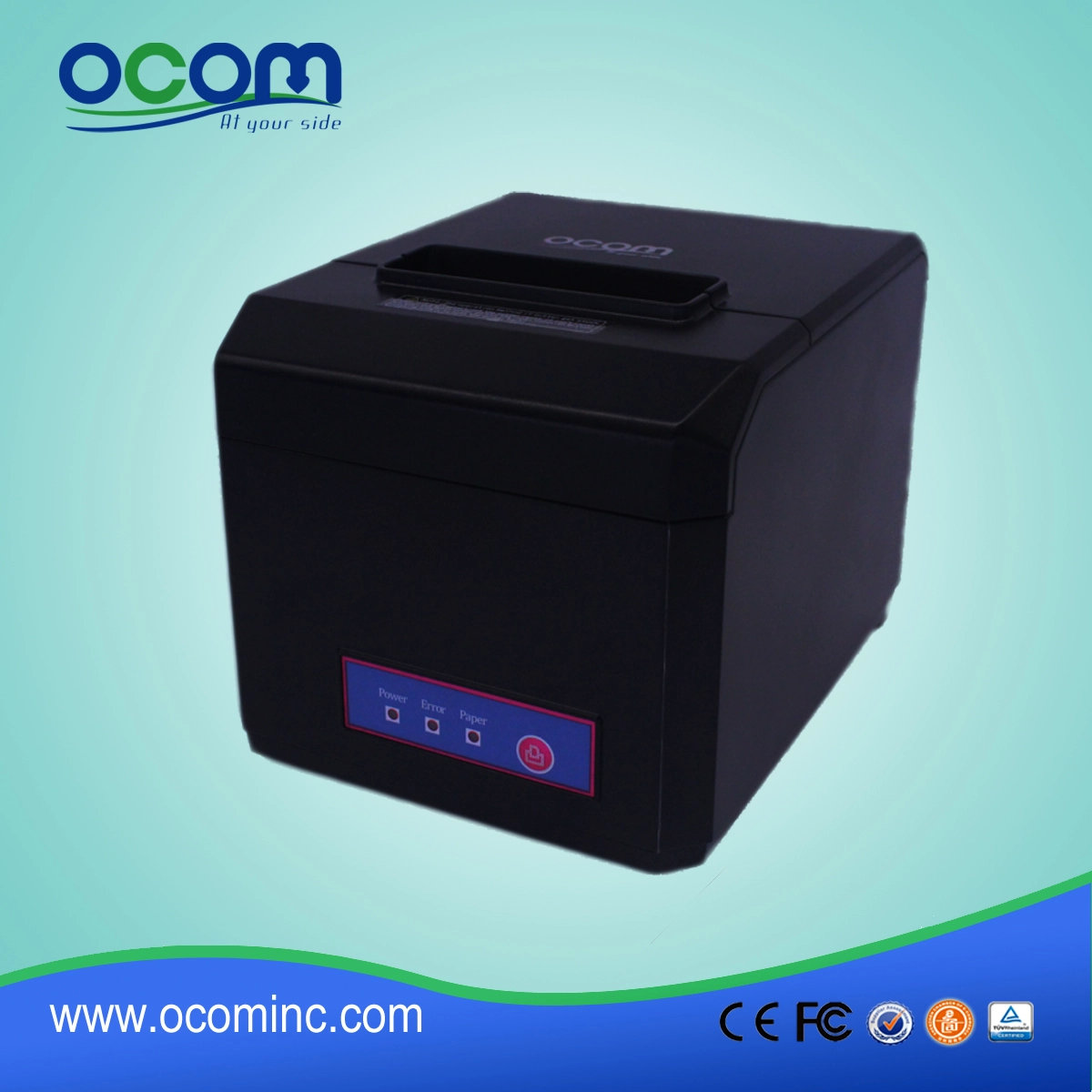

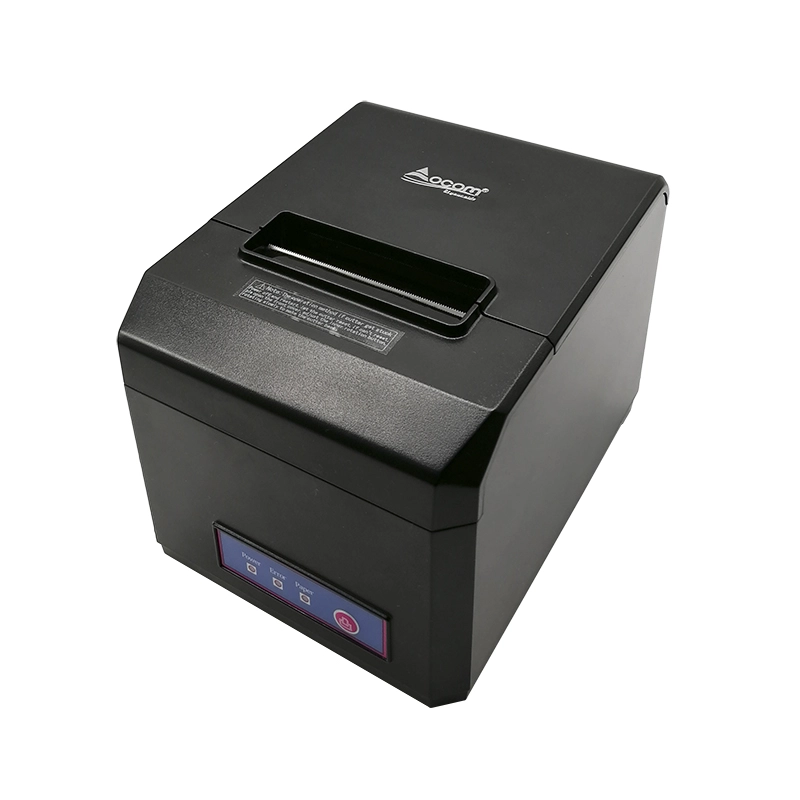

(OCPP-80F) 80mm thermal receipt printer support Bluetooth and WIFI

  • 1.300mm/s printinghigh-speed, improve the printing efficiency
  • 2.2048K super input buffer,to avoid losing bills
  • 3.Support 1D,2D bar code printing
  • 4. Support black mark orientation and re-print
  • 5. Support printer monitoring function,to avoid losing bills;
  • 6. Excellent waterproof, anti - oil, anti-dust structure design
  • 7.Movable baffle design,support 80MM,58MM different width of
  • paper roll printing.



              80mm thermal receipt printer support Bluetooth and WIFI

                                            (Model: OCPP-80F)





Feature:

1.300mm/sprintinghigh-speed, improve the printing efficiency

2.2048Ksuper input buffer,to avoid losing bills

3.Support1D,2D bar code printing

4. Support black markorientation and re-print

5. Support printer monitoringfunction,to avoid losing bills;

6.Excellent waterproof, anti - oil, anti-dust structure design

7.Movablebaffle design,support 80MM,58MM different width of

paperroll printing.



.

Printer Parameters:



Item

Parameters



Printing Method

Thermal Line



Printing width

72mm



Resolution

576 Dots/Line or 512 Dots/Line(8dots/mm,203dpi)



Print speed

300mm/Second



Interface

Internet(100M)+USB+COM;USB+COM



Line Spacing

3.75mm(Can adjust line spacing by command)



Line No.

FontA-48Lines/FontB-64Lines/Simple,traditional Chinese-24 lines



Character

 standard GB18030 simplified / traditional Chinese Fonts



Character Size

ANK character,Font A:1.5×3.0mm(12×24 dots)



FontB:1.1×2.1mm(9×17 dots)Simplified/Traditional Chinese:3.0×3.0mm(24×24 dots)



Extended character set

PC437/Katakana/PC850/PC860/PC863/PC865/WestEurope/Greek/Hebrew/EastEurope/Iran/WPC1252/PC866/PC852/PC858/IranII/Latvian/Arabic/PT151,1251/PC737/WPC/1257/ThaiVietnam/PC864/PC1001/(Latvian)/(PC1001)/(PT151,1251)/(WPC1257)/(PC864)/(Vietnam)/(Thai)





Bar code

1D barcode:UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)CODE39/ITF/

CODABAR/CODE93/CODE128



2D barcode:QRCODE



Graphics printing

Supports bitmap download and print



Cutter Function

Half cut



Type

Thermal



Width

79.5±0.5mm



Diameter

≤80mm



Feed method

Easy feed(Clameshell feed)



Commands

ESC/POS



Power Adaptor

Input:AC 110V/220V,50~60Hz



Output:DC 24V/2.5A



Cash Drawer output

DC 24V/1A



Input Buffer

2048K bytes



NV Flash

256K bytes



Weight

1.2KG



Dimension

186*145*135



Working

Temp:5~45 Centigrade,Humidity:10~80%



Storage

Temp:-10 ~ 50 Centigrade,Humidity:10~90%(Nodew)



Print Head Life

100KM(print density LE.12.5)



Cutter Life

1000,000times



Driver

Android,IOS,Linux,Win2000,Win2003,WinXP,Win7,Win8,Win8.1





Relevant documents:

 Driver and CD files
