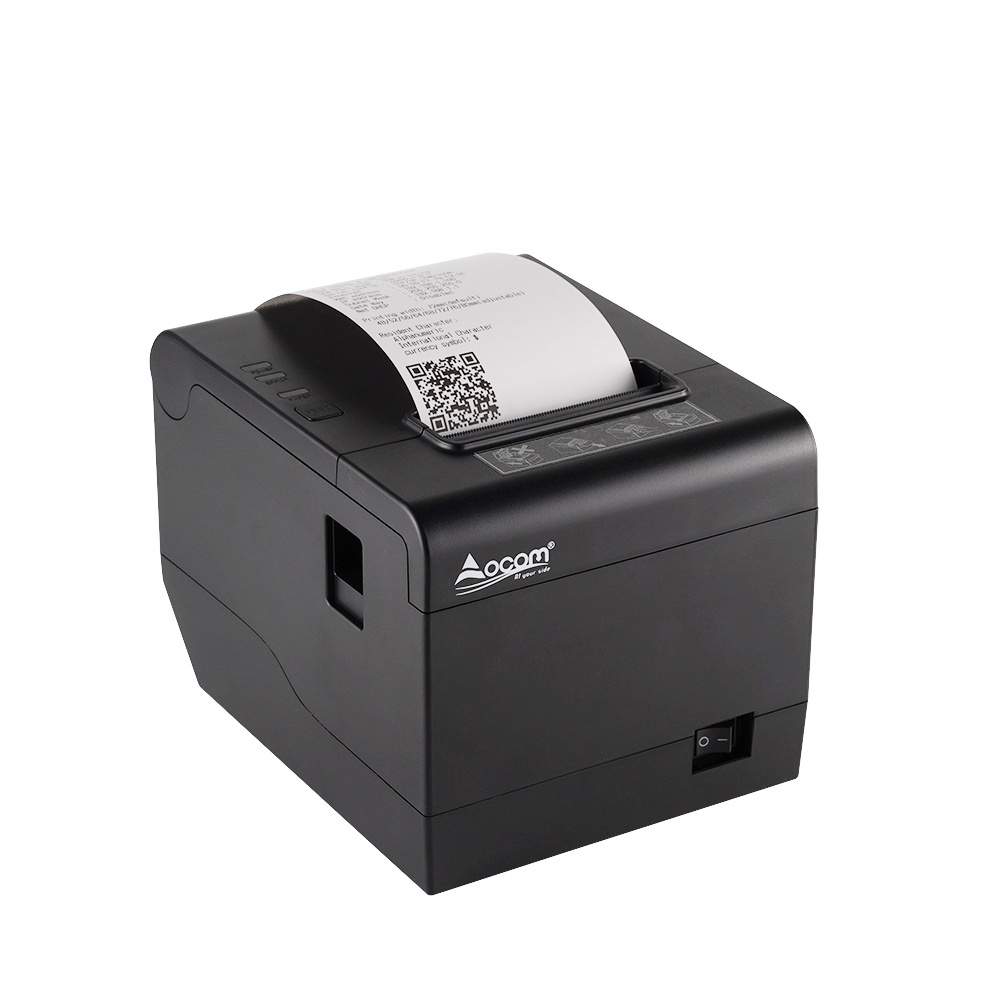

OCPP-80K 80mm thermal printer receipt billing system wifi blue tooth Desktop POS80 Printer
- Support 8 kinds abundant interface combination;
- Supports multi 1D barcode and QR code printing;
- Support printer status monitoring function;
- Support printing queuing ticket function;
- 100M Ethernet port, ultra high speed data transmission;
- 256KB NV Logo storage and 256kb big buffer memory;
- 48mm to 80mm adjustable Paper separator for optional;
- Compatible with OPOS/JPOS driver;
- 150KM long life printer head.
Auto cutter thermal parking ticket printer bluetooth wifi 80mm pos printer thermal receipt
(Model NO.: OCPP-80K)
Features:
Support 8 kinds abundant interface combination;
Supports multi 1D barcode and QR code printing;
Support printer status monitoring function;
Support printing queuing ticket function;
100M Ethernet port, ultra high speed data transmission;
256KB NV Logo storage and 256kb big buffer memory;
48mm to 80mm adjustable Paper separator for optional;
Compatible with OPOS/JPOS driver;
150KM long life printer head.
Technical parameters:
General |
|
||
Model |
OCPP-80K |
||
Name |
80mm desktop thermal printer with auto cutter |
||
Color |
Black |
||
Interface |
USB/ USB+Lan/ USB+BT/ USB +WiFi/ URL+ WIFI/ URL+BT/ USB+RS232 |
||
Power supply |
Input:AC 100V-240V, 50-60Hz, Output:DC 24V/ 2.5A |
||
Cash drawer |
DC 24V/1A |
||
Graphics printing |
Supports bitmap download and print ( each bitmap size Max.20K ) |
||
Printer head lifespan |
150KM |
||
Cutter |
Auto cutter |
||
Sensors |
Paper out, cover open, cutter jam, paper jam and black mark detection(Optional) |
||
Buffer |
Input buffer256K, NV Flash 256K |
||
Accessories |
Data cable, power adaptor, power cord, paper roller, CD, manual, Paper separator (optional) |
||
OS supporting |
Compatible with iOS/ Android/ Windows |
||
Safety standards |
CE, FCC, Rohs etc |
||
Printing capability |
|
||
Printing method |
Direct thermal line |
||
Resoluiton |
576 Dots / Line or 512 Dots/ Line(8dots /mm, 203dpi) |
||
Printing speed |
200mm/s (U/ UR ) |
||
Print width |
72mm |
||
Graphics printing |
Supports bitmap download and print |
||
Printing Command |
Compatible with ESC/POS |
||
Barcode and character |
|
||
Barcode |
1D barcode: UPC-A/ UPC-E/ JAN13(EAN13)/ JAN8(EAN8)/ CODE39/ ITF/ CODABAR/ CODE93/ CODE128 2D barcode: QR CODE (Single USB or UR solution no QR code function) |
||
Character |
Standard GB18030 simplified / traditional Chinese Fonts |
||
Character size |
384dots/ line, ANK character, Font: A: 12 * 24dots, 1.5(W) * 3.0(H) mm FontB: 9*17dots, 1.1(W) * 2.1 (H)mm Simplified/ Traditional: 24*24dots, 3.0(W) * 3.0(H)mm |
||
Japanese/ Korea |
optional |
||
User-defined language |
PC437 / Katakana / PC850 / PC860 / PC863 / PC865 / WestEurope / Greek / Hebrew / EastEurope / Iran / WPC1252 / PC866 / PC852 / PC858 / IranII / Latvian / Arabic / PT151, 1251 / PC737 / WPC / 1257 / ThaiVietnam / PC864 / PC1001 / (Latvian) / (PC1001) / (PT151, 1251) / (WPC1257) / (PC864) / (Vietnam) / (Thai) |
||
Media |
|
||
Paper type |
Thermal roll paper |
||
Paper width |
48mm/ 52mm/ 56mm/ 64mm/ 68mm/ 76mm/ 80mm |
||
Paper Thickness |
0.06~0.08mm |
||
Paper roll diameter |
83mm Max |
||
Paper separator |
Optional |
||
Physical |
|
||
Dimension |
196*145*135mm |
||
Weight |
1.65kg |
||
Package box |
300*190*180 mm |
||
12 in 1 carton |
615*370*535mm/21.5kg |
||
Environment |
|
||
Working temperature& humidity |
0 to 45 degrees centigrade, 10%~80% No condensation |
||
Storage temperature& humidity |
-20 to 60 degrees centigrade , 10%~90% No condensation |
