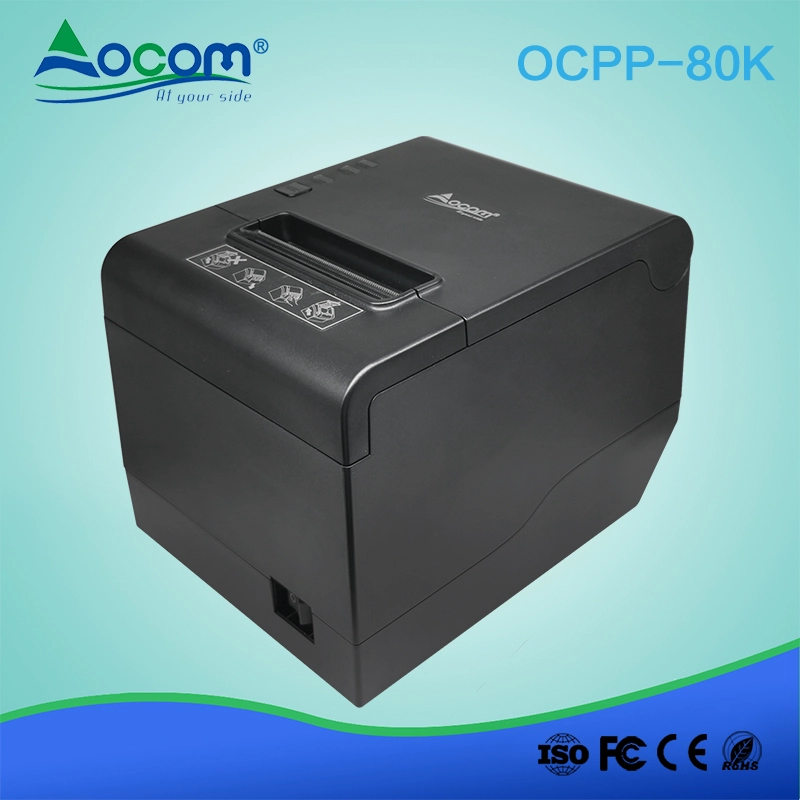

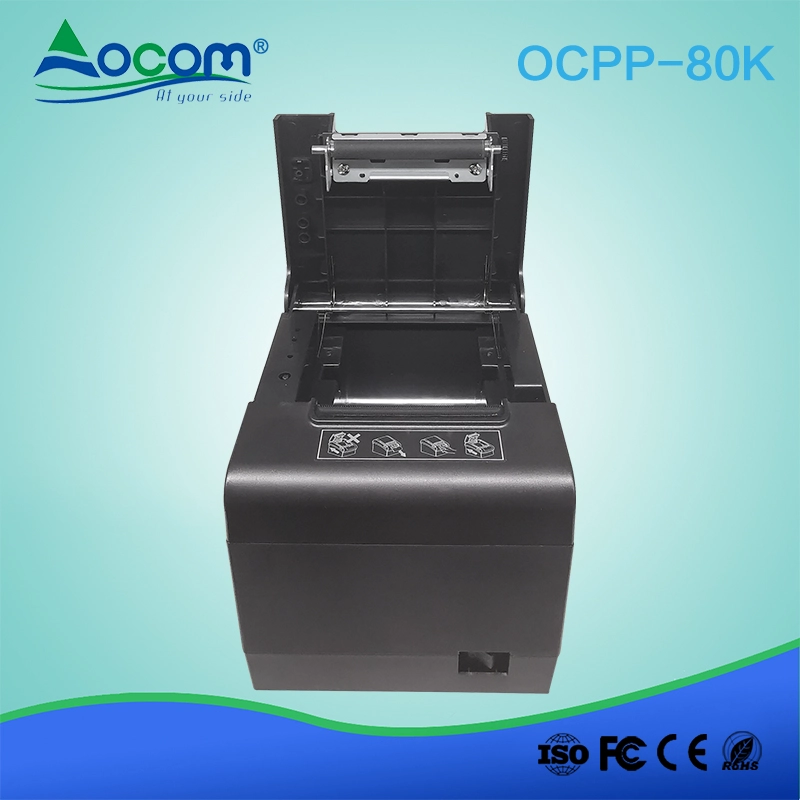

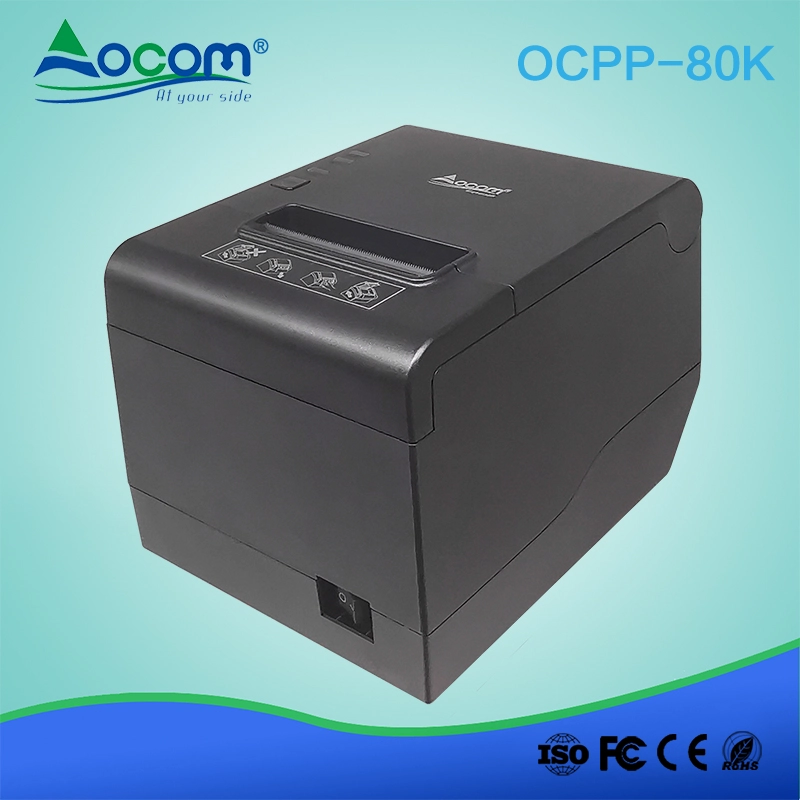

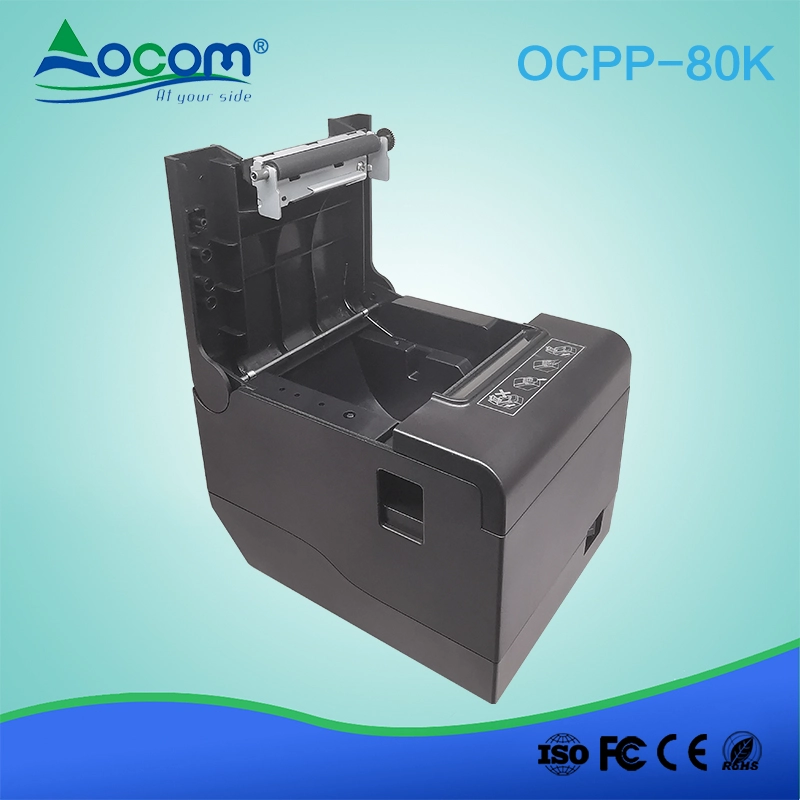

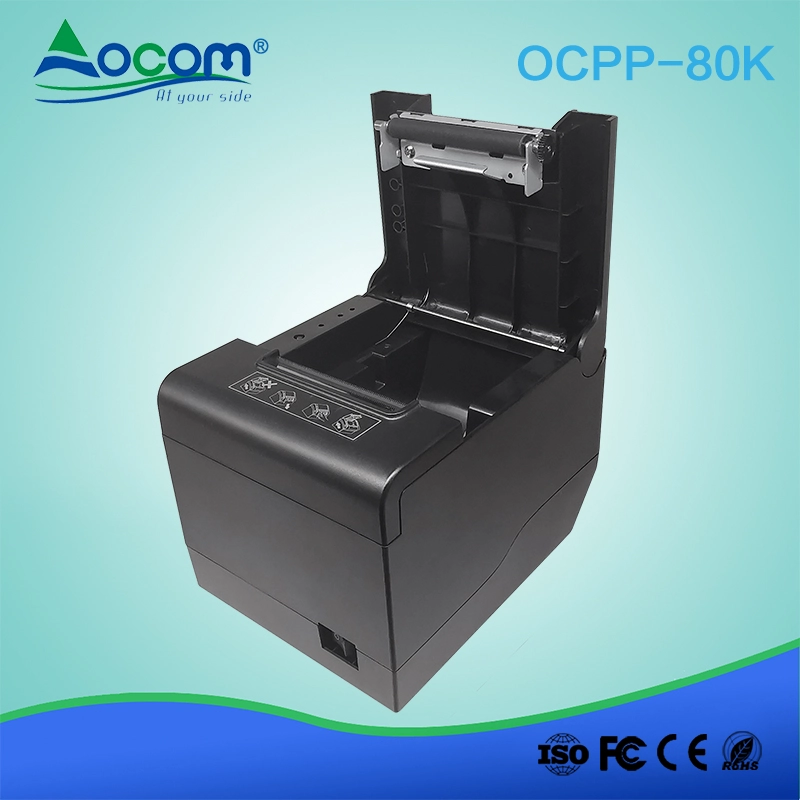

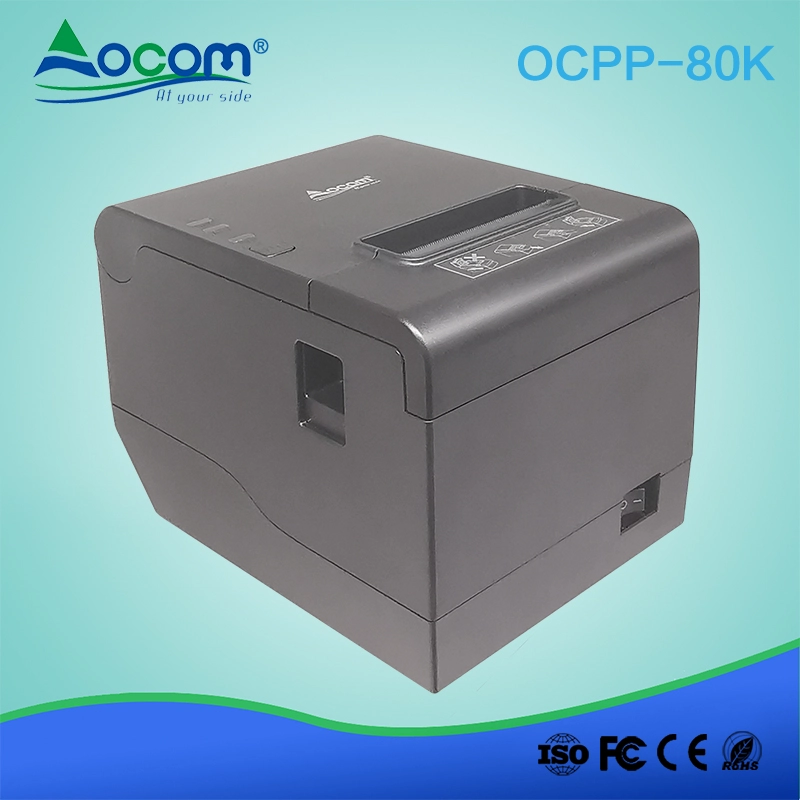

(OCPP-80K)Thermal Receipt Printer With Auto Cutter Mobile 58mm 80mm Wifi Bluetooth
- Features:
- It can be used as top paper coming printer and front paper coming printer
- It’s built-in power adaptor,which avoid messy cord everywhere,saving much space
- Support 8 kinds abundant interface combination
- Supports multi 1D barcode and QR code printing
- Support printer status monitoring function
- Support printing queuing ticket function
- 100M Ethernet port, ultra high speed data transmission
- 256KB NV Logo storage and 256kb big buffer memory
- 48 or 80mm adjustable paper separetor for option
- 100KM long life printer head
(OCPP-80K)Thermal Receipt Printer With Auto Cutter Mobile 58mm 80mm Wifi Bluetooth
(M/N:OCPP-80K)
Features:
It can be used as top paper coming printer and front paper coming printer
It’s built-in power adaptor,which avoid messy cord everywhere,saving much space
Support 8 kinds abundant interface combination
Supports multi 1D barcode and QR code printing
Support printer status monitoring function
Support printing queuing ticket function
100M Ethernet port, ultra high speed data transmission
256KB NV Logo storage and 256kb big buffer memory
48 or 80mm adjustable paper separetor for option
100KM long life printer head
Specifications:
|
General |
|
||
|
Model |
OCPP-80K |
||
|
Name |
80mm desktop thermal printer with auto cutter |
||
|
Color |
Black |
||
|
Interface |
USB/USB+Lan/USB+BT/ USB+WiFi/URL+WIFI/URL+BT/USB+RS232 |
||
|
Power supply |
Input：AC 100V-240V,50-60Hz,Output：DC 24V/2.5A |
||
|
Cash drawer |
DC 24V/1A |
||
|
Graphics printing |
Supports bitmap download and print ( each bitmap size Max.20K) |
||
|
Printer head lifespan |
100KM |
||
|
Cutter |
Auto cutter |
||
|
Sensors |
Paper out, cover open, cutter jam,paper jam and black mark detection(Optional) |
||
|
Buffer |
Input buffer256K，NV Flash 256K |
||
|
Accessories |

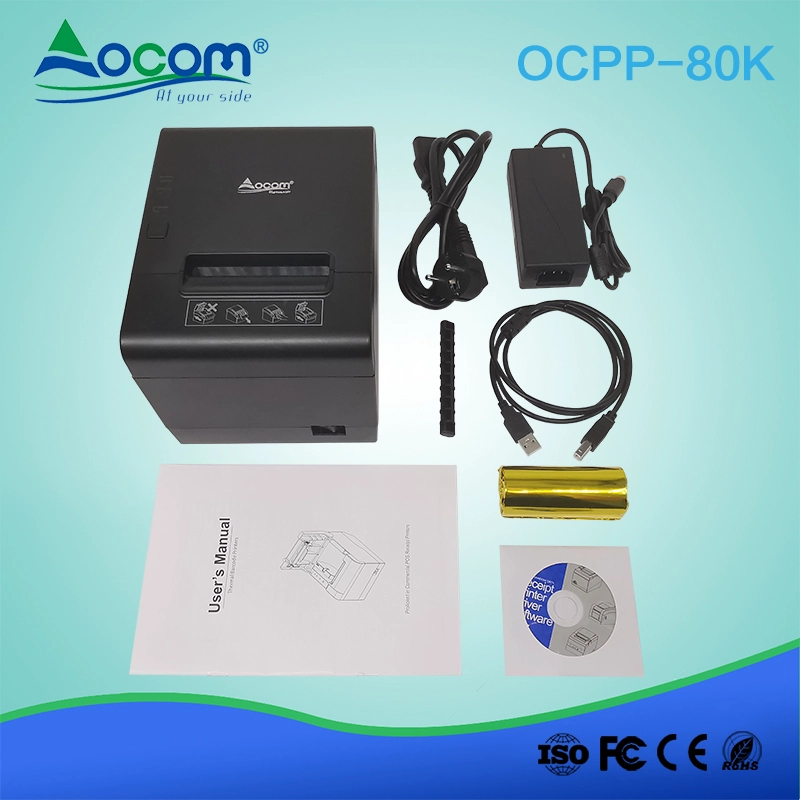

Data cable,power adaptor,power cord,paper roller,CD,manual, Paper separator(optional) |
||
|
OS supporting |
Compatible with iOS/ Android/ Windows |
||
|
Safety standards |
CE ,FCC,Rohs etc |
||
|
Printing capability |
|
||
|
Printing method |
Direct thermal line |
||
|
Resoluiton |
576 Dots/Line or 512 Dots/Line（8dots/mm,203dpi） |
||
|
Printing speed |
200mm/s (U/UR ) |
||
|
Print width |
72mm |
||
|
Graphics printing |
Supports bitmap download and print |
||
|
Printing Command |
Compatible with ESC/POS |
||
|
Barcode and character |
|
||
|
Barcode |
1D barcode: UPC-A/UPC-E/JAN13（EAN13）/JAN8（EAN8）/CODE39/ITF/ CODABAR/CODE93/CODE128 2D barcode：QR CODE（Single USB or UR solution no QR code function） |
||
|
Character |
Standard GB18030 simplified / traditional Chinese Fonts |
||
|
Character size |
384dots/line, ANK character, Font: A: 12*24dots, 1.5(W)*3.0(H) mm FontB:9*17dots ,1.1(W)*2.1(H)mm Simplified/Traditional: 24*24dots, 3.0(W)*3.0(H)mm |
||
|
optional |
||
|
User-defined language |
PC437/Katakana/PC850/PC860/PC863/PC865/WestEurope/Greek/Hebrew/EastEurope/Iran/WPC1252/PC866/PC852/PC858/IranII/Latvian/Arabic/PT151,1251/PC737/WPC/1257/ThaiVietnam/PC864/PC1001/(Latvian)/(PC1001)/(PT151,1251)/(WPC1257)/(PC864)/(Vietnam)/(Thai) |
||
|
Media |
|
||
|
Paper type |
Thermal roll paper |
||
|
Paper width |
48mm/52mm/56mm/64mm/68mm/76mm/80mm |
||
|
Paper Thickness |
0.06~0.08mm |
||
|
Paper roll diameter |
83mm Max |
||
|
Paper separator |
Optional |
||
|
Physical |
|
||
|
Dimension |
196*145*135mm |
||
|
Weight |
1.65kg |
||
|
Package box |
300*190*180 mm |
||
|
12 in 1 carton |
615*370*535mm/21.5kg |
||
|
Environment |
|
||
|
Working temperature& humidity |
0 to 45 degrees centigrade, 10%~80% No condensation |
||
|
Storage temperature& humidity |
-20 to 60 degrees centigrade , 10%~90% No condensation |
Product details:
