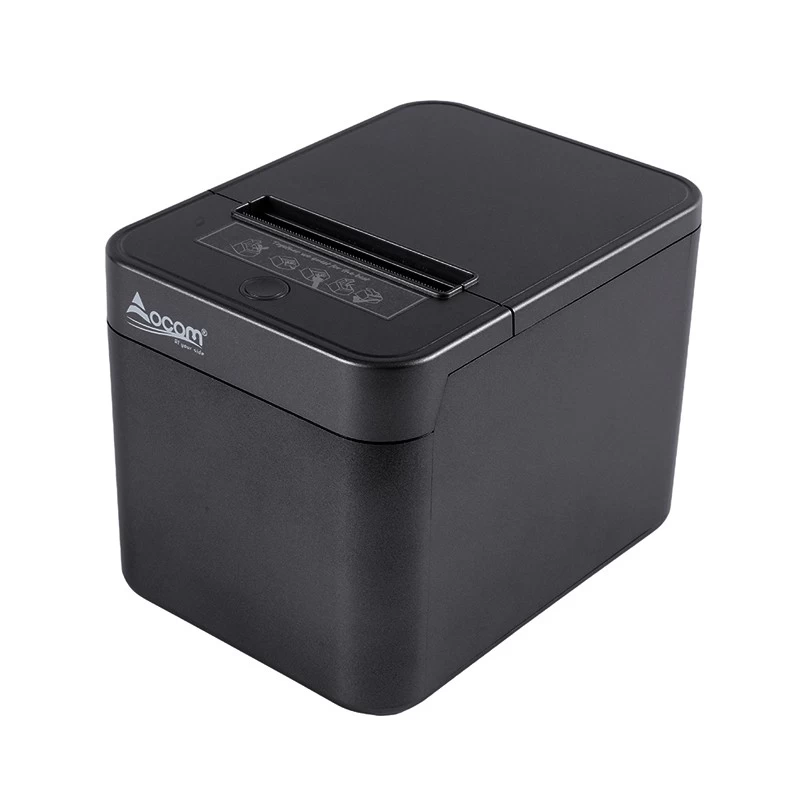

(OCPP-80S) 80MM Thermal Receipt Printer with Auto Cutter
- Compact design, fashionable appearance,easy to load paper;
- Supports multi 1D barcode and QR code printing;
- Support printer status monitoring function;
- Support printing queuing ticket function;
- Support different interface combination;
- Up to 300mm/s high speed,low noise printing;
- 48 or 80mm adjustable paper separator for option;
- 150KM long life printer head;
- Supporting wall mounting.
80MM Thermal Receipt Printer with Auto Cutter
(Model: OCPP-80S)
Features:
Compact design, fashionable appearance,easy to load paper;
Supports multi 1D barcode and QR code printing;
Support printer status monitoring function;
Support printing queuing ticket function;
Support different interface combination;
Up to 300mm/s high speed,low noise printing;
48 or 80mm adjustable paper separator for option;
150KM long life printer head;
Supporting wall mounting.
Specification
|
General |
|
|
Model |
OCPP-80S |
|
Name |
80mm desktop thermal printer with auto cutter |
|
Color |
Black |
|
Interface |
USB/ USB+Lan/ USB+BT/ USB+WiFi/ URL+WIFI/ URL+BT |
|
Power supply |
Input: AC 100V-240V, 50-60Hz, Output: DC 24V/ 2.5A |
|
Cash drawer |
DC 24V/ 1A |
|
Printer head lifespan |
150KM |
|
Cutter |
Auto cutter |
|
Sensors |
Paper out, cover open, cutter jam, paper jam and black mark detection ( Optional ) |
|
Accessories |
Data cable, power adaptor, power cord, paper roller, CD, manual, Paper separator ( optional ) |
|
OS supporting |
Compatible with iOS/ Android/ Windows/ Linux |
|
Safety standards |
CE, FCC, Rohs etc |
|
Printing capability |
|
|
Printing method |
Direct thermal line |
|
Resolution |
203 DPI |
|
Printing speed |
200mm/s (U/ UR ) 260mm/s (UL/ U+BT/ U+WIFI) 300mm/s ( URL/ URL+BT/ URL+ WIFI) |
|
Print width |
72mm |
|
Graphics printing |
Supports bitmap download and print ( each bitmap size Max. 20K ) |
|
Printing Command |
Compatible with ESC/ POS |
|
Barcode and character |
|
|
Barcode |
1D barcode: UPC-A/ UPC-E/ JAN13 (EAN13 )/ JAN8 ( EAN8 )/ CODE39/ ITF/ CODABAR/ CODE93/ CODE128 2D barcode: QR CODE ( Single USB or UR solution no QR code function ) |
|
Character size |
ANK character, Font A: 12* 24dots, 1.5 (W) *3.0 (H) mm FontB: 9*17dots, 1.1 (W) * 2.1 (H) mm Simplified/ Traditional: 24* 24dots, 3.0 (W) *3.0 (H) mm |
|
Japanese / Korea |
Support |
|
User - defined language |
PC437 / Katakana / PC850 / PC860/ PC863/ PC865/ WestEurope/ Greek/ Hebrew / EastEurope / Iran/ WPC1252/ PC866/ PC852/ PC858/ IranII/ Latvian / Arabic/ PT151, 1251/ PC737/ WPC/ 1257/ ThaiVietnam/ PC864/ PC1001/ ( Latvian) / ( PC1001 ) / ( PT151, 1251) / ( WPC1257) / (PC864) / (Vietnam) / (Thai) |
|
Media |
|
|
Paper type |
Thermal roll paper |
|
Paper width |
48mm/ 52mm/ 56mm/ 64mm/ 68mm/ 76mm/ 80mm (optional) |
|
Paper Thickness |
0.06~0.08mm |
|
Paper roll diameter |
80mm Max |
|
Paper separator |
support |
|
Physical |
|
|
Dimension |
180* 142* 136mm |
|
Weight |
1.65kg |
|
Package box |
228* 215* 165mm |
|
Environment |
|
|
Working temperature & humidity |
0 to 45 degrees centigrade, 10% ~ 80% No condensation |
|
Storage temperature & humidity |
-20 to 60 degrees centigrade, 10% ~ 90% No condensation |
| General | |
| Model | OCPP-80S |
| Name | 80mm desktop thermal printer with auto cutter |
| Color | Black |
| Interface |
USB/ USB+Lan/ USB+BT/ USB+WiFi/ URL+WIFI/ URL+BT |
| Power supply |
Input: AC 100V-240V, 50-60Hz, Output: DC 24V/ 2.5A |
| Cash drawer | DC 24V/ 1A |
| Printer head lifespan | 150KM |
| Cutter | Auto cutter |
| Sensors |
Paper out, cover open, cutter jam, paper jam and black mark detection ( Optional ) |
| Accessories |
Data cable, power adaptor, power cord, paper roller, CD, manual, Paper separator ( optional ) |
| OS supporting | Compatible with iOS/ Android/ Windows/ Linux |
| Safety standards | CE, FCC, Rohs etc |
| Printing capability | |
| Printing method | Direct thermal line |
| Resolution | 203 DPI |
| Printing speed |
200mm/s (U/ UR ) 260mm/s (UL/ U+BT/ U+WIFI) 300mm/s ( URL/ URL+BT/ URL+ WIFI) |
| Print width | 72mm |
| Graphics printing |
Supports bitmap download and print ( each bitmap size Max. 20K ) |
| Printing Command | Compatible with ESC/ POS |
| Barcode and character | |
| Barcode |
1D barcode: UPC-A/ UPC-E/ JAN13 (EAN13 )/ JAN8 ( EAN8 )/ CODE39/ ITF/ CODABAR/ CODE93/ CODE128 2D barcode: QR CODE |
| Character size |
ANK character, Font A: 12* 24dots, 1.5 (W) *3.0 (H) mm FontB: 9*17dots, 1.1 (W) * 2.1 (H) mm Simplified/ Traditional: 24* 24dots, 3.0 (W) *3.0 (H) mm |
| Japanese / Korea | Support |
| User - defined language | PC437/ Katakana / PC850 / PC860/ PC863/ PC865/ WestEurope/ Greek/ Hebrew / EastEurope / Iran/ WPC1252/ PC866/ PC852/ PC858/ IranII/ Latvian / Arabic/ PT151, 1251/ PC737/ WPC/ 1257/ ThaiVietnam/ PC864/ PC1001/ ( Latvian) / ( PC1001 ) / ( PT151, 1251) / ( WPC1257) / (PC864) / (Vietnam) / (Thai) |
| Media |
|
| Paper type | Thermal roll paper |
| Paper width |
48mm/ 52mm/ 56mm/ 64mm/ 68mm/ 76mm/ 80mm ( optional ) |
| Paper Thickness | 0.06~0.08mm |
| Paper roll diameter | 80mm Max |
| Paper separator | support |
| Physical | |
| Dimension | 180* 142* 136mm |
| Weight | 1.65kg |
| Package box | 228* 215* 165mm |
| Environment | |
| Working temperature & humidity |
0 to 45 degrees centigrade, 10% ~ 80% No condensation |
| Storage temperature & humidity |
-20 to 60 degrees centigrade, 10% ~ 90% No condensation |
Relevant documents:
80mm Thermal Receipt Printer CD_FILES
