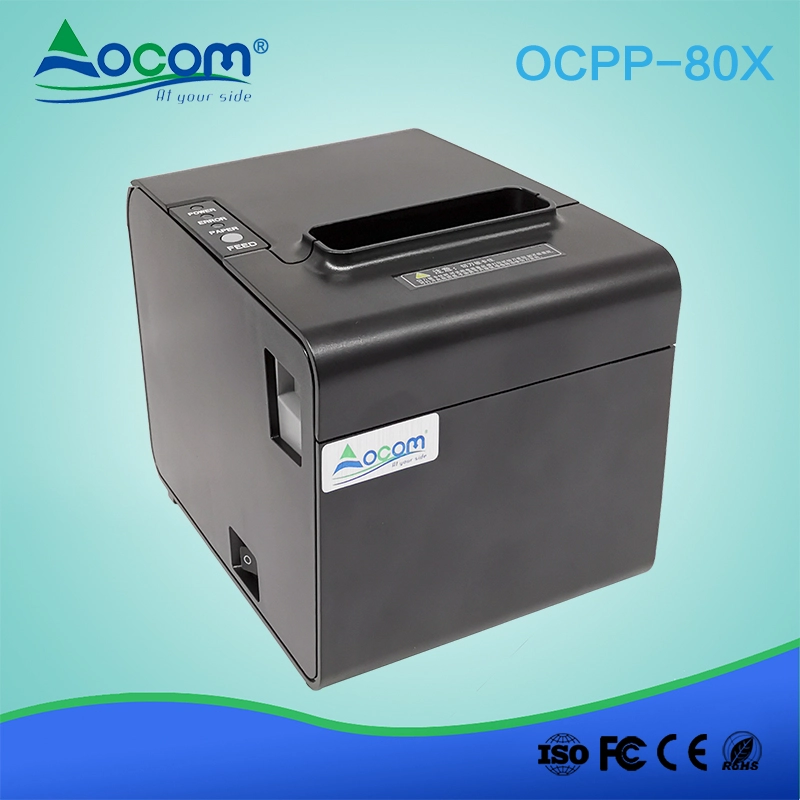

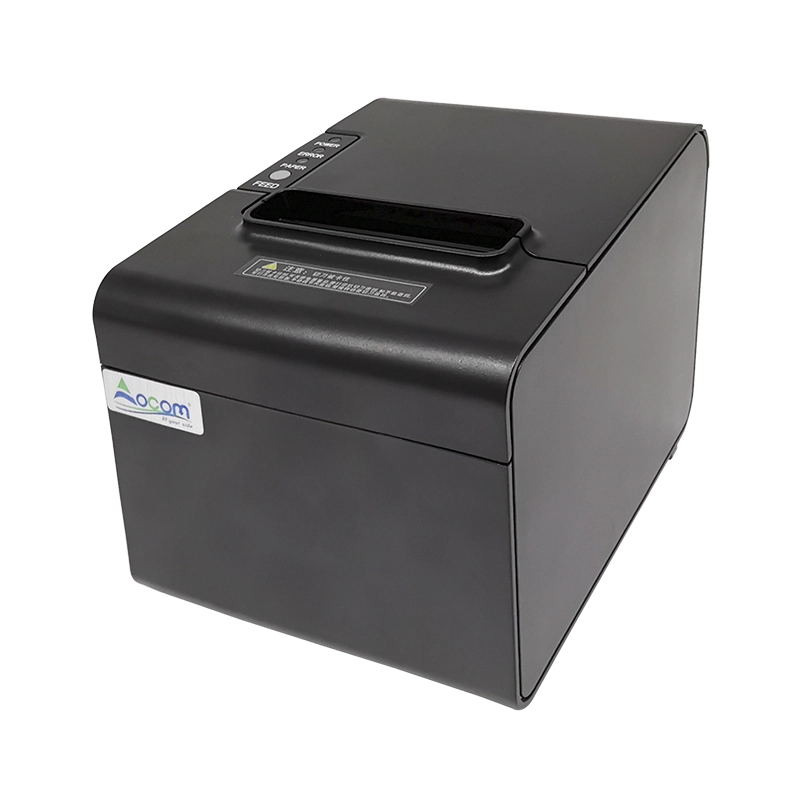

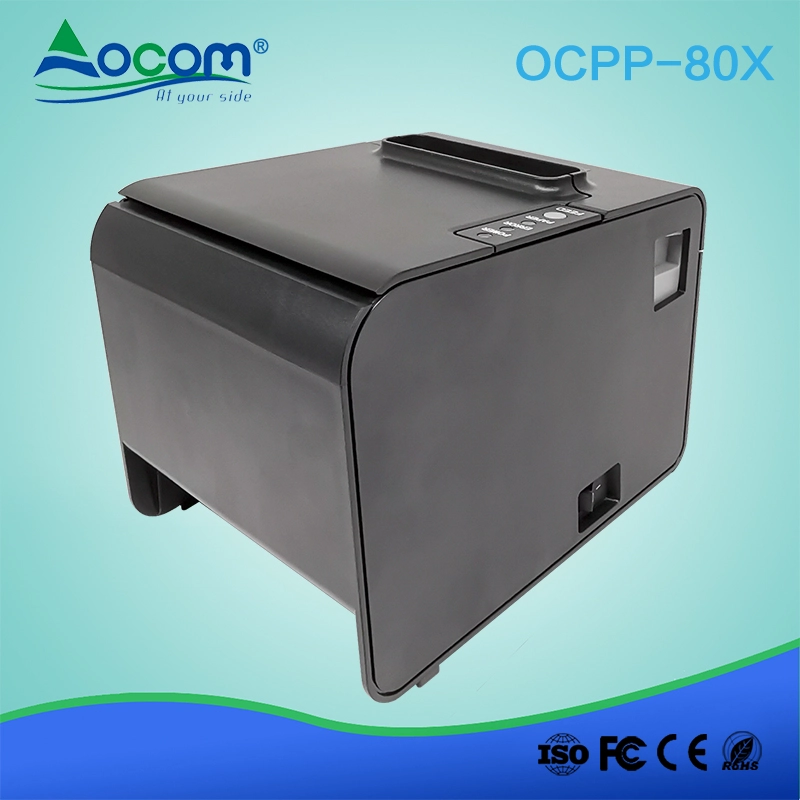

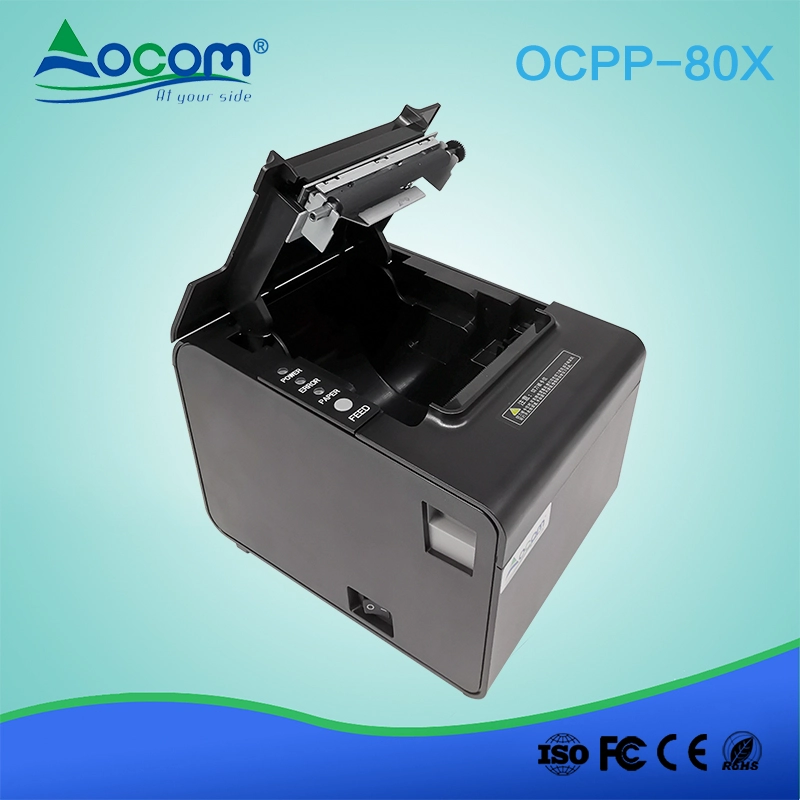

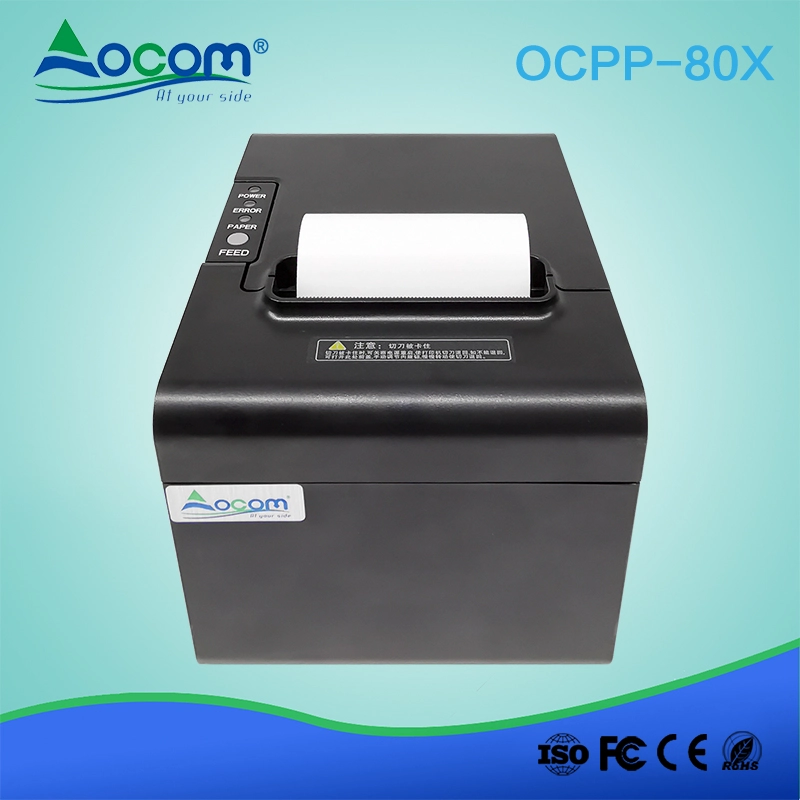

    (OCPP-80X) 80MM POS Thermal Receipt Printer

    • Supports multi 1D bar codes and 2D bar codes printing;
    • 100M Ethernet port, ultra high speed data transmission;
    • Supports 256KB NV Logo storage and 2M big buffer memory;
    • Supports black mark detection and order reminding function;

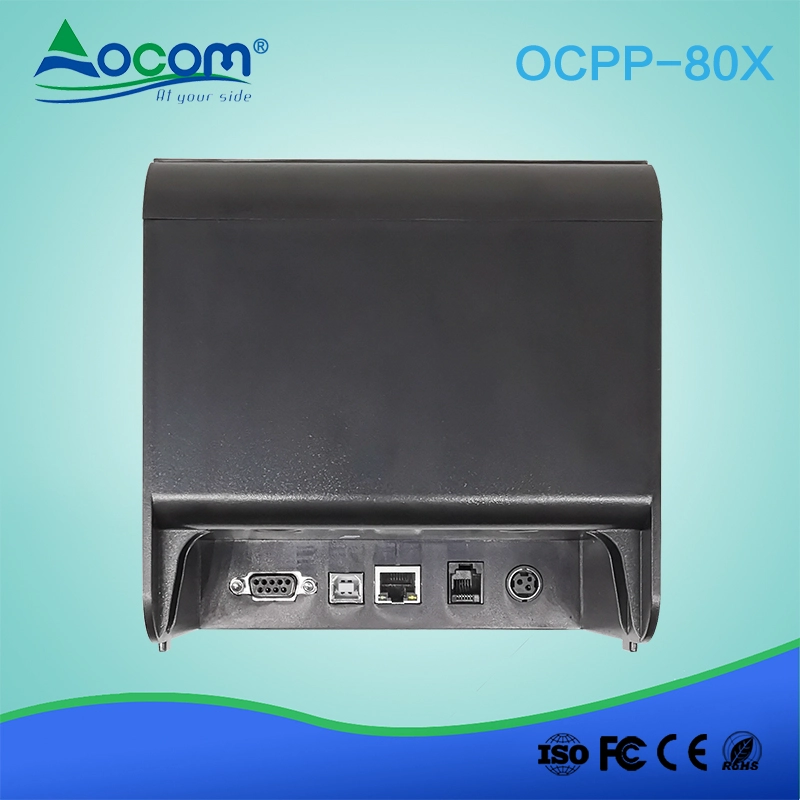

    • USB+RS232+LAN three types of communication Ports;
    • 250mm/s high speed printing.

    80MM Thermal Receipt Printer

    (Model No.: OCPP-80X)



    Features:

    Supports multi 1D bar codes and 2D bar codes printing.

    100M Ethernet port, ultra high speed data transmission.

    Supports 256KB NV Logo storage and 2M big buffer memory.

    Supports black mark detection and order reminding function.

    USB+RS232+LAN three types of communication Ports.

    250mm/s high speed printing.


    Technical parameters:

    Printing method:

    Direct thermal

    Printing speed:

    250mm/s

    Roll width:

    79.5±0.5mm

    Print diameter:

    Φ80mm

    Paper thickness:

    0.06-0.08mm

    Column capacity:

    576dots/line512 Dots/line

    Line’s pacing :

    3.75mm(Adjustable by commands)

    Print command:

    Compatible with the ESC/POS command

    Interface type:

    Serial+USB+Lan

    Cutters life:

    1million cuts

    Print head life:

    100 km

    Input buffer :

    2048Kbytes

    NV Flash:

    256Kbytes

    Power adaptor:

    AC110V/240V、50~60Hz

    Power supply:

    DC 24V/2.5A

    Cash drawer supply:

    DC 24V/1A

    Work environment:

    Temperature(0~45) humidity(10~80%)(Non- condense)

    Work environment:

    Temperature(0-45) degree centigrade, humidity(10-80%) Non- condense

    Storage environment:

    Temperature(-10~60℃); Humidity(10~90%)

    Character size:

    ANK,FontA:1.5*3.0mm/ FontB:1.1*2.1mm

    Barcode:

    UPC-A/UPC-E/JA(EAN13)/JAN8(EAN8/CODE39/ITF

    /CODE93/CODE128/QRCode/PDF417 (options)

    Characters:

    PC347(Standard Europe)、Katakana、PC850(Multilingual)、PC860(Portuguese)、PC863(Canadian-French)、PC865(Nordic)、West Europe、Greek、Hebrew、East Europe、Iran、WPC1252、PC866(Cyrillic#2)、PC852(Latin2)、

    PC858、IranII、Latvian、Arabic、PT151(1251)

    Physical characteristics:

    Weight: 1.45Kg;

    Appearance size: 190×145×143mm (length * width * height)






    Relevant documents:

                OCPP-80X CD
