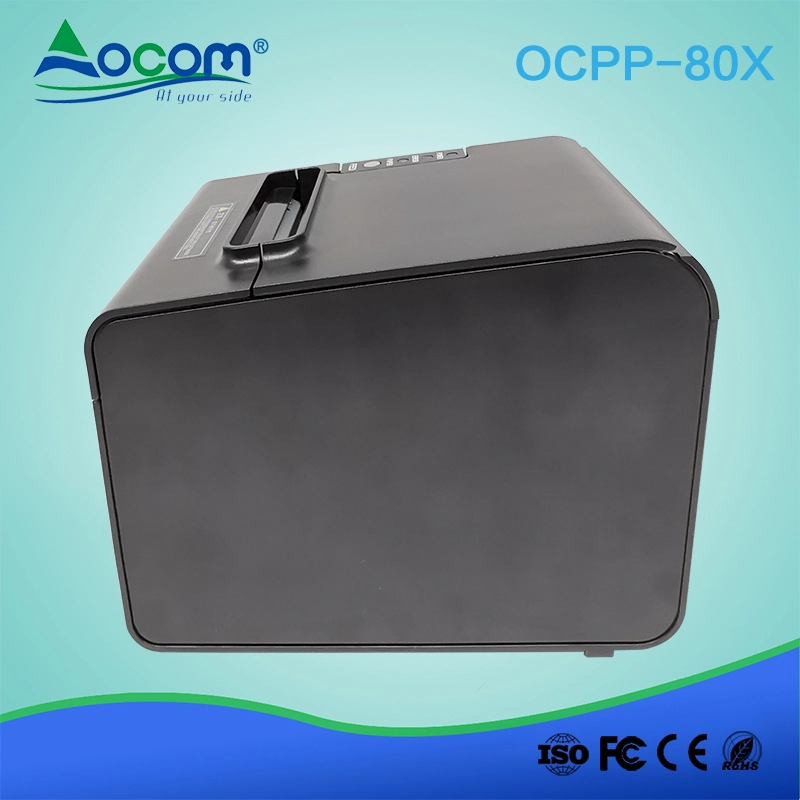

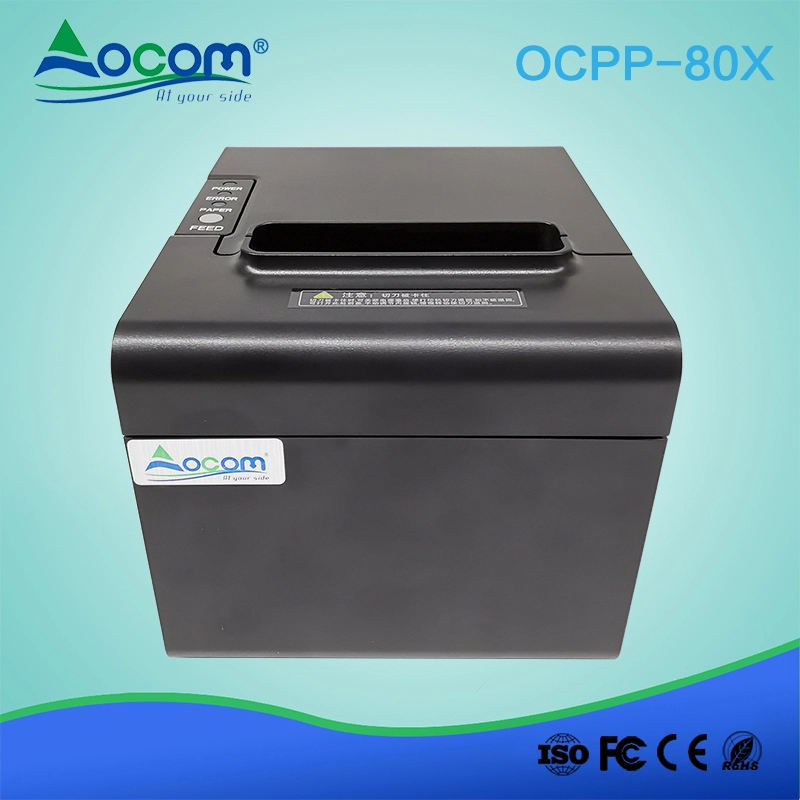

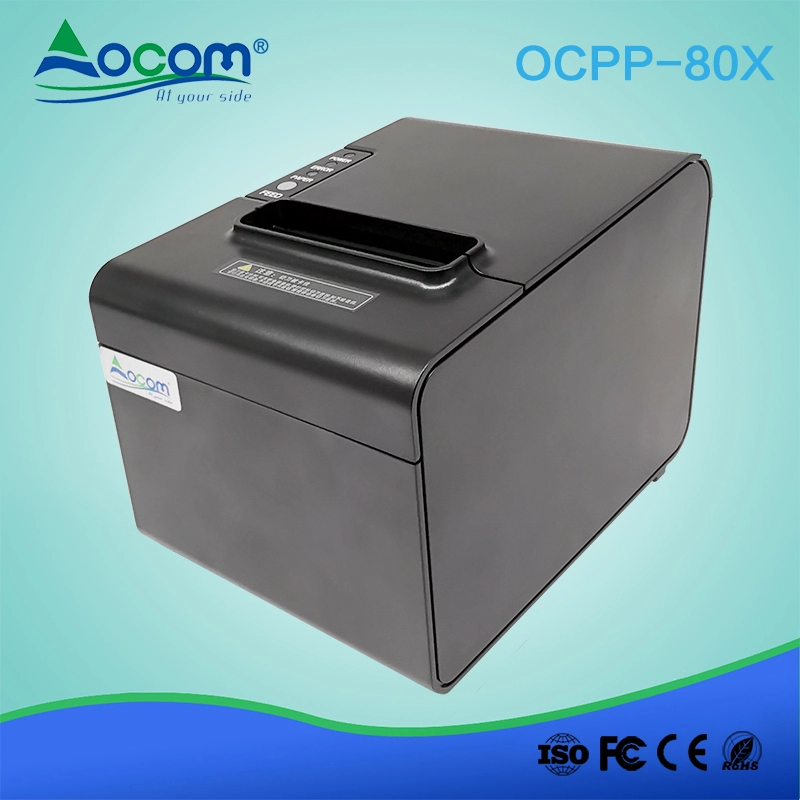

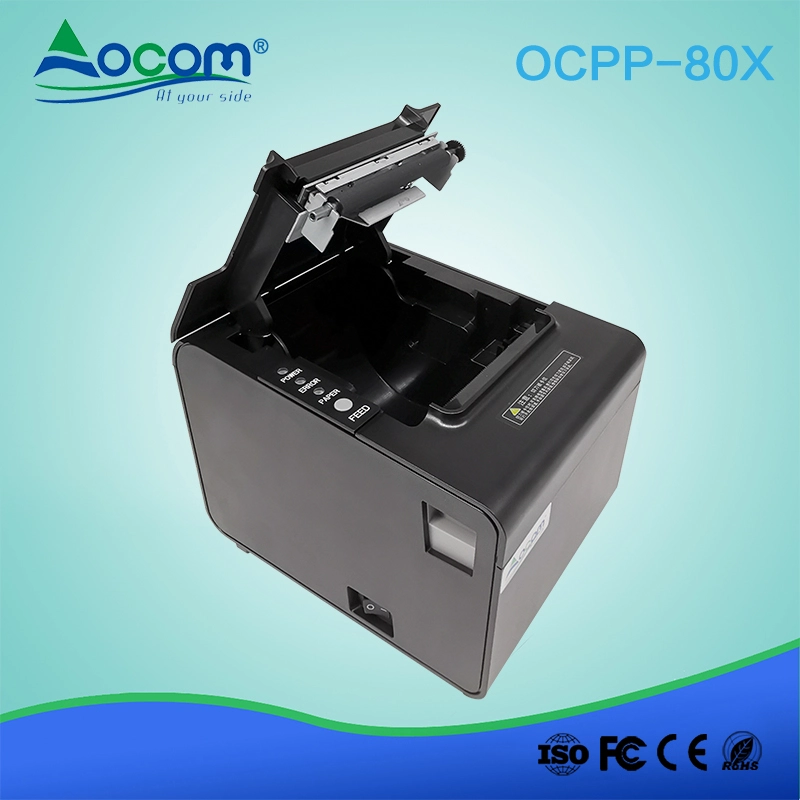

OCPP-80X Promotional price 80mm USB LAN SERIAL Thermal Receipt printer

  • Supports multi 1D bar codes and 2D bar codes printing.
  • 100M Ethernet port, ultra high speed data transmission.
  • Supports 256KB NV Logo storage and 2M big buffer memory.
  • Supports black mark detection and order reminding function,
  • USB+RS232+LAN three types of communication Ports
  • 250mm/s high speed printing

80MM Thermal Receipt Printer

(Model No.: OCPP-80X)



Features:

Supports multi 1D bar codes and 2D bar codes printing.

100M Ethernet port, ultra high speed data transmission.

Supports 256KB NV Logo storage and 2M big buffer memory.

Supports black mark detection and order reminding function,

USB+RS232+LAN three types of communication Ports

250mm/s high speed printing



Technical parameters:

Printing method:

Direct thermal

Printing speed:

250mm/s

Roll width:

79.5±0.5mm

Print diameter:

Φ80mm

Paper thickness:

0.06-0.08mm

Column capacity:

576dots/line512 Dots/line

Line’s pacing :

3.75mm(Adjustable by commands)

Print command:

Compatible with the ESC/POS command

Interface type:

Serial+USB+Lan

Cutters life:

1million cuts

Print head life:

100 km

Input buffer :

2048Kbytes

NV Flash:

256Kbytes

Power adaptor:

AC110V/240V,50~60Hz

Power supply:

DC 24V/2.5A

Cash drawer supply:

DC 24V/1A

Work environment:

Temperature(0~45) humidity(10~80%)(Non- condense)

Work environment:

Temperature(0-45) degree centigrade, humidity(10-80%) Non- condense

Storage environment:

Temperature(-10~60); Humidity(10~90%)

Character size:

ANK,FontA:1.5*3.0mm/ FontB:1.1*2.1mm

Barcode:

UPC-A/UPC-E/JA(EAN13)/JAN8(EAN8/CODE39/ITF

/CODE93/CODE128/QRCode/PDF417 (options)

Characters:

PC347(Standard Europe),Katakana,PC850(Multilingual),PC860(Portuguese),PC863(Canadian-French),PC865(Nordic),West Europe,Greek,Hebrew,East Europe,Iran,WPC1252,PC866(Cyrillic#2),PC852(Latin2),

PC858,IranII,Latvian,Arabic,PT151(1251)

Physical characteristics:

Weight: 1.45Kg;

Appearance size: 190×145×143mm (length * width * height)
