(OCPP-812) Wholesale Factory Price Desktop 80mm Thermal Receipt Printer with Auto Cutter(OCPP-812) Wholesale Factory Price Desktop 80mm Thermal Receipt Printer with Auto Cutter(OCPP-812) Wholesale Factory Price Desktop 80mm Thermal Receipt Printer with Auto Cutter(OCPP-812) Wholesale Factory Price Desktop 80mm Thermal Receipt Printer with Auto Cutter(OCPP-812) Wholesale Factory Price Desktop 80mm Thermal Receipt Printer with Auto Cutter

(OCPP-812) Wholesale Factory Price Desktop 80mm Thermal Receipt Printer with Auto Cutter

  • Compact design, fashionable appearance, easy to load paper;
  • Supports multi 1D barcode and QR code printing;
  • Support different  interface combination;
  • Up to 230mm/s high speed, low noise printing;
  • 58 or 80mm adjustable paper separator for option;
  • 100KM long life printer head.

80MM Thermal Receipt Printer with Auto Cutter

(Model: OCPP-812)





Features:



Compact design, fashionable appearance, easy to load paper;


Supports multi 1D barcode and QR code printing;


Support different  interface combination;


Up to 230mm/s high speed, low noise printing;


58 or 80mm adjustable paper separator for option;


100KM long life printer head.





Specification

General



Model

OCPP-812

Name

80mm desktop thermal printer with auto cutter

Color

Black

Optional Interface

USB/USB+LAN/USB+BT/USB+WIFI

Power supply

Input:AC 100V-240V, 50-60Hz, Output:DC 24V/1.25A

Printer head lifespan

100KM

Cutter

Auto cutter with 1million time

Sensors

Print head temperature detection, paper presence detection, open cover detection, paper jam detection

Accessories

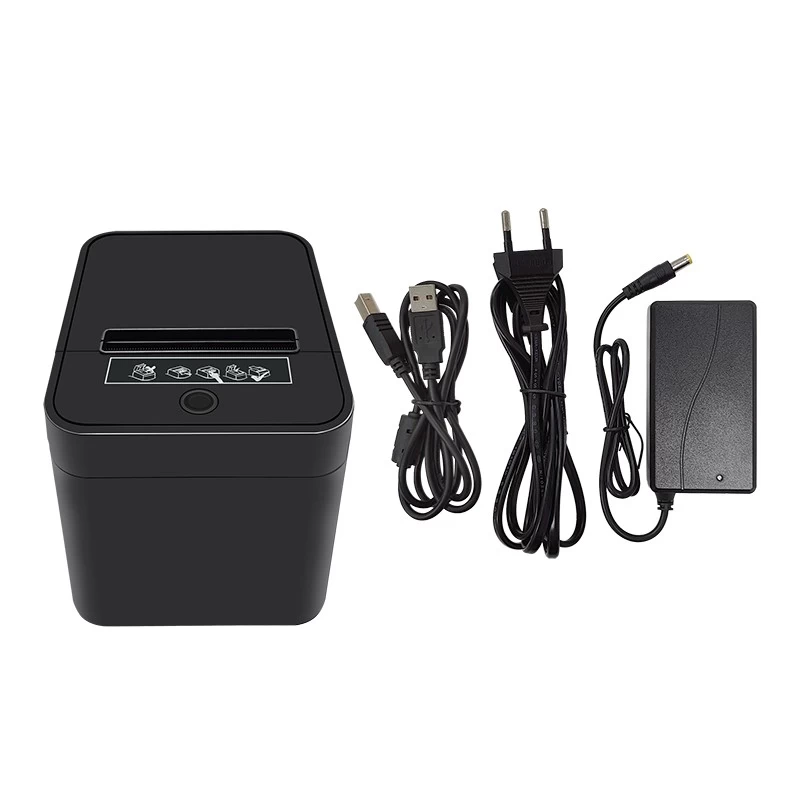

Data cable, power adaptor, power cord, paper roller, Paper separator(optional)

OS supporting

Compatible with iOS/ Android/ Windows/Linux

Printing capability



Printing method

Direct thermal line

Resolution

203 DPI

Printing speed

230mm/s

Print width

72mm

Input buffer

128kbytes

NV Flash

256kbytes

Graphics printing

Supports bitmap download and print ( each bitmap size Max.20K)

Printing Command

Compatible with ESC/POS

Barcode and character



Barcode

UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/CODE39/ITF/CODABAR/CODE93/CODE128

2D barcode:QR CODE

Character size

ANK character,

Font A: 2*24dots, 1.5(W)*3.0(H) mm

Font B: 9*17dots, 1.1(W)*2.1(H)mm

Simplified/Traditional: 24*24dots, 3.0(W)*3.0(H)mm

Japanese/Korea

Optional

Support  (optional)

User-defined language

Support  (optional)

Media



Paper type

Thermal roll paper

Paper width

58/80mm  (optional)

Paper separator

58mm/80mm(optional)

Paper Thickness

0.06~0.08mm

Paper roll diameter

80mm Max

Physical



Dimension

173*128*127mm

Weight

0.85kg

Package box

250*140*145mm/1.3kg

12 in carton

520*300*470mm/15.6kg

Environment



Working temperature& humidity

0 to 45 degrees centigrade,   10%~80%   No condensation

Storage temperature& humidity

-20 to 60 degrees centigrade ,  10%~90%  No condensation
