    OCPP-M03 58mm Mini Portable Bluetooth Thermal PrinterOCPP-M03 58mm Mini Portable Bluetooth Thermal PrinterOCPP-M03 58mm Mini Portable Bluetooth Thermal PrinterOCPP-M03 58mm Mini Portable Bluetooth Thermal PrinterOCPP-M03 58mm Mini Portable Bluetooth Thermal PrinterOCPP-M03 58mm Mini Portable Bluetooth Thermal Printer

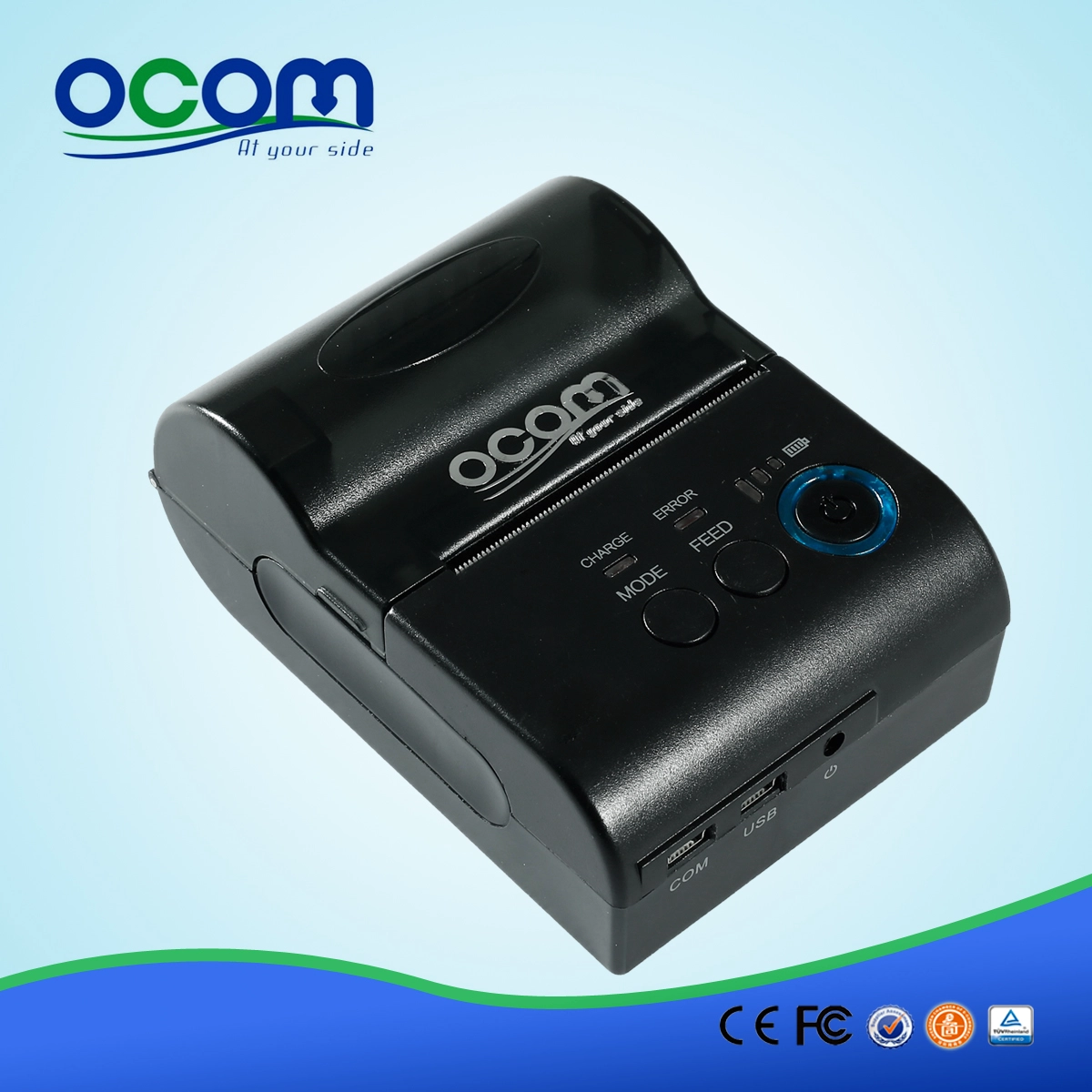

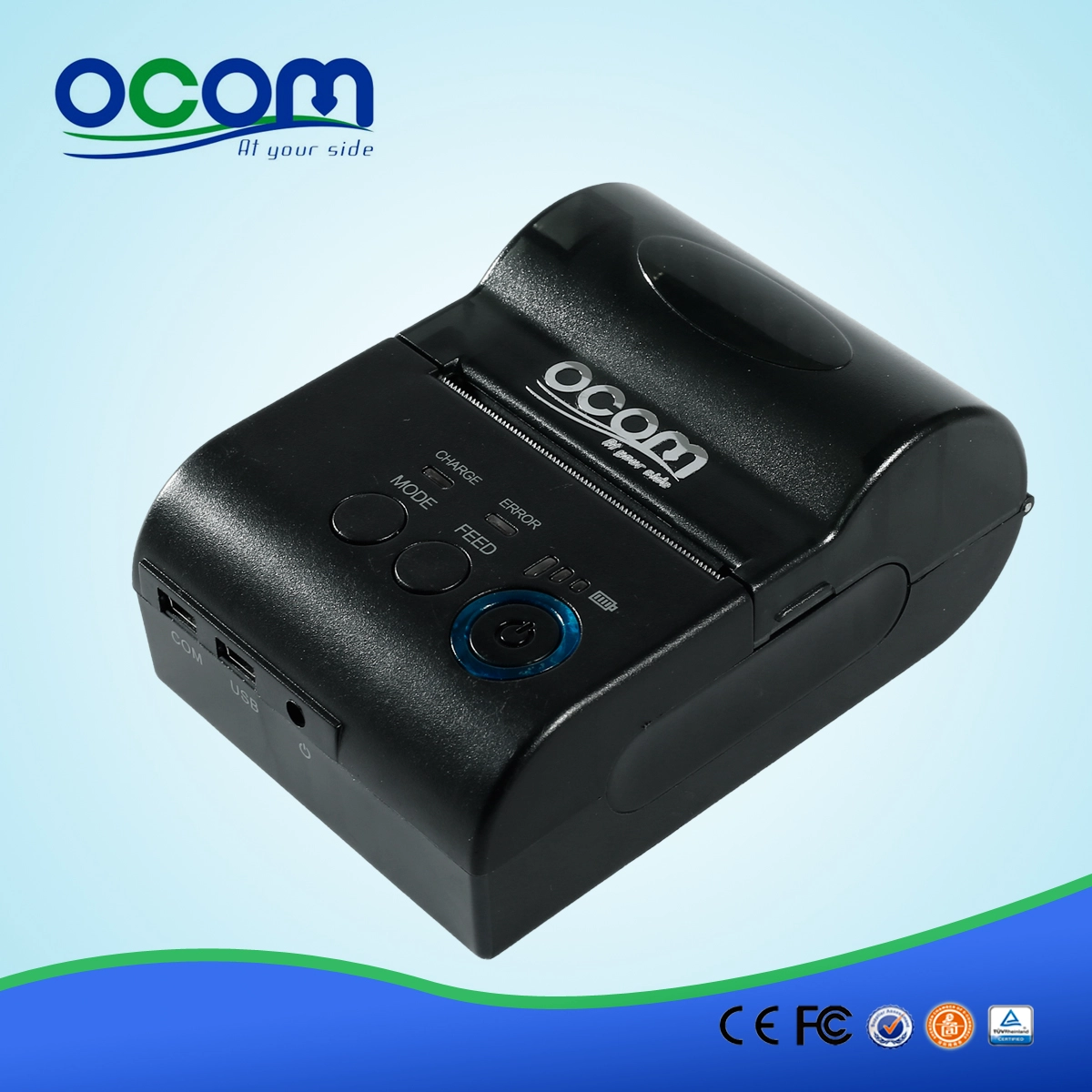

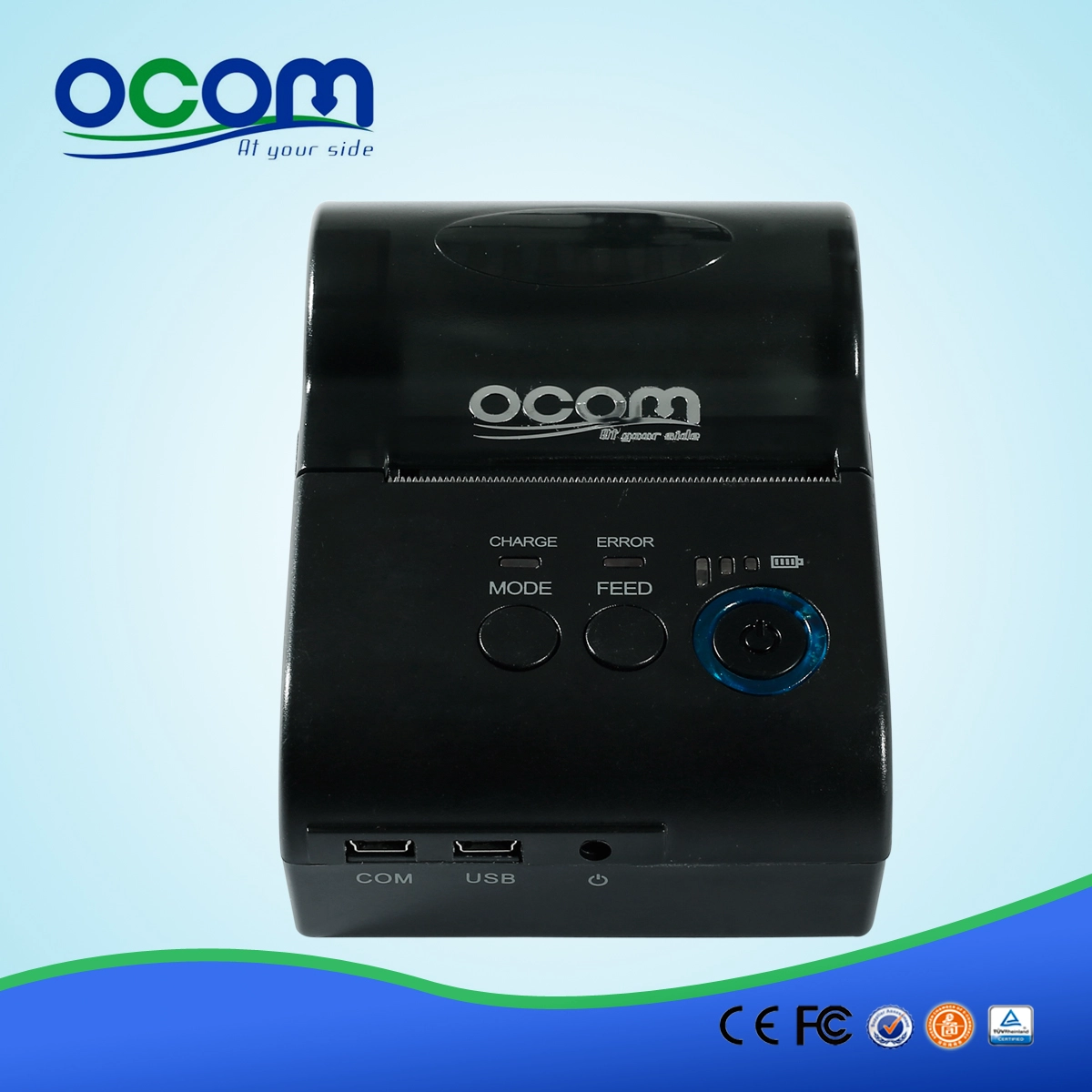

    OCPP-M03 58mm Mini Portable Bluetooth Thermal Printer

    • Support Windows, JAVA, Android, IOS or Android +IOS OS;
    • USB, RS-232, Bluetooth (optional) communication;
    • Battery charge indicator, easy to know rest power;
    • Modify bluetooth printer name and password online;
    • QR code supported;
    • Higher print speed 90mm/sec;
    • 100km TPH Life;
    • Low power consumption and large capacity Lithium battery;
    • Standard power adaptor, car charge available.

    58mm Mini Portable Bluetooth Thermal Printer

    (Model No.: OCPP-M03)


    Features:

    l Support Windows, JAVA, Android, IOS or Android +IOS OS;

    l USB, RS-232, Bluetooth (optional) communication;

    l Battery charge indicator, easy to know rest power;

    l Modify bluetooth printer name and password online;

    l QR code supported;

    l Higher print speed 90mm/sec;

    l 100km TPH Life;

    l Low power consumption and large capacity Lithium battery;

    l Standard power adaptor, car charge available.



    Specifications:

    Overall Dimension (W×D×H)

    105×75×45mm

    Weight

    134g

    Color

    Black

    Effective print width

    48mm

    Print method

    Thermal line printing

    Print commands

    ESC/POS compatible command set

    Print speed

    Up to 90mm/sec

    Resolution

    8 dots/mm(203dpi)

    Print font

    12x24/ 24x24

    Column capacity

    32 columns/ 16columns

    Character size

    1.5 x 3.0 mm(W x H)/ 3.0x3.0mm(WxH)

    Paper dimensions

    58.0±0.1mm x diameter 40.0mm

    Paper thickness

    0.06 to 0.08mm

    Character set

    Alphanumeric/ Chinese Kanji

    Interface

    USB, RS-232, Bluetooth (optional)

    Flash

    256KB

    Power Adapter

    9V DC/2A

    Battery Power

    7.4V DC/ 1500mA; battery can stay by for 4-5 days, when it is full power, it can print 120-150m paper

    Other features

    Paper detection, power detection, Manual shut down

    Working conditions

    Temperature:-10degree C50degree C,Humidity:10%90%

    Storage conditions

    Temperature:-20degree C70degree C,Humidity:5%95%

    Device name

    Can be customized, letter and digital for option, at max 30 ASCII characters.

    Password

    Enter default pairing code “1234”, it can be customized. At max 6 digitals.

    Power plug dimension

    3.5*1.1mm



    Ordering Information:



    OCPP-M03-BB

    Bluetooth+ USB+ COM , Win+Java+Android , Battery

    OCPP-M03-BB-I

    Bluetooth+ USB+ COM , IOS, Battery

    OCPP-M03-BB-AI

    Bluetooth+ USB+ COM , Win+Java+Android+IOS , Battery

    OCPP-M03-UB

    USB+ COM , Win+Java+Android , Battery

    OCPP-M03-UR

    USB+ COM , Win+Java+Android , w/o Battery



    FAQ:

    1). MOQ policy
    No MOQ limitation for the standard products, but the unit price is different, bigger quantity better price.
    For customized production, you can discuss the MOQ with our sales representative directly.

    2). Sample Availability & Policy
    After customers confirmed the specification, we are very glad to provide samples for testing and qualification.
    All samples should be paid before shippment, the samples price is a higher than mass order. When the mass order placed, we can return you the samples cost, or send you more piece products with the shippments.

    You can buy the samples from us directly using t/t, western uion, or paypal. And you can also buy it on our online store at aliexpress:http://www.aliexpress.com/store/403448?tracelog=minisite_CI.

    3). Warranty
    OCOM is dedicated to providing most cost-effective products and services with reliable quality that will meet customers'satisfication;

    We was qualified by global fortune 500 company, and we have the top 1 level trade assurance which 100% protect your money and lead time.

    Our warranty of the products is about 12+1 months from the shipment normally, some designated models can have as long as 24 months warranty;

    Any product within 30 days of delivery failure occurs shall be deemed invalid delivery (DOA). DOA products will give priority to the replacement, and shipped by courier.

    For mass order, we would like to supply some spare parts with shipment for local quickly repair. And after that, you can returned failure parts for rework and analysis.

    4). Payment Terms
    For mass order, you can pay us by using T/T, LC, Western Union, Escrow or others. About samples order, T/T, Western Union, Escrow,Paypal are acceptable.Escrow Service is powered by Alipay.com. Currently,you can pay using Moneybookers, Visa, MasterCard and bank transfer. You can also pay with select debit cards including Maestro, Solo, Carte Bleue, PostePay, CartaSi, 4B and Euro6000.
