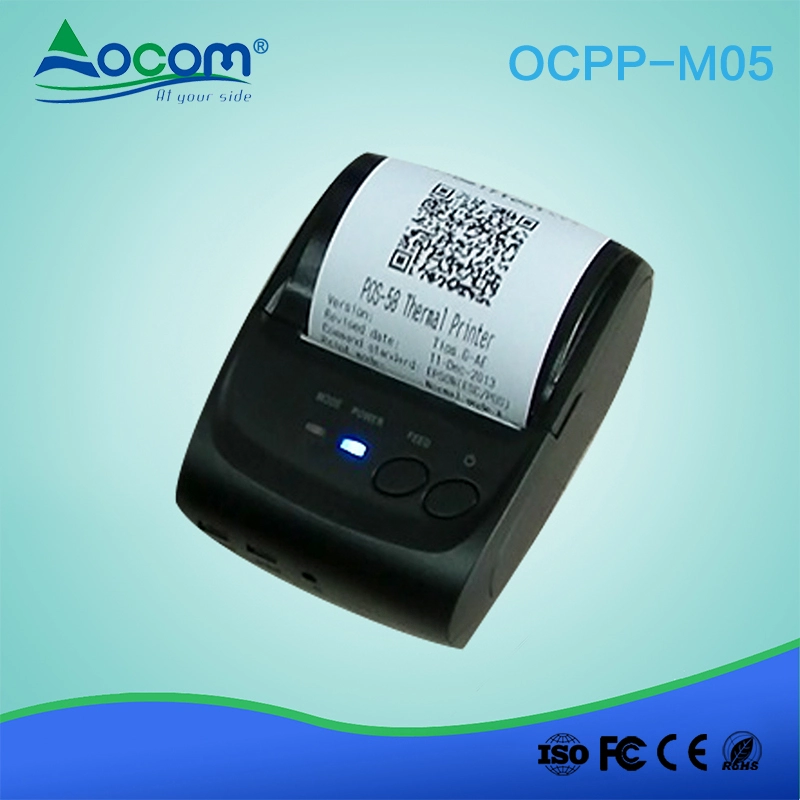

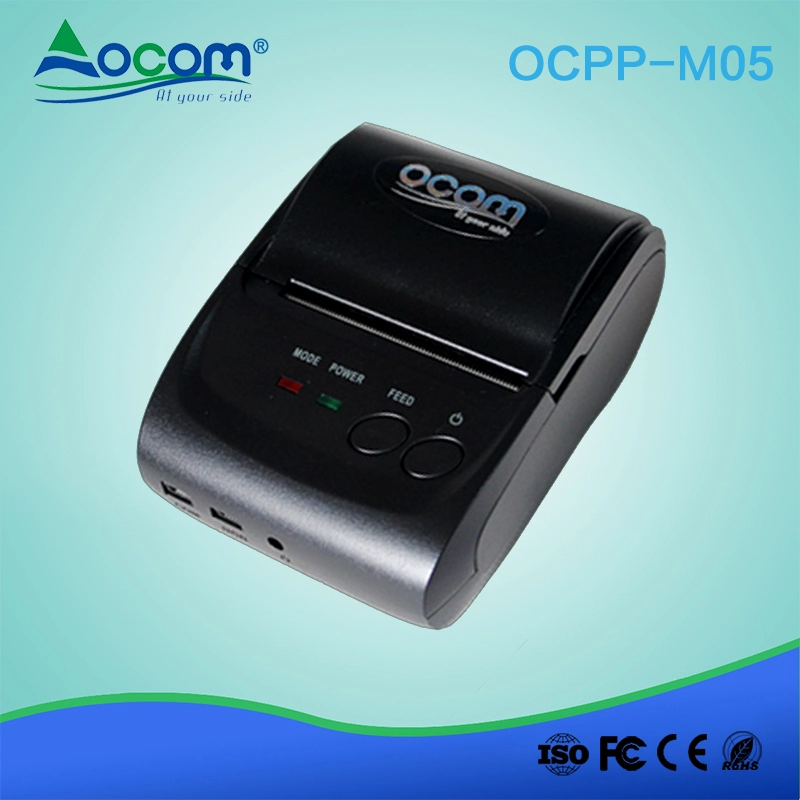

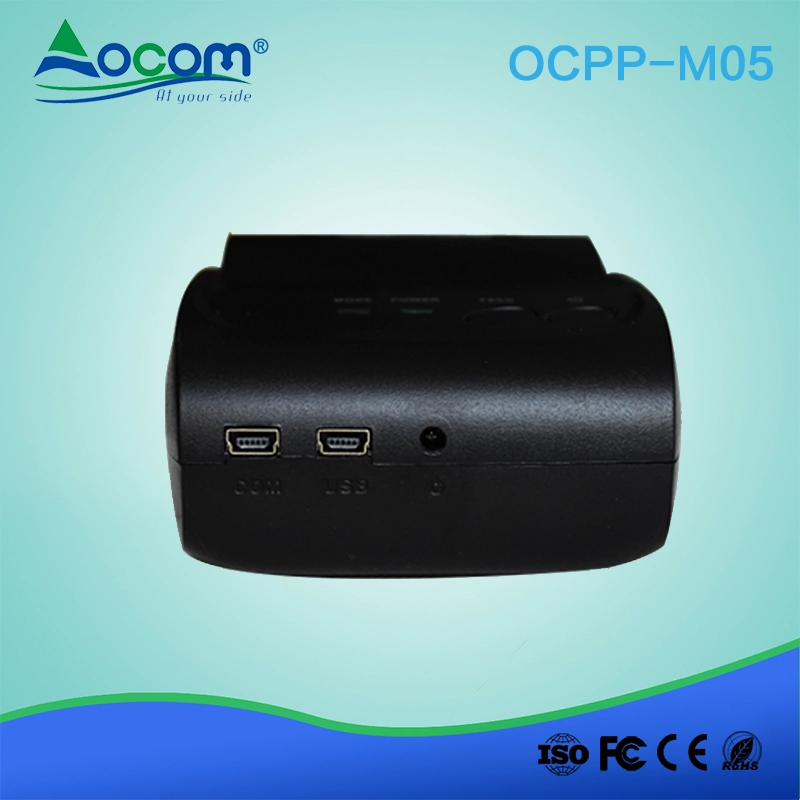

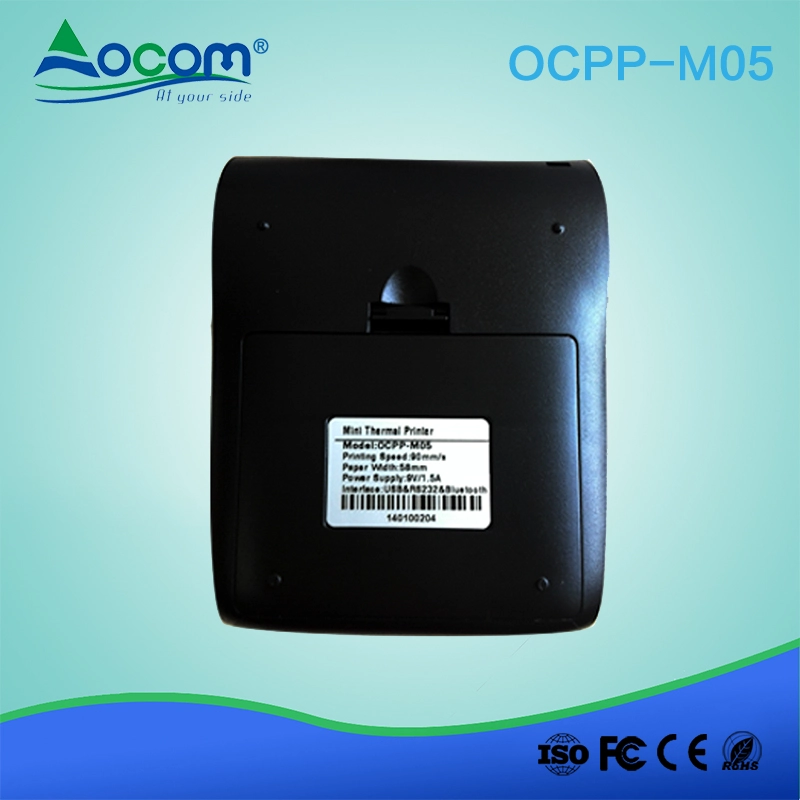

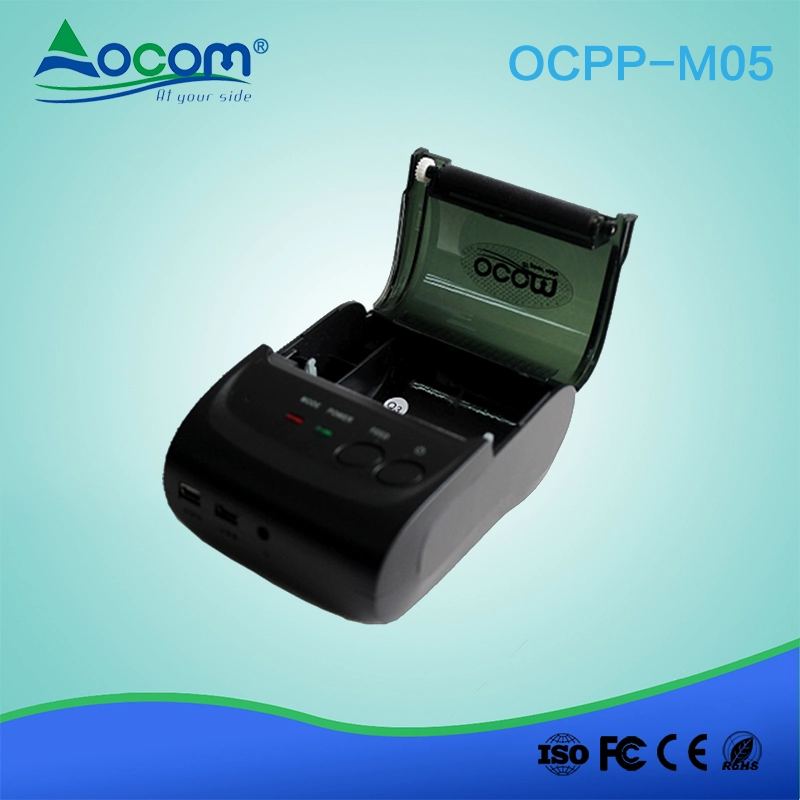

OCPP-M05 Wireless Android IOS Handheld 58mm Mobile Thermal Printer Price

  • Support for Windows, Android or iPhone OS.
  • Bluetooth, USB and RS232 communication options.
  • Higher print speed 90mm/sec.
  • One hundred kilometers TPH life.
  • Low power consumption and high-capacity lithium battery.
Android or IOS 58mm Mini Portable Bluetooth Mobile Thermal Receipt Printer
(Model: OCPP-M05)

Specifications:

Dimensions (W × D × H)

105 × 75 × 45mm

Weight

134 g

Color

Black

Effective print width

48 mm

Printing method

Thermal Line Printing

Print command

ESC / POS compatible instruction set

Print speed

To 90mm/sec

Resolution

8 dots / mm (203DPI)

Print Font

In 12X24 / 24x24 in

Column capacity

32 / 16columns

Character size

1.5 × 3.0 mm (width x height) / 3.0x3.0mm (width x height)

Paper Size

Diameter of 58.0 mm to ± 0.1mm x40.0

Paper Thickness

0.06 to 0.08 mm

Character set

Alphanumeric / Chinese Text

Interface

USB, RS-232,Bluetooth (optional)

Flash

256KB

Power Adapter

9V DC/2A

Battery Power

The DC / 1500 mA 7.4V; battery can stay in 4-5 days, when it is full of strength, it can print 120-150M Paper

Other Features

Paper detection, power detection, manually shut down

Working conditions

Temperature: -10Celsius~50CelsiusHumidity: 10%~90%

Storage conditions

Temperature: -20Celsius~70CelsiusHumidity: 5%~95%

Device Name

Can be customized to select letters and numbers up to 30 ASCII characters.

Password

Default Input pairing code "1234"It can be customized. Maximum 6 digitals.

Size of the power plug

3.5 * 1.1 mm
