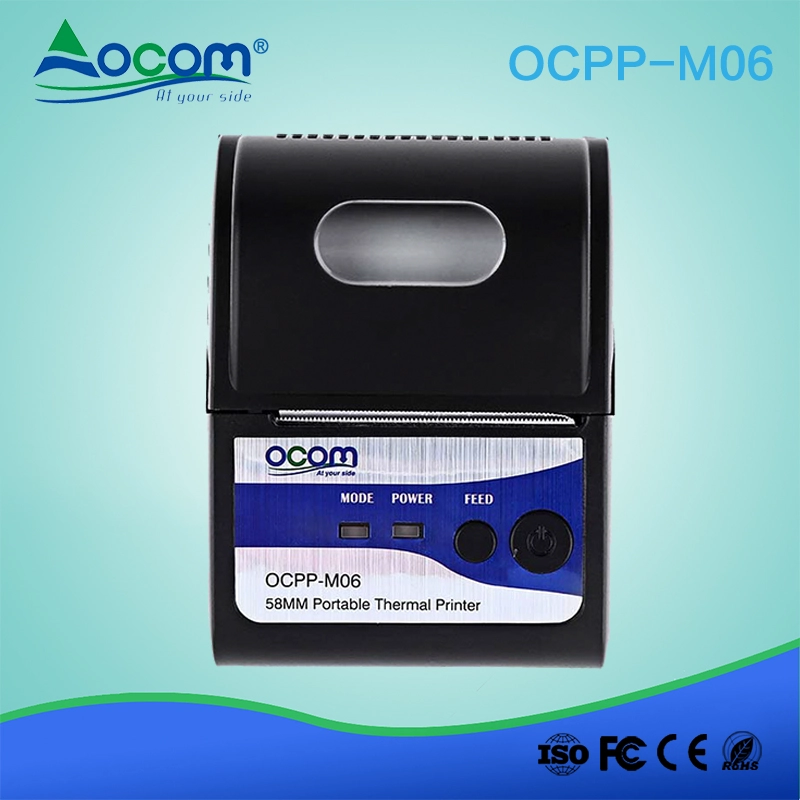

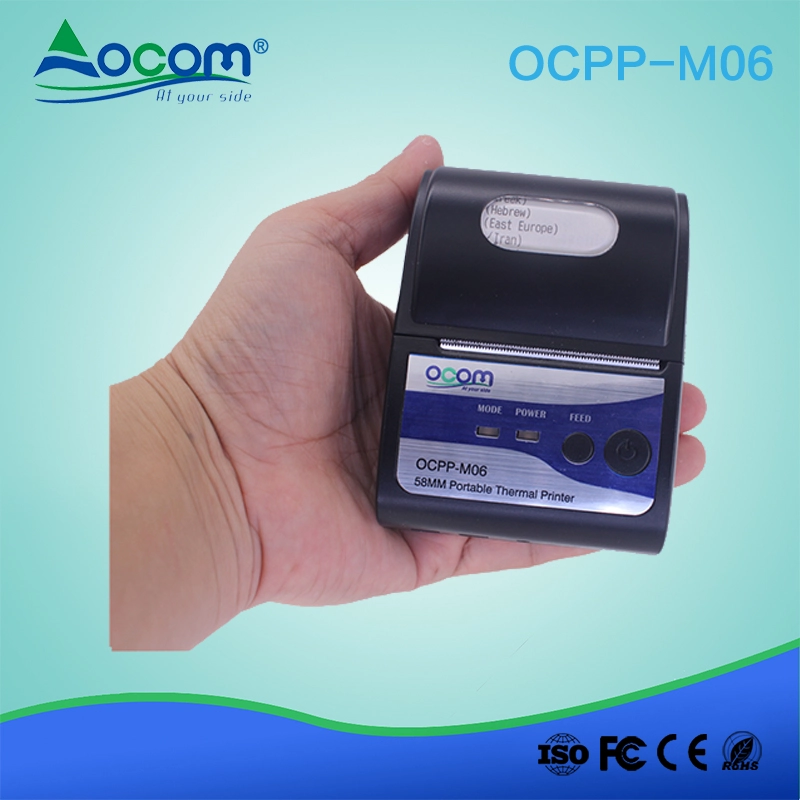

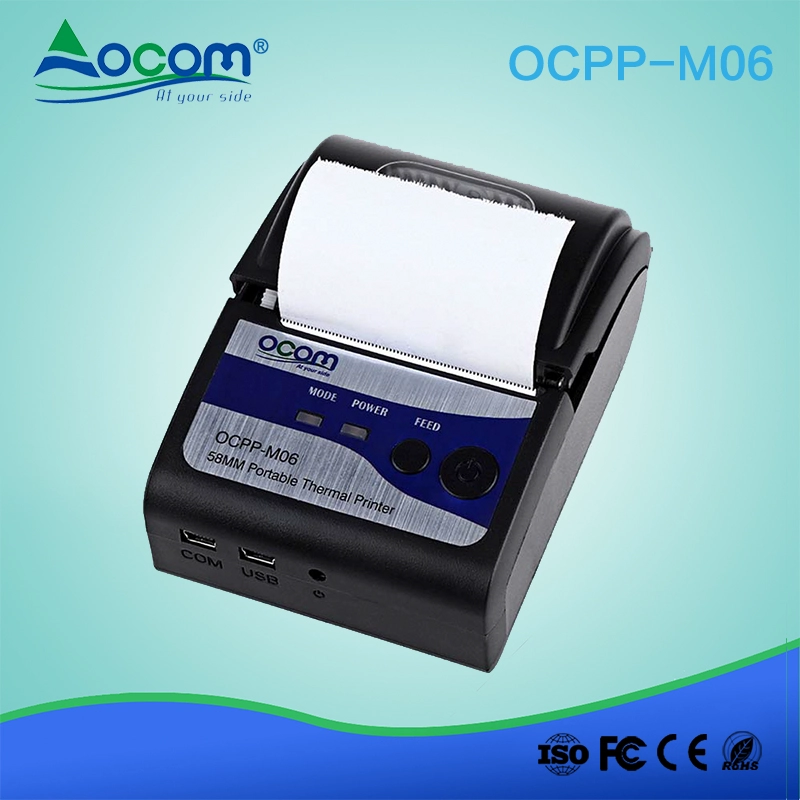

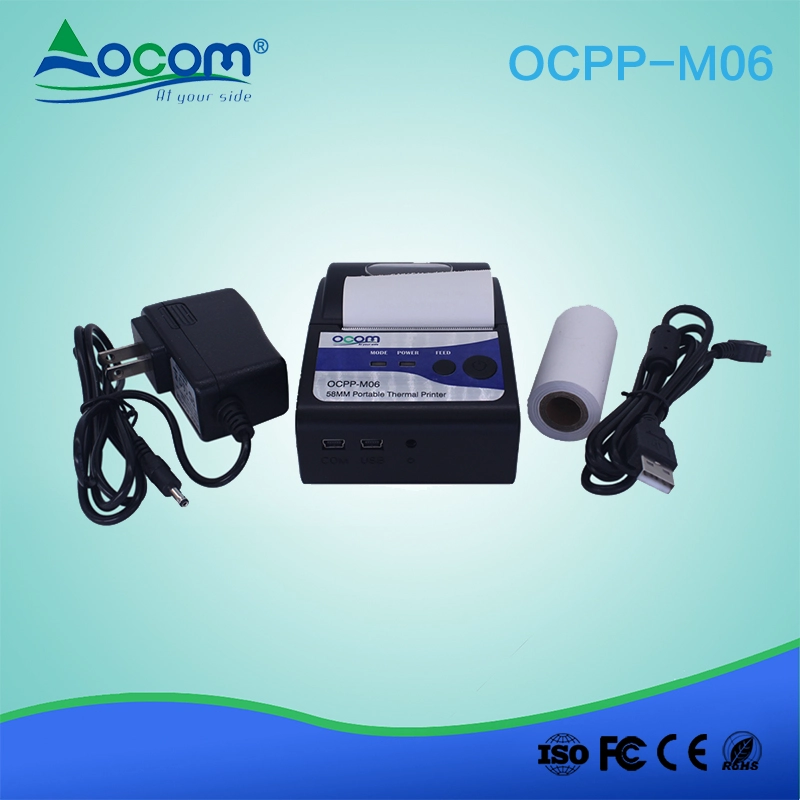

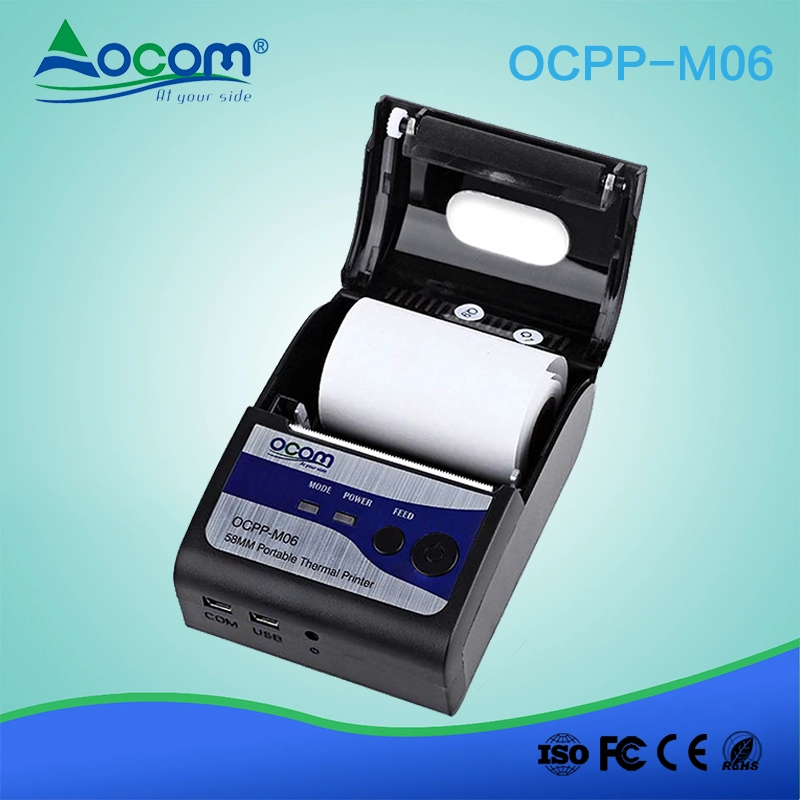

OCPP-M06 Logistic Werahouse Mini Kiosk Portable Wireless Thermal Printer
- 1,Mini size suitable for portable application;
- 2,Windows, Java, Linux, Android (or Android +IOS ) operation system supported;
- 3,Bluetooth, USB and RS232 communication supported;
- 4,SDK for Android available;

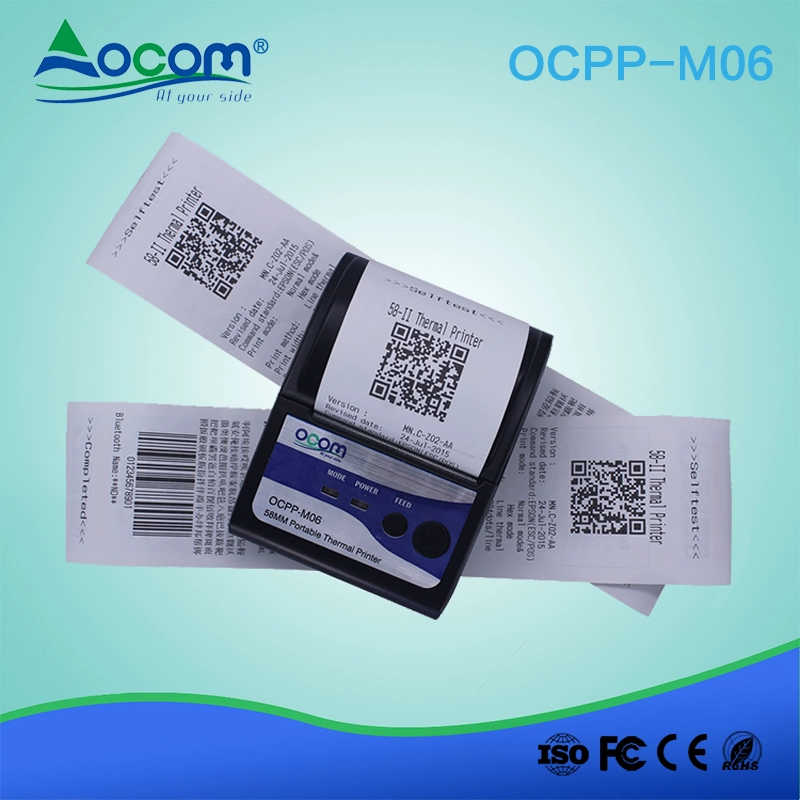

- 5,1D, 2D barcode (QR code), and image printing supported;
- 6,Can change the printer name, password, baud rate online;
- 7,One printer can connected with up to 8 smart devices (7 Android, one Apple device) visa blue tooth;
- 8,Low power consumption and large capacity Lithium battery (1500mAh), 4~5 days standby;
- 9,Powered by rechargeable battery, power adapter, or car charger (specified models)
Android IOS Supported 2 Inches Portable Bluetooth Thermal Printer
(Model Number: OCPP- M06)
This mini printer OCPP-M06 is a Android (or IOS+ Android ) ,Window, Linux, JAVA compatible battery powered 58mm portable mobile thermal pos printer which combines USB,RS232 Serial and Bluetooth (optional) communication ways together. This printer could be powered by rechargeable battery, power adapter, or car charger (depending on specified models) . Special model can connect with 8 smart devices for printing at same time. We have CE, FCC and other required certifications.
(OCPP-M06)Android IOS JAVA Windows Supported 2 Inches Portable Bluetooth Thermal Printer
Specification:
|
Overall Dimension (W×D×H) |
||
|
Weight |
134g |
|
|
Color |
Black |
|
|
Print method |
Thermal line printing |
|
|
Print commands |
ESC/POS compatible command set |
|
|
Effective print width |
48mm |
|
|
Print speed |
Up to 90mm/sec |
|
|
Resolution |
8 dots/mm(203dpi) |
|
|
Print font |
12x24/ 24x24 |
|
|
Column capacity |
32 columns/ 16columns |
|
|
Character size |
1.5 x 3.0 mm(W x H)/ 3.0x3.0mm(WxH) |
|
|
Paper dimensions |
58.0±0.1mm x diameter 40.0mm |
|
|
Paper thickness |
0.06 to 0.08mm |
|
|
Character set |
Alphanumeric/ Chinese Kanji |
|
|
Interface |
USB, RS-232,Bluetooth (optional) |
|
|
Flash |
256KB |
|
|
Power Adapter |
9V DC/2A |
|
|
Battery Power |
7.4V DC/ 1500mAh; battery can stay by for 4-5 days, when it is full power, it can print 120-150m paper |
|
|
Other features |
Paper detection, manual shut down |
|
|
Working conditions |
Temperature:-10~50 degC, Humidity:10%~90% |
|
|
Storage conditions |
Temperature:-20~70 degC, Humidity:5%~95% |
|
|
Device name |
Can be customized, letter and digital for option, at max 30 ASCII characters. |
|
|
Password |
Enter default pairing code “1234”, it can be customized or change by customer itself. At max 6 digitals. |
|
|
Power plug dimension |
3.5*1.1mm |
|
|
Ordering information |
OCPP-M06-BB |
Android, USB+COM+Bluetooth, Battery. |
|
OCPP-M06-BB-AI |
Android+IOS, USB+COM+Bluetooth, Battery. |
|
|
OCPP-M06-B |
Android, USB+COM+Bluetooth, without Battery; |
|
|
OCPP-M06-U |
Mini printer, Android, USB+COM, without Battery. |
|
|
OCPP-M06-BB-AA |
Android+IOS, USB+COM+Bluetooth, Battery, 7 android +1 apple devices supported |
|
*Program Manual
*Instruction Manual
*Driver for Windows
*Driver for Linux
*Printer Parameters Setting Tools
*USB Printdemo(Application Software demo)
*Bluetooth Printdemo(Application Software demo)
*SDK for Android
*CD Files
