(OCPP-M06)shenzhen Bt USB RS232 small 58mm mobile mini portable receipt direct thermal printer - COPY - 2e3hw7(OCPP-M06)shenzhen Bt USB RS232 small 58mm mobile mini portable receipt direct thermal printer - COPY - 2e3hw7(OCPP-M06)shenzhen Bt USB RS232 small 58mm mobile mini portable receipt direct thermal printer - COPY - 2e3hw7

(OCPP-M06)shenzhen Bt USB RS232 small 58mm mobile mini portable receipt direct thermal printer - COPY - 2e3hw7

  • Features:
  • Mini size suitable for portable application
  • Windows, Java, Linux, Android (or Android +IOS ) operation system supported
  • Bluetooth, USB and RS232 communication supported
  • SDK for Android available
  • One printer can connect up to 8 smart devices (7 Android, one Apple device) visa bluetooth
  • Low power consumption and large capacity Lithium battery (1500mAh), 4~5 days standby
  • Powerd by rechargable battery,power adapter,or car charger(specified models)
  • Higher print speed 90mm/sec
  • 50km thermal printer head life
  • Multiple languages supported
  • ESC/POS command set compatible

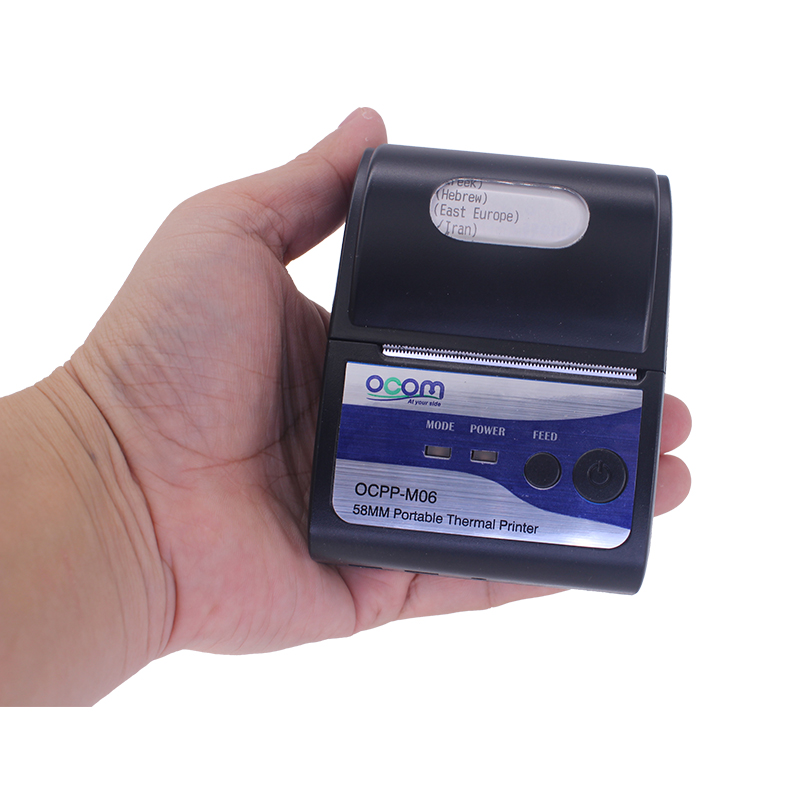

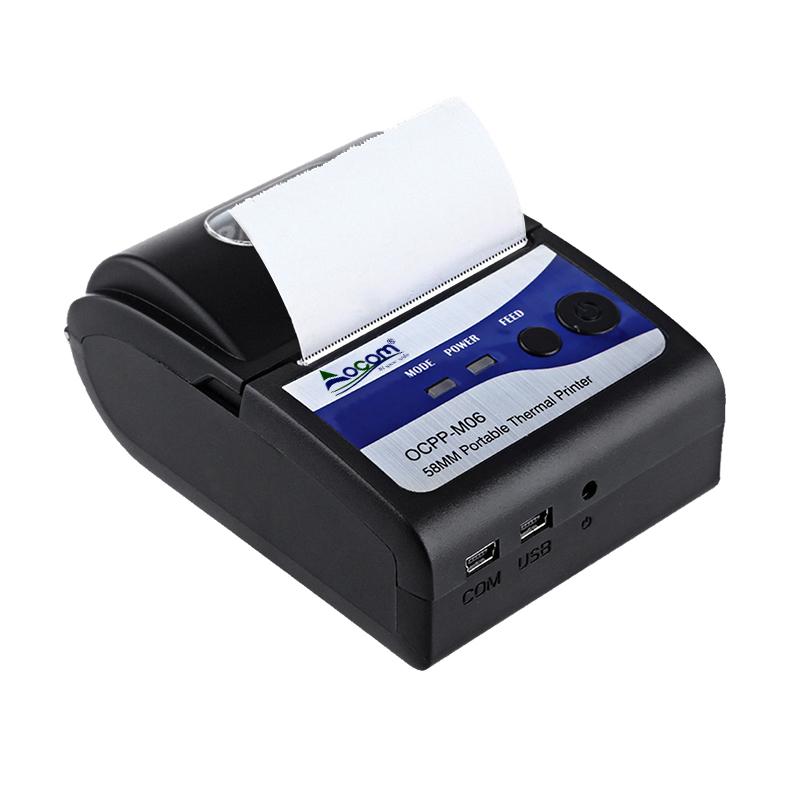

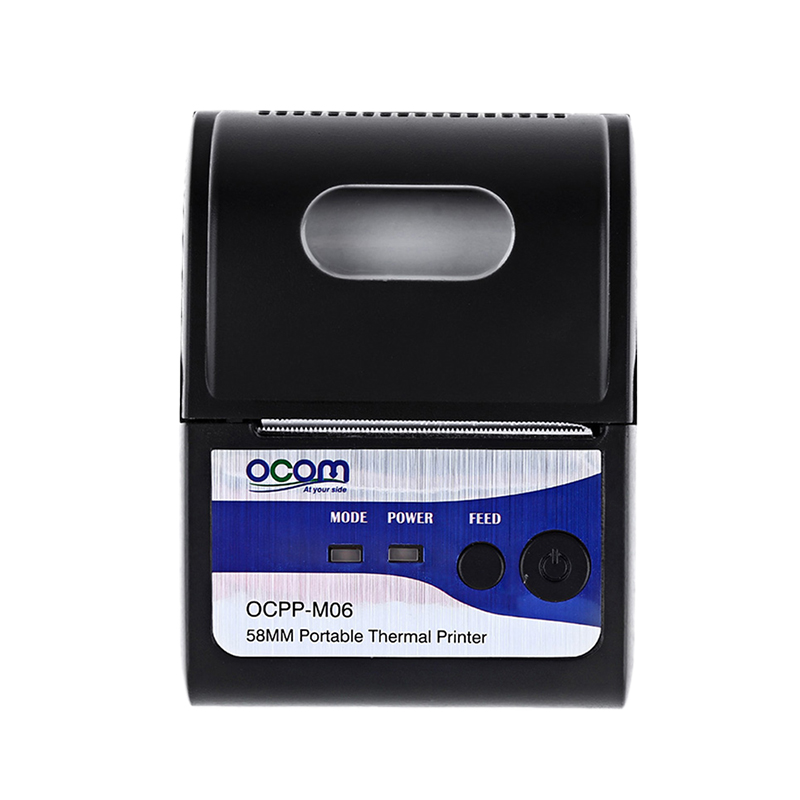

58mm Mini Portable Bluetooth Thermal Printer

 (M/N:OCPP-M06)

Features:

  1. Mini size suitable for portable application
  2. Windows, Java, Linux, Android (or Android +IOS ) operation system supported
  3. Bluetooth, USB and RS232 communication supported
  4. SDK for Android available
  5. One printer can connect  up to 8 smart devices (7 Android, one Apple device) visa bluetooth
  6. Low power consumption and large capacity Lithium battery (1500mAh), 4~5 days standby
  7. Powerd by rechargable battery,power adapter,or car charger(specified models)
  8. Higher print speed 90mm/sec
  9. 50km thermal printer head life
  10. Multiple languages supported
  11. ESC/POS command set compatible

Specification

General



Model

OCPP-M06

Name

58mm mini portable bluetooth thermal printer

Color

Black

Interface

USB, RS-232,Bluetooth (optional)

Battery

7.4V DC/ 1500mAh rechargeable li-ion battery

Power adaptor

DC 9v/1.5-2A

Standby time

4-5days after fully charged

Buffer

Input buffer:Up to 20K,Flash:256K

Other function

Paper detection, Power detection, Manual shut down, 1D&QR Code Print

Device name

Can be customized

TPH life

50KM

Password

Enter default pairing code “1234”, it can be customized or change by customers, At max 6 digitals

Accessories

Data cable,power adaptor,power cord,paper roller,CD,manual

Power plug dimension

3.5*1.1mm

OS supporting

Windows &Android & IOS  Systems

Safety standards

CE ,FCC,Rohs etc

Printing capability



Printing method

Direct thermal line

Resoluiton

203DPI (8dot/mm)

Printing speed

70mm/sec (Max 90mm/sec)

Print width

48mm

Continuous printing

120 pieces Thermal Roll for fully charged battery

Characters per Line

Font A:32 character /Line

Simple,traditional Chinese:16 character /Line

Printing Command

Compatible with ESC/POS

Barcode and character



Character size

FontA: 12*24dots, 1.5(W)*3.0(H)

Simplified/Traditional: 24*24dots, 3.0(W)*3.0(H)mm

Character set

Alphanumeric/ Chinese Kanji

Media



Paper type

Thermal roll paper

Paper width

57.5±0.5mm

Paper feeding method

Easy paper loading

Paper roll diameter

40mm Max

Paper thickness

0.06-0.08mm

Physical



Dimension

105*75*45mm

Weight

Net:360g   Gross:440g

Package box

190*120*70 mm

40 in 1 carton

380*475*340mm/18.36kg

Environment



Working temperature& humidity

0 to 45 degrees centigrade,   10%~80%   No condensation

Storage temperature& humidity

-20 to 60 degrees centigrade ,  10%~90%  No condensation
