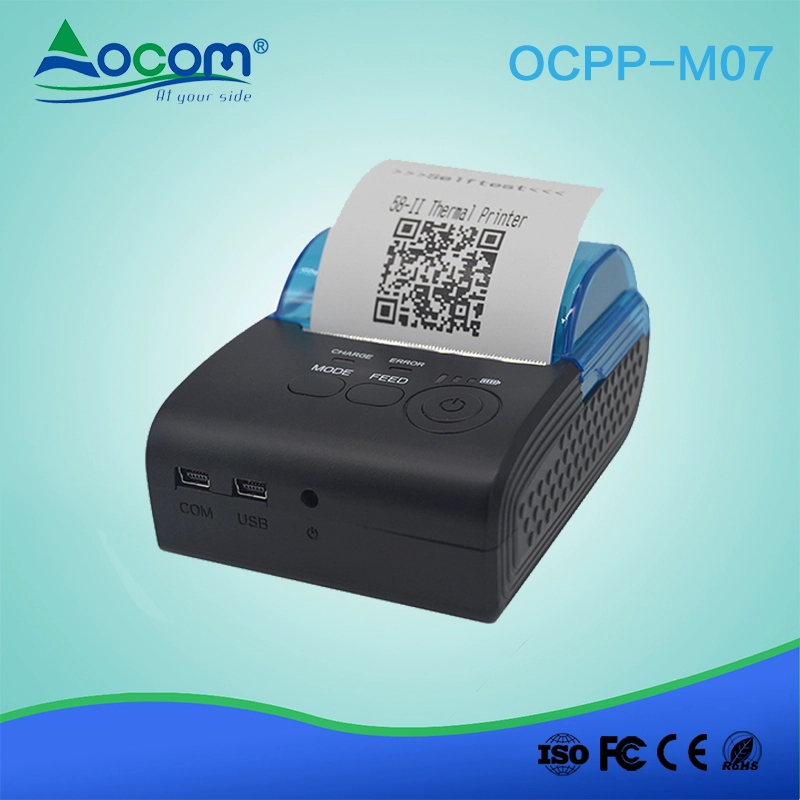

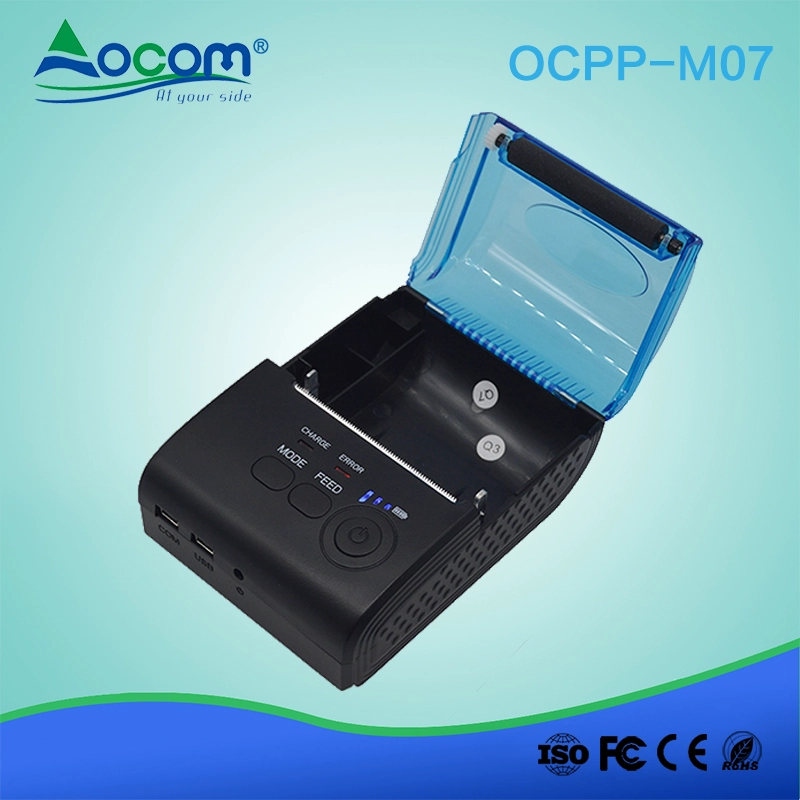

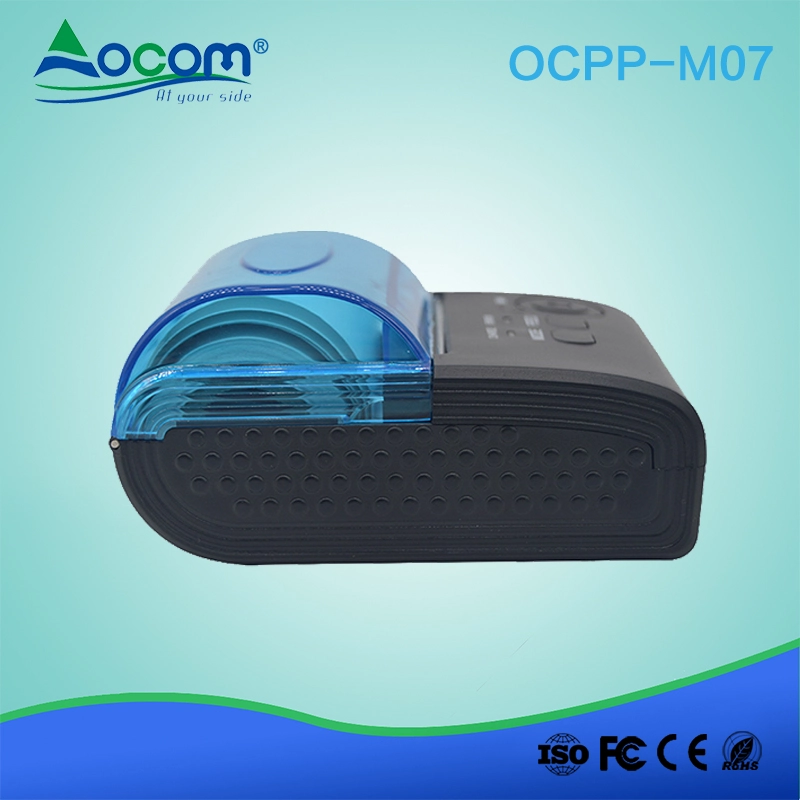

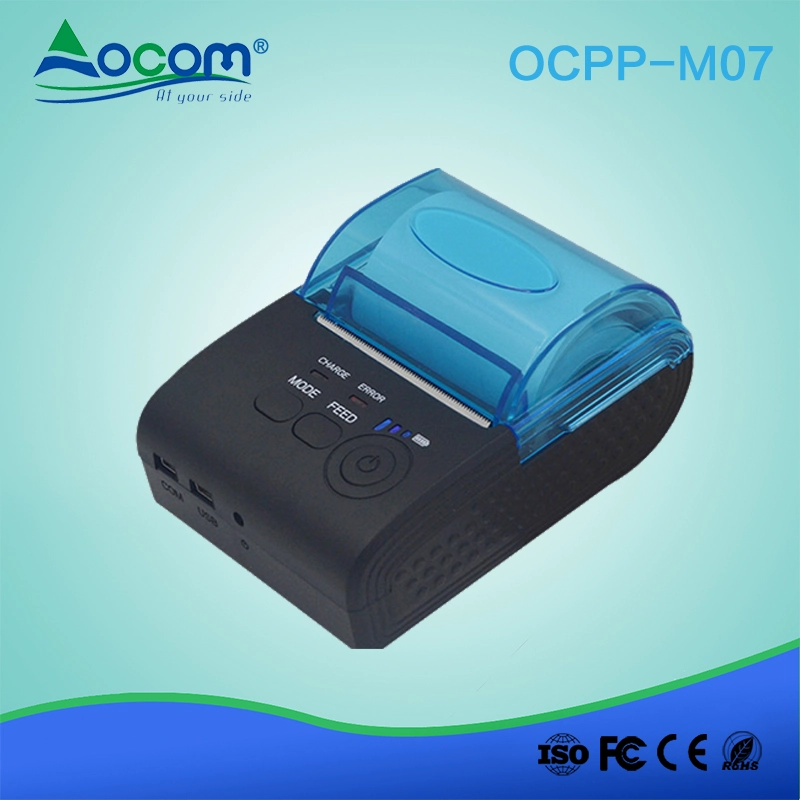

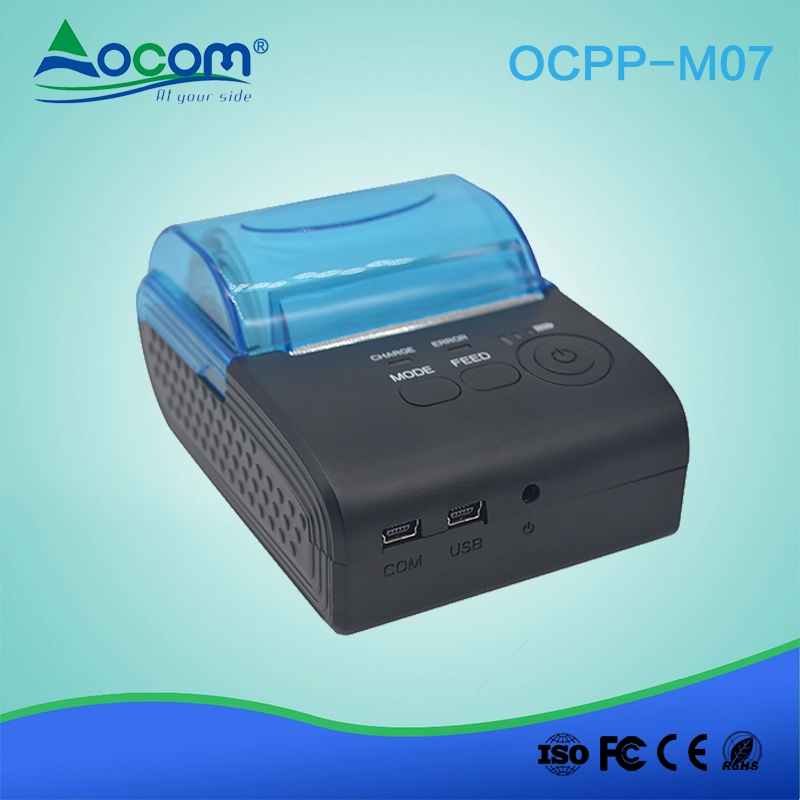

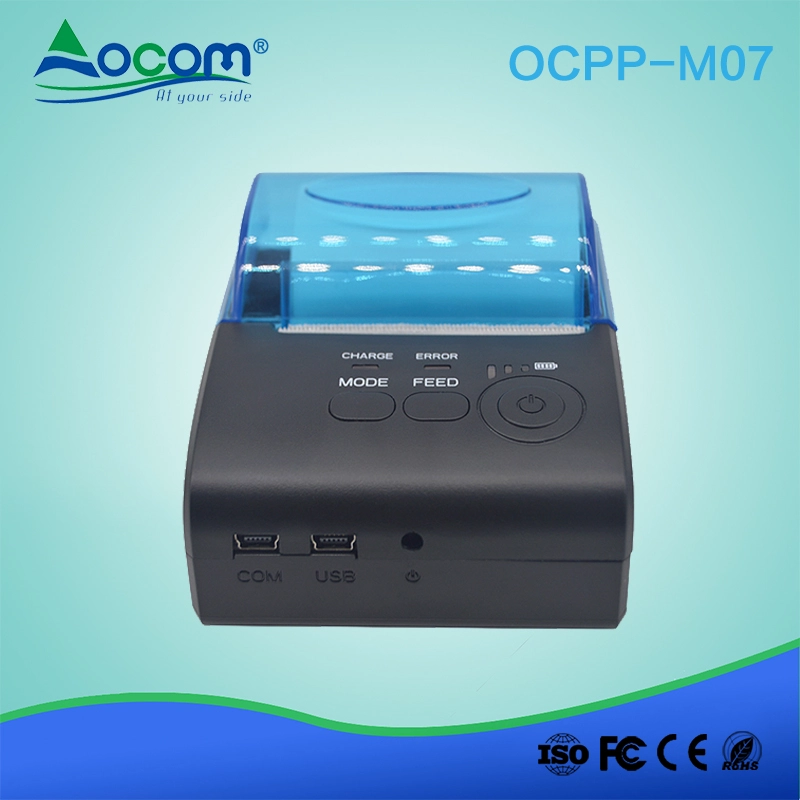

OCPP-M07 2inch OCOM Handheld Bluetooth 58mm Mini Portable Thermal Receipt Printer
- 58mm Mini Thermal Receipt Printer With Big Paper Roll Holder and Power Satus Indicator
- Interface: USB+RS232+Bluetooth or USB+RS232;
- Printing speed: MAX=90mm/s, depends on printing density;
- Cutter: manual cutter; MCBF(life): 100km.
- Big paper roll diameter: MAX=40mm;
- Battery:7.4V,1500mAh, charging time 4hours, 3days standby;
- Support Windows Java Android IOS and Win CE;
- Free SDK for Win CE, Android, and IOS.
- One printer can be connected with multi smart devices;
- (Upto 7 android devices+1 ios device) (optional);
- Car charger , bag for options;
- Support a variety of languages;
- Support 1D and QR code printing;
- Support raster print bitmap mode;
- Support Hex mode whichs facilitate the development;
- Printer name, password, baud rate can be changed online;
2inch OCOM Handheld Bluetooth 58mm Mini Portable Thermal Receipt Printer
(Model Number: OCPP- M07)
Features:
n Mini size suitable for portable application;
n Windows, Java, Linux, Android ,IOS operation system supported;
n Bluetooth, USB and RS232 communication supported;
n SDK for Android,IOS and WIN CE available;
n 1D, 2D barcode (QR code), and image printing supported;
n Can change the printer name, password, baud rate online;
n 57*50 paper warehouse
n One printer can connected with up to 8 smart devices (7 Android,one Apple device) visa blue tooth;
n Low powerconsumption and large capacity Lithium battery (1500mAh), 4~5 daysstandby;
n Powered by rechargeablebattery, power adapter, or carcharger (specified models)
n Higher print speed 90mm/sec;
n 100km thermal printer head life;
n Multiple languages supported;
n ESC/POS command set compatible;
Specification:
|
Overall Dimension (W×D×H) |
105×75×45mm |
|
|
Weight |
134g |
|
|
Color |
Black |
|
|
Print method |
Thermal line printing |
|
|
Print commands |
ESC/POS compatible command set |
|
|
Effective print width |
48mm |
|
|
Print speed |
Up to 90mm/sec |
|
|
Resolution |
8 dots/mm(203dpi) |
|
|
Print font |
12x24/ 24x24 |
|
|
Column capacity |
32 columns/ 16columns |
|
|
Character size |
1.5 x 3.0 mm(W x H)/ 3.0x3.0mm(WxH) |
|
|
Paper dimensions |
58.0±0.1mm x diameter 40.0mm |
|
|
Paper thickness |
0.06 to 0.08mm |
|
|
Character set |
Alphanumeric/ Chinese Kanji |
|
|
Interface |
USB, RS-232，Bluetooth (optional) |
|
|
Flash |
256KB |
|
|
Power Adapter |
9V DC/2A |
|
|
Battery Power |
7.4V DC/ 1500mAh; battery can stay by for 4-5 days, when it is full power, it can print 120-150m paper |
|
|
Other features |
Paper detection, manual shut down |
|
|
Working conditions |
Temperature:-10~50 degC, Humidity:10%～90% |
|
|
Storage conditions |
Temperature:-20~70 degC, Humidity:5%～95% |
|
|
Device name |
Can be customized, letter and digital for option, at max 30 ASCII characters. |
|
|
Password |
Enter default pairing code “1234”, it can be customized or change by customer itself. At max 6 digitals. |
|
|
Power plug dimension |
3.5*1.1mm |
|
|
Ordering information |
OCPP-M07-BB |
Android, USB+COM+Bluetooth, Battery. |
|
OCPP-M07-BB-AI |
Android+IOS, USB+COM+Bluetooth, Battery. |
|
|
OCPP-M07-B |
Android, USB+COM+Bluetooth, without Battery; |
|
|
OCPP-M07-U |
Mini printer, Android, USB+COM, without Battery. |
|
|
OCPP-M07-BB-AA |
Android+IOS, USB+COM+Bluetooth, Battery, 7 android +1 apple devices supported |
|
Application Area:
Comparedto the traditional thermal receipt printer, mini printer has smaller body, morereliable capability, more steady printing and portable advantages. The Miniprinter can work on a lot of locations, such as the TAXI bill printing,administrative fees receipt printing, post receipt printing, restaurantordering information printing, online payment information printing, etc. Withthe rapid popularity of smart-mobile, tablet and so on, Mini printer will bemore widely used in the near future.
