OCPP-M15 bluetooth mobile commercial handheld printer portable 58mm thermal receipt printer
- Features:
- Windows,Android ,IOS operation system supported
- SDK for Android /IOS available
- 1D, 2D barcode (QR code/ PDF417) Supported
- image printing supported
- Can change the printer name, password, baud rate online
- 2000mAh 18650 battery package
- Support USB port charge
- Higher print speed 70mm/sec
- 50Km thermal printer head life
- Multiple languages supported
- ESC/POS command set compatible

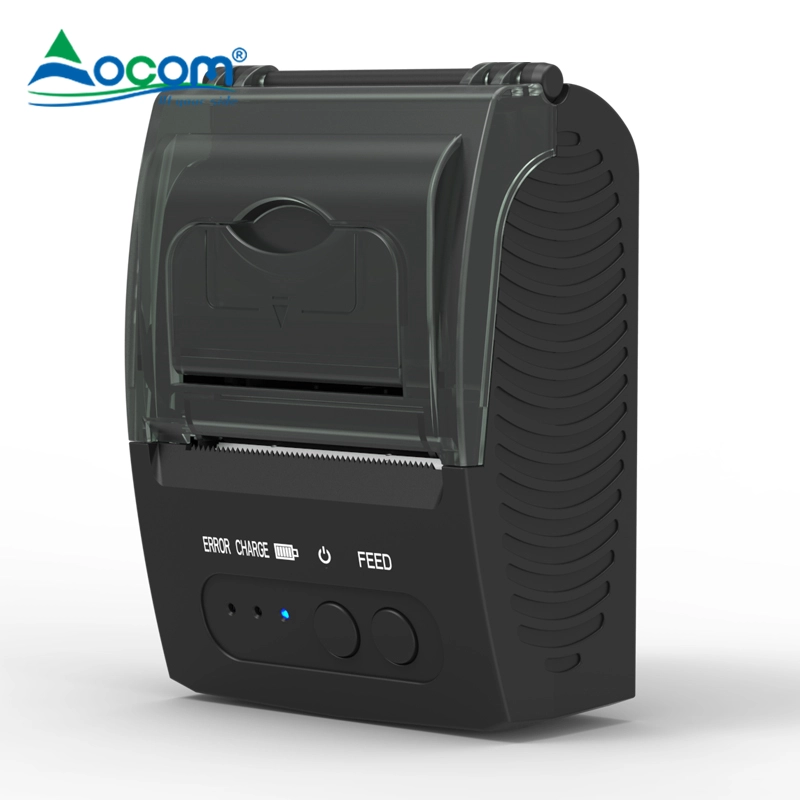

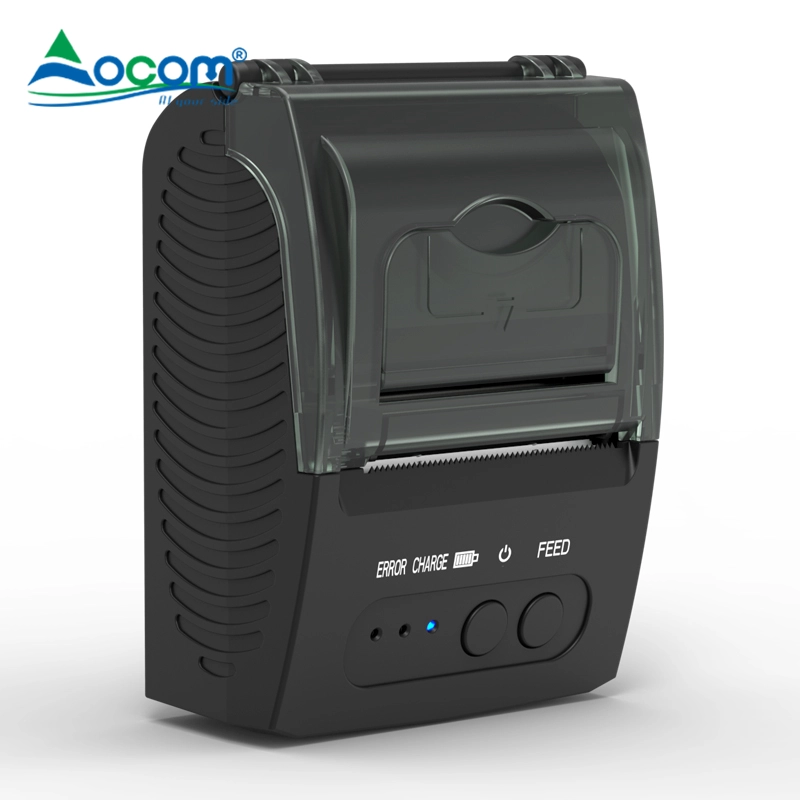

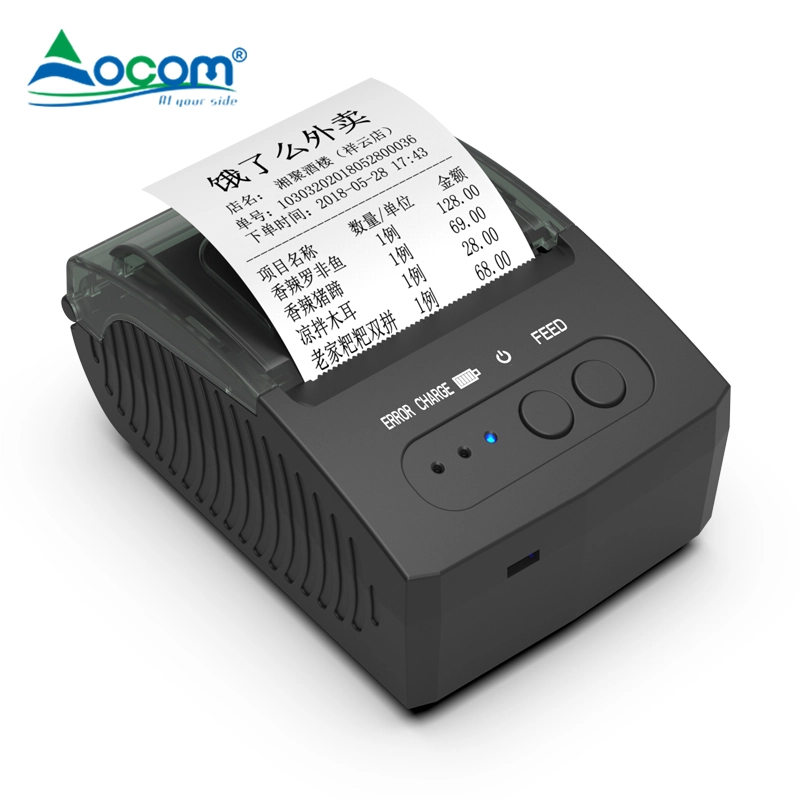

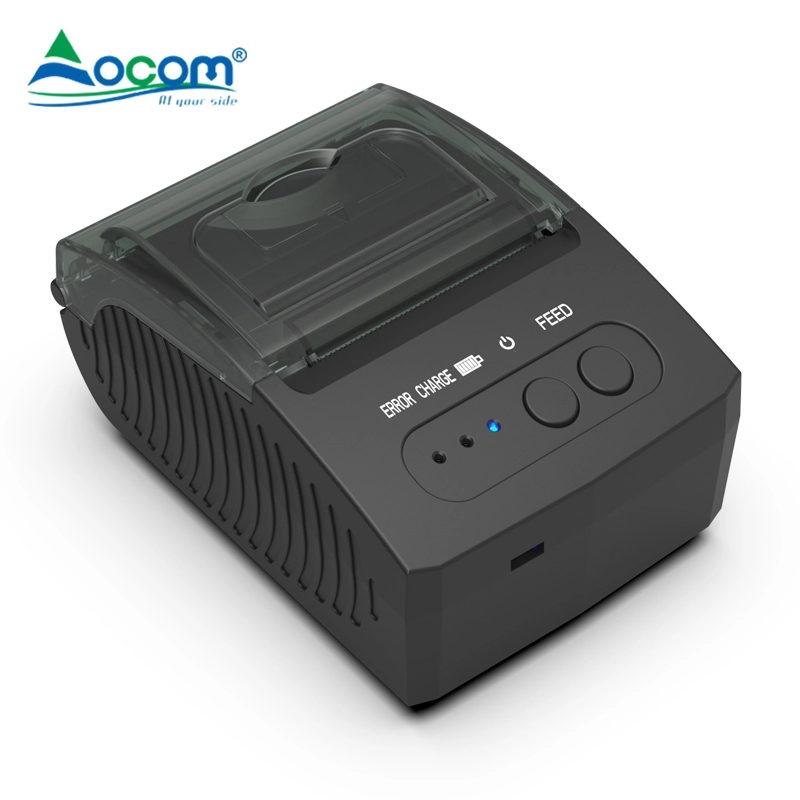

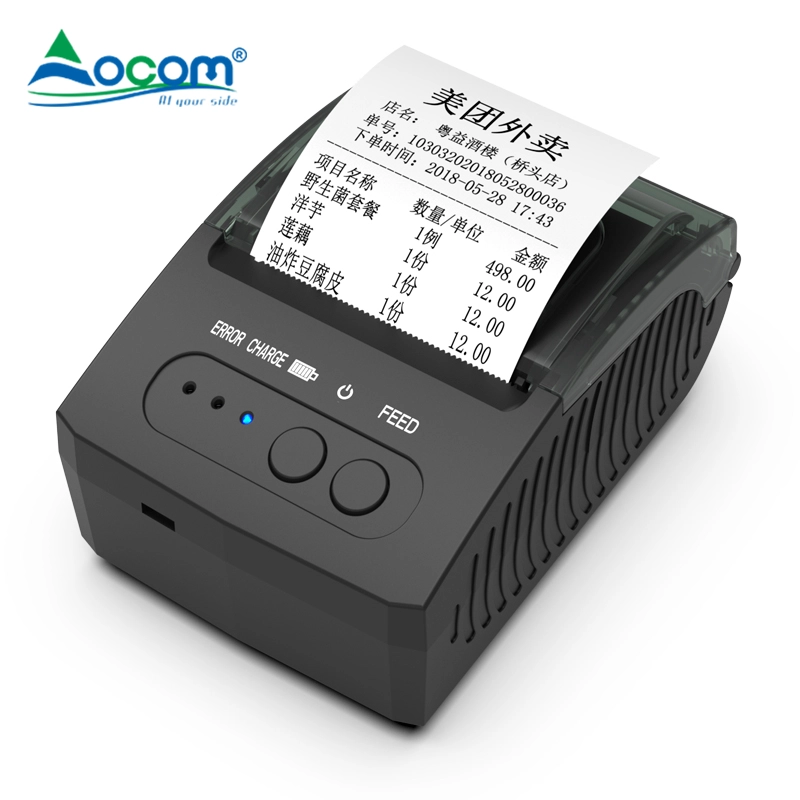

58mm Mini Portable Bluetooth Thermal Printer
(M/N:OCPP-M15)
Features:
- Windows,Android ,IOS operation system supported
- SDK for Android /IOS available
- 1D, 2D barcode (QR code/ PDF417) Supported
- image printing supported
- Can change the printer name, password, baud rate online
- 2000mAh 18650 battery package
- Support USB port charge
- Higher print speed 70mm/sec
- 50Km thermal printer head life
- Multiple languages supported
- ESC/POS command set compatible
Specification
|
General |
|
|
Model |
OCPP-M15 |
|
Name |
58mm mini portable bluetooth thermal printer |
|
Color |
Black |
|
Interface |
USB/Bluetooth4.0 |
|
Battery |
7.4V DC/ 2000mAh rechargeable li-ion battery |
|
Power adaptor |
DC 5v/2A |
|
Standby time |
4days after fully charged |
|
Buffer |
Input buffer:Up to 50K,Flash:256K |
|
TPH Life |
50KM |
|
Password |
Enter default pairing code “1234”, it can be customized or change by customers, At max 6 digitals |
|
Other function |
Paper detection, Power detection, Manual shut down, 1D&QR Code Print; Led indicator; Big Paper Warehouse; Quick-acting USB Charging |
|
Accessories |
Data cable,power adaptor,paper roller,CD,manual |
|
Power plug dimension |
3.5*1.1mm |
|
OS supporting |
Windows &Android & IOS Systems |
|
Safety standards |
CE ,FCC,Rohs etc |
|
Printing capability |
|
|
Printing method |
Direct thermal line |
|
Resoluiton |
203DPI (8dot/mm) |
|
Printing speed |
70mm/sec (Max 90mm/sec) |
|
Print width |
48mm |
|
Continuous printing |
120 pieces Thermal Roll for fully charged battery |
|
Characters per Line |
Font A:32 character /Line Simple,traditional Chinese:16 character /Line |
|
Printing Command |
Compatible with ESC/POS |
|
Barcode and character |
|
|
Character size |
FontA: 12*24dots, 1.5(W)*3.0(H) Simplified/Traditional: 24*24dots, 3.0(W)*3.0(H)mm |
|
Character set |
Alphanumeric/ Chinese Kanji |
|
Media |
|
|
Paper type |
Thermal roll paper |
|
Paper width |
57.5±0.5mm |
|
Paper feeding method |
Easy paper loading |
|
Paper roll diameter |
40mm Max |
|
Paper thickness |
0.06-0.08mm |
|
Physical |
|
|
Dimension |
112*83*54mm |
|
Weight |
Net:230g Gross:450g |
|
Package box |
180*122*65 mm |
|
40 in 1 carton |
372*372*500mm/19.4kg |
|
|
|
|
Working temperature& humidity |
0 to 45 degrees centigrade, 10%~80% No condensation |
|
Storage temperature& humidity |
-20 to 60 degrees centigrade , 10%~90% No condensation |
