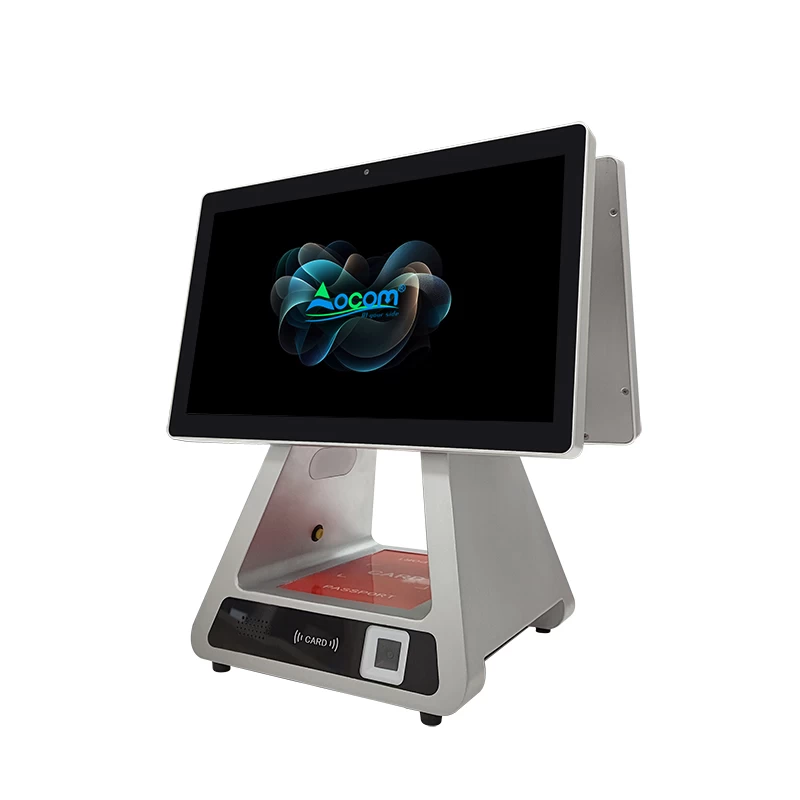

15.6-inch All-in-one Visitor Machine

(M/N: PC-003)

Specification

Model	PC-003
Name	15.6 inch Windows touch screen pos terminal
Housing	All metal material
Display
Main screen size	15.6 inch touch screen monitor
Resoluiton	1920*1080 IPS panel
Brightness	250cd/m²
View angle	Horizon: 178; Vertical: 178
Touch screen	Multi-point projected G+G capacitive touch
Sub-display	15.6 inch display W/o touch function, resolution1920*1080 resolution for option
Performance
Motherboard	Intel Celeron J6412, 2.0GHz or intel core I3 / I5 4th CPU for option
System Memory	1*SO-DIMM DDR4 slot, support 2400 mHZ, 4GB (default) 8GB for option
Storage device	Msata SSD 64GB or higer, up to 256GB
Audio	On board Real Tek ALC662 audio chip ALC5640
LAN	10/100Mbs, Realtek RTL8111F Lan chip built in Mini PCI-E slot, support embedded WIFI module
Operating System	Windows10/11
Scanner	1D/2D Barcode scanner
Speaker	8Ohm 3W speaker
NFC supported	ISO14443 Type A&B contactless cards，S50,S70
OCR scanner	OCR scanning supported
Camera	Built in camera supported
Connectivity
External I/O port(J6412 and RK3568)	Power button*1
	12V DC in jack*1
	LAN: RJ-45*1
	USB *4
	HDMI*1
	VGA*1
Environment
Operating temperature	0 to 40 degrees centigrade
Storage temperature	-10 to 60 degrees centigrade
Working humidity	10%~80% No condensation
Storage humidity	10%~90% No condensation
Accessories
Power adapter	110-240V/50-60HZ AC power input ,DC12V/5A output adaptor
Power cable	Power cable plug compatible with USA /EU / UK etc and customized available

Tag: POS Machine ,pos terminal machines ,China factory ,new products
