POS-1513 Windows 15 Inch Multi Point Capacitive Touch Pos System With Metal HousingPOS-1513 Windows 15 Inch Multi Point Capacitive Touch Pos System With Metal HousingPOS-1513 Windows 15 Inch Multi Point Capacitive Touch Pos System With Metal HousingPOS-1513 Windows 15 Inch Multi Point Capacitive Touch Pos System With Metal HousingPOS-1513 Windows 15 Inch Multi Point Capacitive Touch Pos System With Metal Housing

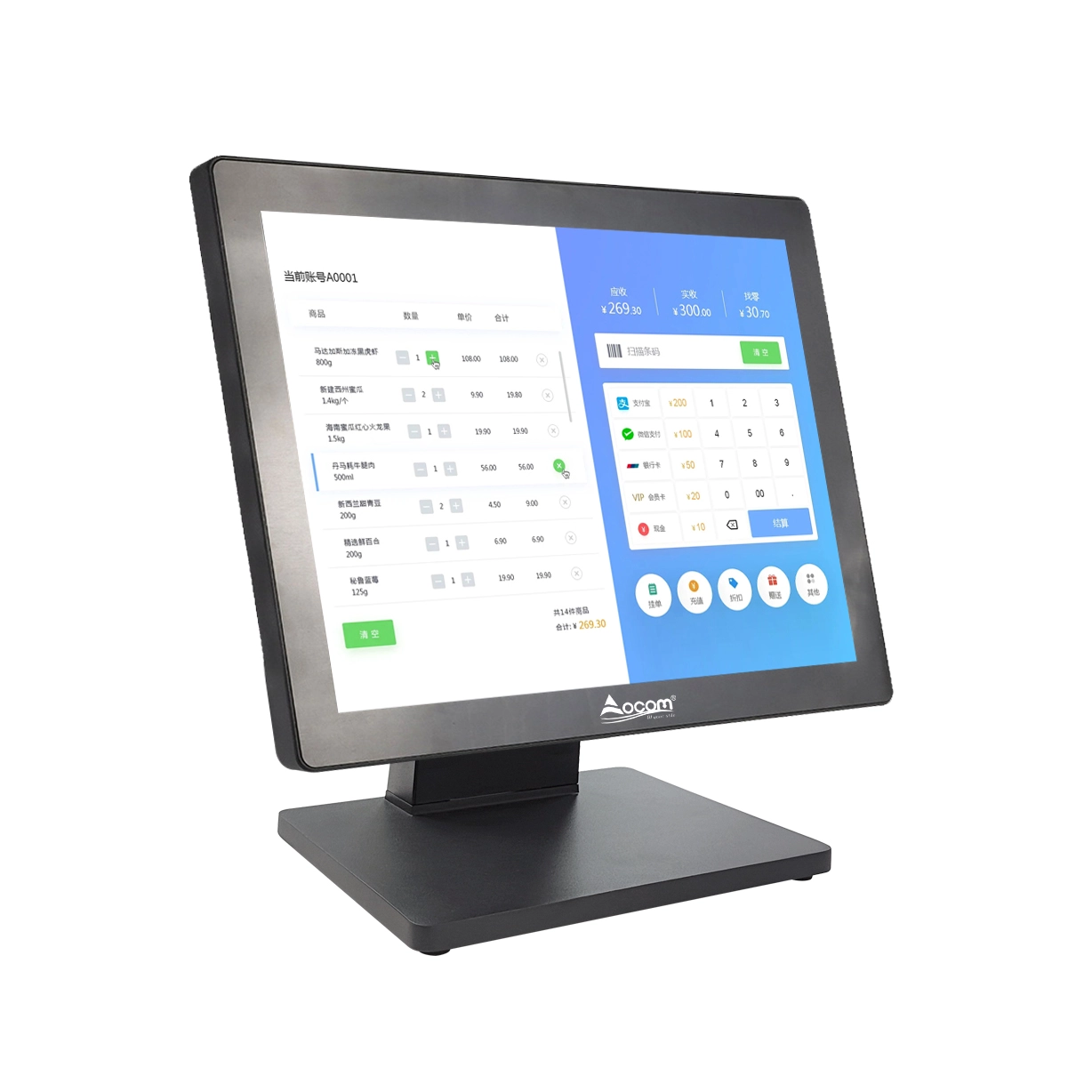

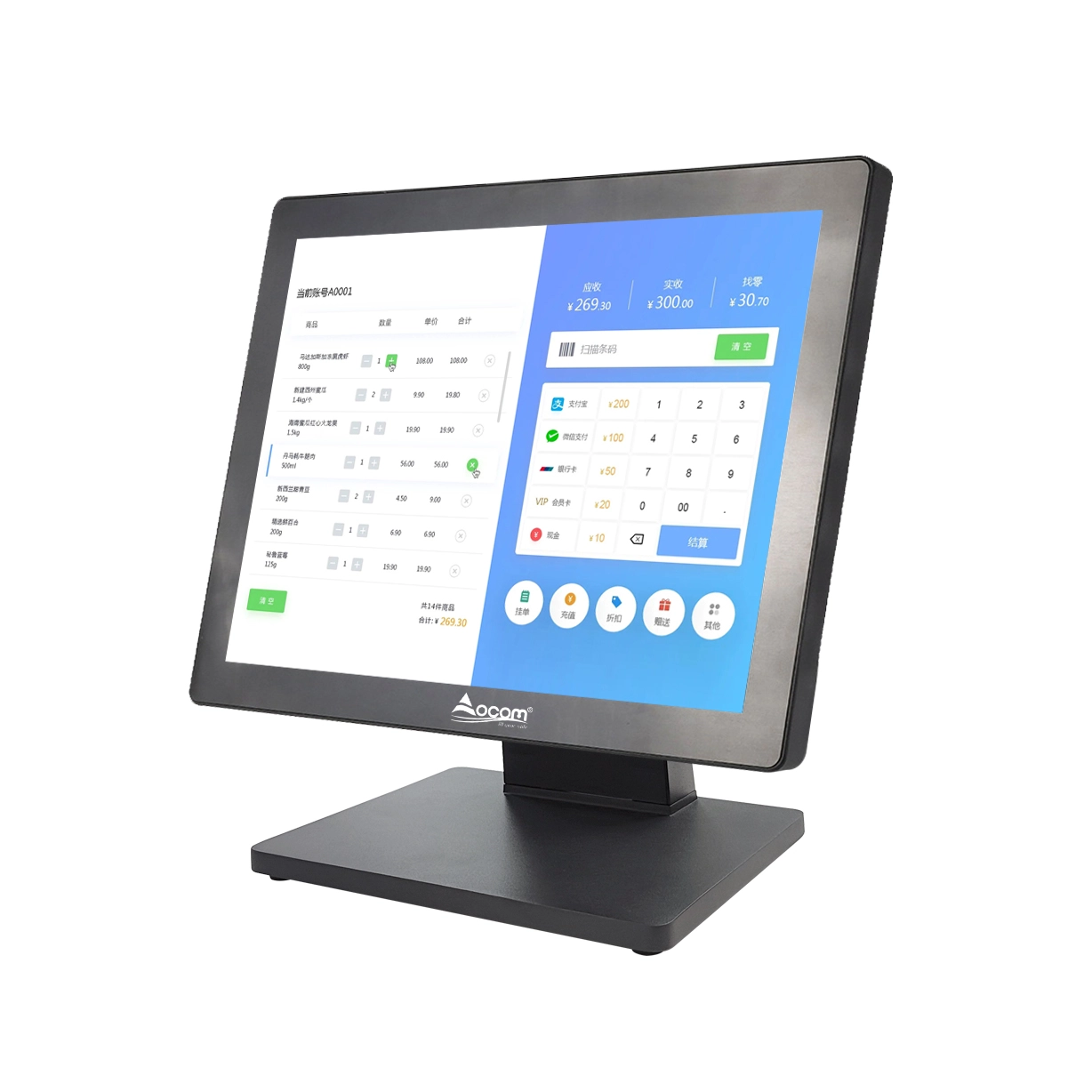

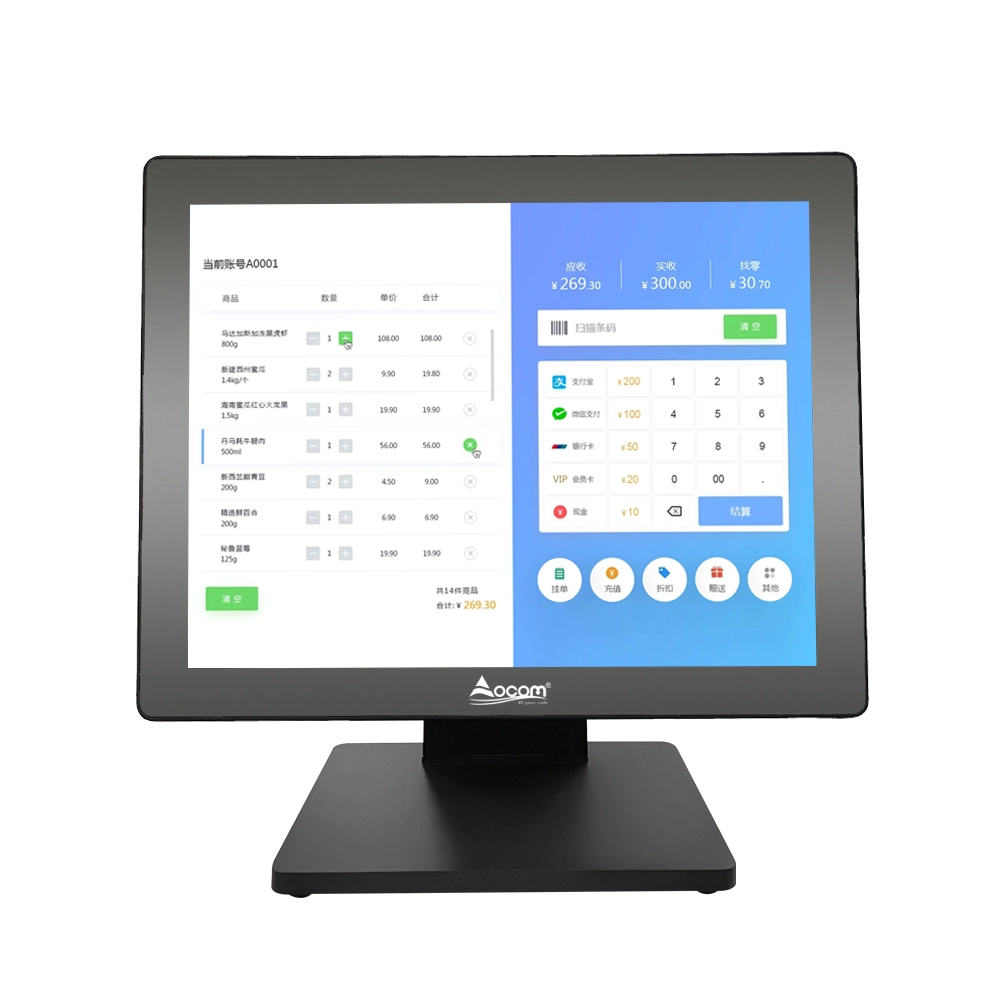

POS-1513 Windows 15 Inch Multi Point Capacitive Touch Pos System With Metal Housing

  • Intel Celeron series and intel core I3 I5 processor for option
  • Rockchip high speed RK3288 processor for option
  • EMMC 8GB/16GB/32GB for option
  • Hard Driver Msata SSD 64GB ,SSD 128GB an 256 GB for option
  • Multi-point projected capacitive touch panel
  • Optional side MSR and VFD220 customer display mounted to back cover
  • Ture flat and water-proof scratch-resistant surface display

15.1 Inch Aluminium Alloy Touch POS Terminal

(M/N:POS-1513W&POS-1513A)










OCOM 1513 series POS terminal has auminium alloy shell and base,It has intel Celeron and intel core I seriese CPU for option,it is easy to install 2nd display,MSR, VFD as modules.This model is very convenient for maintenance by removing the back cover and it has rich I/O interfaces to be connected to more external devices



Specification

Model

POS-1513W

POS-1513A

Name

15.1 inch aluminium alloy touch POS terminal

Housing

aluminium alloy shell machine body and base

Color

whole black color machine

Display



Main screen

15.1 inch touch screen monitor

Resoluiton

1024*768

Brightness

250cd/m2

View angle

Horizon: 160; Vertical :150

Touch screen

Multi-point projected G+G capacitive touch

Sub-display

9.7 inch display W/o touch function

Customer display

2*20 VFD or 2*20 LCD display mounted to back cover for option

Performance



Motherboard

Intel Celeron Bay Trail J1900 2.0GHz usually or intel core I3 / I5 4th generation CPU for option

Rockchip series RK3288 ,quad core 1.8G, RK3399 for option

System Memory

1*SO-DIMM DDRIII slot, support1333*/1600  4GB usually ,2GB/8GB for option

On board DDRIII 1GB,2GB,4GB for option

Storage device

Msata SSD 64GB or higer, up to 256GB

on board8GB,16GB ,32GB EMMC for option

Audio

On board Real Tek ALC662

on board Real Tek ALC5640 audio chip

LAN

10/100Mbs,Realtek RTL8111F Lan chip

built in Mini PCI-E slot,support embedded WIFI module

10/100Mbs,Realtek RTL8111F Lan chip,Support Wi-Fi 802.11b/g/n,BT3.0/BT4.0 support

Operating System

Windows7/8/10,  Embedded,WEPOS,Linux

Up to  Android 8.1

Connectivity



External

I/O port(J1900/RK3288)

power button*1

12V DC in jack*1

LAN:RJ-45*1

USB*4

External

I/O port J1900

15PIN D-sub VGA *1

HDMI*1 or  RS 232*1 for option

line out*1,MIC in*1

External

I/O port RK3288

Audio out*1

TF card port*1

RJ11 for cash drawer*1

RS 232*1

Options



MSR

optional side MSR

Environment



Operating temperature

0 to 40 degrees centigrade

Storage temperature

-10 to 60 degrees centigrade

Working humidity

10%~80%    No condensation

Storage humidity

10%~90%    No condensation

Package



Weight

Net  5.5Kg, Gross 7.0Kg

Package with foam inside

440*290*425mm

Accessories



Power adapter

110-240V/50-60HZ AC power input ,DC12V/5A output adaptor

Power cable

Power cable plug compatible with USA /EU / UK etc and customized available

Other



Compliance

FCC Class A/CE Mark/LVD/CCC
