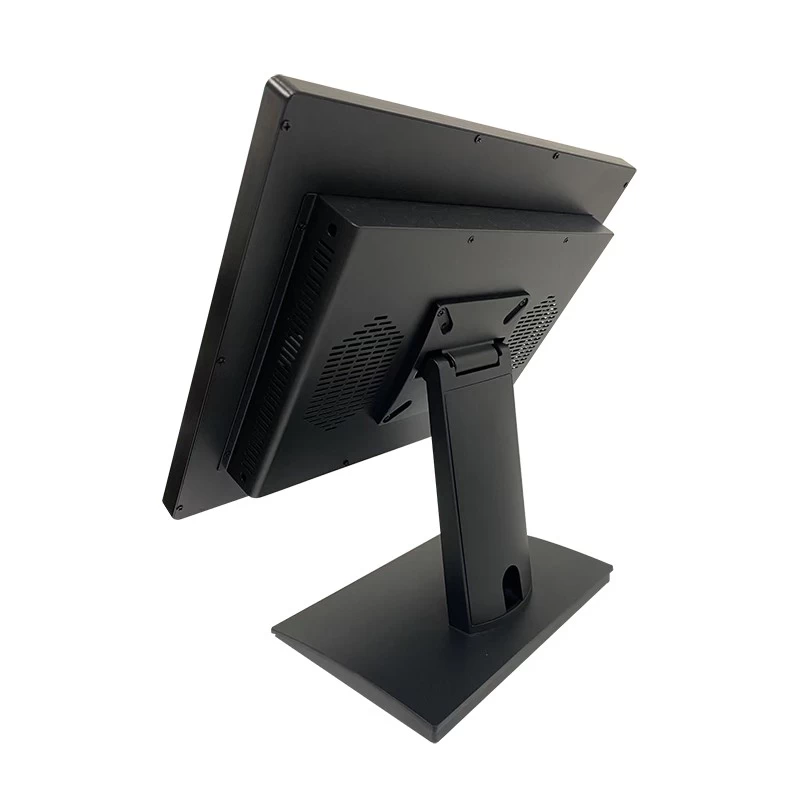

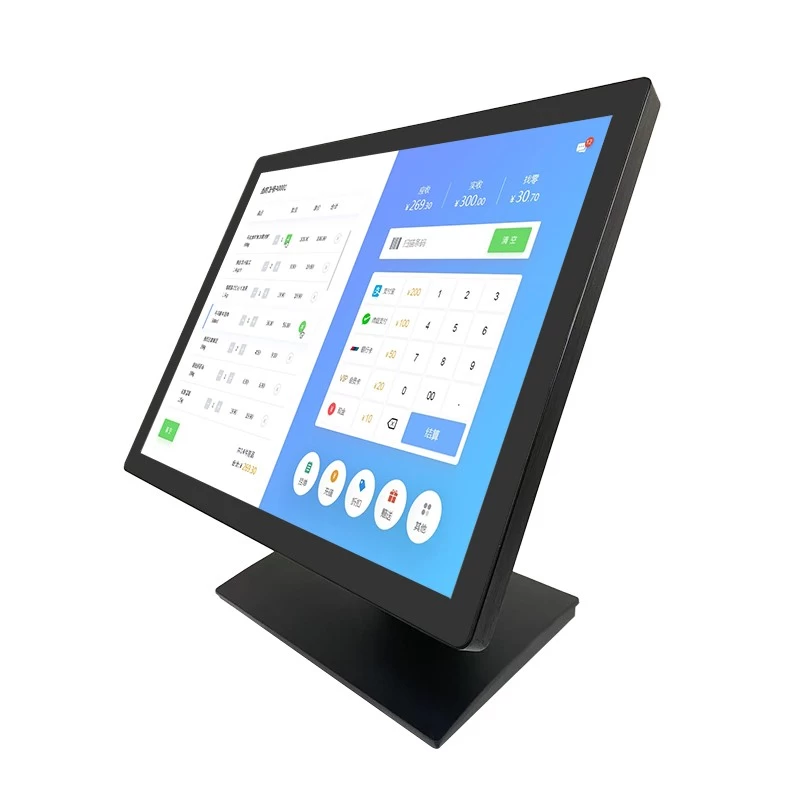

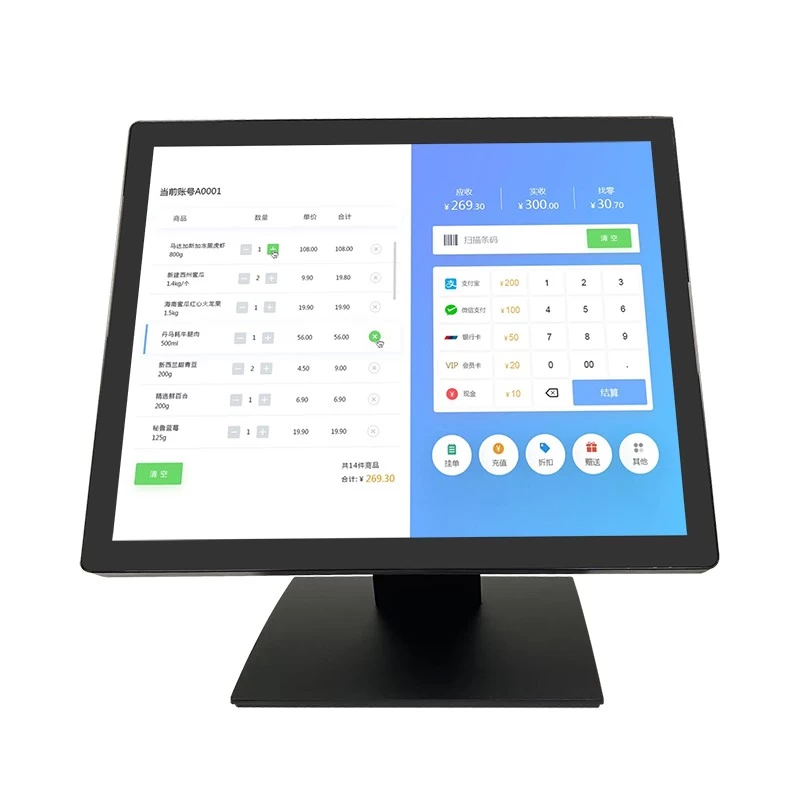

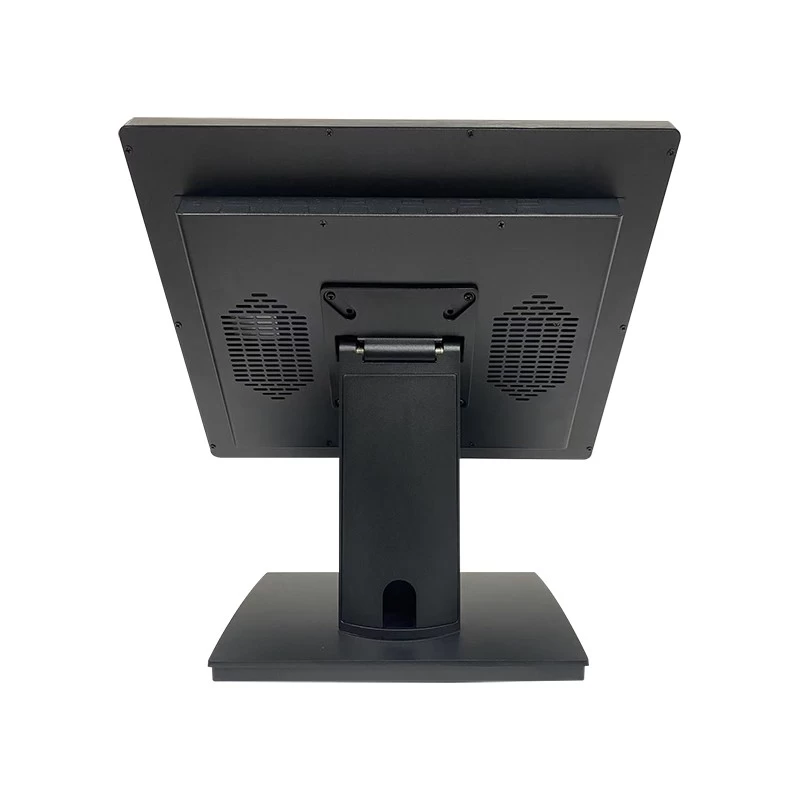

17.1-inch Touch Screen POS Terminal
(M/N:POS-1703)
Specification
|
Model |
POS-1703 |
|
Name |
17.1inch touch POS terminal |
|
Housing |
Metal shell and base |
|
Color |
whole black color machine |
|
Display |
|
|
Main screen |
17.1 inch touch screen monitor |
|
Resoluiton |
1280*1024 |
|
Brightness |
250cd/m2 |
|
View angle |
Horizon: 160; Vertical :150 |
|
Touch screen |
Multi-point projected G+G capacitive touch |
|
Performance |
|
|
Motherboard |
Intel Celeron N5095, 2.0GHz or intel core I3 / I5 4th CPU for optional |
|
System Memory |
1*SO-DIMM DDR4 slot, support 2400 mHZ, 4GB (default) 8GB for option |
|
Storage device |
Msata SSD 64GB or higer, up to 256GB,HDD storage for option |
|
LAN |
100/1000Mbs,Realtek RTL8111F Lan chip built in Mini PCI-E slot,support embedded WIFI module |
|
Operating System |
Support Windows10/11 |
|
Connectivity |
|
|
External I/O port(N5095) |
power button*1 |
|
12V DC in jack*1 |
|
|
LAN:RJ-45*1 |
|
|
HDMI*1 For (I3 I5） |
|
|
USB3.0*1,USB2.0 *3 |
|
|
COM(RS232) *2 (for J1900),COM(RS232)*1 (for I3 I5) |
|
|
VGA(15Pin D-sub)*1 |
|
|
Audio out*1,MIC in*1 |
|
|
Environment |
|
|
Operating temperature |
0 to 40 degrees centigrade |
|
Storage temperature |
-10 to 60 degrees centigrade |
|
Working humidity |
10%~80% No condensation |
|
Storage humidity |
10%~90% No condensation |
|
Accessories |
|
|
Power adapter |
110-240V/50-60HZ AC power input ,DC12V/6A output adaptor |
|
Power cable |
Power cable plug compatible with USA /EU / UK etc and customized available |
