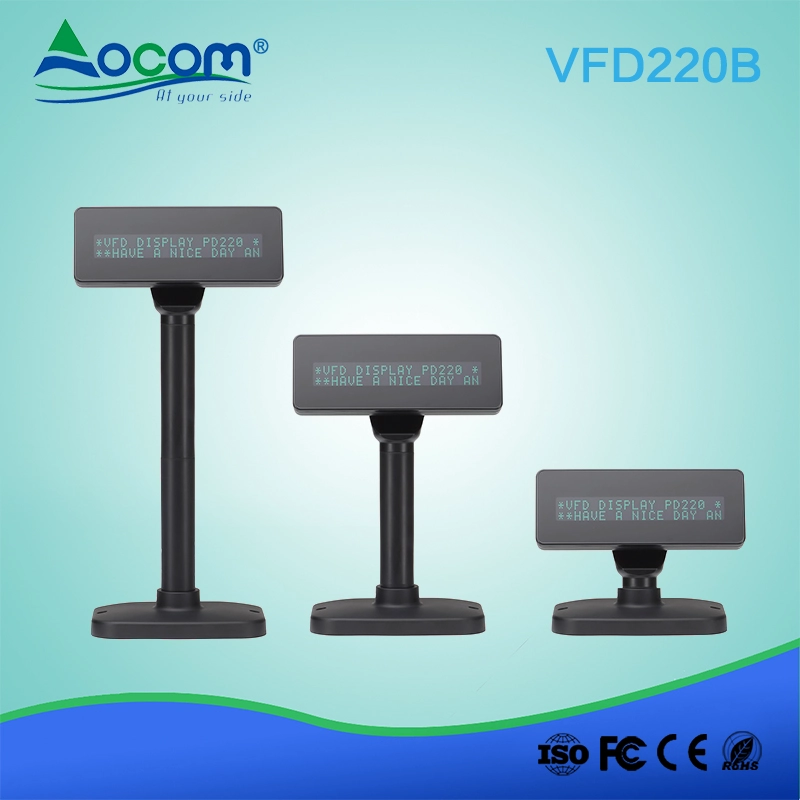

POS Alphanumeric 20x2 VFD DisplayPOS Alphanumeric 20x2 VFD DisplayPOS Alphanumeric 20x2 VFD Display

POS Alphanumeric 20x2 VFD Display

  • 20X2 Characters Double Line VFD Customer Display
  • Support multiple national languages;
  • Pole height is adjustable;
  • Interface: USB or USB+RS232 port;
  • 9.02mm(H) x 5.25mm(W) characters;
  • Supports 11 command modes included EPSON etc.
  • Power supply from 5V to 24V to prevent any mindless use of improper power input.
  • 20-column x 2-line dot matrix in a wide viewing angle.
  • Easy connectivity to a wide range of POS products.
  • OPOS/JPOS driver is standard.
POS Alphanumeric 20x2 VFD Display

(M/N:VFD220B)



Features:

  1.  Supports 11 command modes included EPSON etc.
  2.  Power supply from 5V to 24V to prevent any mindless use of improper power input.
  3.  20-column x 2-line dot matrix in a wide viewing angle.
  4. Easy connectivity to a wide range of POS products.
  5.  OPOS/JPOS driver is standard.

Specification



General

Display Method

Vacuum Fluorescent Display (Blue-green)

Number of characters

40(20 columns x 2 lines)

Brightness

500~1000 cd/m2

Character font

5 x 7 dot matrix

Character type

95 Alphanumeric, 32 International Characters

Character size

9.02(H) x 5.25(W) mm

Dot Size (X x Y)

0.86 x 1.05mm

Download characters

9 characters

Panel Dimension

200(W) x 77.5(D) x31(H)mm

Pole Dimension

Per support length: 140(L) x 34.5(Dia)mm

Base Dimension

169.5(W) x98.5(D) x39(H)mm

Viewing Angle

Max. 90°

Horizontal Rotation

Max. 355°

Weight

Approx. 980 grams

Commands Mode

LD220, EPSON POS D101, AEDEX, UTC/S, UTC/P, ADM788, DSP800, CD5220, EMAX, LOGIC CONTROL

Language Support

FRANCE、GERMANY、U.K、DENMARKI、SWEDEN、ITALY、SPAIN、JAPAN、NORWAY、DENMARKII、SLAVONIC、RUSSIA、Portuguese、Canadian French、Nordic、Turkish、Greek、West European Latin

Interface

RS-232(serial) / USB

Connection

Baud rate

Direct connection 9600 or 19,200 bps

Reliability

MTBF

30,000 hours

Power

Consumption

5~24 VDC

Safety

EMC standards

Safety standards

FCC, CE
