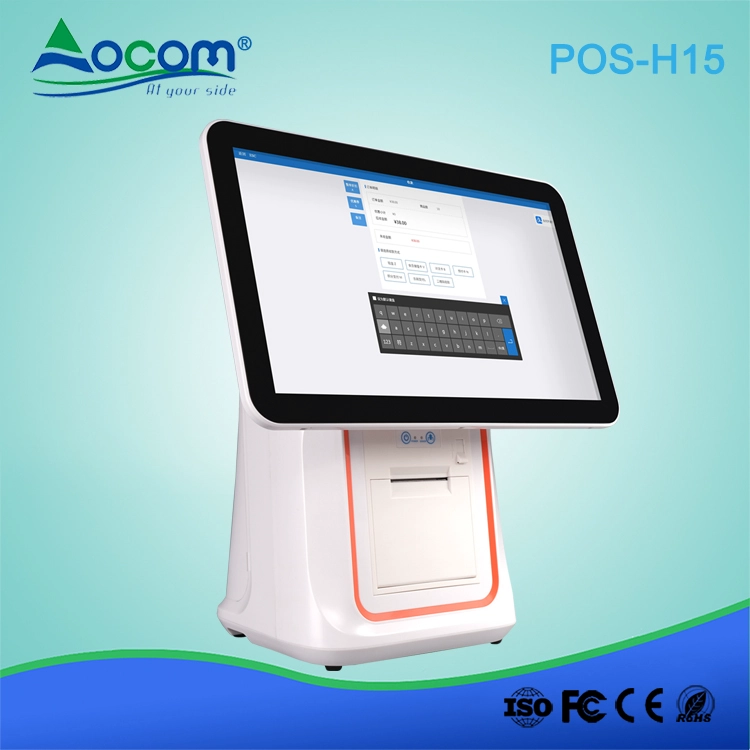

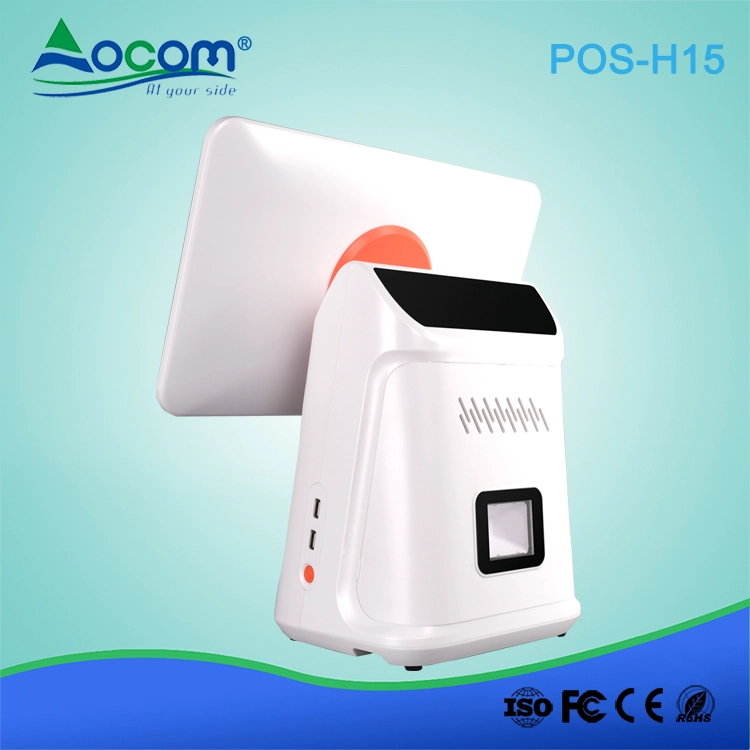

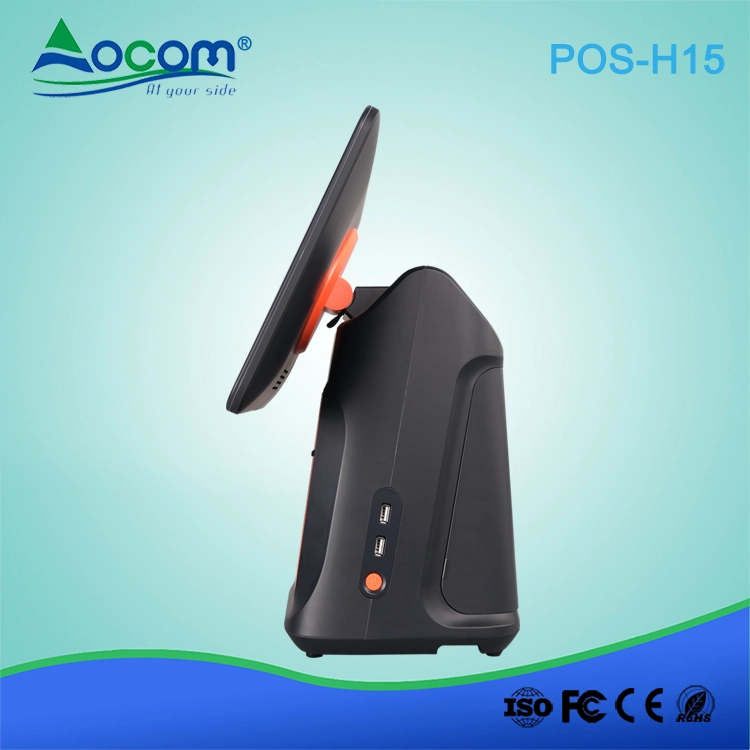

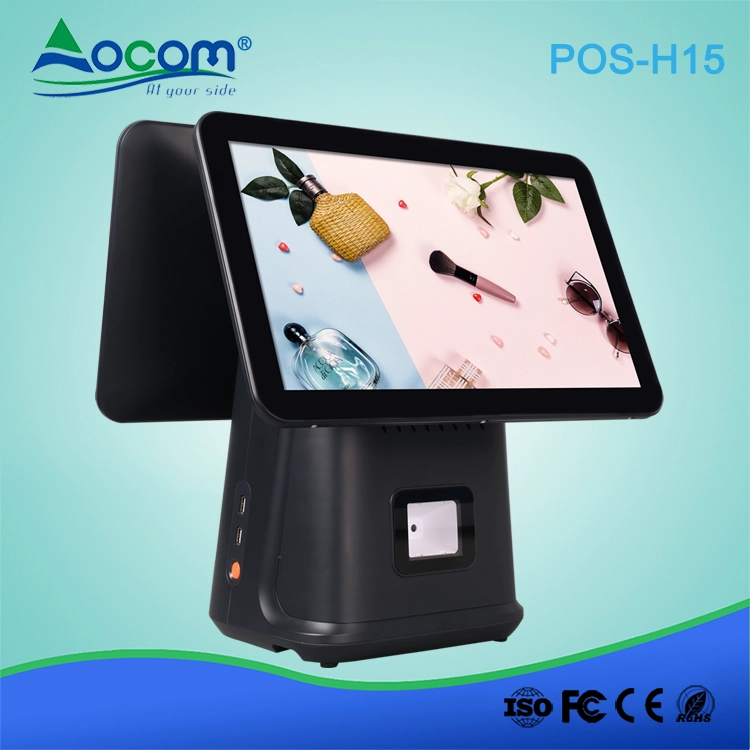

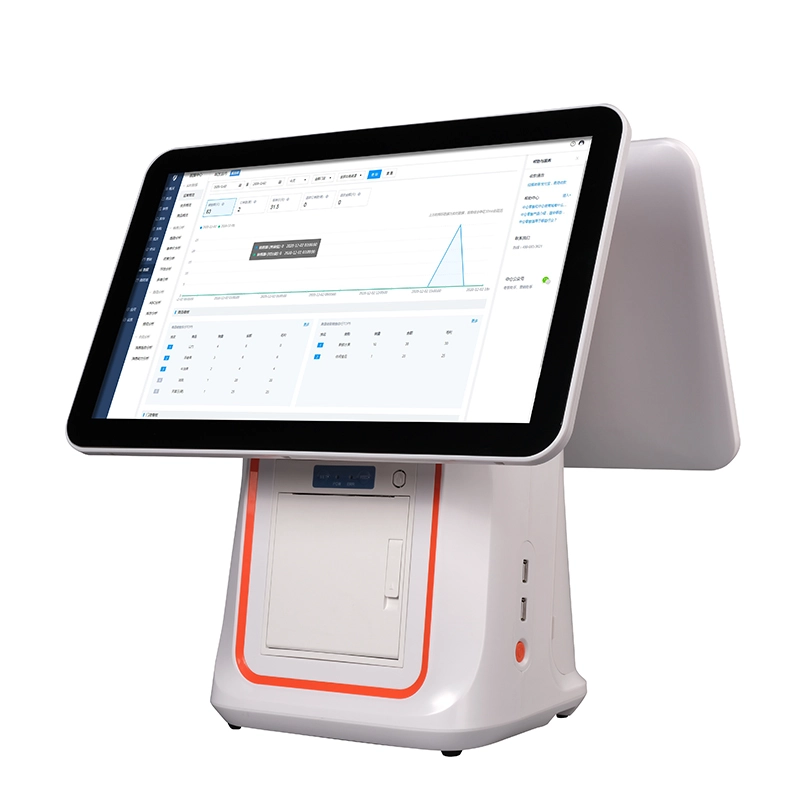

(POS-H156/H151) 15.6 or 15.1 Inch Andorid/Windows All-in-one Touch Screen POS System with Printer and Scanner
- Intel Celeron series and intel core I3 I5 processor for option;
- Rockchip high speed RK3568 processor;
- EMMC 8GB/16GB/32GB for option;
- Hard Driver Msata SSD 64GB, SSD 128GB and 256 GB for option;
- 58mm and 80mm high speed thermal printer built in for option;
- Multi-point projected capacitive touch panel;
- Optional side MSR and VFD220 customer display mounted to back cover;
- Bar-code scanner inbuilt for option;
- True flat and water-proof/scratch-resistant sureface display.
15.6 or 15.1 Inch Andorid/Windows All-in-one Touch Screen POS System with Printer and Scanner
(M/N: POS-H156/H151)
OCOM H series pos integrated high speed thermal printer and scanner module inside,it is a kind of cost-effective machine for using, different frame colors make machine more beautiful ,
extended IO interface make a few more external devices connected, newly designed rear cover which can be easily removed without tools for faster installation and maintenance
Features:
Intel Celeron series and intel core I3 I5 processor for option;
Rockchip high speed RK3568 processor;
EMMC 8GB/16GB/32GB for option;
Hard Driver Msata SSD 64GB, SSD 128GB and 256 GB for option;
58mm and 80mm high speed thermal printer built in for option;
Multi-point projected capacitive touch panel;
Optional side MSR and VFD220 customer display mounted to back cover;
Bar-code scanner inbuilt for option;
True flat and water-proof/scratch-resistant sureface display.
Specification
|
Model |
POS-H156 |
POS-H151 |
|
|
Name |
15.6 inch all in one touch screen pos terminal |
15.1 inch all in one touch screen pos terminal |
|
|
Housing |
Plastic with metal combined |
||
|
Color |
White machine body or black machine body match orange or blue frame colors |
||
|
Display |
|
||
|
Main screen |
15.6 inch touch screen monitor |
15.1 inch touch screen monitor |
|
|
Resolution |
1366*768 |
1024*768 |
|
|
Brightness |
250cd/m2 |
||
|
View angle |
Horizon: 150; Vertical :140 |
||
|
Touch screen |
Multi-point projected G+G capacitive touch |
||
|
Sub-display |
15.6/14/11.6 inch display W/ or W/o touch function, resolution 1366*768 for optional |
15.1 inch display W/ or W/o touch function, resolution 1024*768 |
|
|
Customer display |
2*20 VFD mounted to back cover for option |
||
|
Performance |
|
||
|
Windows J4125 |
Motherboard |
Intel Celeron J4125, 2.0GHz or intel core I3 / I5 4th CPU for option |
|
|
System Memory |
1*SO-DIMM DDR4 slot, support 2400 mHZ,4GB/8GB for option |
||
|
Storage device |
Msata SSD 64GB or higer, up to 256GB |
||
|
Audio |
On board Real Tek ALC662 audio chip |
||
|
LAN |
10/100Mbs, Realtek RTL8111F Lan chip built in Mini PCI-E slot, support embedded WIFI module |
||
|
Operating System |
Windows10/11 |
||
|
Android RK3568 |
Motherboard |
Rockchip series RK3568, quad core 2.0G, RK3399 for optional |
|
|
System Memory |
On board DDR4 2GB, 4GB for option |
||
|
Storage device |
On board 16GB EMMC, 32GB for option |
||
|
LAN |
RJ45 port support 10/100Mbs internet |
||
|
WIFI&BT module |
Support Wi-Fi 802.11b/g/n, BT3.0/BT4.0 support |
||
|
Operating System |
Android11 |
||
|
Connectivity |
|
||
|
Windows/Android(J4125&RK3568) |
power button*1 |
||
|
12V DC in jack*1 |
|||
|
LAN: RJ-45*1 |
|||
|
USB*6 |
|||
|
MIC in*1, Audio out*1 |
|||
|
Windows(J4125) |
COM(RS232) *1 or HDMI*1 for option |
||
|
VGA(15Pin D-sub)*1 |
|||
|
RJ11 for Cash drawer *1 for option |
|||
|
Android(RK3568) |
COM(RS232) *1 |
||
|
On board RJ11 for Cash drawer *1, RJ11 from printer port for cash drawer*1(optional) |
|||
|
TF card slot*1 |
|||
|
Options |
|
||
|
80mm thermal printer |
Direct thermal printing |
||
|
100mm/s pringting speed |
|||
|
79.5-/+ 0.5mm paper width and printable width 72mm |
|||
|
With atuo cutter function and thermal head life 50km |
|||
|
LPT communication |
|||
|
58mm thermal printer |
Direct thermal printing |
||
|
85mm/s pringting speed |
|||
|
57.5-/+ 0.5mm paper width and printable width 48mm |
|||
|
Thermal head life 50km |
|||
|
LPT communication |
|||
|
MSR |
Optional side MSR |
||
|
Web camera |
Web camera mounted on top of the display for option |
||
|
Scanner |
Support 1D&2D code-scanning for option |
||
|
Speaker |
4ohm/5w speakers inside for option |
||
|
Package |
|
||
|
Weight |
Net: 5.6Kg, gross: 7.7Kg for 15.6 with15.6 dual screen /no printer built in |
||
|
Package with foam inside |
340*450*480mm |
||
|
2 in1 carton |
700*460*500mm / Gross: 17kg |
||
|
Environment |
|
||
|
Operating temperature |
0 to 40 degrees centigrade |
||
|
Storage temperature |
-10 to 60 degrees centigrade |
||
|
Working humidity |
10%~80% |
||
|
Storage humidity |
10%~90% |
||
|
Accessories |
|
||
|
Power adapter |
110-240V/50-60HZ AC powerinput, DC12/5A output adaptor for W/o printer and W/ 58mm printer machine DC12V/7A out put adaptor only for W/ 80mm printer machine |
||
|
Power cable |
Power cable plug compatible with USA /EU / UK etc and customized available |
||
|
CD driver |
Motherboard driver and touch driver inside for option |
||
|
Other |
|
||
|
Compliance |
FCC Class A/CE Mark/LVD/CCC |
||
Package
Relevant documents:
POS-H15 58mm printer Driver
POS-H15 80mm printer Driver
POS-H15 printer Android SDK
