(POS-M1162-W/A) 11.6 Inch All In One Android/Windows POS terminal with Printer, Scanner, Display and RFID(POS-M1162-W/A) 11.6 Inch All In One Android/Windows POS terminal with Printer, Scanner, Display and RFID(POS-M1162-W/A) 11.6 Inch All In One Android/Windows POS terminal with Printer, Scanner, Display and RFID(POS-M1162-W/A) 11.6 Inch All In One Android/Windows POS terminal with Printer, Scanner, Display and RFID(POS-M1162-W/A) 11.6 Inch All In One Android/Windows POS terminal with Printer, Scanner, Display and RFID(POS-M1162-W/A) 11.6 Inch All In One Android/Windows POS terminal with Printer, Scanner, Display and RFID

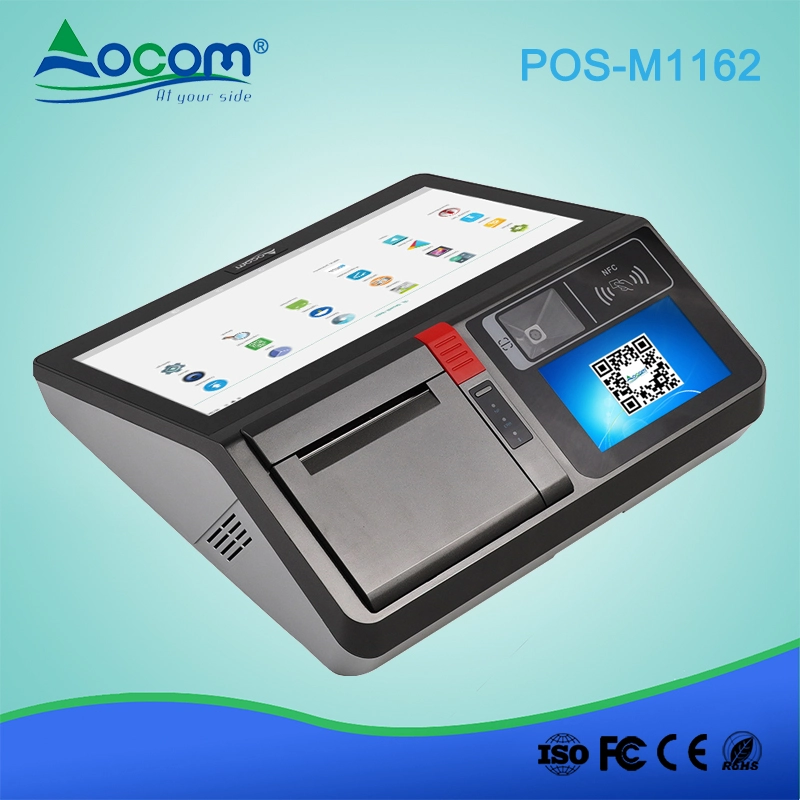

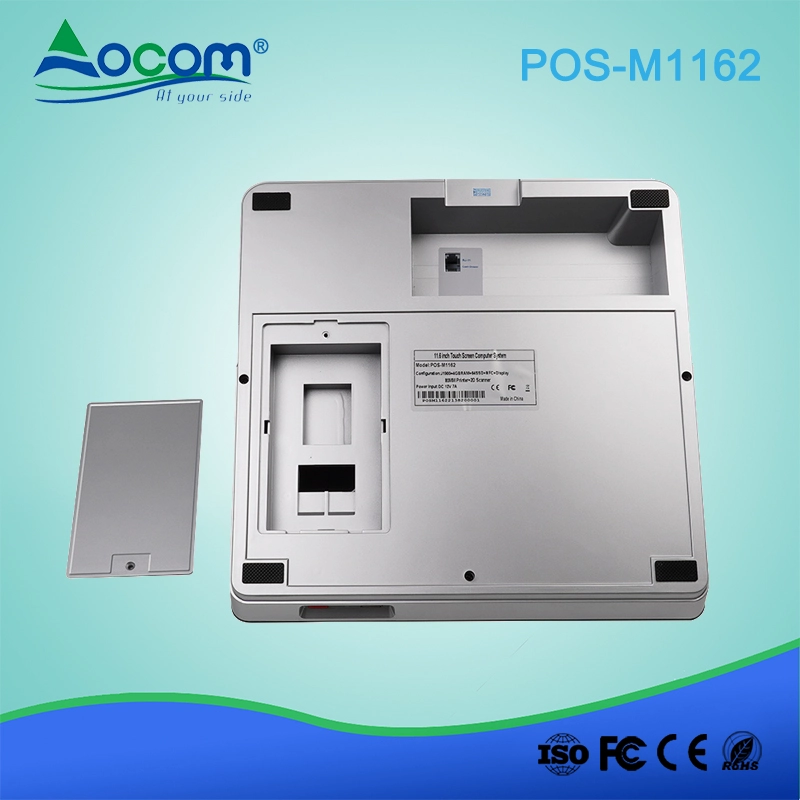

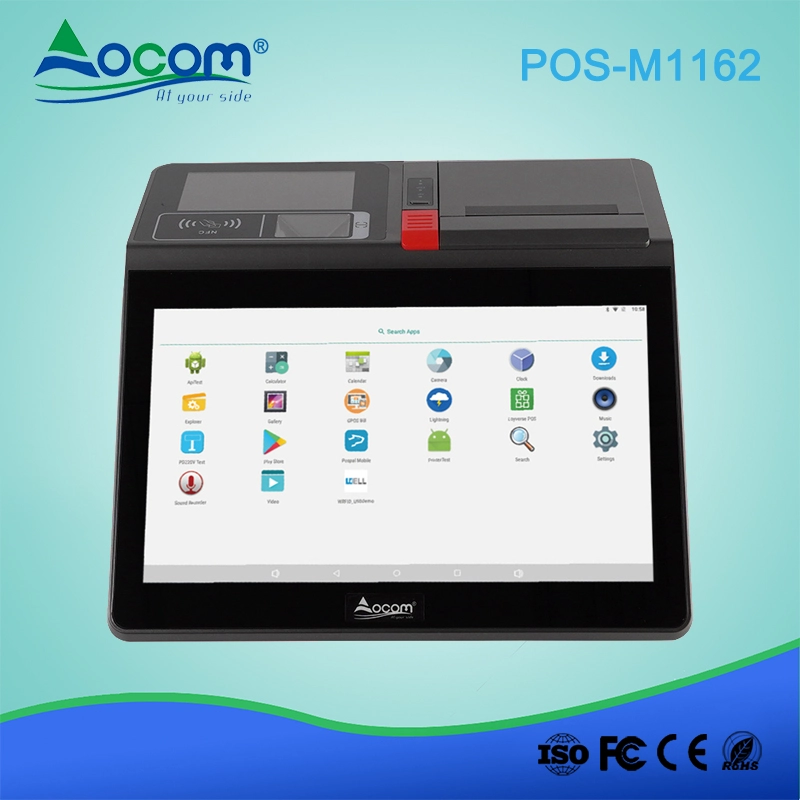

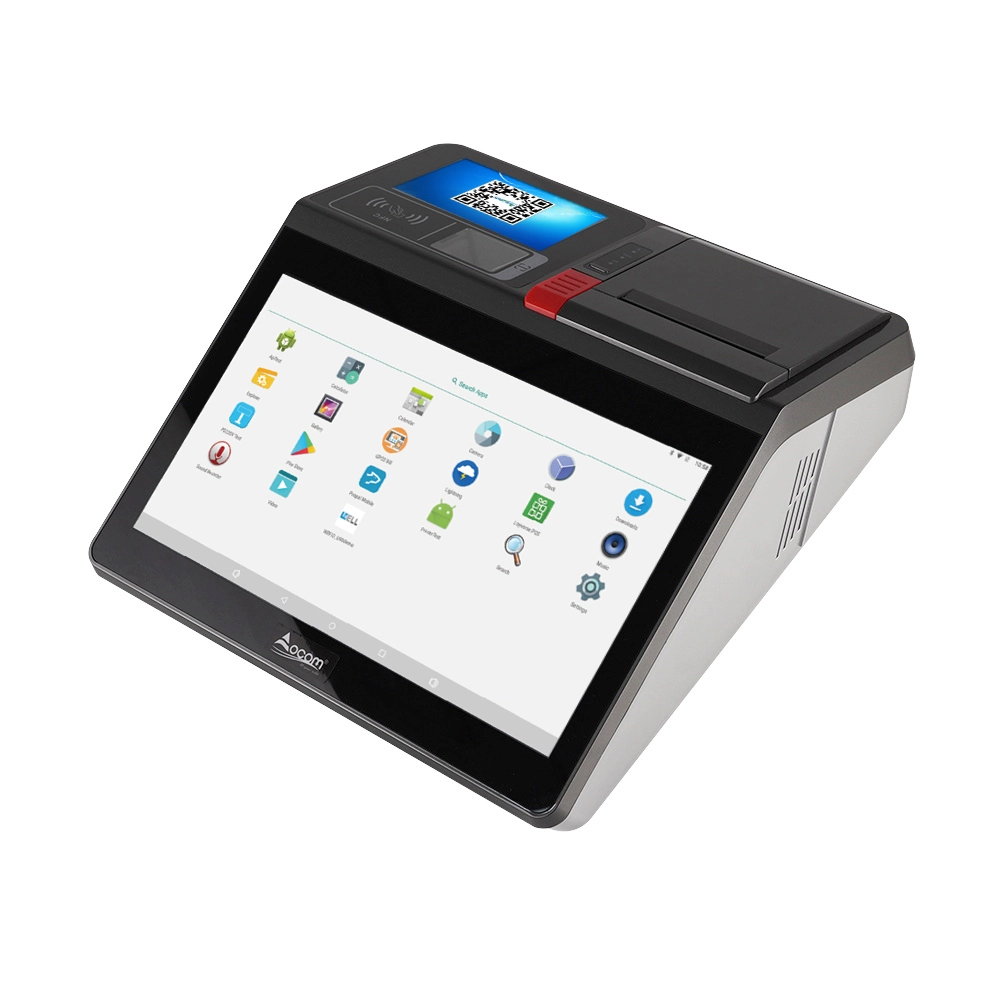

(POS-M1162-W/A) 11.6 Inch All In One Android/Windows POS terminal with Printer, Scanner, Display and RFID

  • Intel Celeron series and intel I3 I5 or RK3288 CPU for option;
  • Hard Driver Msata SSD 64GB ,SSD 128GB an 256 GB for option;
  • 80mm high speed thermal printer built in;
  • Multi-point projected capacitive touch panel;
  • VFD220 customer display mounted to back cover;
  • NFC card reader,bar-code scanner as option;
  • Ture flat and water-proof scratch-resistant surface display.

11.6 Inch All In One Android/Windows POS terminal

with Printer, Scanner, Display and RFID

(M/N:POS-M1162-W/A)


OCOM M1162 POS machine can be installed windows or android OS for choosing,its higly intergration make many functions realized just by one POS, this smaller size model save customers much space and cost-effective.


Features:

Intel Celeron series and intel I3 I5 or RK3288 CPU for option;
Hard Driver Msata SSD 64GB, SSD 128GB an 256 GB for option;
80mm high speed thermal printer built in;
Multi-point projected capacitive touch panel;
VFD220 customer display mounted to back cover;
NFC card reader,bar-code scanner as option;
Ture flat and water-proof scratch-resistant surface display.

Specification

Model

POS-M1162-W

POS-M1162-A

Name

11.6inch all in one Windows touch screen pos terminal

11.6 inch all in one Android touch screen pos terminal

Housing

plastic with metal combined

Color

Black and white color

Display



Main screen size

11.6 inch IPS  touch screen monitor

11.6 inch IPS touch screen monitor

Resolution

1366*768,1920*1080 for option

1366*768,1920*1080 for option

Brightness

300cd/m2

View angle

Horizon: 160; Vertical :150

Touch screen

multi-point projected G+G capacitive touch

Vice screen

4.3inch lcd display ,resolution 800*480 for option

Customer display

2*20 VFD  mounted to back cover for option

Performance



Motherboard

Intel Celeron  Bay Trail J4125 2.0GHz,intel core I3/I5 for option



ARM Cortex-A17 -RK 3288 quad core 1.8GHz CPU

System Memory

1*SO-DIMM DDRIV slot, 2133 Mhz 2GB/4GB 8GB for option

On board 2GB DDRIII

Storage device

Msata SSD 64GB or higer, up to 256GB

8GB eMMC,support 32GB TF card expanded

Audio

On board Real Tek ALC662 audio chip

On board Real Tek audio chip ALC5640

LAN

10/100Mbs,Realtek RTL8111F Lan chip

built in Mini PCI-E slot,support embedded WIFI module

10M/100M RTL8201F,10M/100M/1000M RTL8211E for option

Operating System

Windows7/8/10,  Embedded,WEPOS,Linux



Android 7.1 and Anroid 8.1



Connectivity

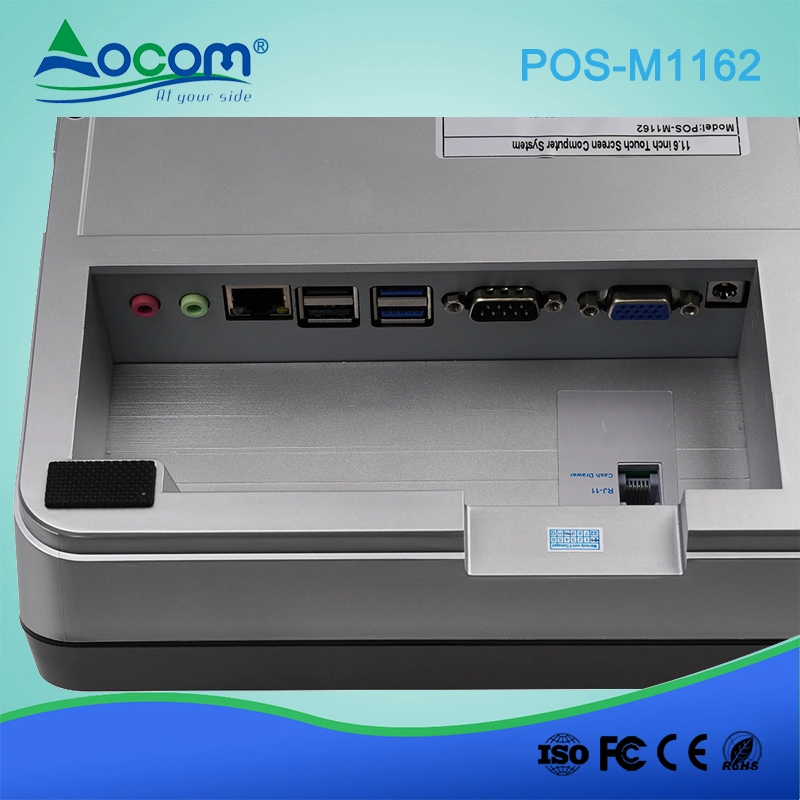

External I/O port

(J4125/RK3288)

power button*1

12V DC in jack*1

COM(RS232) * 1

LAN:RJ-45*1

USB *5

RJ11 for Cash drawer *1

VGA(15Pin D-sub)*1

TF card slot*1

MIC in*1 Audio out*1

N/A

Options

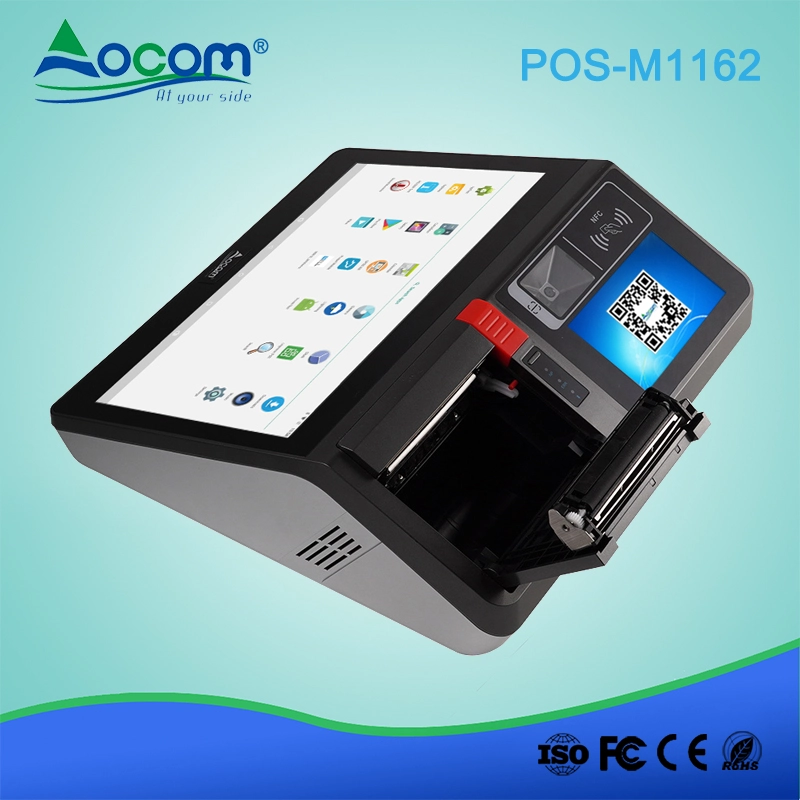

80mm thermal printer

direct thermal printing,support label and receipt

200mm/s pringting speed

79.5-/+ 0.5mm paper width and printable width 72mm

with atuo cutter function and thermal head life 100km

speaker

8ohm/3W speaker

WIFI

IEEE 802.11 a/b/g/n

comunication

3G/4G

NFC card reader

ISO14443TypeA

scanner

1D/2D barcode decoding

camera

5.0MP/Auto focus,support 1D/2D

Battery

6000mAh large capacity battery

Package

package

Weight

Net  3.1Kg   Gross 3.8Kg

Package with foam inside

180*370*380mm

2 in 1 carton

370*365*392/12kg

Environment



Operating temperature

0  to 40 degrees centigrade

Storage temperature

-10 to 60 degrees centigrade

Working humidity

10%~80%    No condensation

Storage humidity

10%~90%    No condensation

Accessories



Power adapter

110-240V/50-60HZ AC powerinput ,DC12/7A output adaptor

Power cable

Power cable plug compatible with USA /EU / UK etc and customized available

CD driver

Motherboard driver and touch driver inside

Other



Compliance

FCC Class A/CE Mark/LVD/CCC
