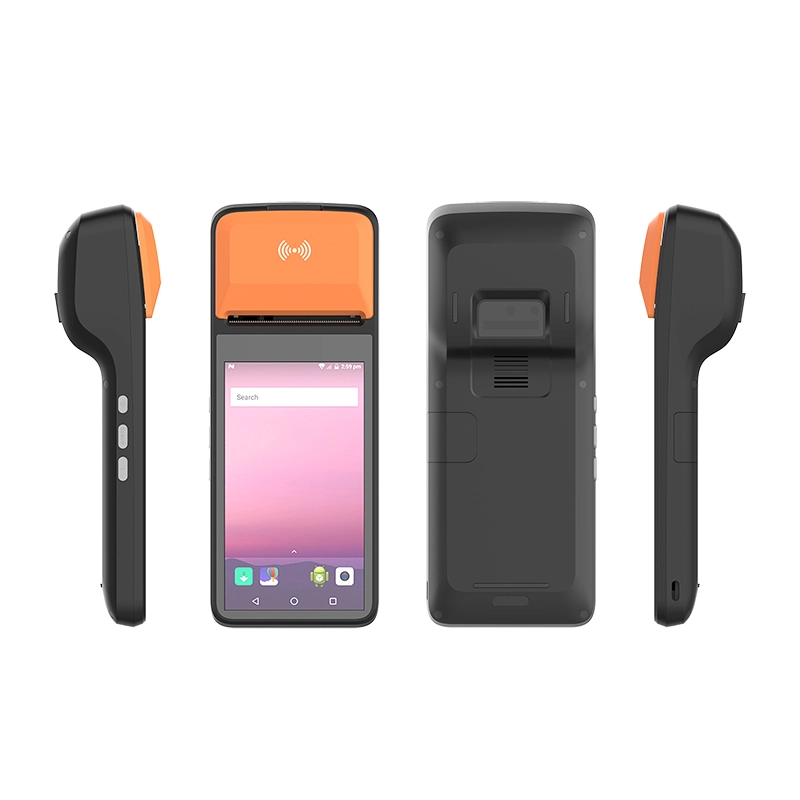

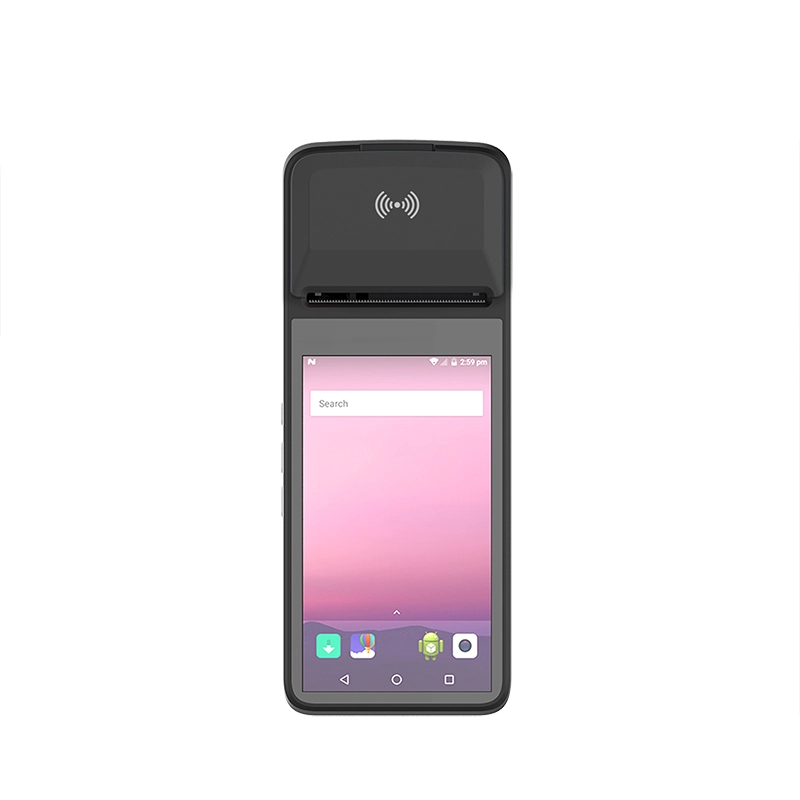

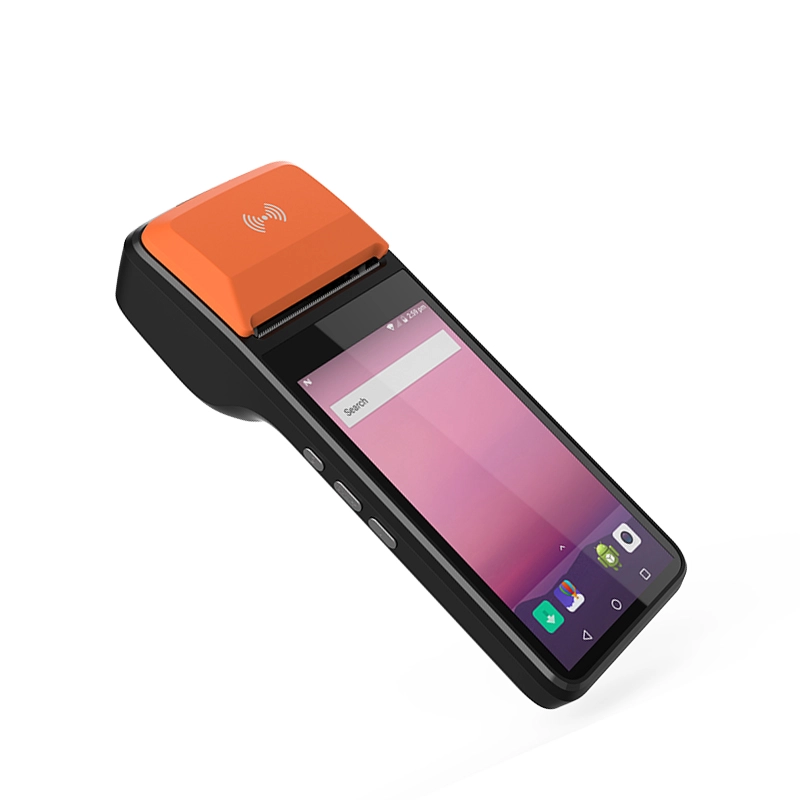

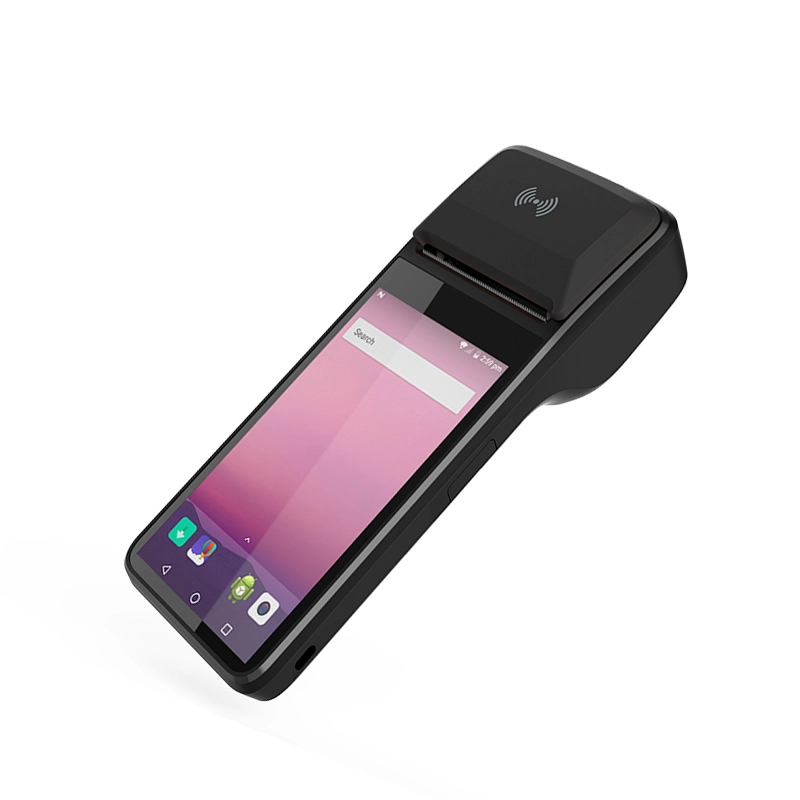

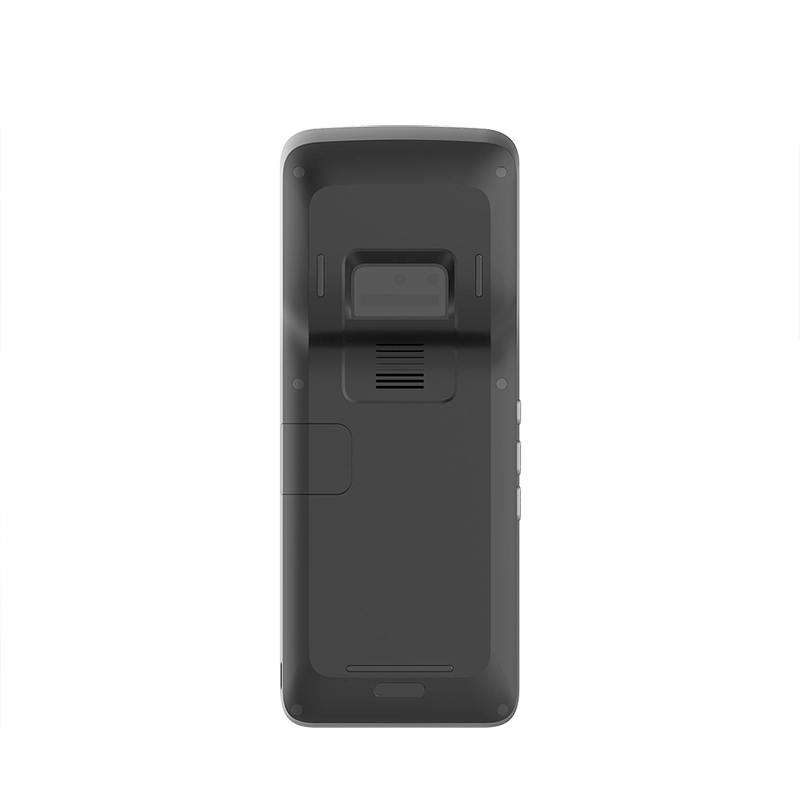

(POS-Q9Pro) 5.0" HD IPS Screen Android 11 Portable Ultra-thin POS Terminal with 58mm thermal Printer, Scanner, NFC, Camera and Speaker

  • GPS/AGPS supported;
  • 58mm*40mm thermal printer;
  • 5MP auto focus camera with LED flash;
  • Support TMS sever management;
  • CCD scanner for optinal;
  • NFC function for optional.

Android 11 Portable POS Terminal with 58mm thermal Printer

(M/N: POS-Q9Pro)



Features:

GPS/AGPS supported;
58mm*40mm thermal printer;
5MP auto focus camera with LED flash;
Support TMS sever management;
CCD scanner for optinal;
NFC function for optional.

Technical Spec:

Model

POS-Q9Pro

Name

5.0 inch handheld pos terminal

Battery

7.7V, 2600mAh Lithium ion polymer Battery

Power adapter

Input: AC: 100-240V, Output: 5V,2A

Interface

Type C*1, data cabel ,USB-Type C, 0.8m exposed

Antenna

2G/3G/4G+WIFI & Bluetooth+GPS

Key

Power On/off, volume up (can be customized as scan), volume down

Card slot

1*SIM,Provide with multi band, multi signal

Duration

Stand by 250+ hours working hour 16+ (DispIay on and  wireIess connected)

Fall prevention

1.0 anti-fall laboratory Standard

Display



Main screen

5.0inch HD IPS touch screen monitor

Resolution

1280*720

Touch screen

Multi-point projected G+FF capacitive touch

Performance



CPU

Spreadtrum A55,8-Core 1. 6Ghz

Memory

2GB RAM+16GB ROM3G+32G(optional )

Communication mode

GSM, WCDMA, TDD_LTE, FDD_LTE

NFC: ISO/ICE14443, Type A&B, Mifare Card (Optional)

WIFI: 2.4G, support IEEE 802.11a/b/g/n

GPS/A-GPS

BuiId in GPS, support A-GPS

Operating system

Android 11

Printer

58mm, Paper Roll 40mm,75mm/s, print duration≥50km

Print barcode and QR code, online life detection, and etc.

Camera

5M px rear camera,supprot 1D & 2Dscan & payment

Scanner

CCD scanner for optional

Speaker

8 W, ≥ 95dB, audio interface, mono, high volume design

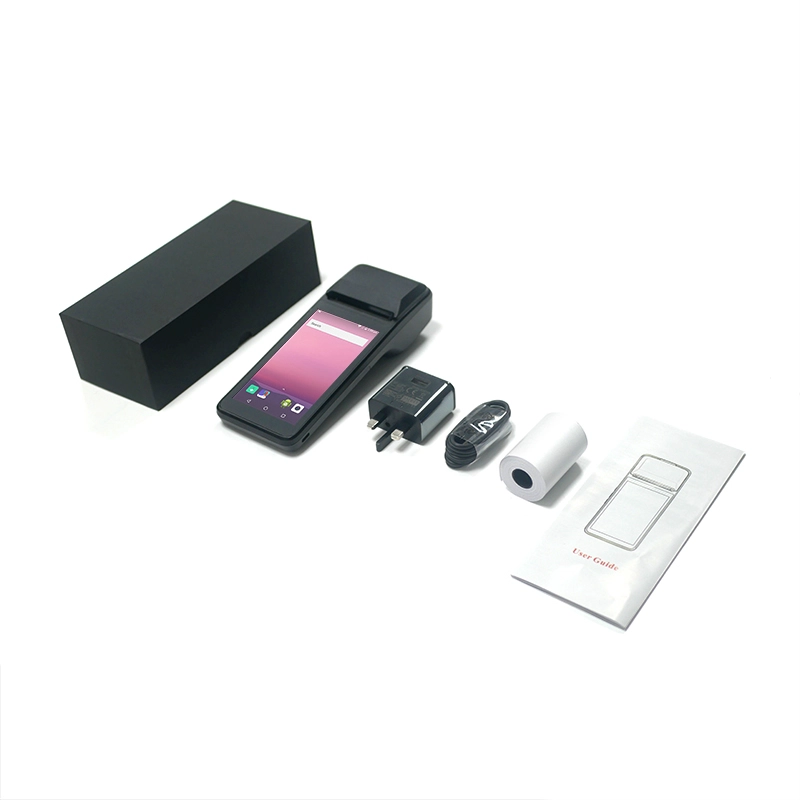

Package



Weight

Net  0.31kg  Gross  0.56kg

Single box size

210*91*78mm

10  in 1 carton

340*215*200mm/6.2kg

Environment



Operating temperature

0  to 40 degrees centigrade

Storage temperature

-10 to 60 degrees centigrade

Working humidity

10%~80%

Storage humidity

10%~90%
