POS-T1 5'' Handheld All-in-One Android POS Terminal with PrinterPOS-T1 5'' Handheld All-in-One Android POS Terminal with PrinterPOS-T1 5'' Handheld All-in-One Android POS Terminal with PrinterPOS-T1 5'' Handheld All-in-One Android POS Terminal with PrinterPOS-T1 5'' Handheld All-in-One Android POS Terminal with PrinterPOS-T1 5'' Handheld All-in-One Android POS Terminal with Printer

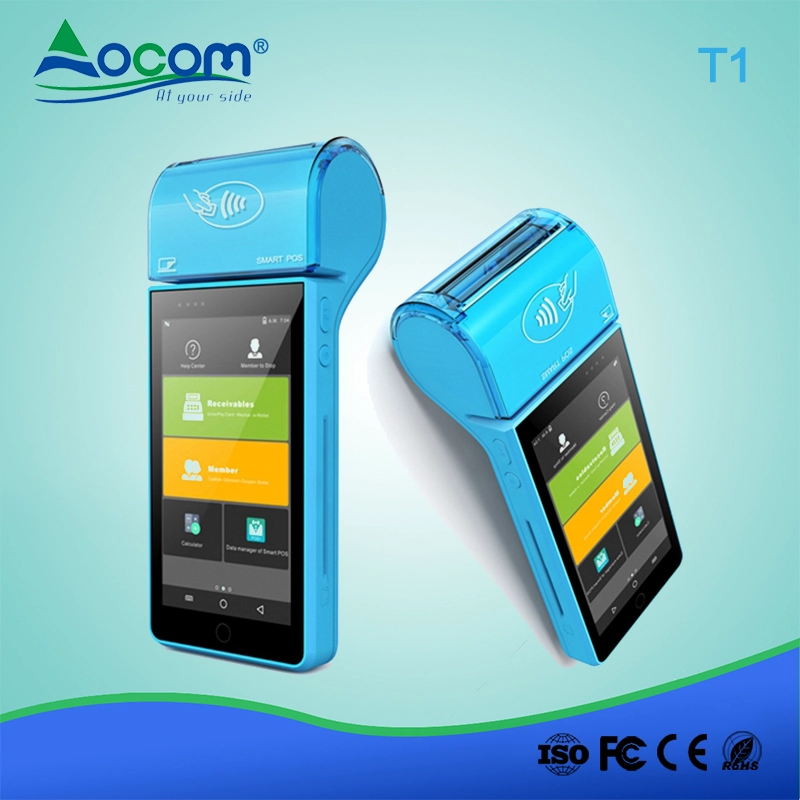

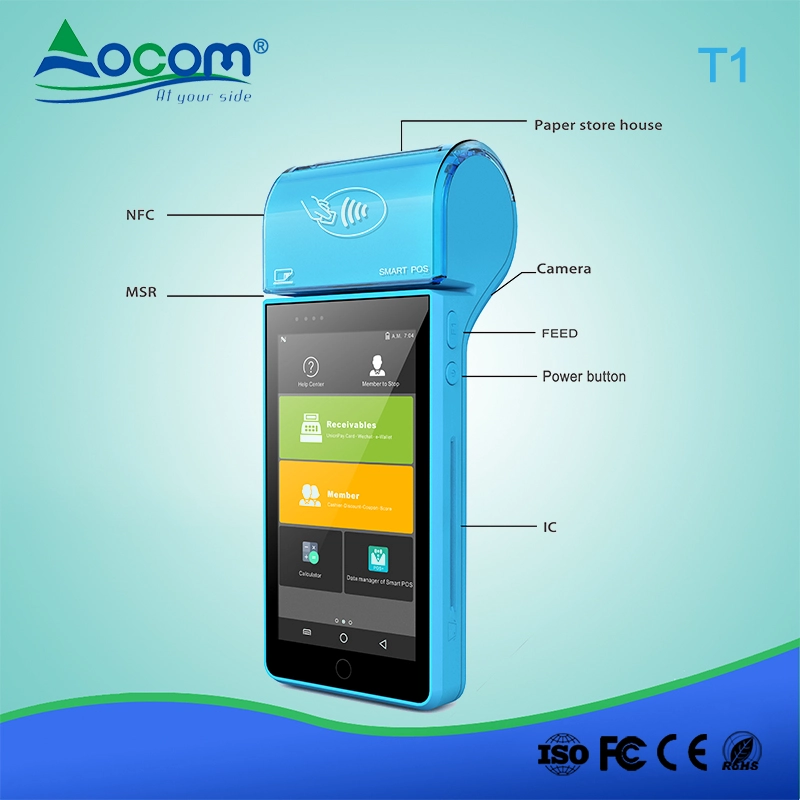

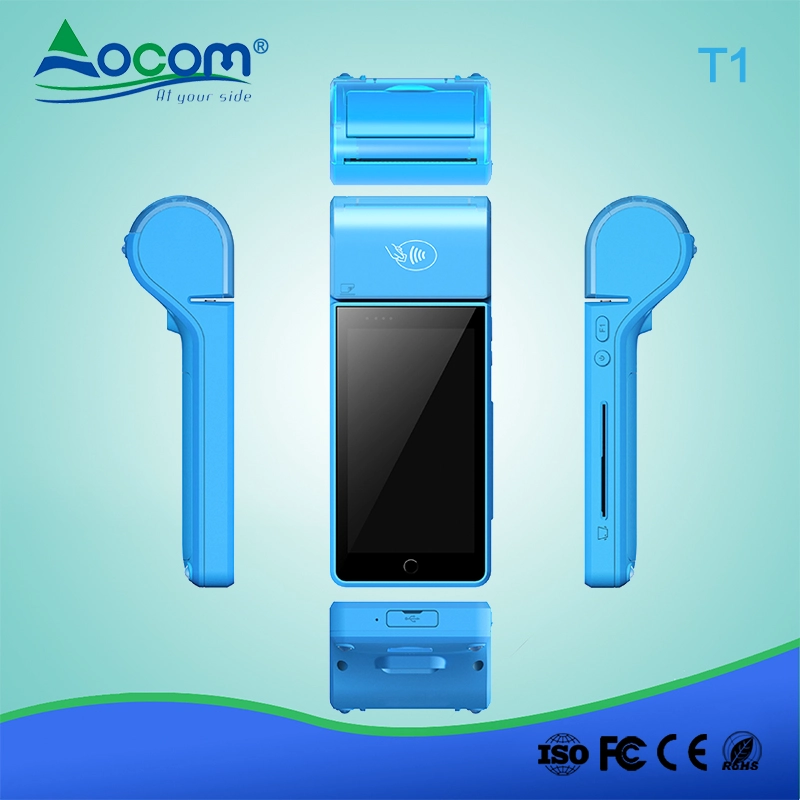

POS-T1 5'' Handheld All-in-One Android POS Terminal with Printer

  • Android 7.0 operation system.
  • Adopts MT8735V quad-core 64bit ARM Cortex A53  1.3 GHz,
  • 5.0 inch capacitive, multi touch; support e-signature,720*1280, TFT display
  • 1gb Ram & 8gb flash;
  • 4.35V 4000mAh Large Li-polymer battery,support 10 hours working hours normally
  • 2M Camera,support 1d & 2d barcode reading,58mm Printer
  • Wifi 2.4G, bluetooth V4.1+HS compliant,2G/3G/4G,GPS
  • Support magnetic stripe card, IC card, contactless card,
  • Rugged 1.2m Drop Tolerance
  • PCI,EMV L1,EMV L2,EMV CL L1,ROHS,PayPass,PayWave,telecom accessing/CCC,Security certificate,Network accessing ,PBOC L1,PBOC L2,QPBOC L1,QPBOC L2,QUICS,UPTS2.0 small payment

 Features:

Android 7.0 operation system.
 Adopts MT8735V quad-core 64bit ARM Cortex A53  1.3 GHz,
 5.0 inch capacitive, multi touch; support e-signature,720*1280, TFT display
1gb Ram & 8gb flash;
4.35V 4000mAh Large Li-polymer battery,support 10 hours working hours normally
2M Camera,support 1d & 2d barcode reading,58mm Printer
Wifi 2.4G, bluetooth V4.1+HS compliant,2G/3G/4G,GPS
Support magnetic stripe card, IC card, contactless card,
Rugged 1.2m Drop Tolerance
PCI,EMV L1,EMV L2,EMV CL L1,ROHS,PayPass,PayWave,telecom accessing/CCC,

Security certificate,Network accessing ,PBOC L1,PBOC L2,QPBOC L1,QPBOC L2,

QUICS,UPTS2.0 small payment    

     

Applications:

Chain supermarkets, restaurants, convenience stores,clothing store, premises, bakery, cashier, pay, enters sells saves the business management function.


Specification:

Basic Information

Operating system

Android 7.0

RAM

RAM:1GB

Extended stored

FLASH:8GB

Display screen

5.0 inch

Touch screen

Capacitive touch screen, support the e-signature

Battery

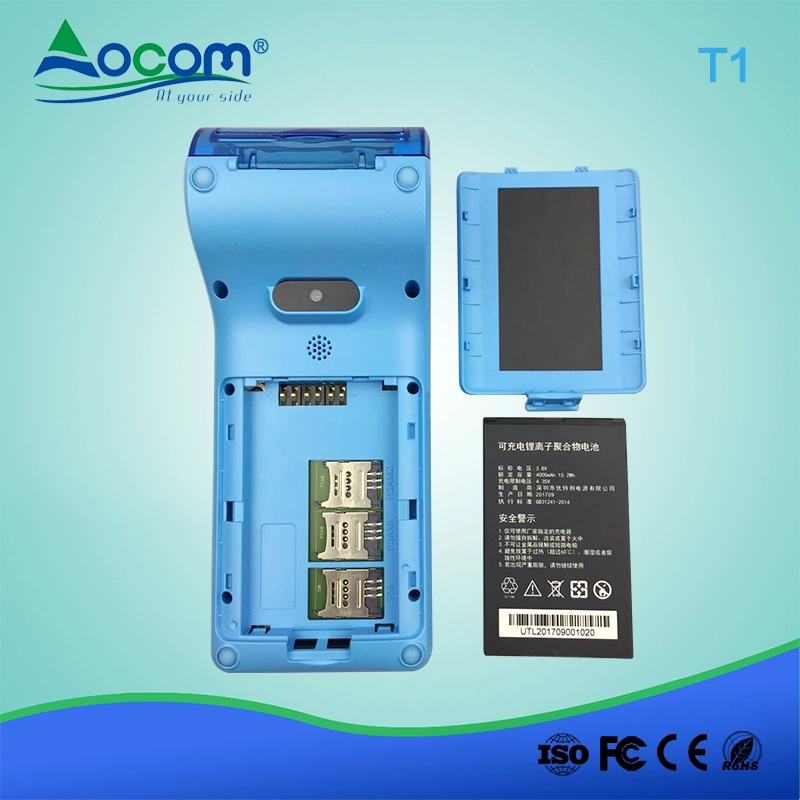

Lithium battery 4000 mah, 4.35 V

Bluetooth

Bluetooth V4.1+HS compliant

Camera

2.0 mega-pixel camera

Positioning function

GPS

Printer

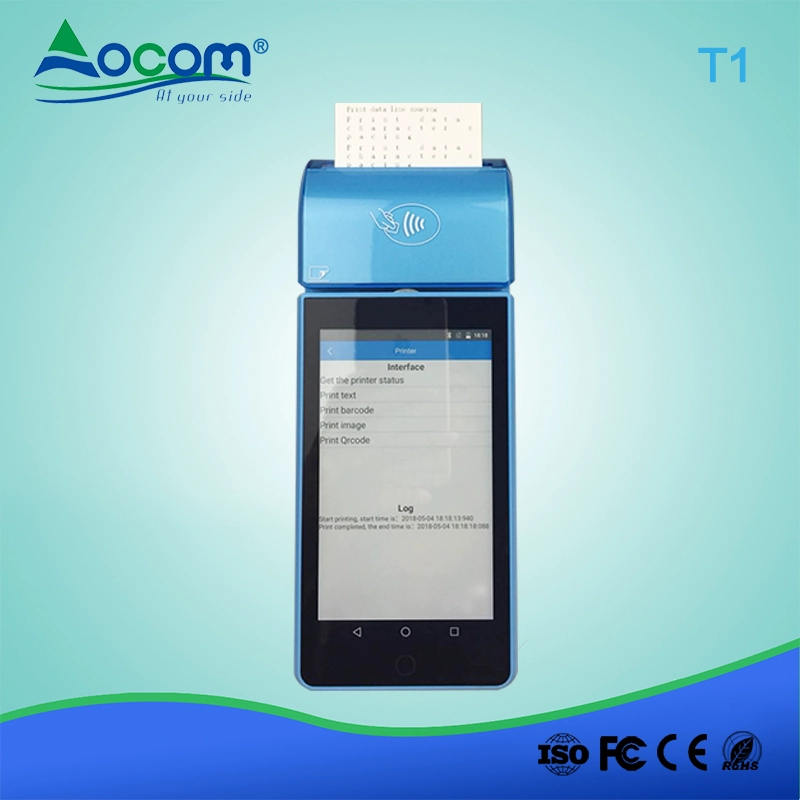

58mm thermal printer 30mm diameter Paper roll

Interface

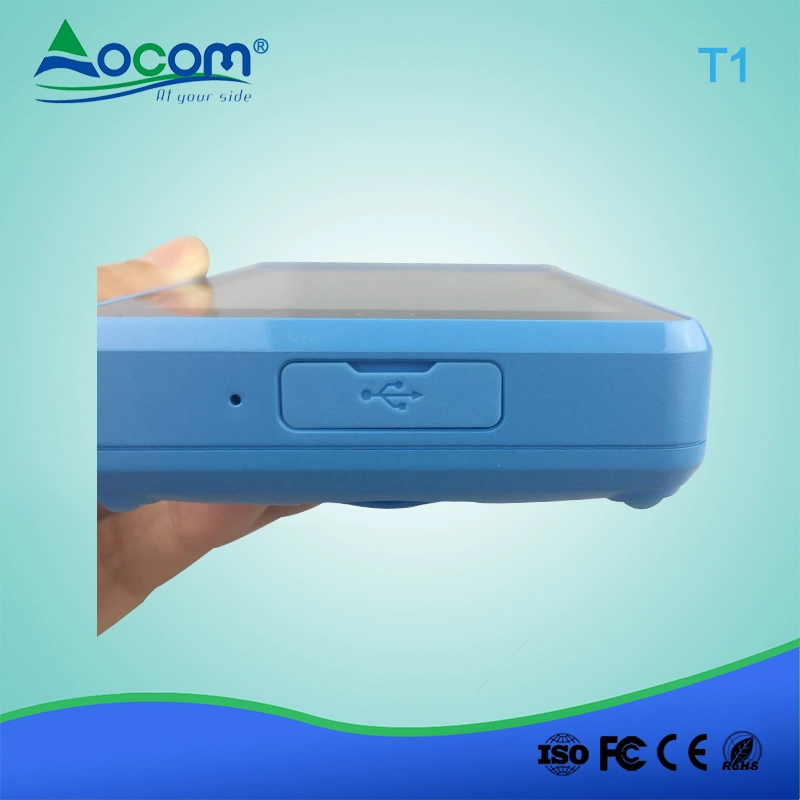

Micro USB

Drop

Rugged 1.2m Drop Tolerance

POS Function

Magnetic card reader

Full track magnetic card reader

Support IS07810/7811/7812 protocol

IC card read-write

Support ISO7816 protocol

Non-contact card reader

Support ISO/IEC 14443 Type A&B, Mifare, NFC

in line with the EMV/PBOC PAYPASS

specification

PSAM Card

Bank security payment chip card

Certification

PCI,EMV L1,EMV L2,EMV CL L1,ROHS,PayPass,PayWave,telecom accessing/CCC,Security certificate,Network accessing ,PBOC L1,PBOC L2,QPBOC L1,QPBOC L2,QUICS,UPTS2.0 small payment

Network Parameters

Network Type

FDD-LTE,TDD-LTE,UMTS/HSDPA/HSPA/HSPA+,CDMA EV-DO Rev.A,GSM/EDGE/GPRS

Network Spectrum

FDD-LTE (B3,B8)

TDD-LTE (B38,B39,B40,B41)

UMTS/HSDPA/HSPA/HSPA+ (850,900,1900,2100 MHz)

CDMA EV-DO Rev.A (800MHz)

GSM/EDGE/GPRS (900,1800,1900MHz)

WLAN

IEEEE802.11.b/n/g

Physical Parameters



Size

193mm×80mm×54.5mm

Weight

425g (include battery)

Operating Temp

-10°C ~ 55°C

Storage Temp

-20°C ~ 70°C

Humidity

20%~93%(40° RH non-condensing

Package

1pc:   20*16.5*6.5cm/0.75kgs

20pcs: 42.5*35*27cm/12.9kgs



FAQ

1. MOQ policy
No MOQ limitation for the standard products, but the unit price is different, bigger quantity better price.

For customized production, you can discuss the MOQ with our sales representative directly.

2. Sample Availability & Policy
After customers confirmed the specification, we are very glad to provide samples for testing and qualification.

All samples should be paid before shippment, the samples price is a higher than mass order. When the mass order placed, we can return you the samples cost, or send you more piece products with the shippments.

You can buy the samples from us directly using t/t, western union, or paypal. And you can also buy it on our online store.

3. Warranty
OCOM is dedicated to providing most cost-effective products and services with reliable quality that will meet customers'satisfication;

We was qualified by global fortune 500 company, and we have the top 1 level trade assurance which 100% protect your money and lead time.

Our warranty of the products is about 12+1 months from the shipment normally, some designated models can have as long as 24 months warranty;

Any product within 30 days of delivery failure occurs shall be deemed invalid delivery (DOA). DOA products will give priority to the replacement, and shipped by courier.?

For mass order, we would like to supply some spare parts with shipment for local quickly repair. And after that, you can returned failure parts for rework and analysis.

4. Payment Terms
For mass order, you can pay us by using T/T, LC, Western Union, Escrow or others. About samples order, T/T, Western Union, Escrow,Paypal are acceptable.Currently,you can pay using Moneybookers, Visa, MasterCard and bank transfer. You can also pay with select debit cards including Maestro, Solo, Carte Bleue, PostePay, CartaSi, 4B and Euro6000.

5. Shipment
We accept all kinds of shipping ways including: express, air, sea, truck, or pick up by customers personally.

6. Customer

Our main customers from Eruopean, Australia, and the fast growing South America, Africa, Russia...,

We have servered more than 2200 customers from 159 countries, including the global fortune 500 company like Unilever, O2.....50 of them are the biggest distributor in the local teritories.

Why You Choose OCOM?

·Leading One-Stop POS and Auto-ID Related Products Supplier Qualified by Global Fortune 500 Companies
·Tier 1 customers including Unilever, O2, Star...
·2300+ Customers Cover 159 Countries;
·11 Years OEM/ODM Experience.
·Top 1 Level Trade Assurance in POS industrial quarantee quality and shipment date
·Fast respondes and professional service
·ISO, FCC, CE , Soncap, POA, BIS, and other Certificates
·12+1 months wanrranty.
·Shortlisted in "China Best Employer Award"
·Belief: Integrity Based, Strive for Excellence, Win-win Cooperation

Company Information

OCOM Technologies Ltd. is the main supplier and manufacturer of POS and Auto-ID related products with TUV verified.

OCOM’s products portfolio covers Thermal Printer, Barcode Printer, Dot Matrix Printer, Barcode Scanner, POS Terminal, Magnetic Card Reader, Date terminal, and other POS Peripherals products(Cash Drawer,Customer Display,POS Monitor, POS keyboard,Money counter,Electronical Scale,Thermal Paper ), which are widely used for retailing, restaurant, bank, lottery, transportation, logistic, and other applications.? We have CE, FCC and other required certifications.??

OCOM's mission is to be the compelling choice for our partners, and our three basic belief are "Integrity based, Strive for excellence, Win-win cooperation". We would like establish stable and reliable partnerships with customers all over the world. OEM/ODM is welcome.

Together we quest for the best.
