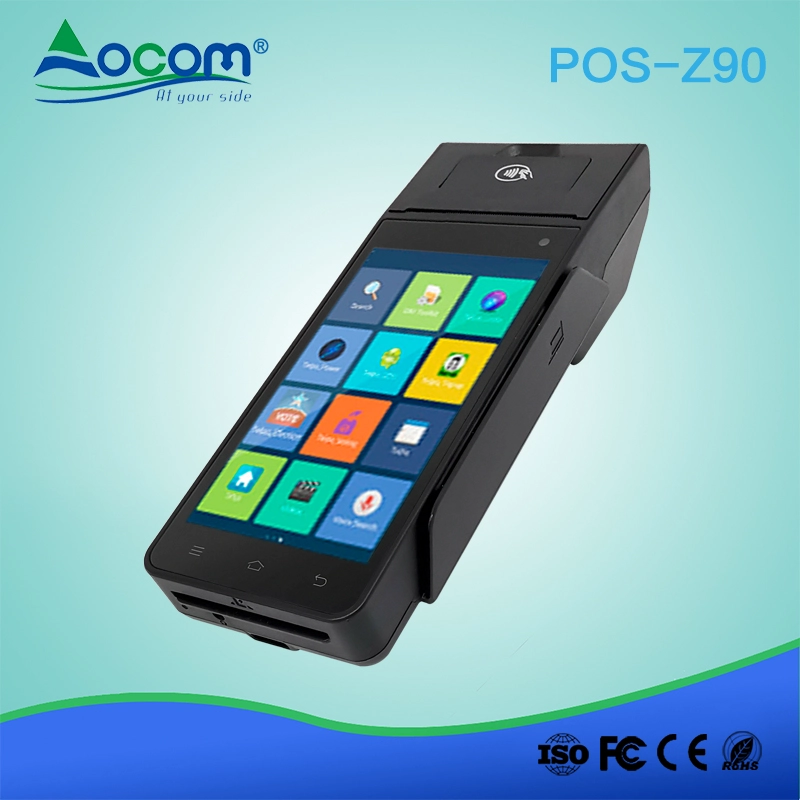

POS-Z90 Mini Cash Reader 5.5inch touch screen POS handheld device

  • Android 5.1 operating system
  • 5.0 inch screen touch

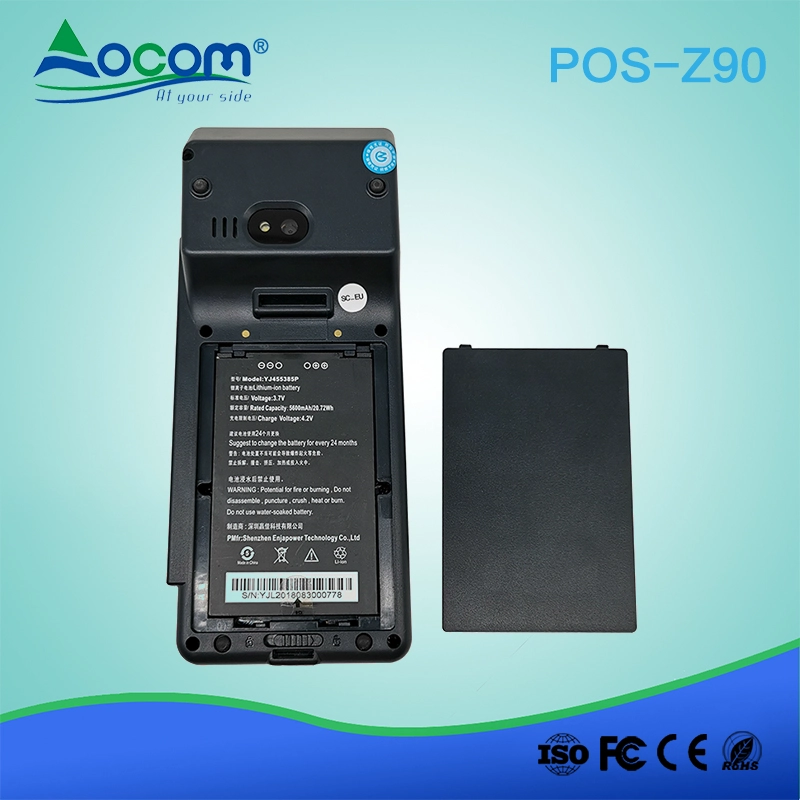

  • Long standby battery capacity is 5600 mAh

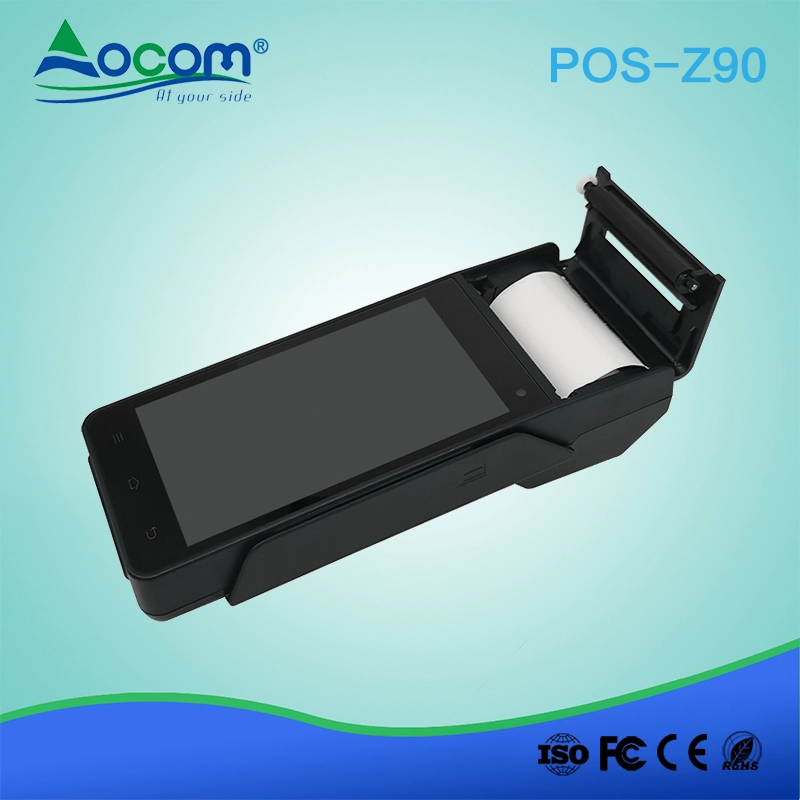

  • 58mm thermal printer
  • 5 million pixels camera
  • 2G /3G/4G wifi, bluetooth communication

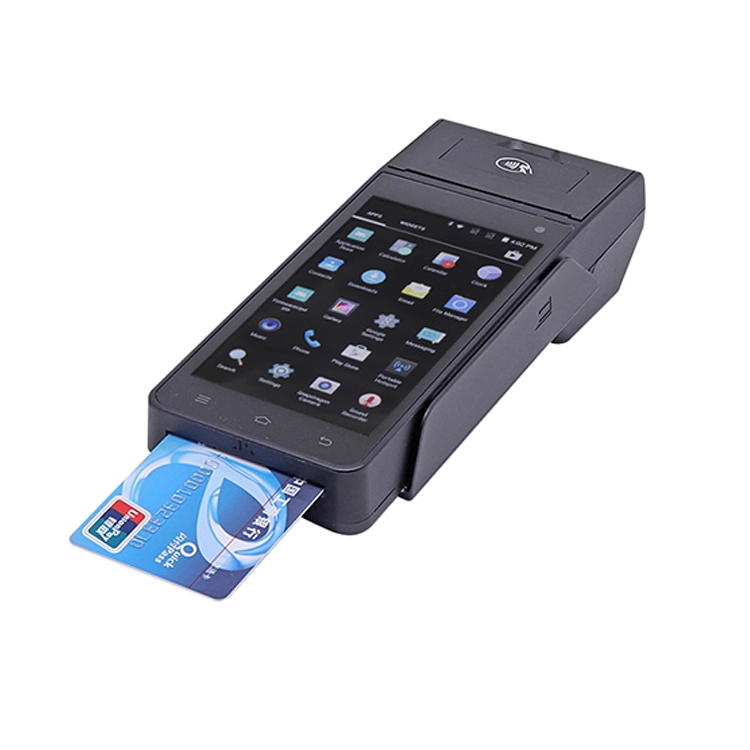

  • Integrated magnetic card reader,induction IC card reader and contact IC card reader
  • Passed the EMV L1 L2, PCI and PBOC bank payment certification

Android payment POS Terminal

(M/N:Z90)



Technical Specification:

Basic Information

Operating system

Android 5.1

RAM

RAM:1GB

Extended stored

FLASH:8GB

Display screen

5.0 inch

Touch screen

Capacitive touch screen, support the electronic

signature

Battery

Lithium battery5600 mah, 3.7 V

Bluetooth

Bluetooth 4.0

Camera

5 mega-pixel camera

Positioning function

GPS AGPS WLAN for Positioning

Printer

58mm thermal printer 30mm diameter Paper roll

Interface

Micro USB

POS Function

Magnetic card reader

Full track magnetic card reader

Support ISO1788/7812,AAMVA protocol

IC card read-write

Support ISO7816 protocol

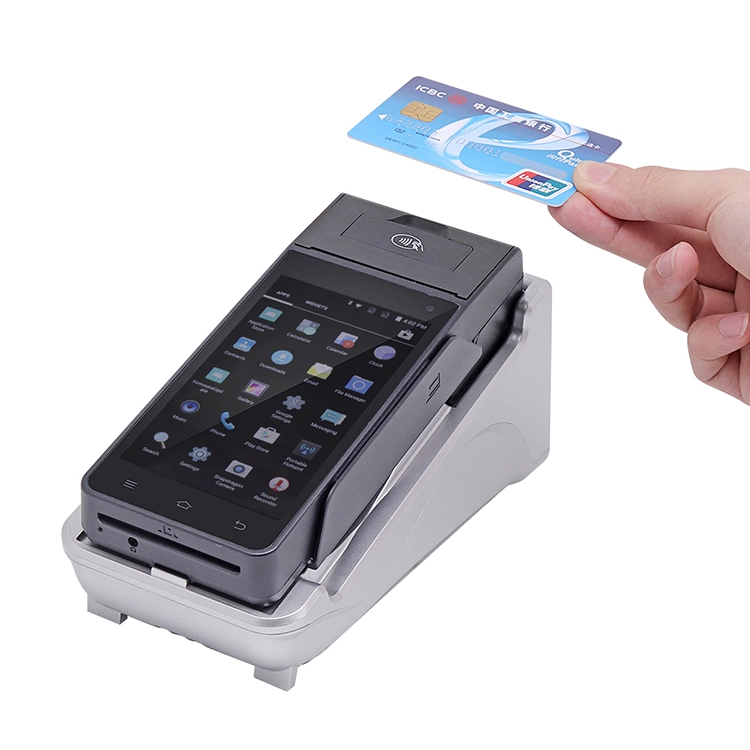

Non-contact card reader

Support ISO/IEC 14443 Type A&B, Mifare, felica

card, in line with the EMV/PBOC PAYPASS

specification

PSAM Card

Bank security payment chip card

Certification

Unionpay card acceptance terminal network detection

PCI certification

EMV/PBOC3.0 L1 and L2 certification

EMV/qPBOC3.0 L1 and L2 certification

Unionpay intelligent safety standards point-of-saleterminals

Network Parameters

Network Type

GSM,WCDMA,TD-SCDMA,FDD-LET,TDD-LTE

Network Spectrum

GSM850/900/1800/1900

WCDMA2100/1900/900/850

TD-SCDMA B34/B39

FDD-LTE B1/B2/B3/B4/B5/B7/B8/B20

TDD-LTE B38/B39/B40/B41

WLAN

IEEEE802.11.b/n/g

Physical Parameters



Size

191mm×80mm×46mm

Weight

650g

Operating Temp

-20°C ~ 60°C

Storage Temp

-40°C ~ 80°C

Humidity

10%~90% RH non-condensing
