Portable Handheld wired CCD Barcode Scanner for RetailPortable Handheld wired CCD Barcode Scanner for RetailPortable Handheld wired CCD Barcode Scanner for RetailPortable Handheld wired CCD Barcode Scanner for RetailPortable Handheld wired CCD Barcode Scanner for RetailPortable Handheld wired CCD Barcode Scanner for Retail

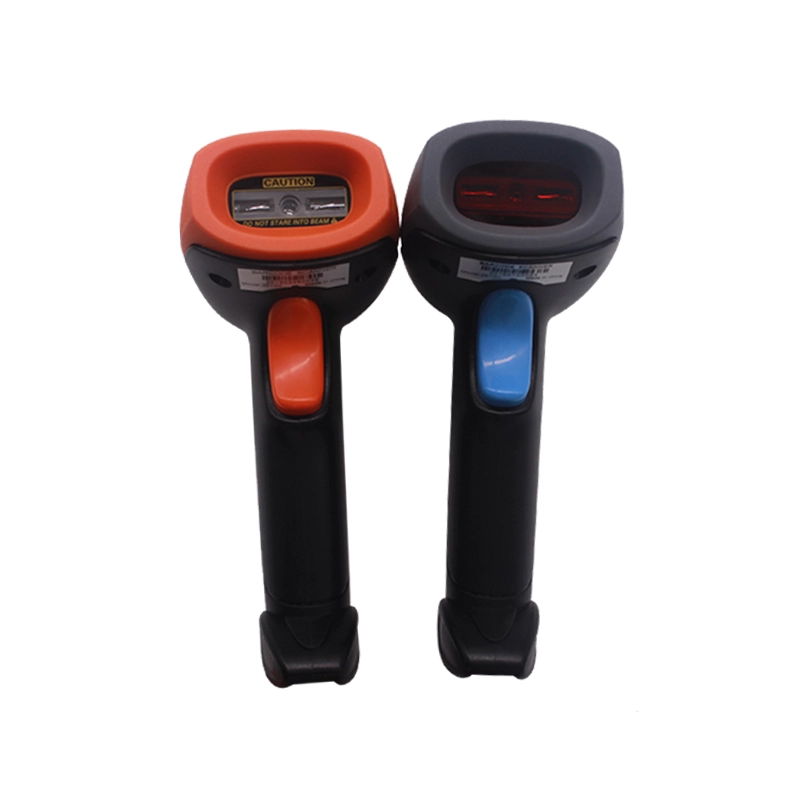

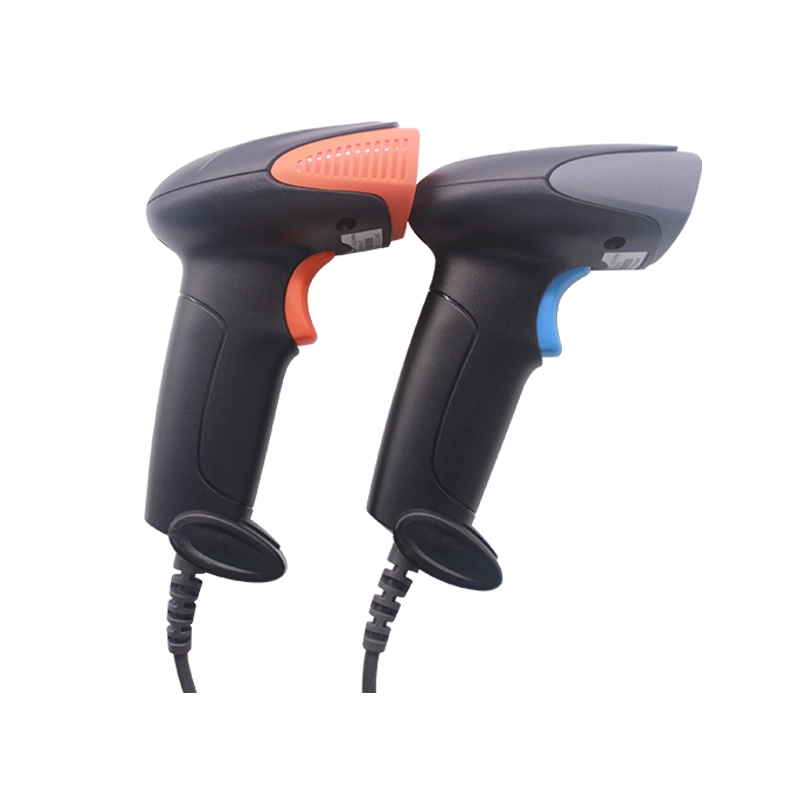

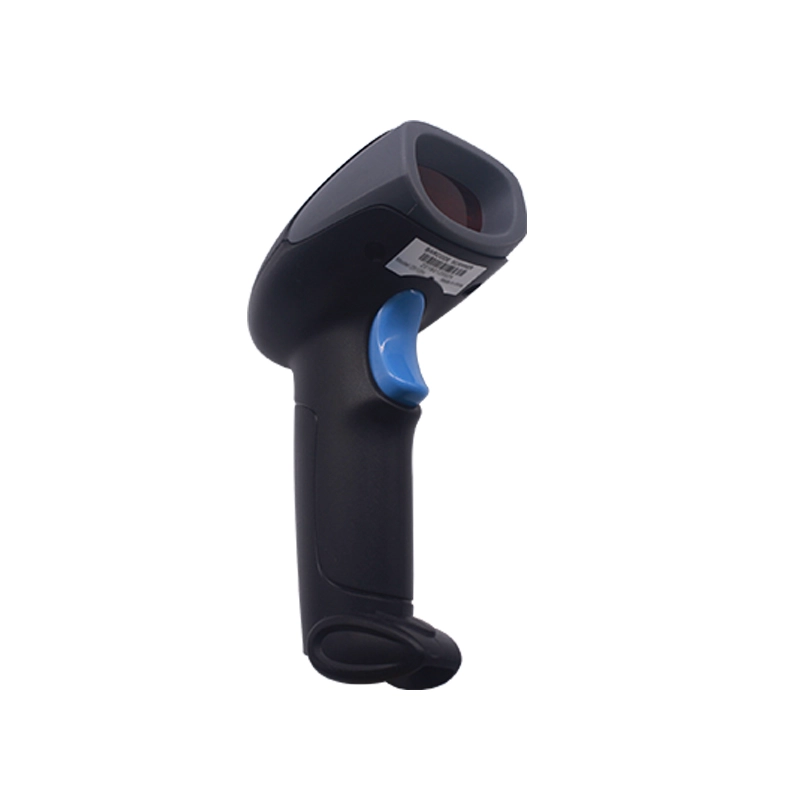

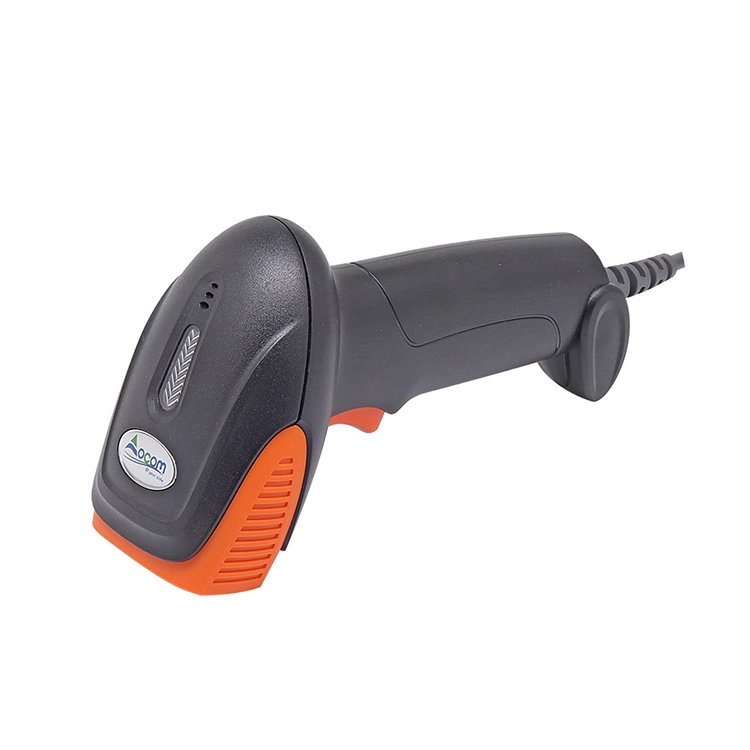

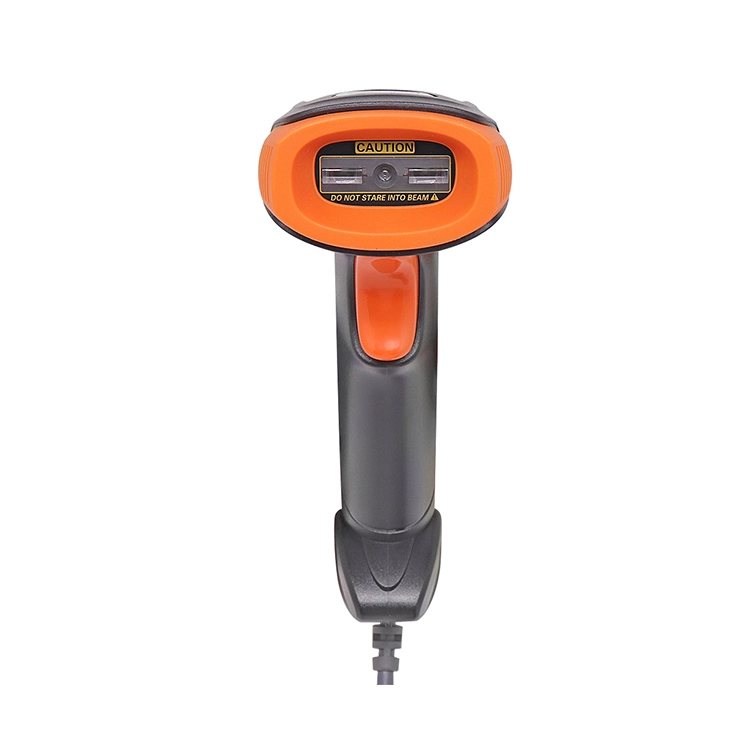

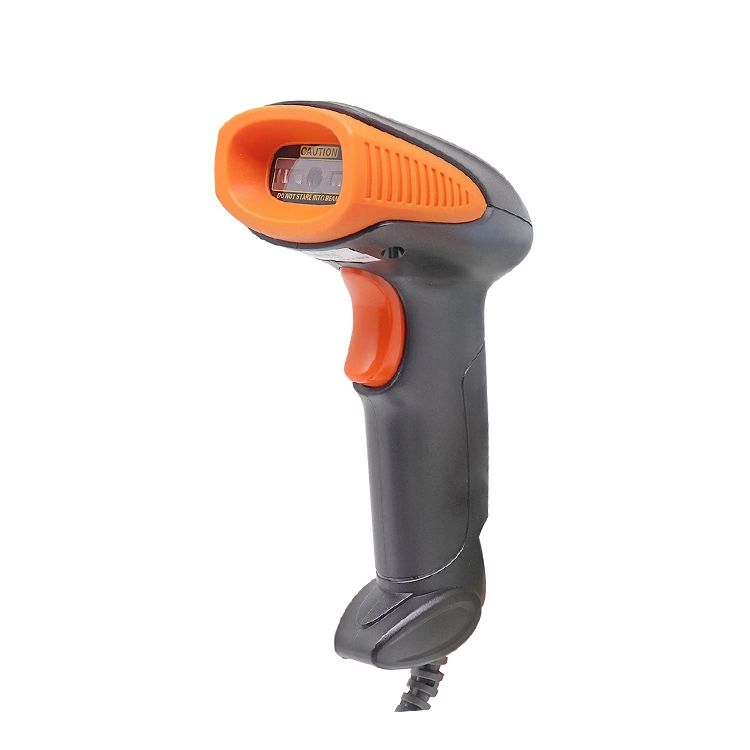

Portable Handheld wired CCD Barcode Scanner for Retail

  • The fast scan speed reach up to 300 times/second.
  • 3 mil excellent scanning accuracy.
  • Efficient decoding rate and ultra-low error rate. Many kinds of one-dimensional bar code can be identified.
  • Support reading bar codes from screen.
  • No driver, plug and play.
  • High resilient button: Use high rebound button, accurate limit, durable.
  • Scanning Mode Setting:Manual trigger and Auto Scanning and Continue Scanning.
Portable Handheld wired CCD Barcode Scanner for Retail
(Model:OCBS-C005)



Description:

This BarCode Scanner can plug and play, no need to install software.

Efficient decoding rate and ultra-low error rate.

It can accurately and quickly scan a variety bar code in the strong light and dark environment.



Features:

•  The fast scan speed reach up to 300 times/second.

•  3 mil excellent scanning accuracy.

•  Efficient decoding rate and ultra-low error rate. Many kinds of one-dimensional bar code can be identified.

•  Support reading bar codes from screen.

•  No driver, plug and play.

•  High resilient button: Use high rebound button, accurate limit, durable.

• Scanning Mode Setting:Manual trigger and Auto Scanning and Continue Scanning.

• Support multiple data interfaces: USB-HID, USB virtual port, UART, KB, HID-POS, etc.

•  Support 16 country language.

•  Adopt a highly integrated design, high quality shell, have IP45 protection grade, 5m  height fall many times, still can be used normally.

•  Application fields:Supermarket, Retail, Warehouse,Logistic,Library, Medical etc.

•  Can be customized according to customer demand.



Scanner parameters:

Light source type

Optical Imaging; the wave length is 632mm.

Imaging sensor

linear imaging sensor(CCD)

Pixel resolution

2500 pixels

Barcode precision

≥ 3mil

Printing Contrast Ratio

≥ 30%

Barcode type

UPC/EAN/JAN, UPC/EAN with Supplemental, UCC/EAN 128, Code 39, MSI, Code11, Code 39 Full ASCII, Code 39 TriOptic, Code 128, Code 128Full ASCII, EAN-13, EAN-8, UPC-A, UPC-E, ISBN, Code 93, GS1 Databar, Codabar, Code93, Discrete2of5, IATA, RSSvariants, Codabar, Chinese2of5, International general dimensional barcodes, e.g. Inteleaved2/5, Interleaved2of5,China postal service code and so on

Scanning speed

300times/s

Scanning angle

Clockwise/anticlockwise

±55°

Up and down

±25°

Left and right

±75°

External dimensions(L x W x H)

165×65×97 mm

Weight

190g

prompting Mode

Buzzer and LED indicator

Maximum power consumption

650mw

Working voltage

DC5V

Electric current

Maximum current

130ma

Working current

86ma

Standby current

42ma

Accessaries

Cable

RS232/USB data cable(1.8m)

Manual

1

Environment

Storage temperature

 -40°C ~ 60°C

Work temperature

0°C ~ 50°C

Relative humidity

0 ~ 95%

Anti-knock

working fine after fall from 5m height











FAQ

1. MOQ policy

No MOQ limitation for the standard products, but the unit price is different, bigger quantity better price.

For customized production, you can discuss the MOQ with our sales representative directly.

2. Sample Availability & Policy
After customers confirmed the specification, we are very glad to provide samples for testing and qualification.

All samples should be paid before shippment, the samples price is a higher than mass order. When the mass order placed, we can return you the samples cost, or send you more piece products with the shippments.

You can buy the samples from us directly using t/t, western union, or paypal. And you can also buy it on our online store.

3. Warranty
OCOM is dedicated to providing most cost-effective products and services with reliable quality that will meet customers'satisfication;

We was qualified by global fortune 500 company, and we have the top 1 level trade assurance which 100% protect your money and lead time.

Our warranty of the products is about 12+1 months from the shipment normally, some designated models can have as long as 24 months warranty;

Any product within 30 days of delivery failure occurs shall be deemed invalid delivery (DOA). DOA products will give priority to the replacement, and shipped by courier.

For mass order, we would like to supply some spare parts with shipment for local quickly repair. And after that, you can returned failure parts for rework and analysis.

4. Payment Terms
For mass order, you can pay us by using T/T, LC, Western Union, Escrow or others. About samples order, T/T, Western Union, Escrow,Paypal are acceptable.Currently,you can pay using Moneybookers, Visa, MasterCard and bank transfer. You can also pay with select debit cards including Maestro, Solo, Carte Bleue, PostePay, CartaSi, 4B and Euro6000.

5. Shipment
We accept all kinds of shipping ways including: express, air, sea, truck, or pick up by customers personally.

6. Customer
Our main customers from Eruopean, Australia, and the fast growing South America, Africa, Russia...,

We have servered more than 2300 customers from 159 countries, including the global fortune 500 company like Unilever, O2.....50 of them are the biggest distributor in the local teritories.



Why You Choose OCOM?

·Leading One-Stop POS and Auto-ID Related Products Supplier Qualified by Global Fortune 500 Companies
·Tier 1 customers including Unilever, O2, Star...
·2300+ Customers Cover 159 Countries;
·11 Years OEM/ODM Experience.
·Top 1 Level Trade Assurance in POS industrial quarantee quality and shipment date
·Fast respondes and professional service
·ISO, FCC, CE , Soncap, POA, BIS, and other Certificates
·12+1 months wanrranty.
·Shortlisted in "China Best Employer Award"
·Belief: Integrity Based, Strive for Excellence, Win-win Cooperation
