Portable Wireless 58mm Bill POS Receipt Printer Compatible with iOS WindowsPortable Wireless 58mm Bill POS Receipt Printer Compatible with iOS WindowsPortable Wireless 58mm Bill POS Receipt Printer Compatible with iOS WindowsPortable Wireless 58mm Bill POS Receipt Printer Compatible with iOS WindowsPortable Wireless 58mm Bill POS Receipt Printer Compatible with iOS WindowsPortable Wireless 58mm Bill POS Receipt Printer Compatible with iOS Windows

Portable Wireless 58mm Bill POS Receipt Printer Compatible with iOS Windows

  • Mini size suitable for portable application;
  • Windows, Java, Linux, Android (or Android +IOS ) operation system supported;
  • Bluetooth, USB and RS232 communication supported;
  • SDK for Android available;
  • 1D, 2D barcode (QR code), and image printing supported;
  • Can change the printer name, password, baud rate online;
  • One printer can connected with up to 8 smart devices (7 Android, one Apple device) visa blue tooth;
  • Low power consumption and large capacity Lithium battery (1500mAh), 4~5 days standby;
  • Powered by rechargeable battery, power adapter, or car charger (specified models)
  • Higher print speed 90mm/sec;
  • 100km thermal printer head life;
  • Multiple languages supported;
  • ESC/POS command set compatible;

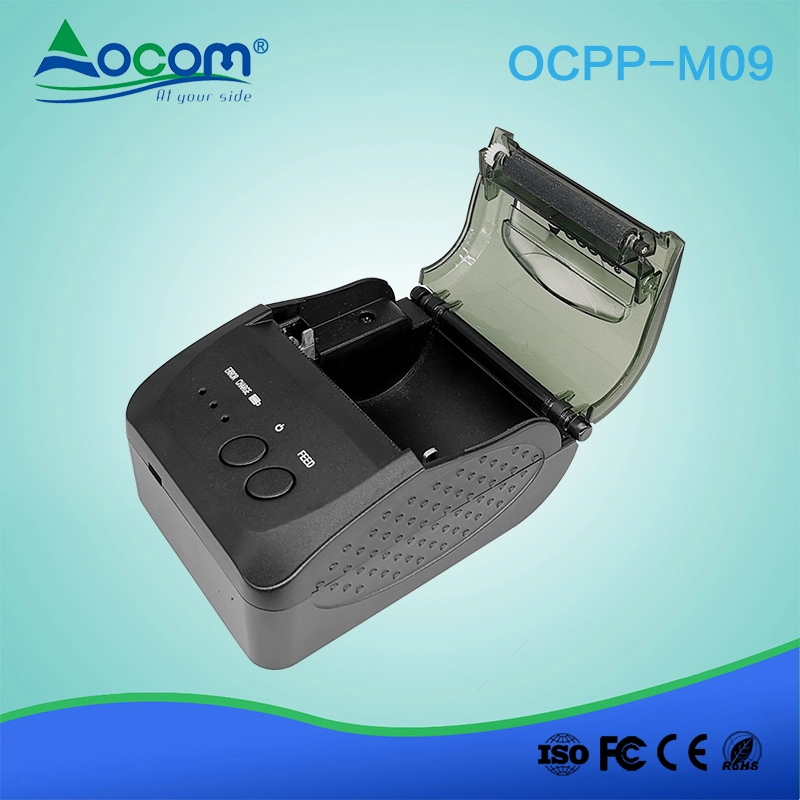

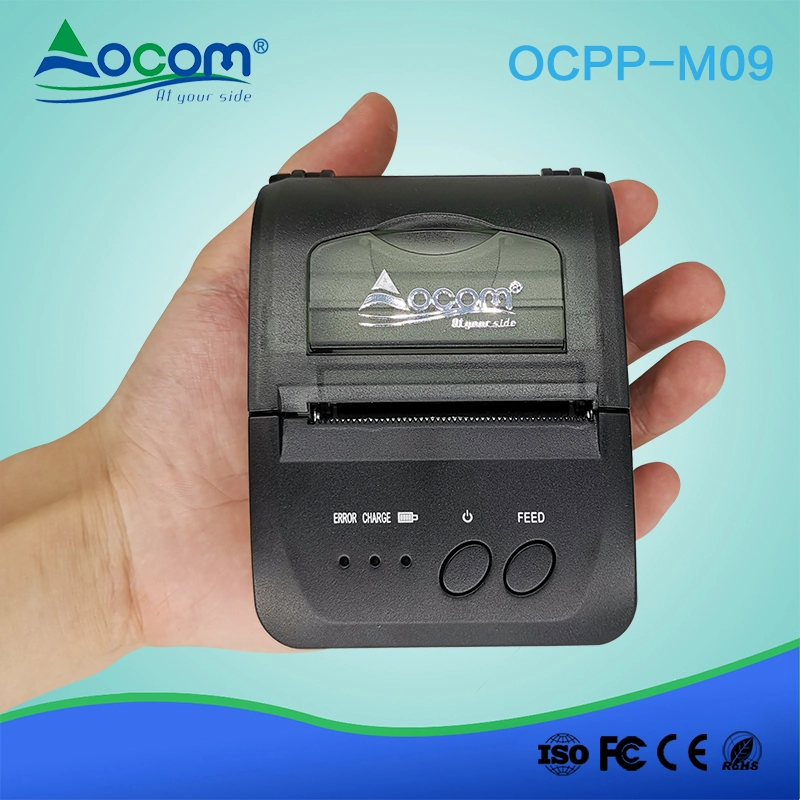

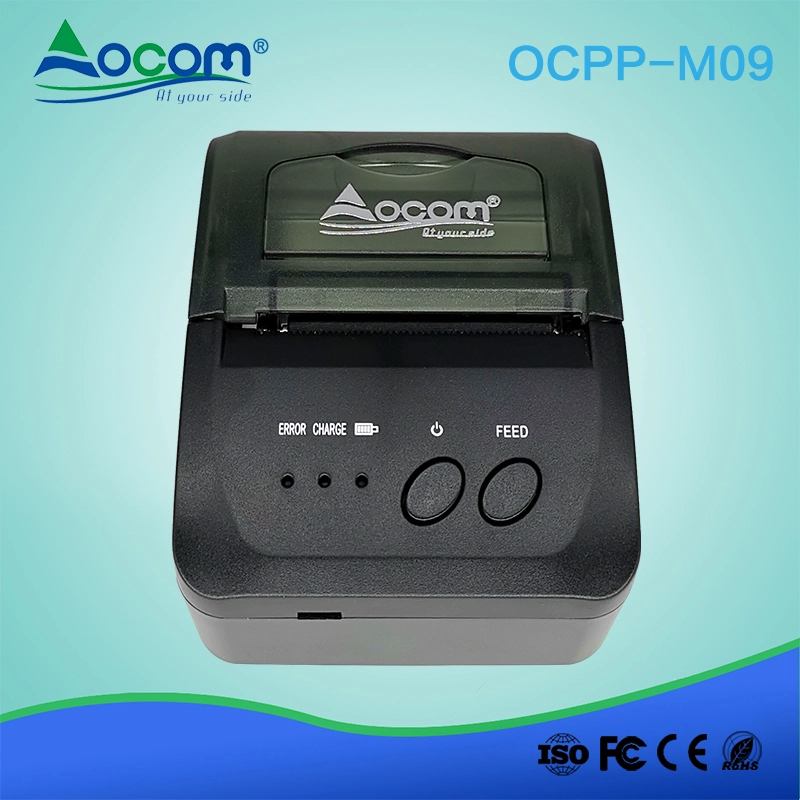

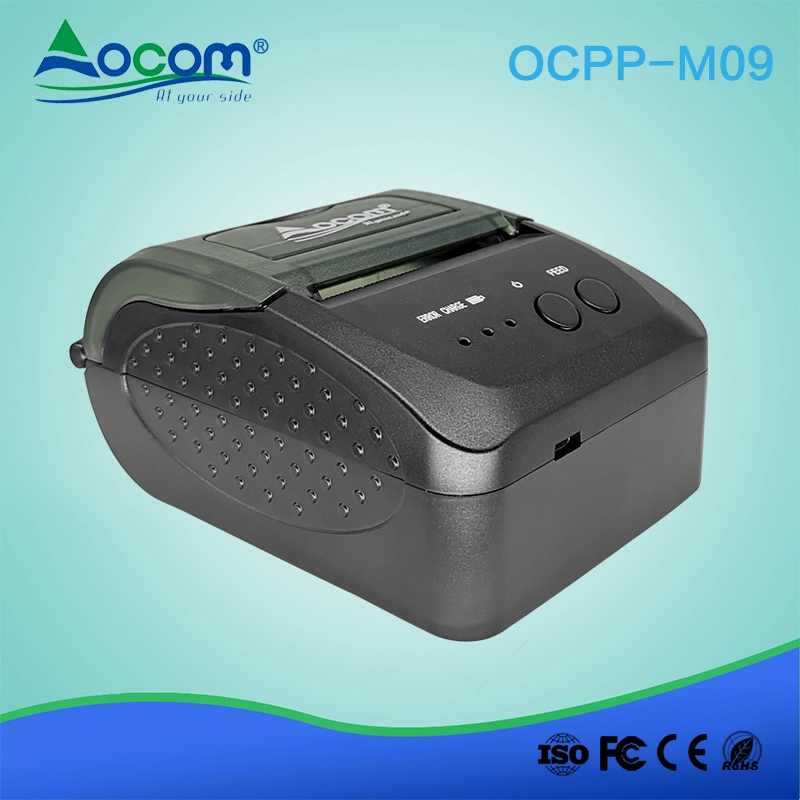

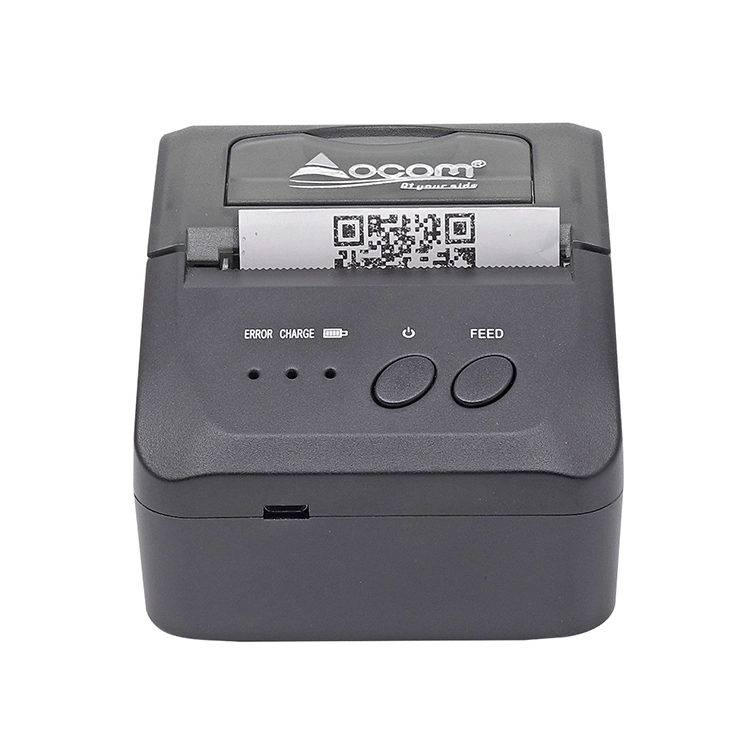

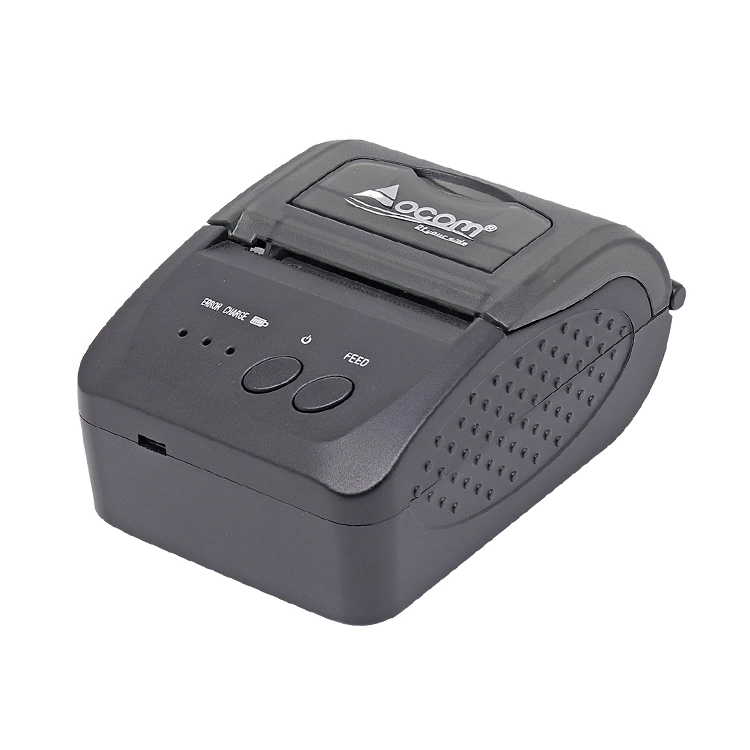

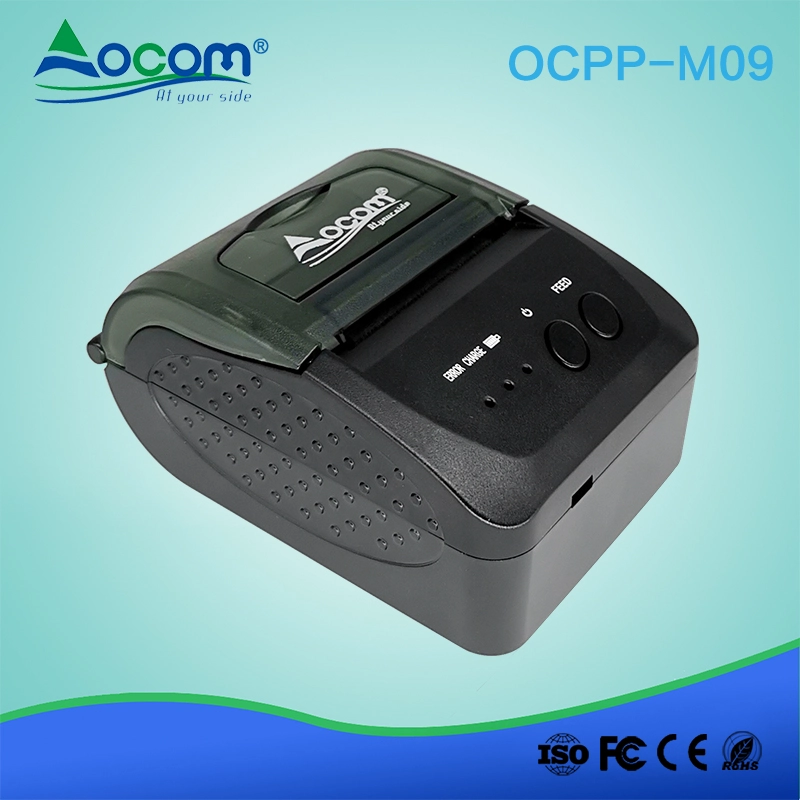

Portable Wireless 58mm Bill POS Receipt Printer Compatible with iOS Windows

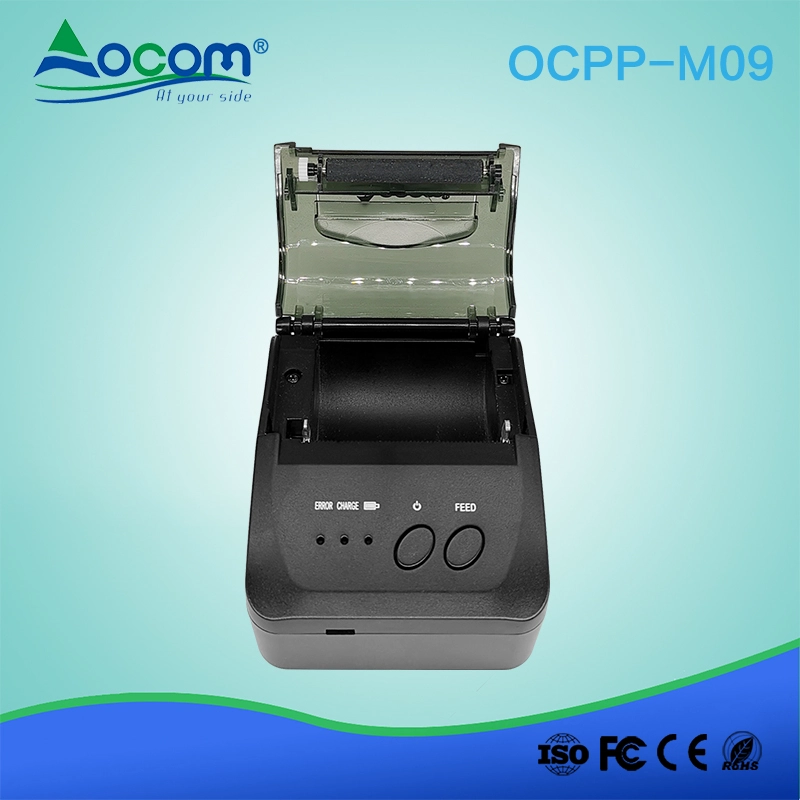

(Model Number: OCPP- M09)



This mini printer with model number OCPP-M09 is a Android (or IOS+ Android ) ,Window, Linux, JAVA compatible battery powered 58mm portable mobile thermal pos printer which combines USB,RS-232 Serial and Bluetooth (optional) communication ways together. This printer could be powered by rechargeable battery, power adapter, or car charger (depending on specified models) . Special model can connect with 8 smart devices for printing at same time. We have CE, FCC and other required certifications.



Specification:

Overall Dimension (W×D×H)

105×75×45mm

Weight

134g

Color

Black

Print method

Thermal line printing

Print commands

ESC/POS compatible command set

Effective print width

48mm

Print speed

Up to 90mm/sec

Resolution

8 dots/mm(203dpi)

Print font

12x24/ 24x24

Column capacity

32 columns/ 16columns

Character size

1.5 x 3.0 mm(W x H)/ 3.0x3.0mm(WxH)

Paper dimensions

58.0±0.1mm x diameter 40.0mm

Paper thickness

0.06 to 0.08mm

Character set

Alphanumeric/ Chinese Kanji

Interface

USB, RS-232,Bluetooth (optional)

Flash

256KB

Power Adapter

9V DC/2A

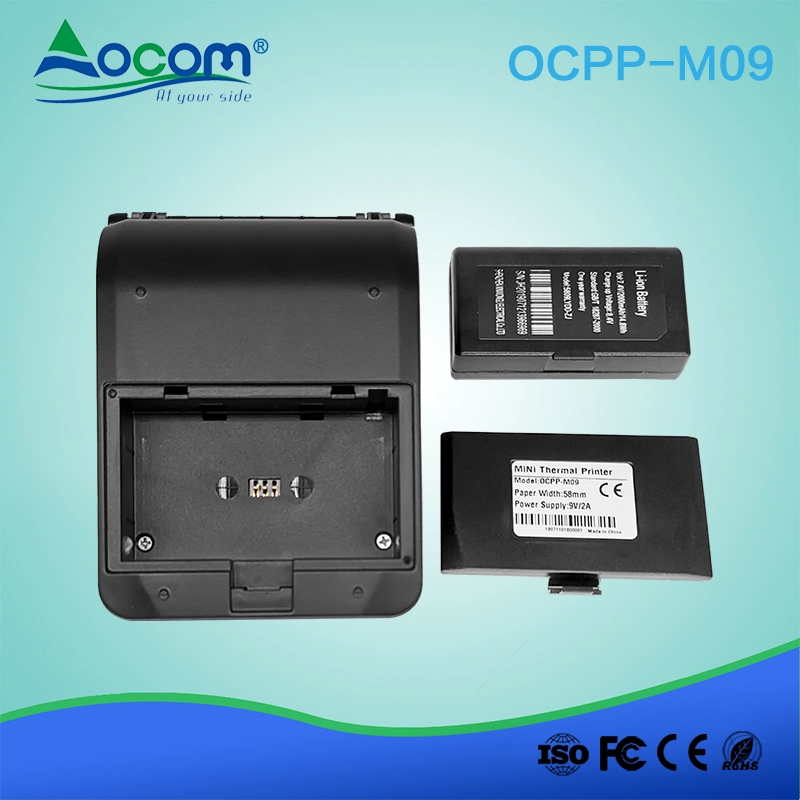

Battery Power

7.4V DC/ 1500mAh; battery can stay by for 4-5 days, when it is full power, it can print 120-150m paper

Other features

Paper detection, manual shut down

Working conditions

Temperature:-10~50 degC, Humidity:10%~90%

Device name

Can be customized, letter and digital for option, at max 30 ASCII characters.

Password

Enter default pairing code “1234”, it can be customized or change by customer itself.  At max 6 digitals.

Power plug dimension

3.5*1.1mm



FAQ:

1. MOQ policy

No MOQ limitation for the standard products, but the unit price is different, bigger quantity better price.
For customized production, you can discuss the MOQ with our sales representative directly.

2. Sample Availability & Policy

After customers confirmed the specification, we are very glad to provide samples for testing and qualification.
All samples should be paid before shipment, the samples price is a higher than mass order. When the mass order placed, we can return you the samples cost, or send you more piece products with the shipments.
You can buy the samples from us directly using t/t, western union, or paypal.

3. Warranty

OCOM is dedicated to providing most cost-effective products and services with reliable quality that will meet customers' satisfication;
We was qualified by global fortune 500 company, and we have the top 1 level trade assurance which 100% protect your money and lead time.
Our warranty of the products is about 12+1 months from the shipment normally, some designated models can have as long as 24 months warranty;
Any product within 30 days of delivery failure occurs shall be deemed invalid delivery (DOA). DOA products will give priority to the replacement, and shipped by courier.
For mass order, we would like to supply some spare parts with shipment for local quickly repair. And after that, you can returned failure parts for rework and analysis.

4. Payment Terms

For mass order, you can pay us by using T/T, LC, Western Union, Escrow or others. About samples order, T/T, Western Union, Escrow,Paypal are acceptable.Escrow Service is powered by Alipay.com.

5. Shipment

We accept all kinds of shipping ways including: express, air, sea, truck, or pick up by customers personally.
