Portable Wireless Stocktaking Mobile Data TerminalPortable Wireless Stocktaking Mobile Data TerminalPortable Wireless Stocktaking Mobile Data TerminalPortable Wireless Stocktaking Mobile Data Terminal

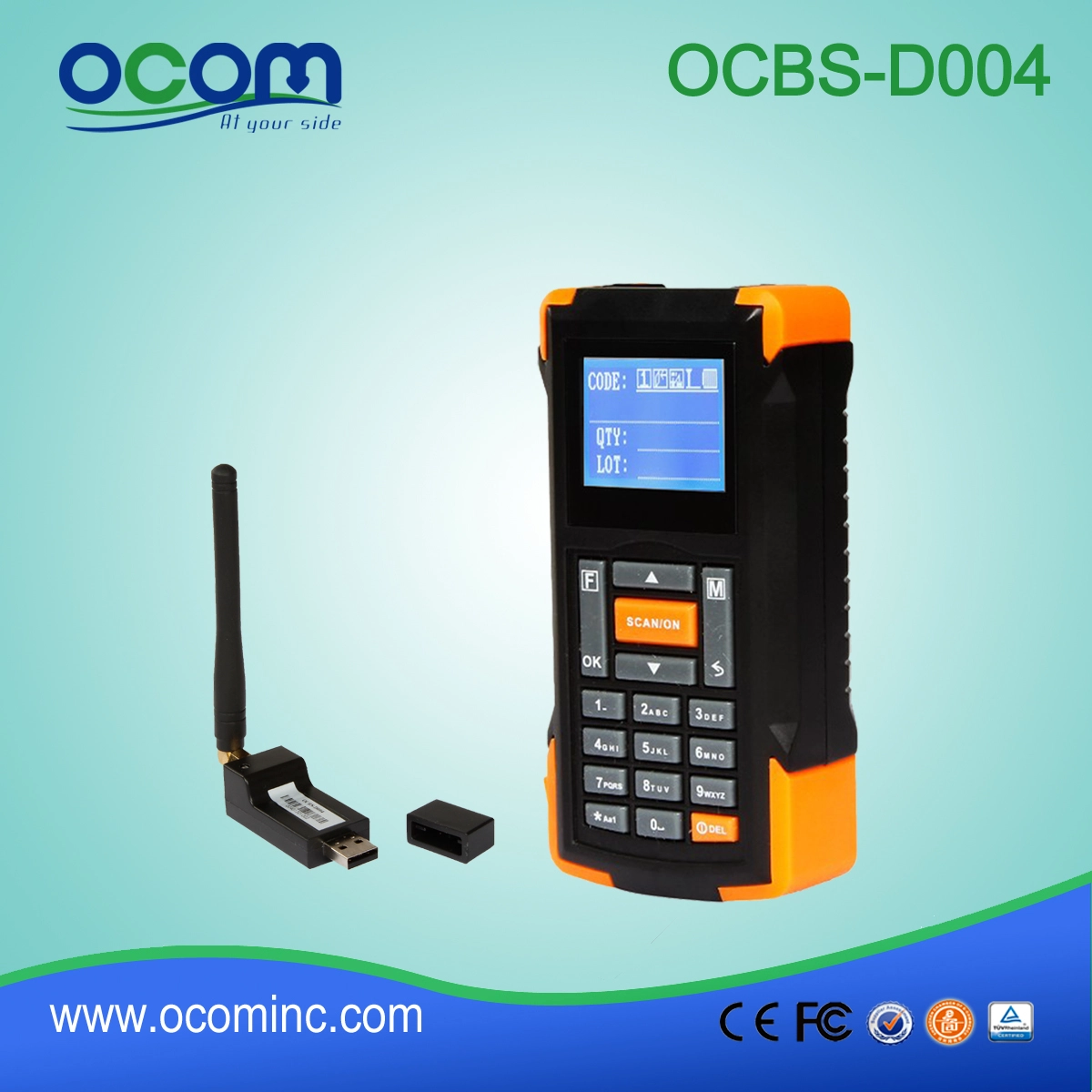

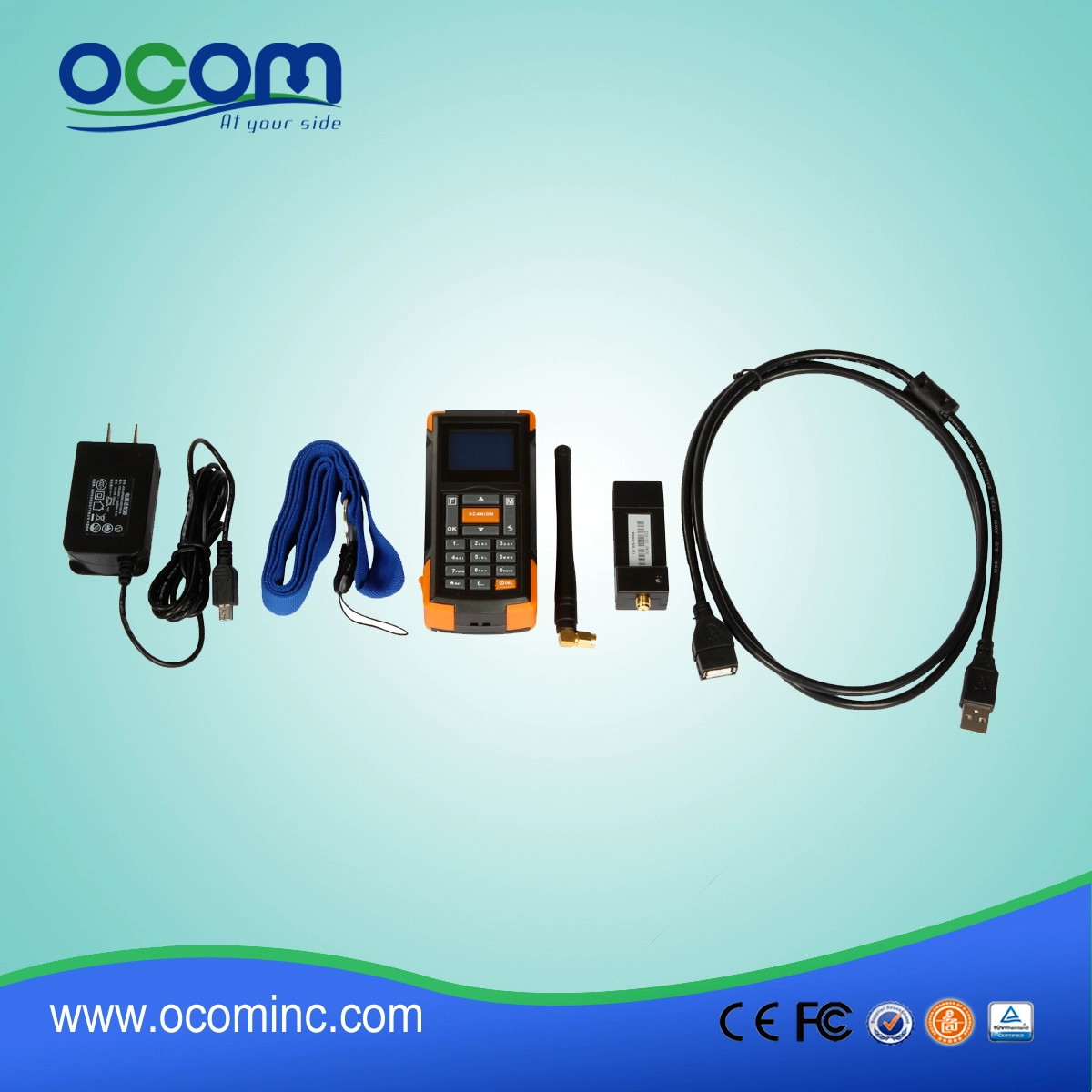

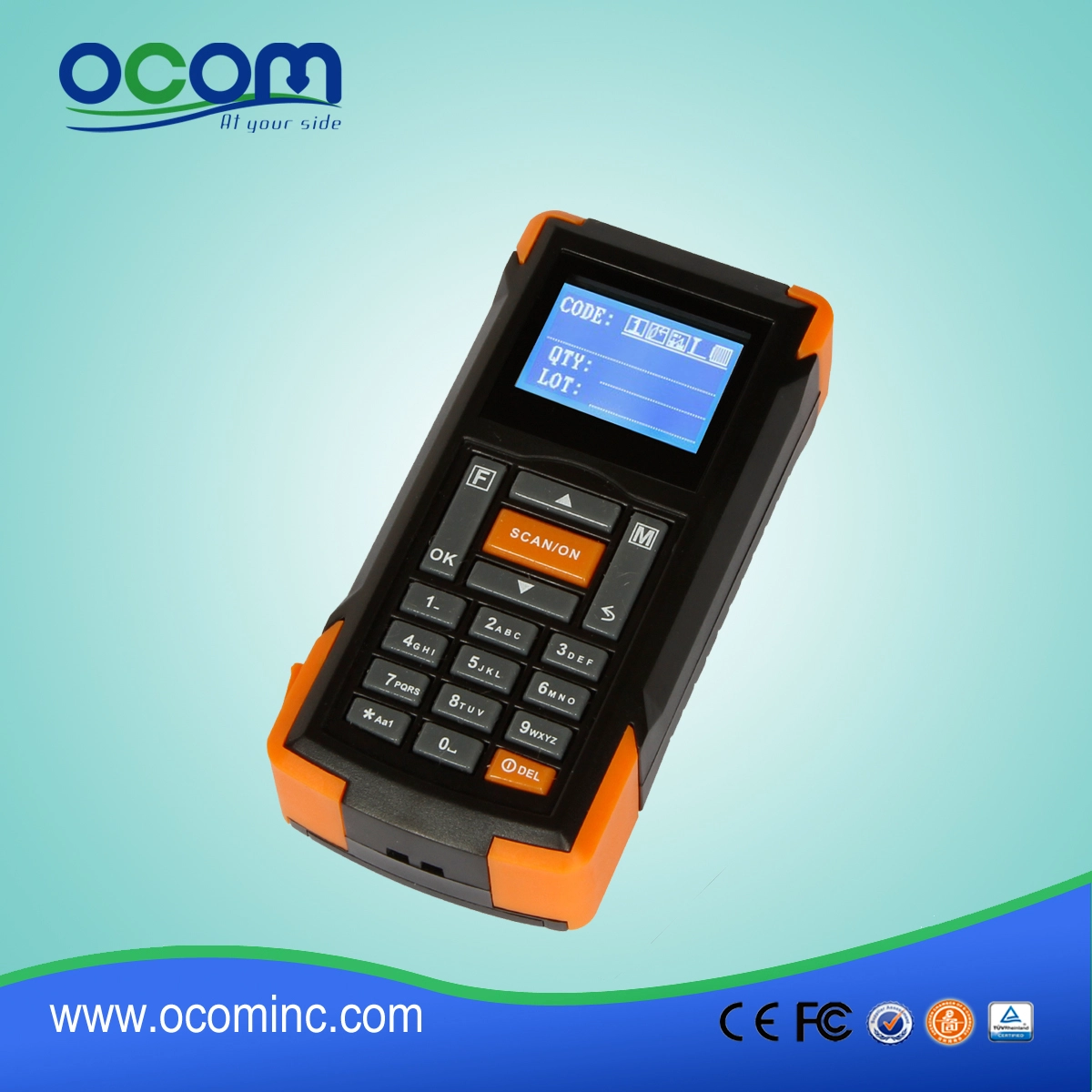

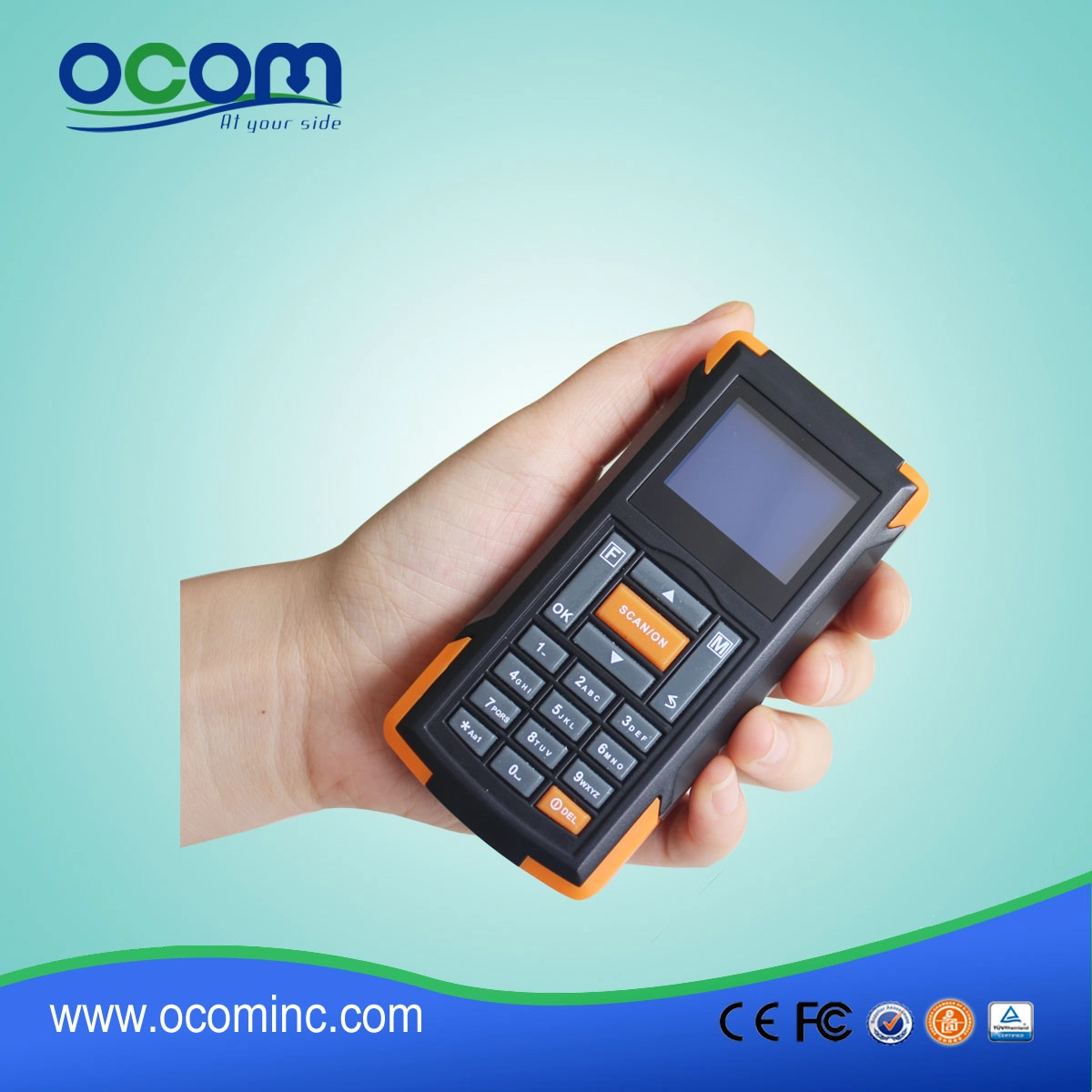

Portable Wireless Stocktaking Mobile Data Terminal

  • Mini 433Mhz wireless barcode scanner with screen and memory;
  • Small size convenient and portable;
  • Wireless working distance can meet general request, 30 to 300m in open area;
  • 4M memory Can store 100,000 bar codes;
  • Instantly store and bulk transfer mode, secure to keep the data;
  • Auto-turn-off at low voltage, high efficiency and energy saving;
  • No need special application software, easy and comfortable operation.

Portable Wireless Stocktaking Mobile Data Terminal

(Model: OCBS-D005)



Specification:


Wireless Communications:

Modulation

GFSK

Transmission rate

200Kbps

Power

10dBm

Transmission Distance

Visual straight line distance 300 meters

Antenna

Built-in spring antenna

Performance Characteristics

Light Source

650nm laser

Supported barcodes

EAN-8, EAN-13, UPC-A, UPC-E, Code 39, Code 93, Code 128, EAN128, Codaber, Industoal 2 of 5, Interleave 2 of 5, Matrix 2 of 5, MSI etc

Scanner Type:

Bi-directional

Scan rate

48 ± 2 scan / second

Scan distance

10-520mm

Scan width

20mm @ window, 220mm @ 200mm

Resolution

0.10mm (pcs0.9)

Depth of Field

0 ~ 250mm (0.33mm, PCS 90%)

Working Way

Triggered or automatic (continuous mode) scanning

Physical Characteristics

Memory:

4M (Can store 100,000 barcodes)

Interfaces:

Standard configuration mini USB receiver; RS232 and PS2 optional

Current:

96mA (working)

46mA (standby)

Battery:

Built-in rechargeable lithium ion battery (3.7V, 1900mAh)

Material

ABS + PC

Dimension:

102mmX46mmX28mm

Weight:

130g (with battery)

User Environment

Operation Temperature

-20 Degree C ~ 45 Degree C

Storage Temperature

-20 Degree C ~ 60 Degree C

Humidity:

5 ~ 95% relative humidity, non-condensing

Safe

EMI / RFI:

CE & amp; FCC DOC compliance

Safety Standard

The second national laser safety standards

Ordering Information

OCBS-D005

Mini 433Mhz Wireless Barcode Scanner with screen and memory

OCBS-D105

Mini blue tooth Wireless Barcode Scanner with screen and memory
