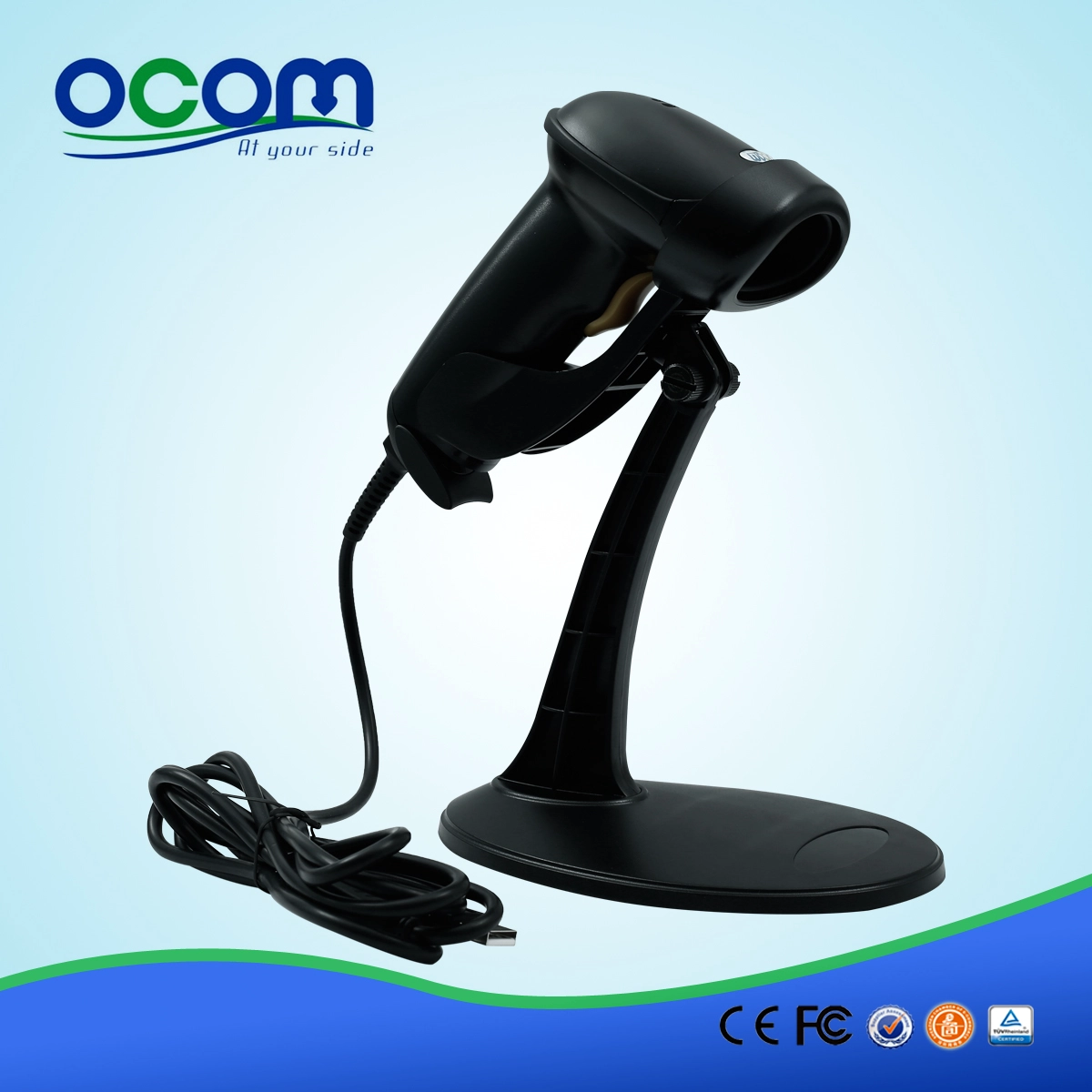

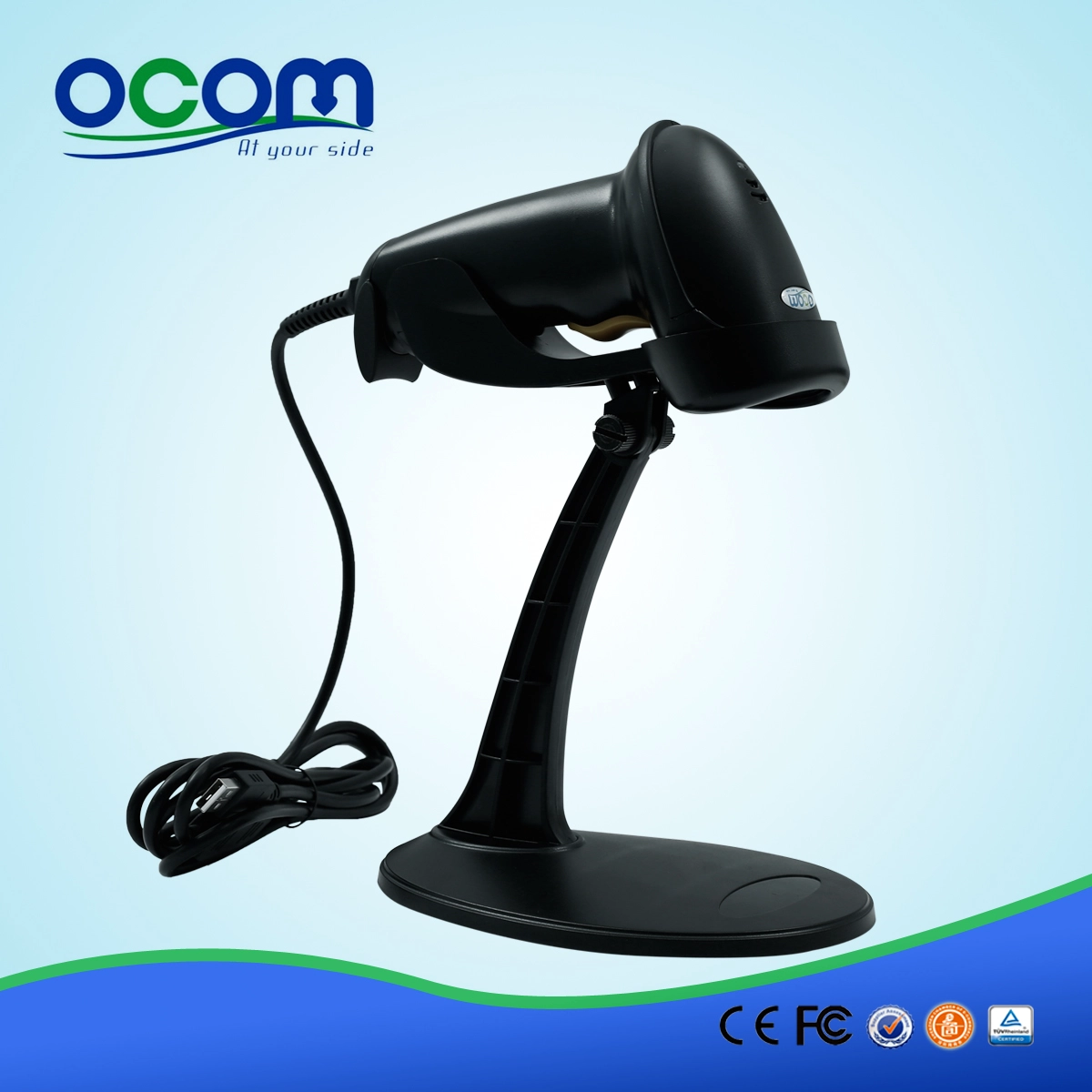

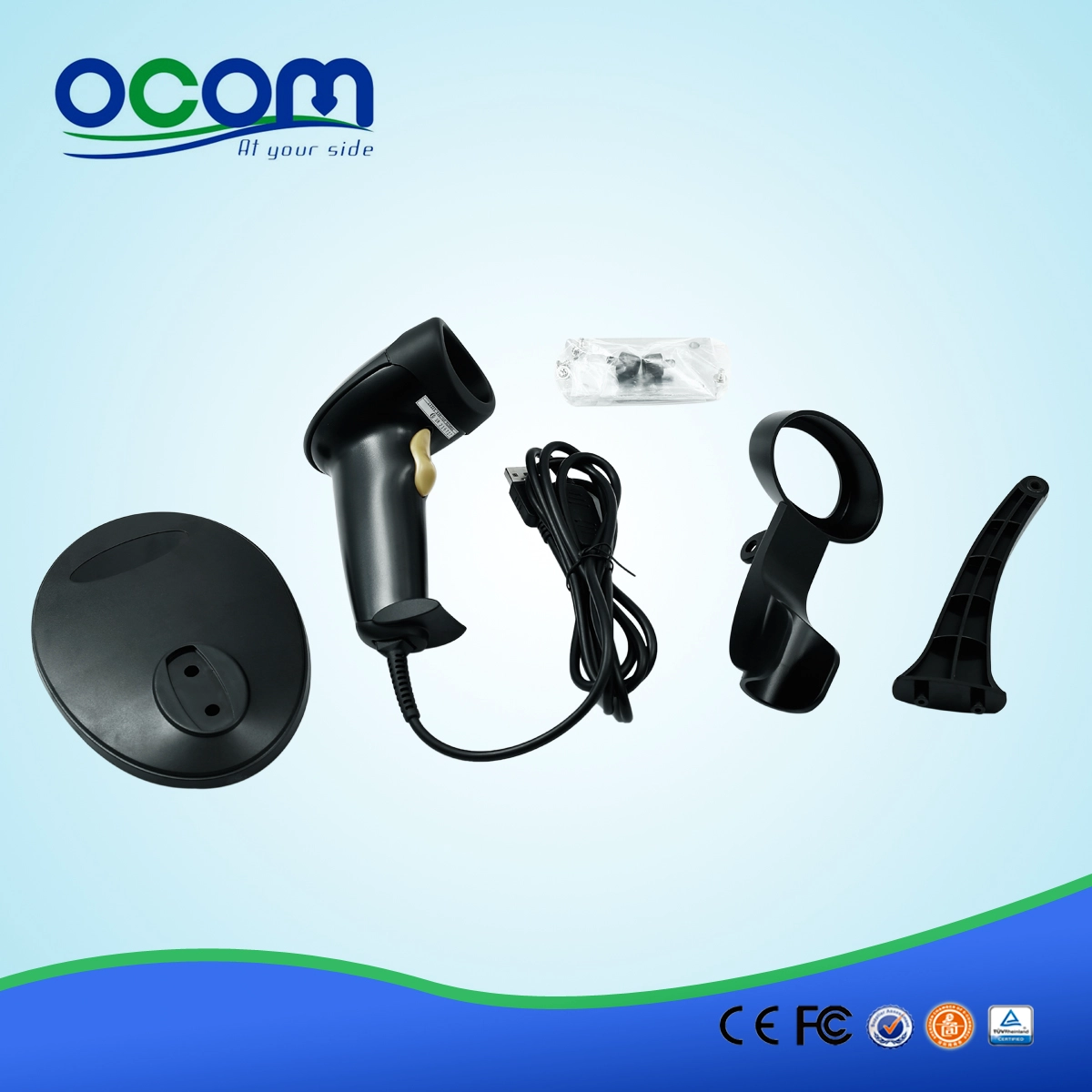

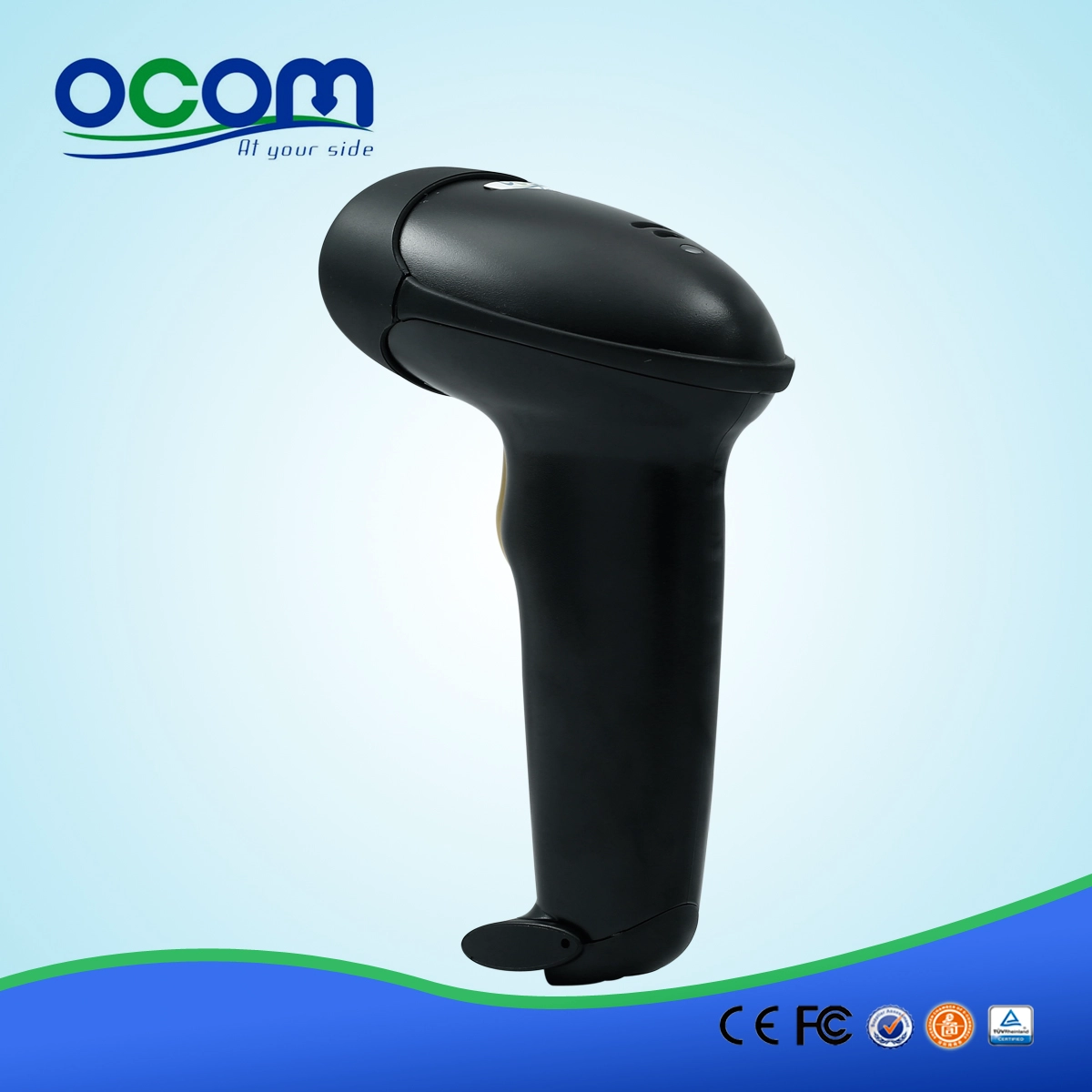

Portable auto barcode scanner 1D Barcode Scanner for POS System (OCBS-LA04)
- Auto-Induction built in, green design;
- High scan rate and long reading distance;
- Excellent decode capability;
- KBW, RS232 and USB supported;
- Durable construction combined with future-proofing;
Performance Characteristics |
|
Light Source: |
Visible laser (650-670nm) |
Scan Rate: |
100 scans per second |
Reading Distance |
2.5 ~600mm (100% UPC/EAN) |
Scanner Type: |
Bi-directional |
Resolution: |
0.10mm (4mil) at PCS 0.9 |
Print Contrast Minimum: |
20%, minimum reflective difference (@650nm) |
Decode Capability: |
UPC/EAN, UPC/EAN with supplementals, UCC/EAN128, code 39, code 39 full ASCII, code 39 trioptic, code 128, code 128 full ASCII, codabar, interleaved 2 of 5,discrete 2 of 5, code 93, MSI, code 11, ATA, RSS variants, Chinese 2 of 5… |
Physical Characteristics |
|
Interfaces Supported: |
PS2, RS232, USB |
Voltage: |
DC+5V+/-5% |
Current: |
100 mA |
Idle Current: |
<40 mA |
Power Source: |
Host power or external (RS232) power supply |
Scanning Angle |
Inclination 45° Elevation 60° |
Dimensions: |
L165.42mm X W69.72mm X H89.67mm |
Weight: |
140g (without stand) |

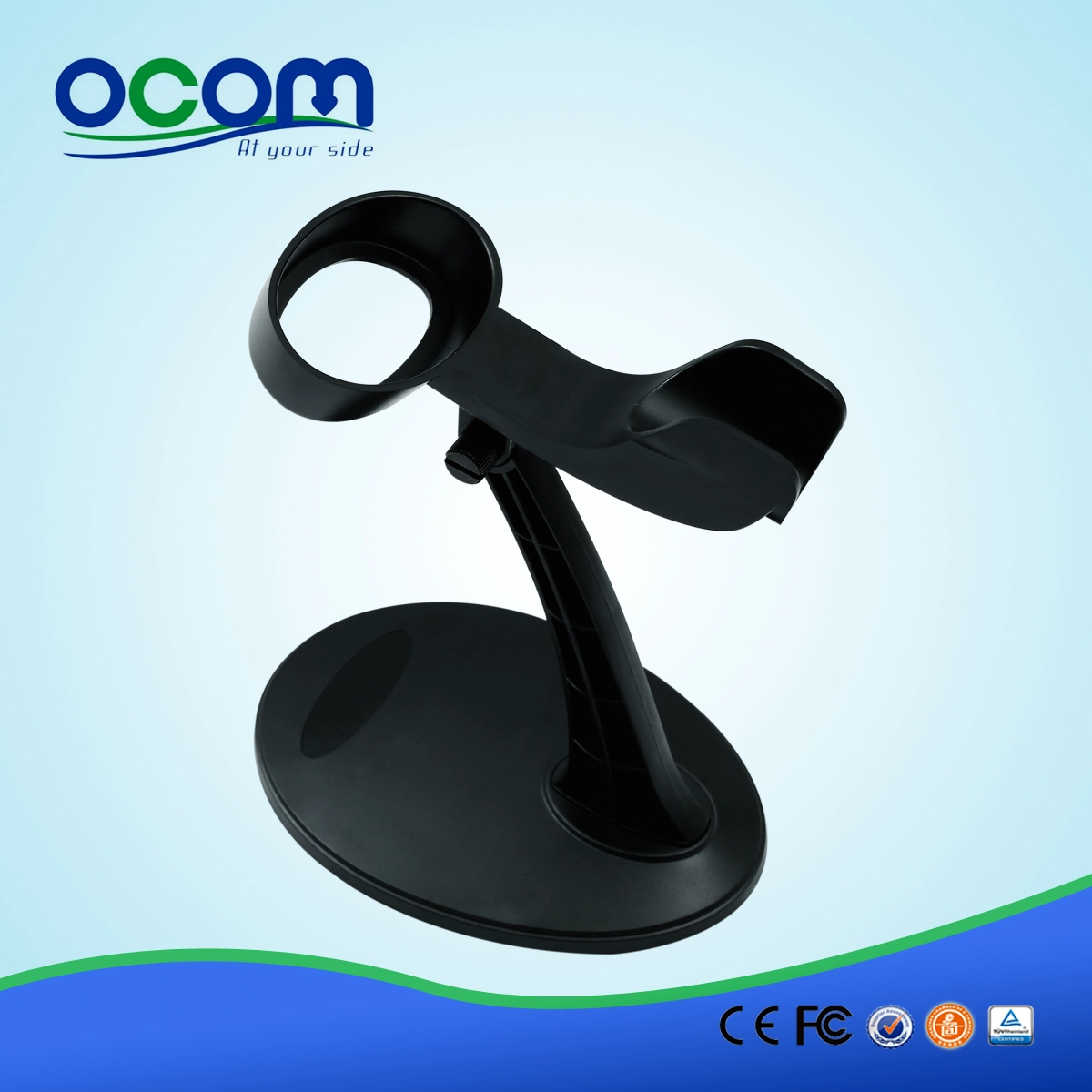

Stand |
With |
Color: |
Ivory and black |
User Environment |
|
Operating Temperature: |
0℃~50℃ |
Storage Temperature: |
-40℃~ 70℃ |
Humidity: |
5~95% relative humidity, non-condensing |
Electrostatic Discharge: |
Confirm to +/-15KV air discharge and +/-8KV of contact discharge |
Drop Specifications: |
Withstands multiple 1.5m drops to concrete |
Safe: |
|
EMI/RFI: |
FCC Class A and CE |
Laser Safety: |
CDRH class 2 laser product |
