Portable handheld 1d bluetooth wireless barcode scannerPortable handheld 1d bluetooth wireless barcode scannerPortable handheld 1d bluetooth wireless barcode scannerPortable handheld 1d bluetooth wireless barcode scannerPortable handheld 1d bluetooth wireless barcode scanner

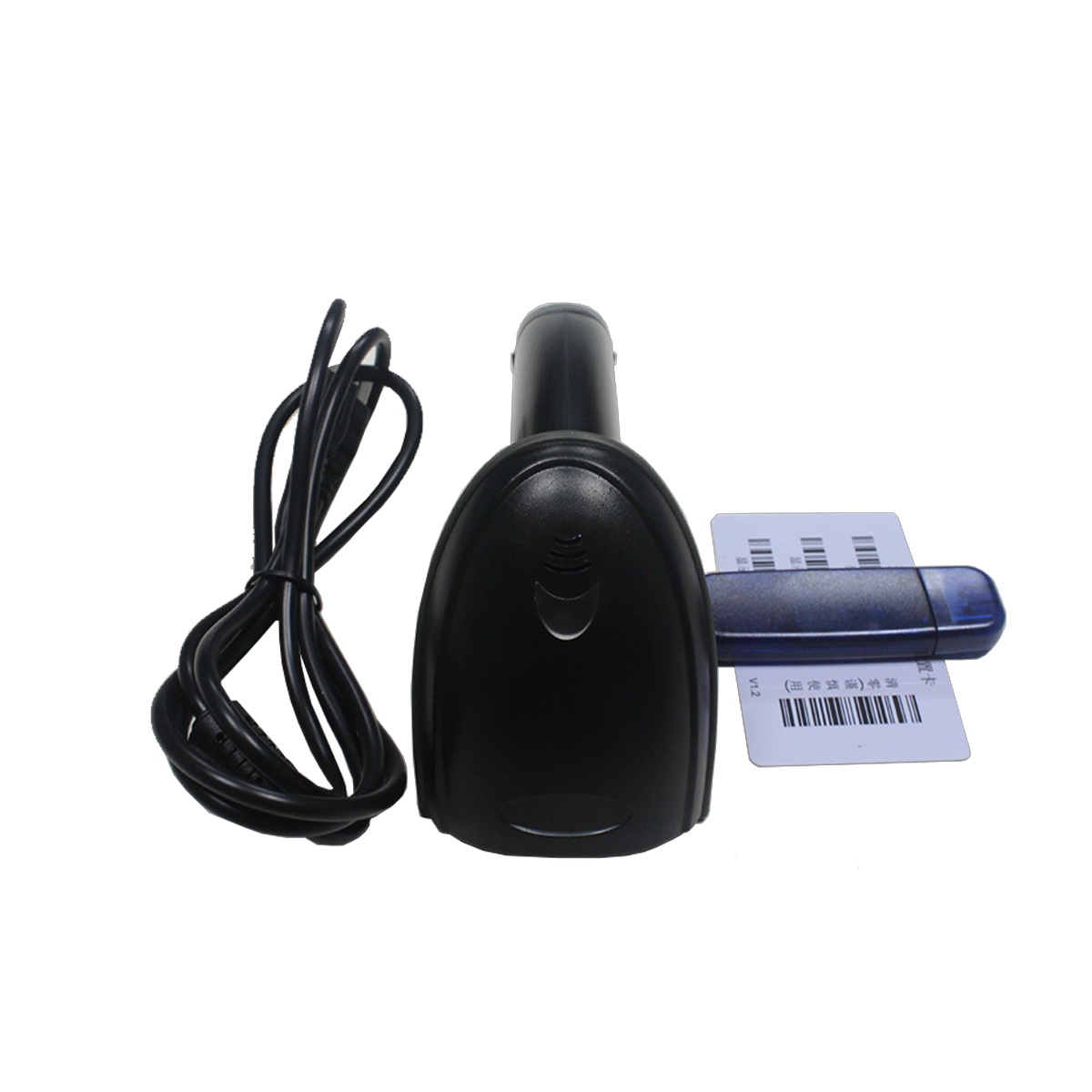

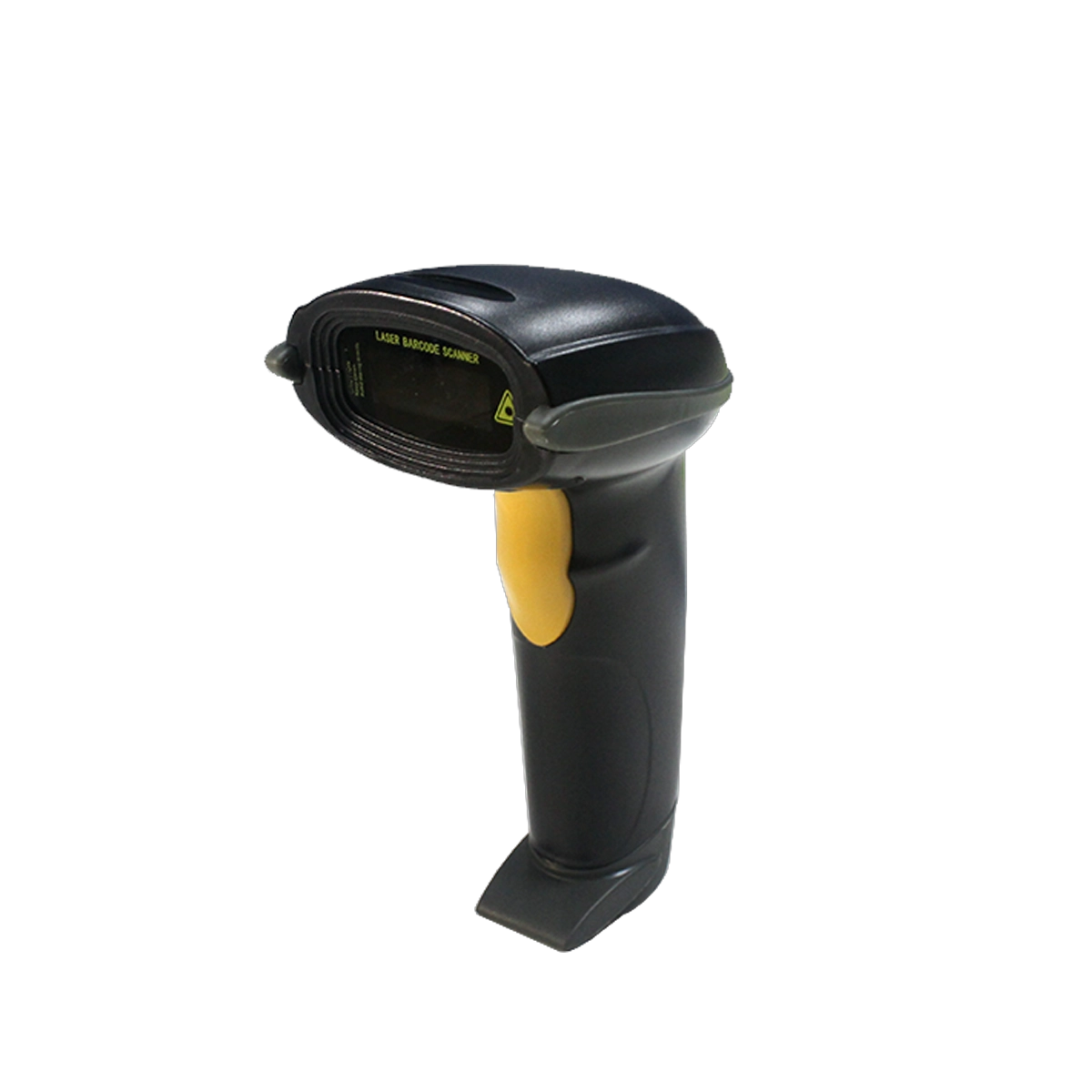

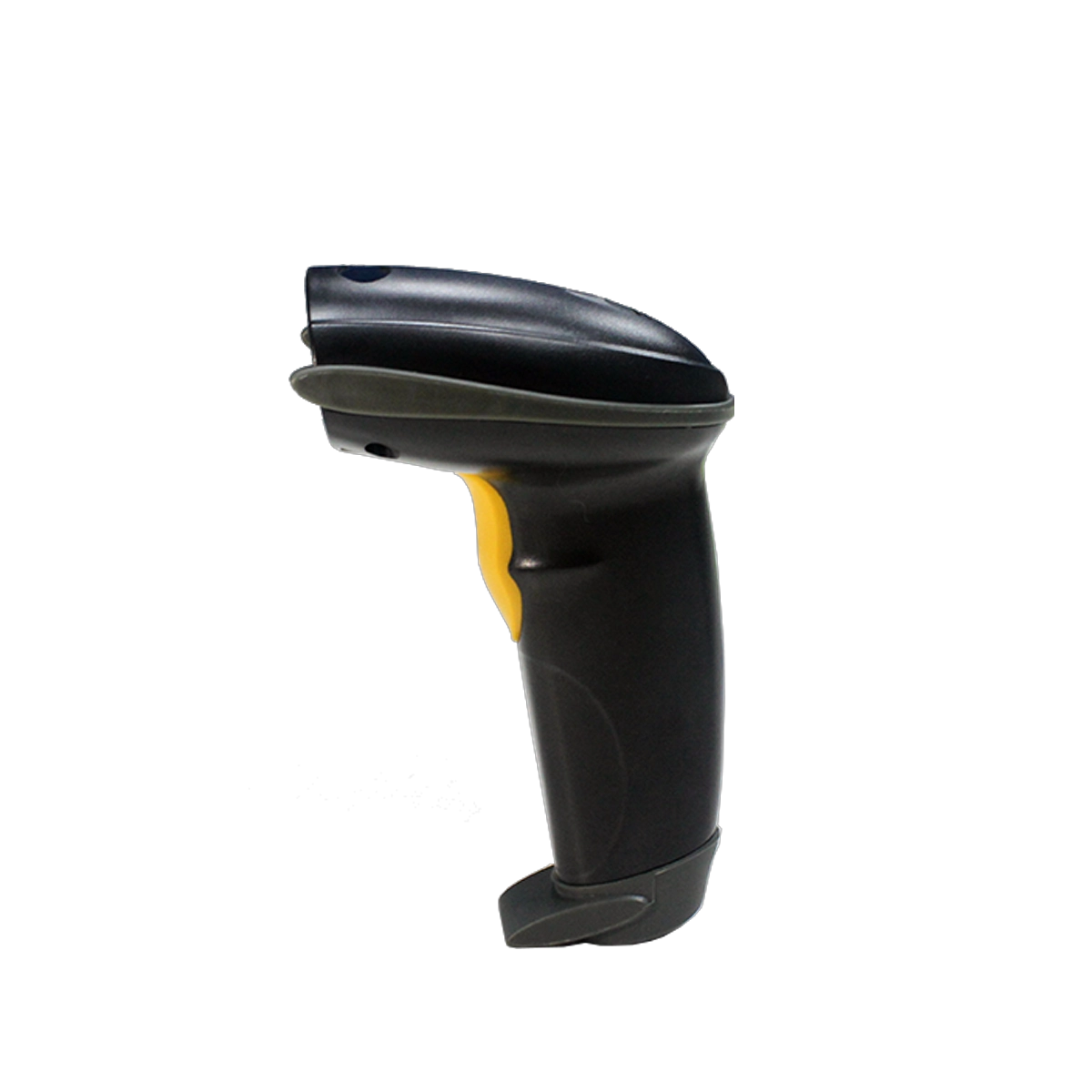

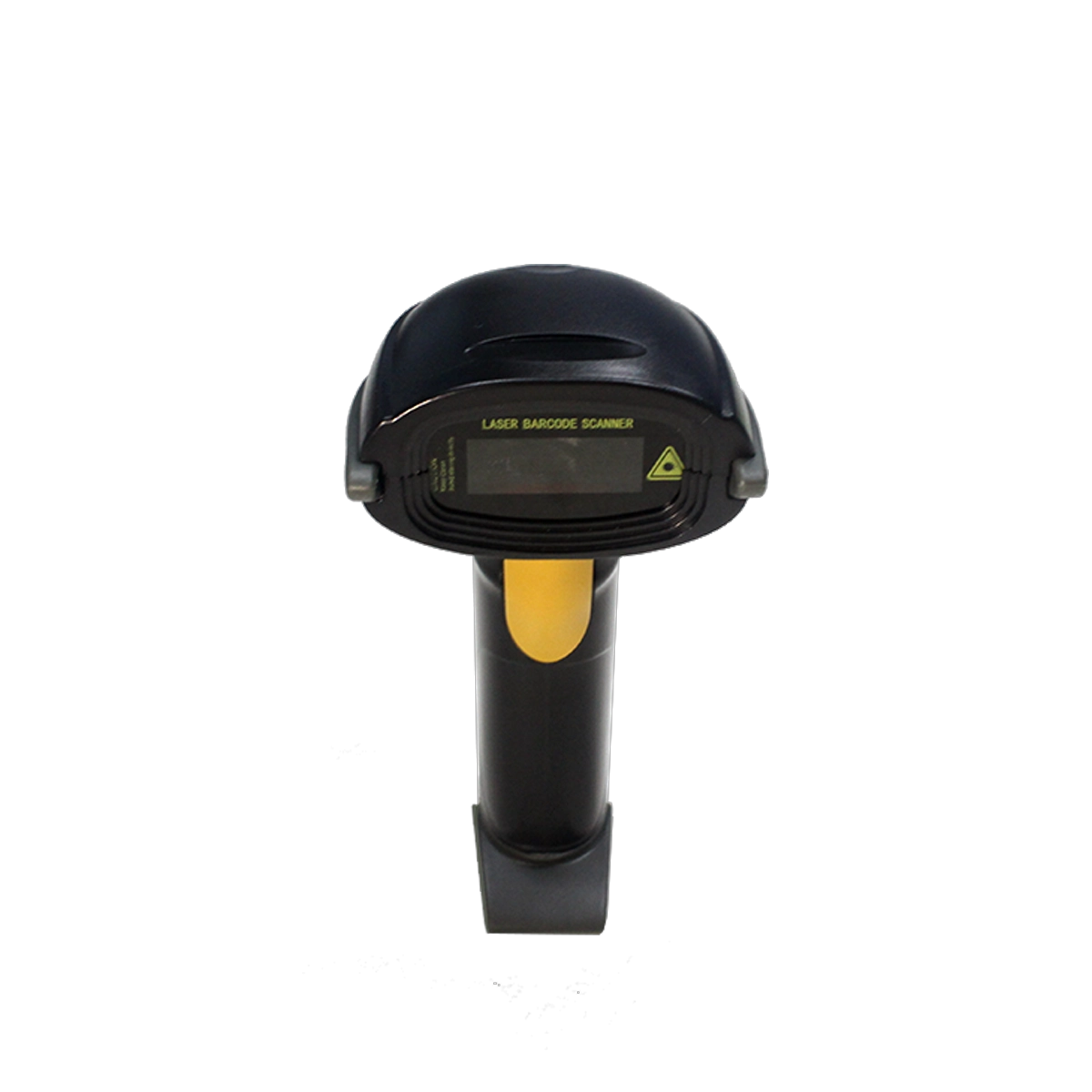

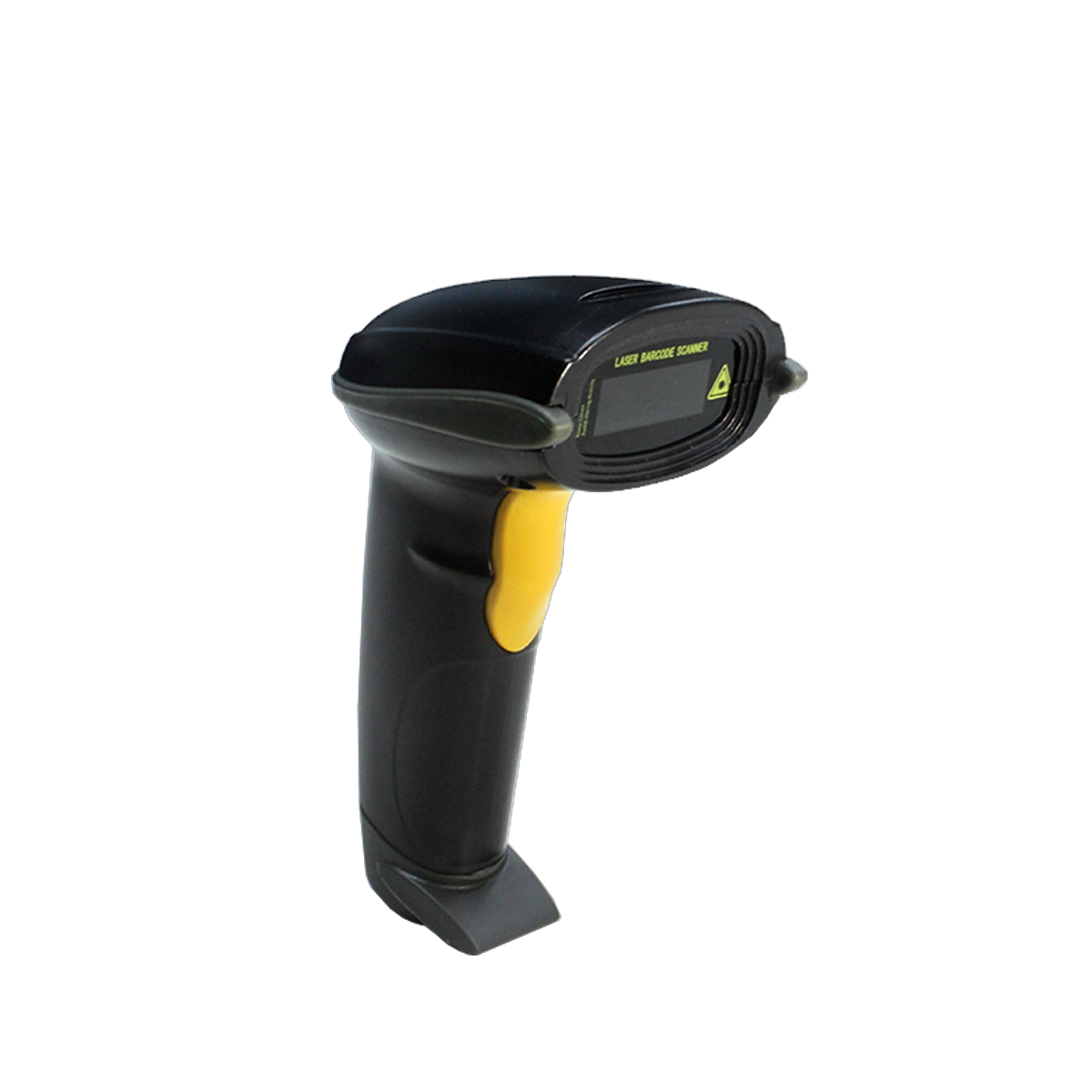

Portable handheld 1d bluetooth wireless barcode scanner

  • Classic appearance;
  • High scan rate (100 scans/sec) and long reading distance;
  • Excellent decode capability;
  • Durable construction combined with future-proofing;
  • Grey and Black Color available

Portable handheld 1d bluetooth wireless barcode scanner


(M/N:OCBS-W011)

Feature

Classic appearance;
High scan rate (100 scans/sec) and long reading distance;
Excellent decode capability;
Durable construction combined with future-proofing;
Grey and Black Color available



Bluetooth Wireless Laser Barcode Scanner Specification

Performance Characteristics
Light Source: Visible laser (650-670nm)
Scan Rate: 100 scans per second
Reading Distance 2.5 ~600mm (100% UPC/EAN)
Scanner Type: Bi-directional
Resolution: 0.10mm (4mil) at PCS 0.9
Print Contrast Minimum: 30%, minimum reflective difference (@650nm)
Error Rate: 1/3000000
Decode Capability: UPC/EAN, UPC/EAN with supplementals, UCC/EAN128, code 39, code 39 full ASCII, code 39 trioptic, code 128, code 128 full ASCII, codabar, interleaved 2 of 5,discrete 2 of 5, code 93, MSI, code 11, ATA, RSS variants, Chinese 2 of 5
Physical Characteristics
Interfaces Supported: 433MHz or Bluetooth Wireless communication, 433 version has a usb receiver,
USB port for battery charging
Wireless range 433M hz wireless: 300m in open area;
Bluetooth: 15m
Battery 900mAh,3.3V
Current: 100 mA
Idle Current: <40 mA
Power Source: USB cabel for Charging
Scanning Angle Inclination 45° Elevation 60°
Dimensions: L165mm X W63mm X H87mm
Weight: 129g (without stand)
Stand Optional
Color: Grey and black
User Environment
Operating Temperature: 0~40 deg C
Storage Temperature: -40~ 60 deg C
Humidity: 5~95% relative humidity, non-condensing
Electrostatic Discharge: Confirm to +/-15KV air discharge and +/-8KV of contact discharge
Drop Specifications: Withstands multiple 1.5m drops to concrete
Safe:
EMI/RFI: FCC Class A and CE
Laser Safety: CDRH class 2 laser product






FAQ

1. MOQ policy

No MOQ limitation for the standard products, but the unit price is different, bigger quantity better price.

For customized production, you can discuss the MOQ with our sales representative directly.

2. Sample Availability & Policy
After customers confirmed the specification, we are very glad to provide samples for testing and qualification.

All samples should be paid before shippment, the samples price is a higher than mass order. When the mass order placed, we can return you the samples cost, or send you more piece products with the shippments.

You can buy the samples from us directly using t/t, western union, or paypal. And you can also buy it on our online store.

3. Warranty
OCOM is dedicated to providing most cost-effective products and services with reliable quality that will meet customers'satisfication;

We was qualified by global fortune 500 company, and we have the top 1 level trade assurance which 100% protect your money and lead time.

Our warranty of the products is about 12+1 months from the shipment normally, some designated models can have as long as 24 months warranty;

Any product within 30 days of delivery failure occurs shall be deemed invalid delivery (DOA). DOA products will give priority to the replacement, and shipped by courier.

For mass order, we would like to supply some spare parts with shipment for local quickly repair. And after that, you can returned failure parts for rework and analysis.

4. Payment Terms
For mass order, you can pay us by using T/T, LC, Western Union, Escrow or others. About samples order, T/T, Western Union, Escrow,Paypal are acceptable.Currently,you can pay using Moneybookers, Visa, MasterCard and bank transfer. You can also pay with select debit cards including Maestro, Solo, Carte Bleue, PostePay, CartaSi, 4B and Euro6000.

5. Shipment
We accept all kinds of shipping ways including: express, air, sea, truck, or pick up by customers personally.

6. Customer
Our main customers from Eruopean, Australia, and the fast growing South America, Africa, Russia...,

We have servered more than 2300 customers from 159 countries, including the global fortune 500 company like Unilever, O2.....50 of them are the biggest distributor in the local teritories.
