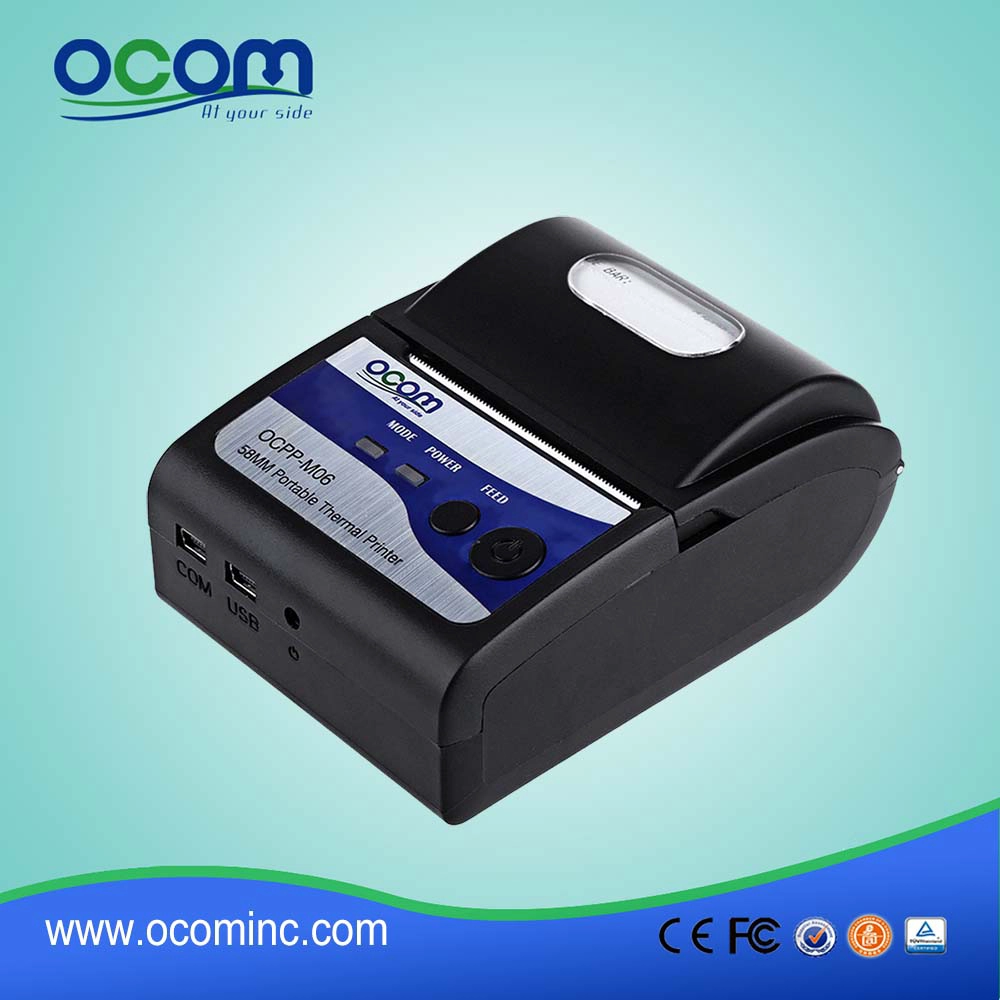

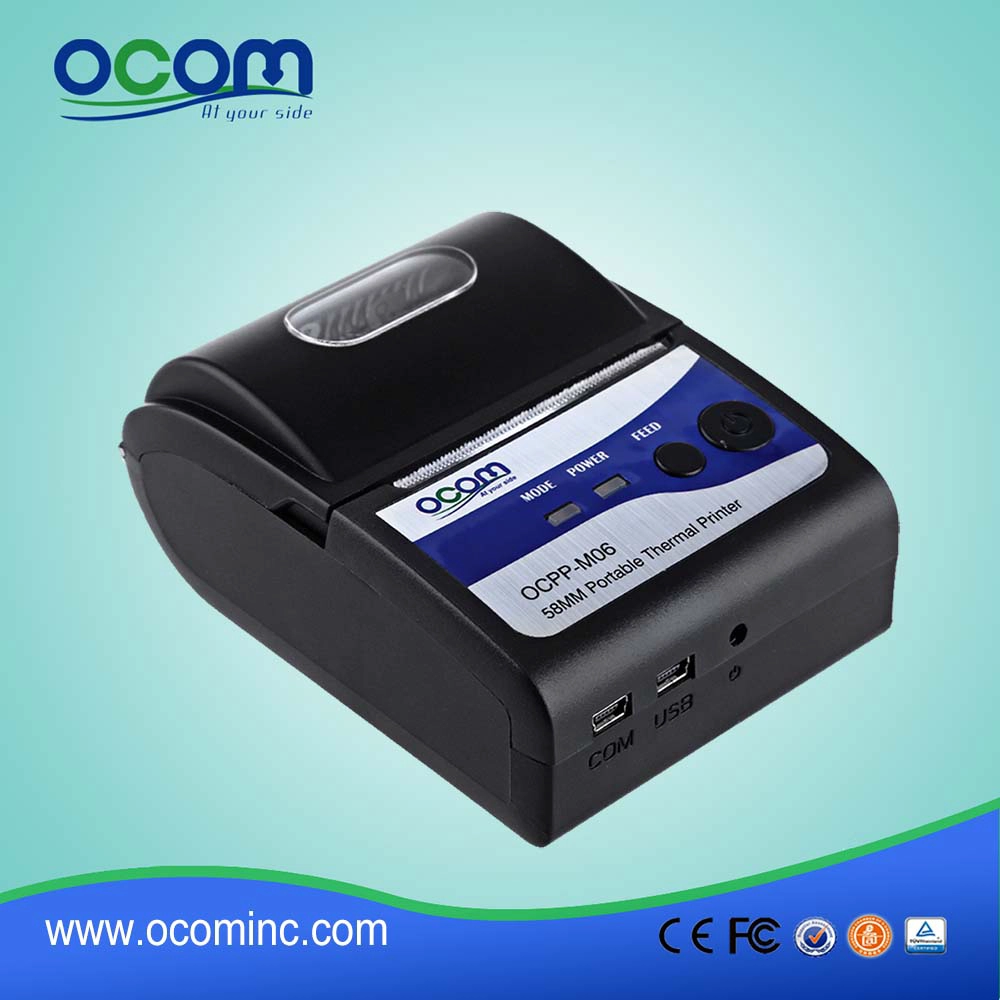

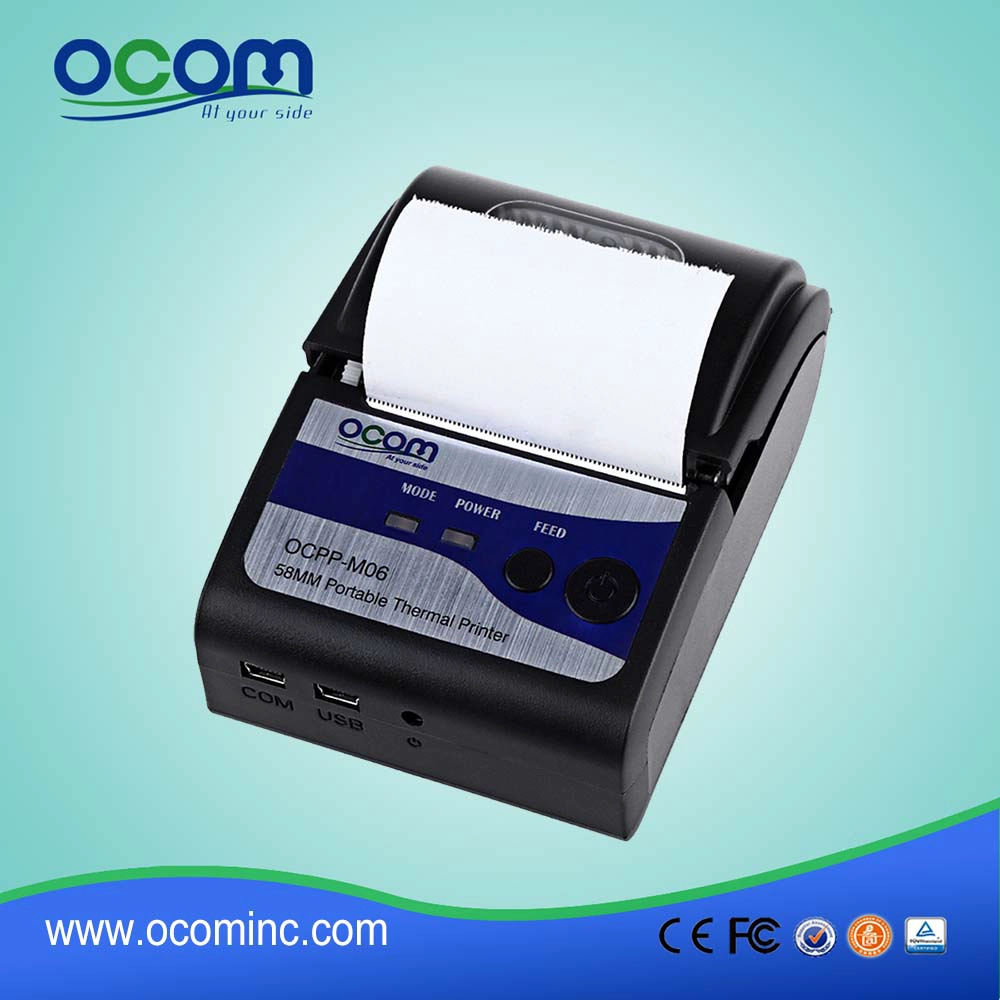

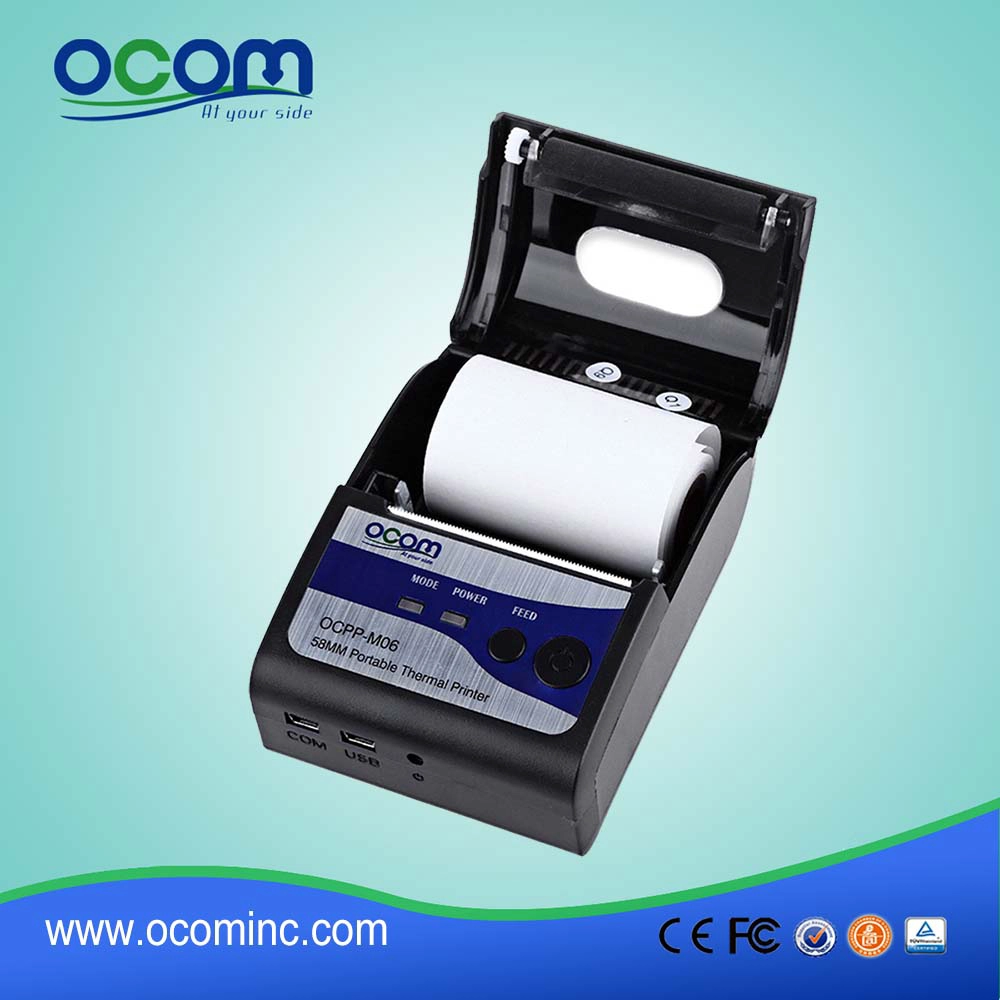

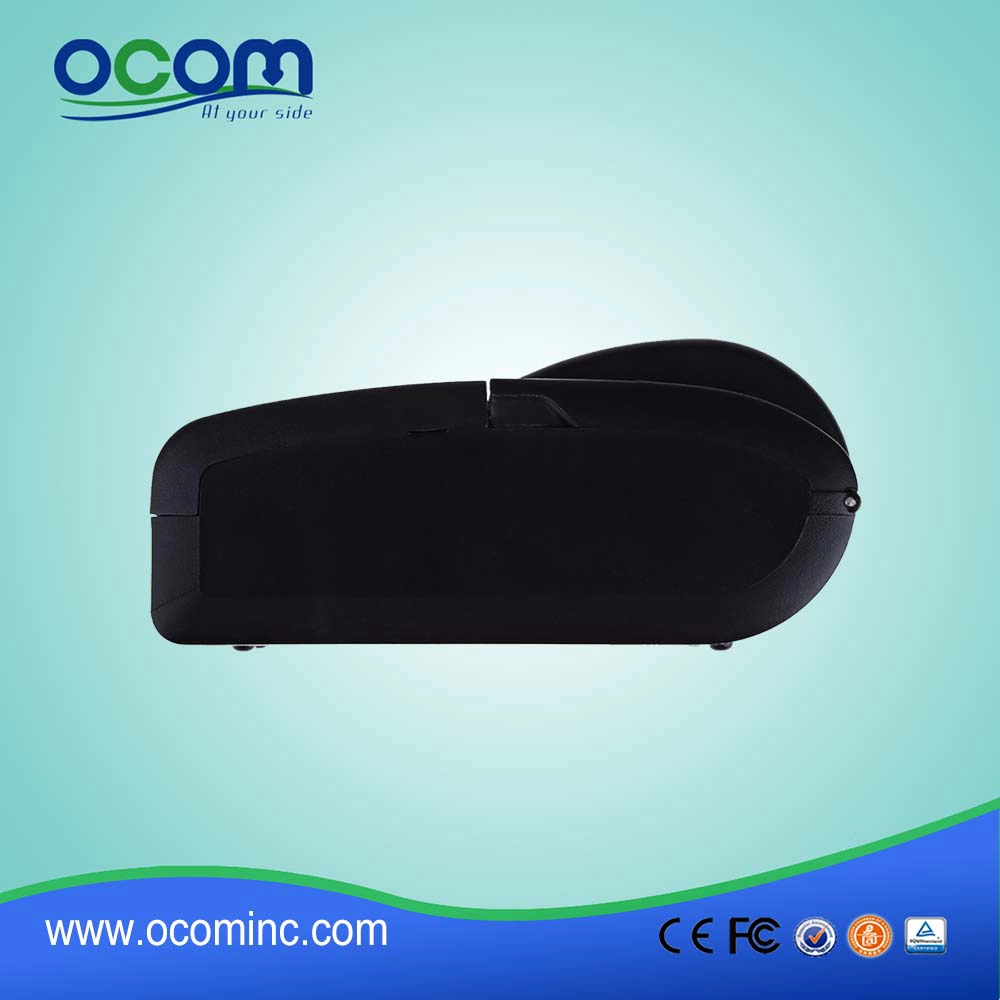

Shenzhen Android Terminal POS Ticket Printer

  • 1. Mini size for portable applications;
  • When 2, Windows, Java and Linux robot (or Android + IOS) operating system support;
  • 3, Bluetooth, USB and RS232 communication support;
  • 4, SDK for the Android provide;
  • 5,1D, two-dimensional bar code (QR code), and supports the printed image;
  • 6, available online to change the printer name, password, baud rate;
  • 7, a printer can be used up to 8 smart devices (Android 7, an apple device) visa Bluetooth connection;
  • 8, low-power, high-capacity lithium battery (1500mAh), and 4 to 5 days of standby time;
  • 9, equipped with a rechargeable battery, power adapter or car charger (designated models)

Shenzhen Android Terminal POS Ticket Printer

(Model: OCPP- M06)

Such micro-printer OCPP-M06 is an Android (or IOS + Android version), Windows, Linux and JAVA compatible portable battery-operated 58 mm mobile POS thermal bonding USB, the printer with a serial RS232 and Bluetooth (optional) communications. The printer can be a rechargeable battery, power adapter or car charger (based on select models) power supply. Special models can be connected with 8 smart devices print at the same time. We have CE, FCC and other requiredcertifications.

specification:

Dimensions (W × D × H)

105 × 75 × 45 Haomi

weight

134 g

Colour

black

Printing Methods

Thermal Line Printing

Print command

ESC / POS compatible instruction set

Effective print width

48 mm

printing speed

Up to 90mm / sec

Resolution

8 dots / mm (203DPI)

Print Fonts

12 × 24/24 × 24

Column capacity

32 / 16columns

Character Size

1.5 × 3.0 mm (width x height) / 3.0x3.0mm (W x H)

Paper Size

58.0 ± 0.1mm × diameter of 40.0 mm

Paper Thickness

0.06~0.08 mm

character set

Alphanumeric / Chinese characters

interface

USB, RS-232, Bluetooth (optional)

flash

256KB

Power Adapter

DC 9V / 2A

Battery Power

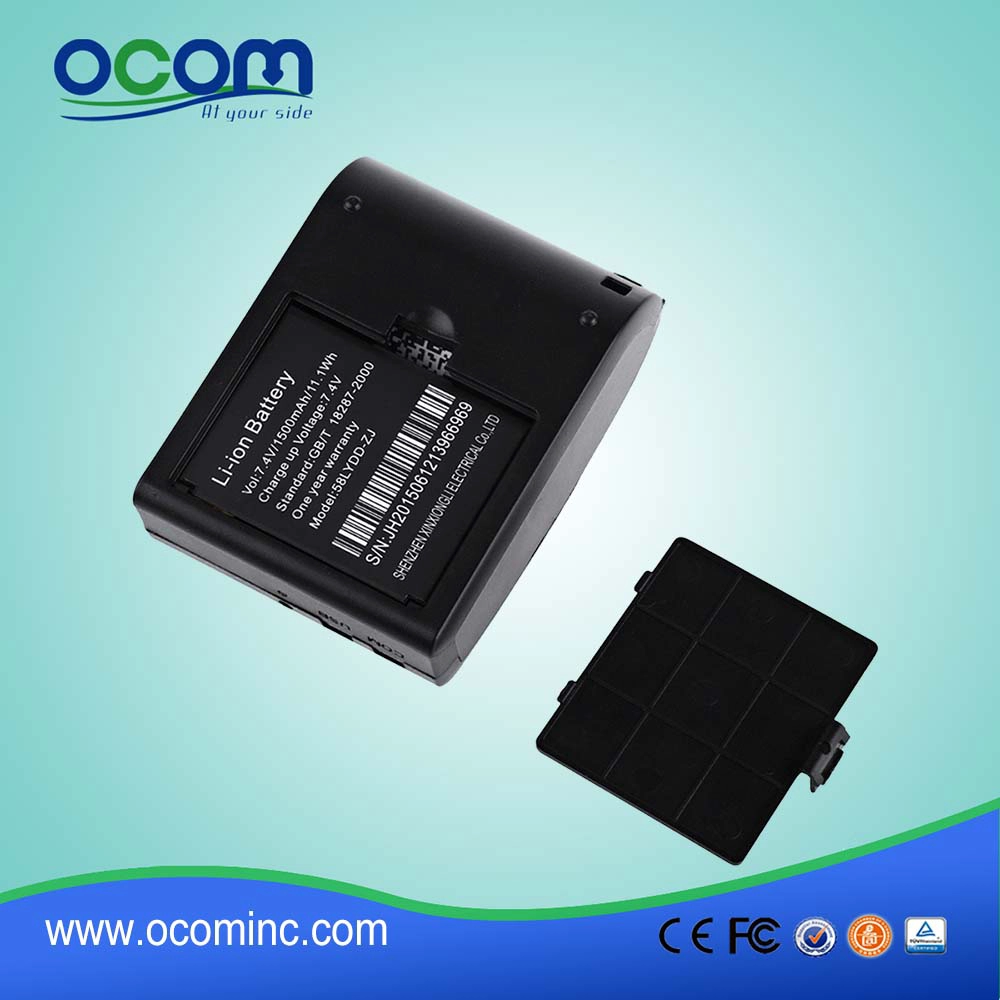

7.4V DC / 1500mAh; the battery can stay in 4-5 days,

When it is full of strength, it can print paper 120-150m

Other features

Paper detection, manually shut down

working environment

Temperature: -10~50 degrees Celsius, Humidity: 10% ~ 90%

Storage conditions

Temperature: -20~70 degrees Celsius, humidity: 5% ~ 95%

Device Name

It can be customized to select letters and numbers, a maximum of 30 ASCII characters.

password

Enter the default pairing code "1234", which can be customized or changed

 By the customer. Maximum 6 digitals.

Plug size

3.5 * 1.1 mm

Ordering information.

OCPP-M06-BB

Android version, USB + COM + Bluetooth, battery.

OCPP-M06-BB-AI

The Andr oid + IOS, USB + COM + Bluetooth, battery.

OCPP-M06-B

Android version, USB + COM + Bluetooth, no batteries;

OCPP-M06-U

Mini-printers, robots, USB + COM, no batteries.

OCPP-M06-BB-AA

The Andr oid + IOS, USB + COM + Bluetooth, battery, robot 7 +1 Apple devices support

Applications:

Compared to the traditional thermal receipt printers, mini-printers have a smaller body, the advantages of more reliable performance, more stable and portable printing. Mini printer can be in many places, such as taxi ticket printing, administrative charges receipt printing, mailing receipt printing, print restaurant ordering information, online payment and other printed information. With the rapidly growing popularity of smart phones, tablet PCs and work and so on, micro-printer will be more widely used in the near future.

Keywords: thermal printer, Bluetooth printers, mini-printers, portable printers, POS printers, mobile printers, receipt printer, wireless printers, printer paper, printer paper, QR code printers, handheld printer, receipt printer, mini printer, 58 mm Bluetooth printers, two inches Bluetooth printer.
