Small Size Desktop USB QR Code Scanner

Small Size Desktop USB QR Code Scanner

  • Focus on the 1D/2D symbologies on the screen of mobile phone;
  • Well designed on the light source to meet all kinds of high bright;
  • Low resolution mobile LED/LCD screen barcodes scanning.

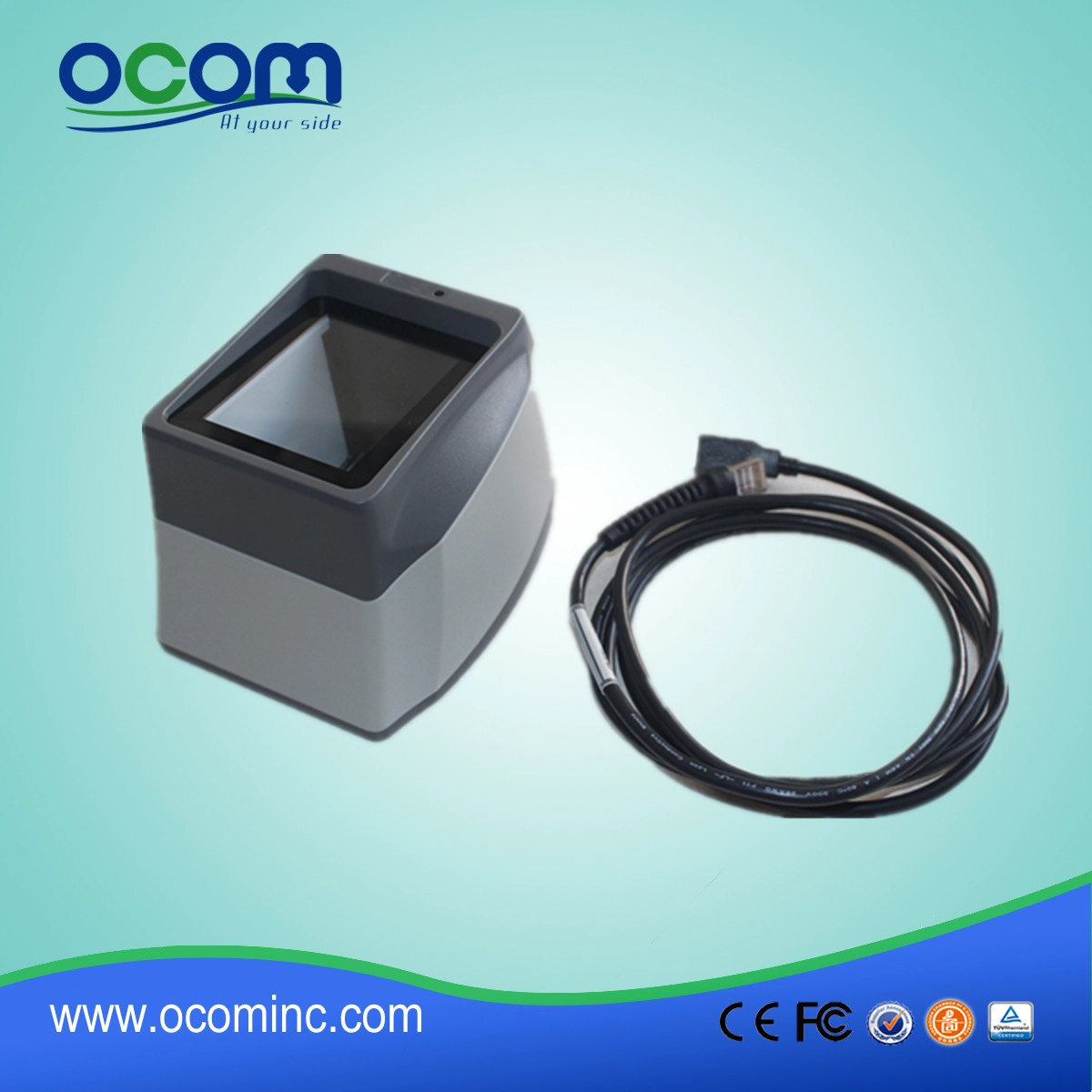

Small Size Desktop USB QR Code Scanner

(Model No: OCBS-2103 )


PRODUCT FEATURES:
  • Focus on the 1D/2D symbologies on the screen of mobile phone;
  • Well designed on the light source to meet all kinds of high bright;
  • Low resolution mobile LED/LCD screen barcodes scanning.

PRODUCT SPECIFICATION:

Performance Characteristics

Microprocessor

IOTC 0370 CHIP

Resolution

640×480 CMOS

Interface

RS-232 (9.6~115.2Kbps), USB 1.1 (HID-KBW, HID-POS)

Symbologies

2D

PDF417, Data Matrix, QR code

1D

EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Coda bar, Code 128(Include FNC1 FNC2 FNC3 subset), Code 93, ITF-6, ITF-14, Interleaved 2 of 5,Industrial 2 of 5, Standard 2 of 5, Matri 2 of 5, GS1 Data bar (RSS-Expand, RSS-Limited, RSS-14),Code 39(Include Code 39 FULL ASCII),Code 11,MSI-Plessey

Precision

≥ 10 mil

Light Source

White LED

Scanning model

sense scanning, continuous scanning

Precision

10 mil

Print Contrast Signal

≥ 30%

Filed angel

Diagonal: 68°, Horizontal: 42°, Vertical: 54°

Illumination

0 ~ 100,000 LUX

Power Consumption

1 W

Voltage

DC 5V, 0.5A,AC 100~240V, 50~60Hz

Result feedback

Buzzer, Indicator light

Dimension

127.3mm(L) X 111.5mm (W) X 94mm(H)

Weight

300 g

Environment

Operate Temperature

-10℃ to + 50℃

Storage Temperature

-20℃ to + 60℃

Humidity

5% - 95%(non-condensing)

Programming Software

Quick Set, Programming Guide, uTools Lite

Certification

FCC Part15 Class B, CE EMC Class B
