(OCBS-D016) Smart Handheld Android Terminal With Thermal Printer(OCBS-D016) Smart Handheld Android Terminal With Thermal Printer(OCBS-D016) Smart Handheld Android Terminal With Thermal Printer(OCBS-D016) Smart Handheld Android Terminal With Thermal Printer(OCBS-D016) Smart Handheld Android Terminal With Thermal Printer(OCBS-D016) Smart Handheld Android Terminal With Thermal Printer

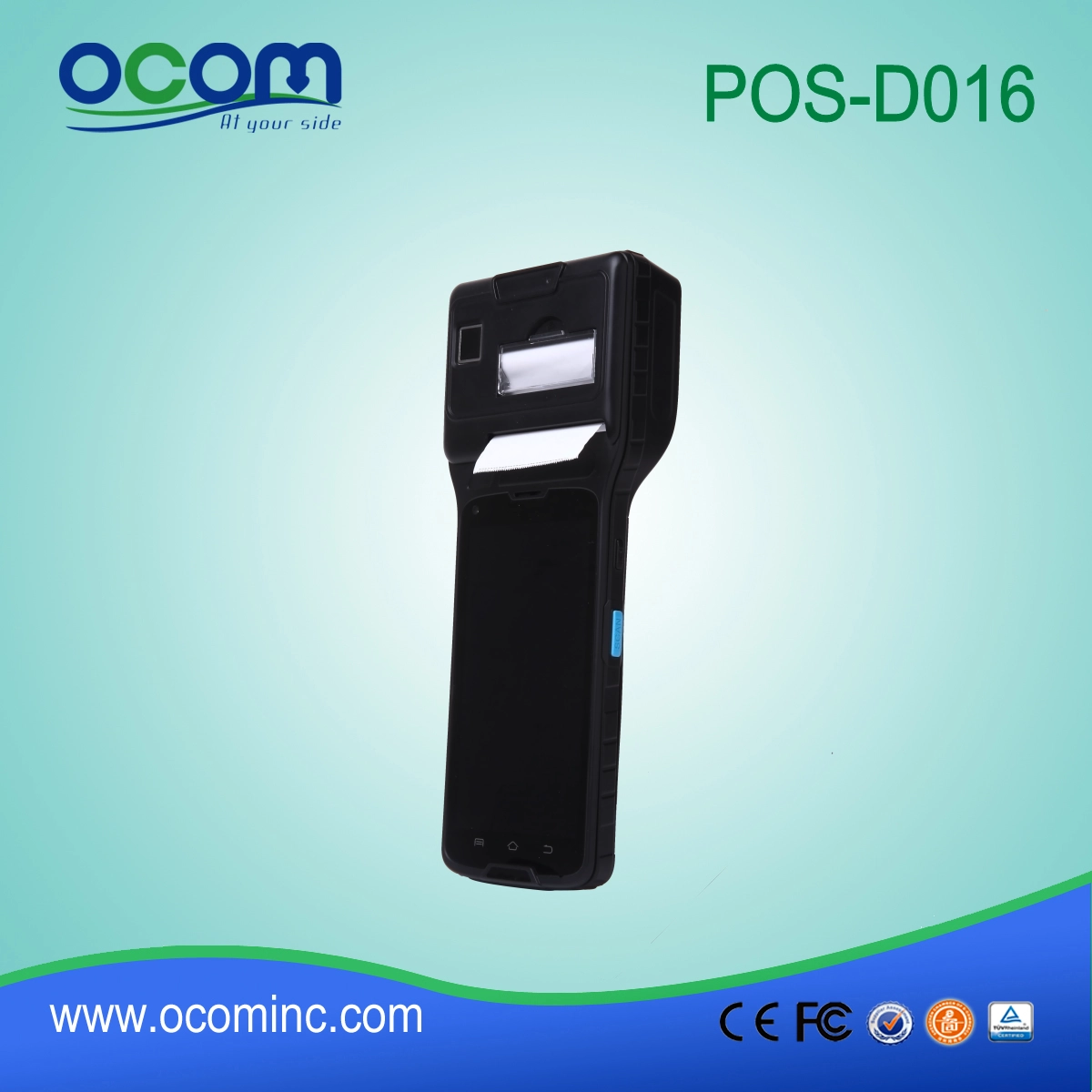

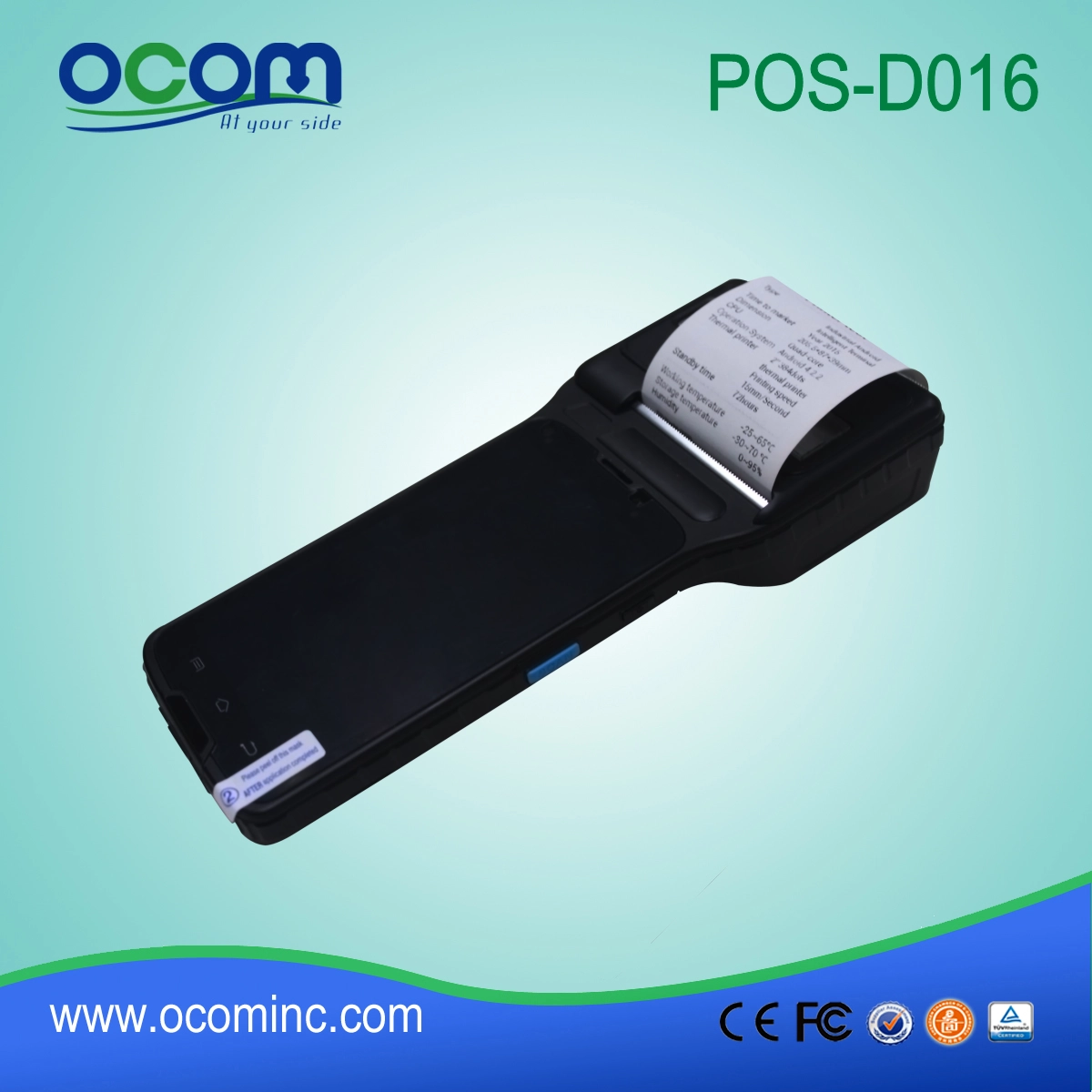

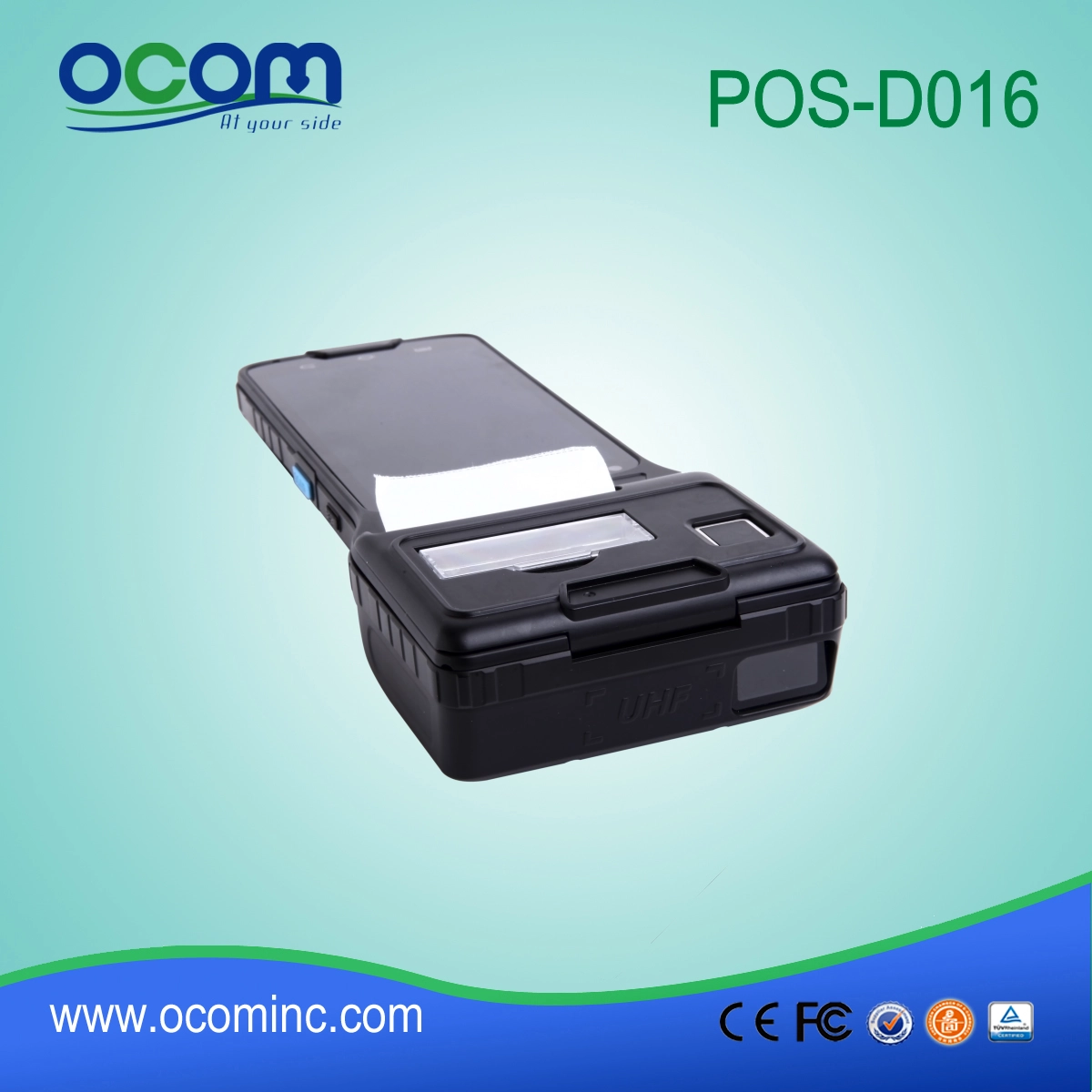

(OCBS-D016) Smart Handheld Android Terminal With Thermal Printer

  • 1.3GHz Quad core high configuration CPU
  • 1GB SDRAM; 4GB NAND FLASH,Expandable 32G
  • 5inches touch screen ,resolution 1280*720 dpi,IPS
  • 4000mAH Large battery capacity
  • Printer,NFC,3G,Wifi,Bluetooth,GPS,AGPS
  • 8 million pixel camera for basic configuration
  • Scanner,Finger Print and UHF for optional
         Smart Handheld Android Terminal With Thermal Printer
                                        (M/N:OCBS-D016)

1.3GHz Quad core high configuration CPU
1GB SDRAM; 4GB NAND FLASH,Expandable 32G
5inches touch screen ,resolution 1280*720 dpi,IPS
4000mAH Large battery capacity
Printer,NFC,3G,Wifi,Bluetooth,GPS,AGPS
8 million pixel camera for basic configuration
Scanner,Finger Print and UHF for optional

Basic Information

Model:

OCBS-D016

OS:

Android4.2.2

CPU

1.3GHz Quad core

Memory

1GB SDRAM; 4GB NAND FLASH,Expandable 32G

Display

5inches touch screen ,resolution 1280*720 dpi,IPS

Operating Keys

2 scan button,1 power on/off button

Battery

Rechargeable 3.7V,4000mAH battery

Charging method

Enclosed power, separate battery charger cradle

Charging time

5hours

Dimensions

145(W)*78(D)*16(H)mm,544.5g (include battery) 463g (no battery)

Durability

IP54 design

Temp. in operation

Minus 10 degrees Celsius to 45 degrees Celsius

Temp. in storage

Minus 20 degrees Celsius to 55 degrees Celsius

Humidity

5 - 95% (non-condensing)

Communication

WLAN

802.11b/g/n

USB

1 Micro USB

Audio

850/900/1800/1900MHz

GSM/GPRS/3G

3G: WCDMA 2100Mhz ; CDMA2000

Bluetooth

BT 2.0

Multi functions

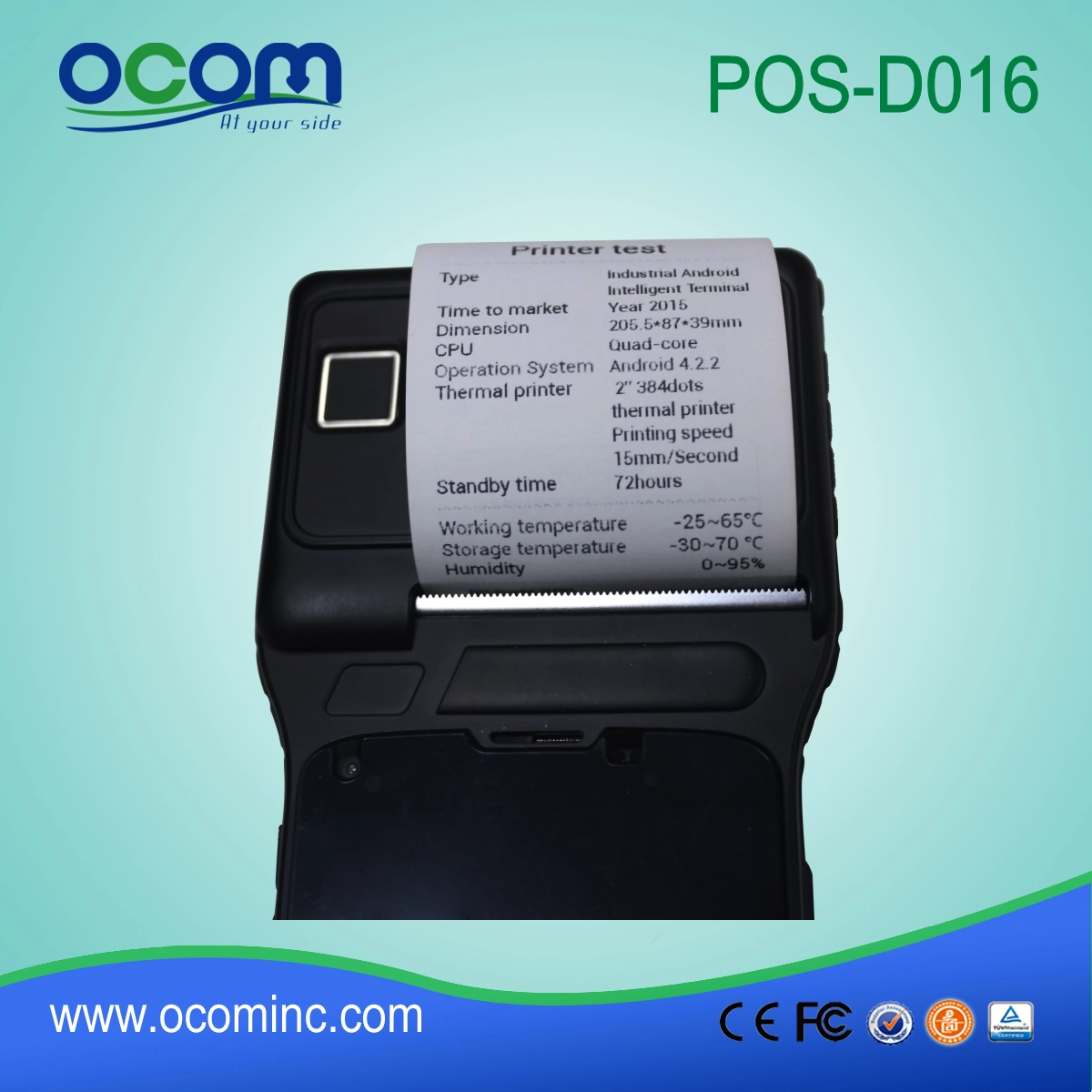

Thermal Printer

2 inch thermal printer,203dpi,15mm/sec,58mm width,30mm diameter,Basic

RFID

NFC :13.56Mhz (ISO14443A; ISO15693) Basic and UHF: 920-925Mhz for optional

Scaner(1D/2D)

1D Laser Barcode reader or 2D image reader,Honeywell engine for optional

Camera

8 million pixel; Auto-focusl,Basic

GPS

GPS and A-GPS,Basic

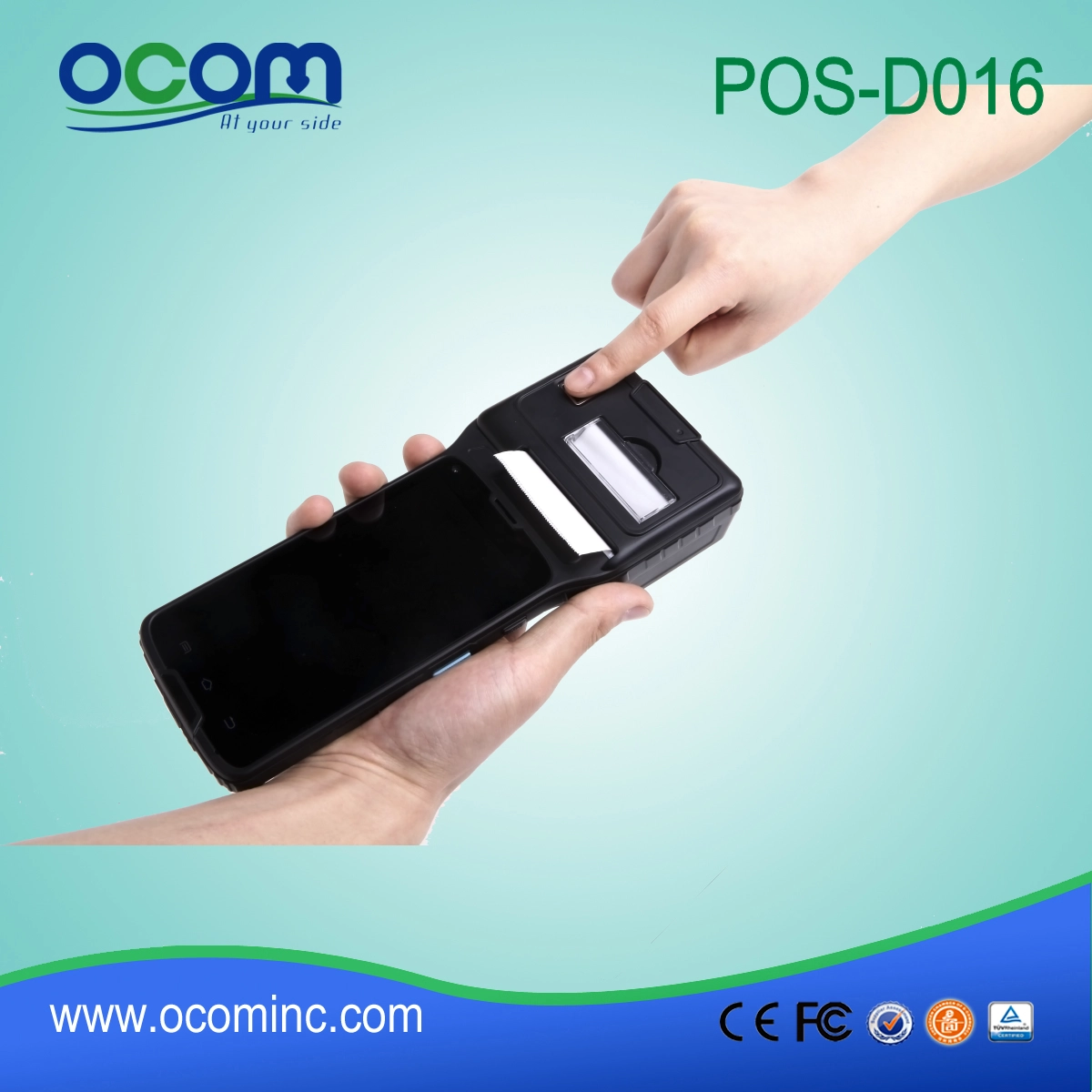

Finger Print

Sensor:FPC1011F1,processor:FPC2020Q1(64 pin QFN 9 * 9 mm)optional



Appearance Introduction





Functions



Accessories



Applications

Logistics- order taking, courier, inventory, warehousing

Enterprise management- asset tracking, document management

Leisure & Entertainment

Facility Maintenance, Mobile Point of sale, Mobile Ticketing,

Parking management, Ticket checking, lottery etc.


Relevant documents:


      *OCBS-D016 SDK
