Stand Available Handheld Laser Barcode Scanner with Auto-Induction FunctionStand Available Handheld Laser Barcode Scanner with Auto-Induction FunctionStand Available Handheld Laser Barcode Scanner with Auto-Induction FunctionStand Available Handheld Laser Barcode Scanner with Auto-Induction Function

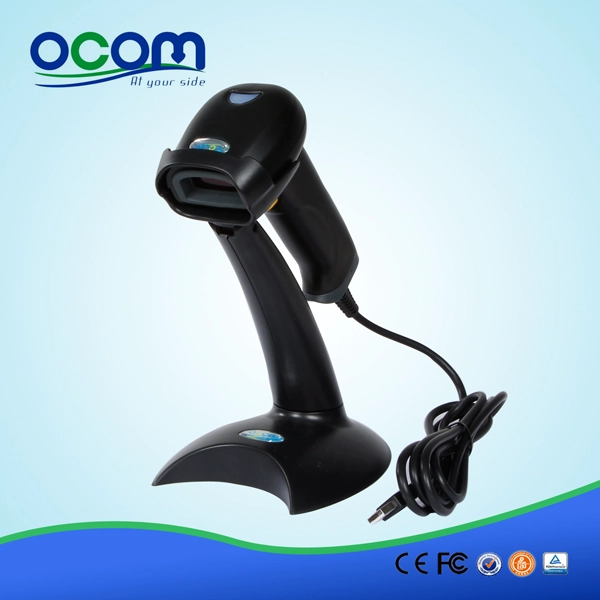

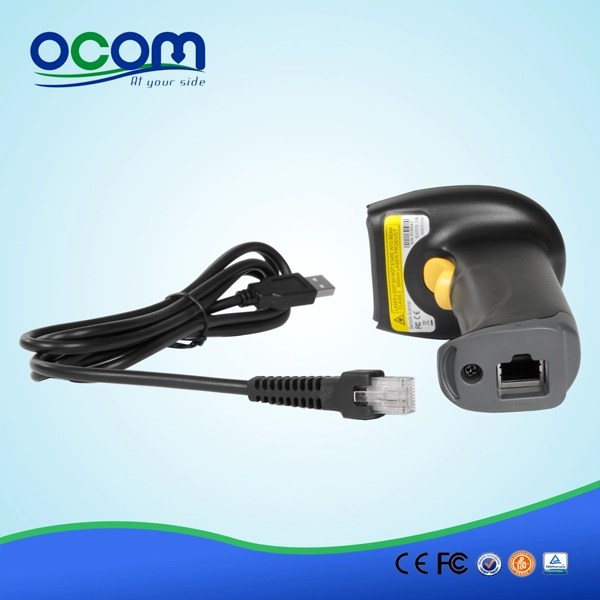

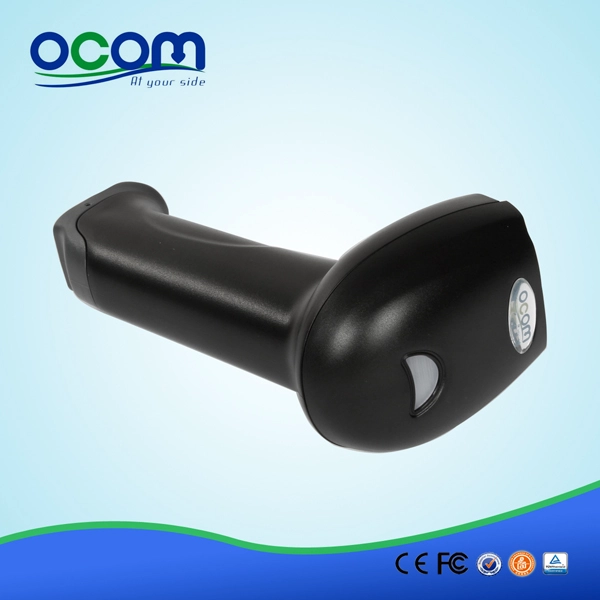

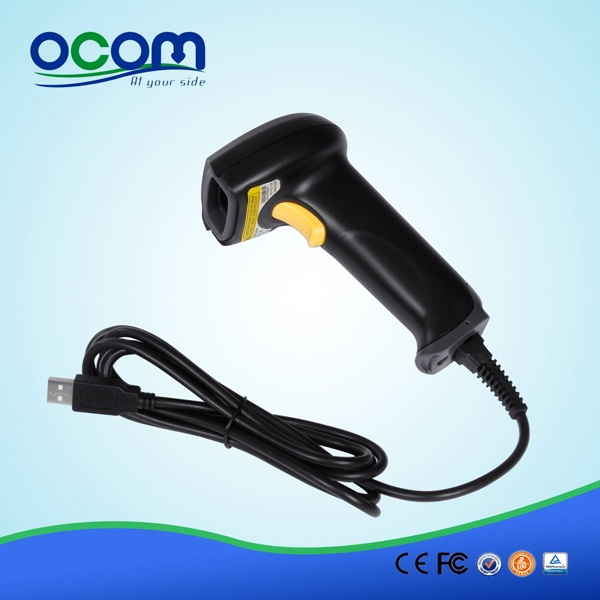

Stand Available Handheld Laser Barcode Scanner with Auto-Induction Function

  • Stand Available Handheld Laser Barcode Scanner with Auto-Induction Function
  • With auto-induction and auto-scanning function, green design;
  • High scan rate and long reading distance;
  • Excellent decode capability;
  • KBW, RS232 and USB supported;
  • Stand available;
  • Durable construction combined with future-proofing;

Stand Available Handheld Laser Barcode Scanner with Auto-Induction Function


Features:

Stand Available Handheld Laser Barcode Scanner with Auto-Induction Function
With auto-induction and auto-scanning function, green design;
High scan rate and long reading distance;
Excellent decode capability;
KBW, RS232 and USB supported;
Stand available;
Durable construction combined with future-proofing;

Specification:

Performance Characteristics

Light Source:

Visible laser (650-670nm)

Scan Rate:

100 scans per second

Reading Distance

2.5 ~600mm (100% UPC/EAN)

Scanner Type:

Bi-directional

Resolution:

0.10mm (4mil) at PCS 0.9

Print Contrast Minimum:

20%, minimum reflective difference (@650nm)

Decode Capability:

UPC/EAN, UPC/EAN with supplementals, UCC/EAN128, code 39, code 39 full ASCII, code 39 trioptic, code 128, code 128 full ASCII, codabar, interleaved 2 of 5,discrete 2 of 5, code 93, MSI, code 11, ATA, RSS variants, Chinese 2 of 5…

Physical Characteristics

Interfaces Supported:

PS2, RS232, USB

Voltage:

DC+5V+/-5%

Current:

100 mA

Idle Current:

<40 mA

Power Source:

Host power or external (RS232) power supply

Scanning Angle

Inclination 45° Elevation 60°

Dimensions:

L165.42mm X W69.72mm X H89.67mm

Weight:

140g (without stand)

Stand

With

Color:

Ivory and black

User Environment

Operating Temperature:

0degree C~50degree C

Storage Temperature:

-40degree C~ 70degree C

Humidity:

5~95% relative humidity, non-condensing

Electrostatic Discharge:

Confirm to +/-15KV air discharge and +/-8KV of contact discharge

Drop Specifications:

Withstands multiple 1.5m drops to concrete

Safe:



EMI/RFI:

FCC Class A and CE

Laser Safety:

CDRH class 2 laser product


Products Details:


handheld laser barcode scanner ocbs-la06 01handheld laser barcode scanner ocbs-la06 02handheld laser barcode scanner ocbs-la06 03handheld laser barcode scanner ocbs-la06 04handheld laser barcode scanner ocbs-la06 05handheld laser barcode scanner ocbs-la06 06handheld laser barcode scanner ocbs-la06 07handheld laser barcode scanner ocbs-la06 08
