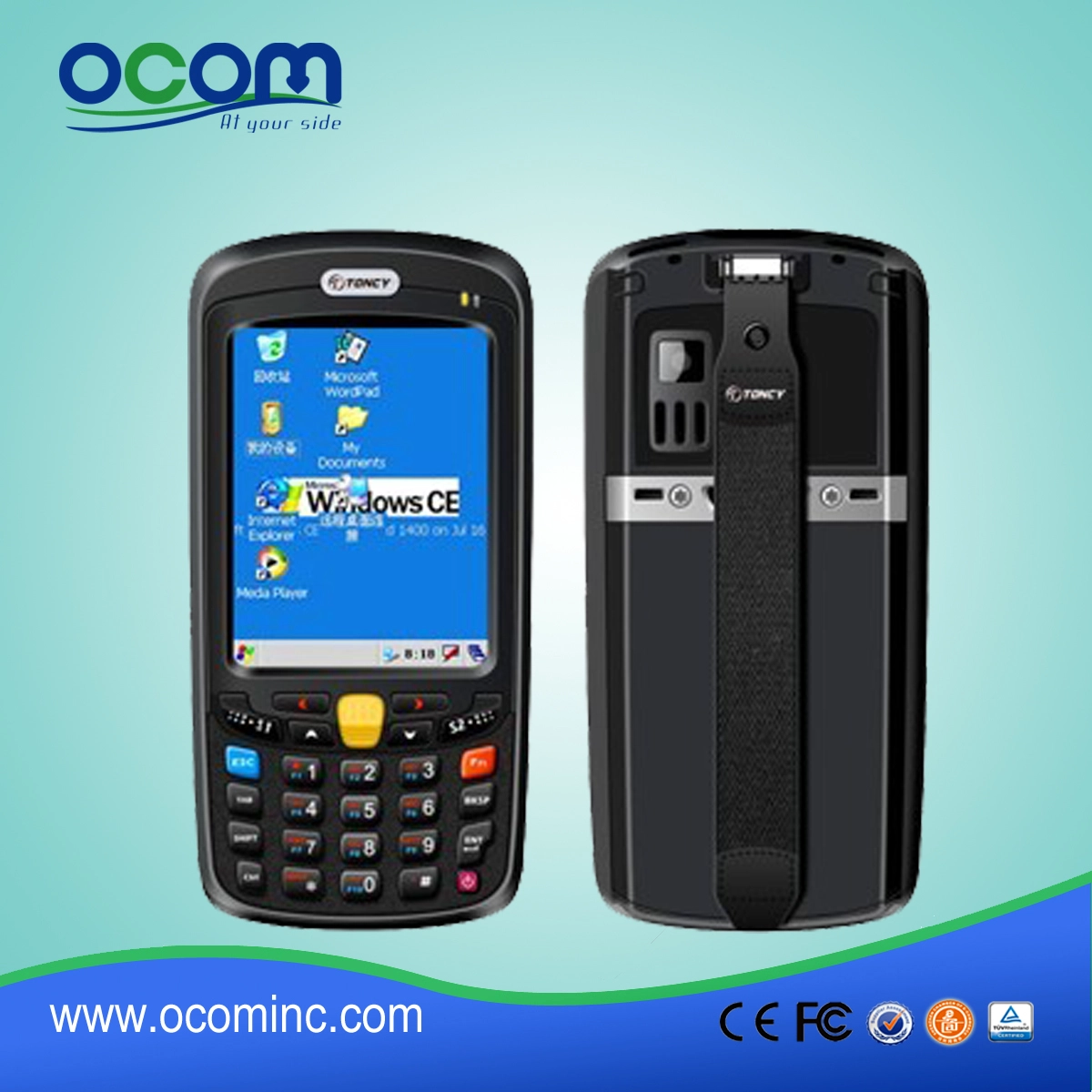

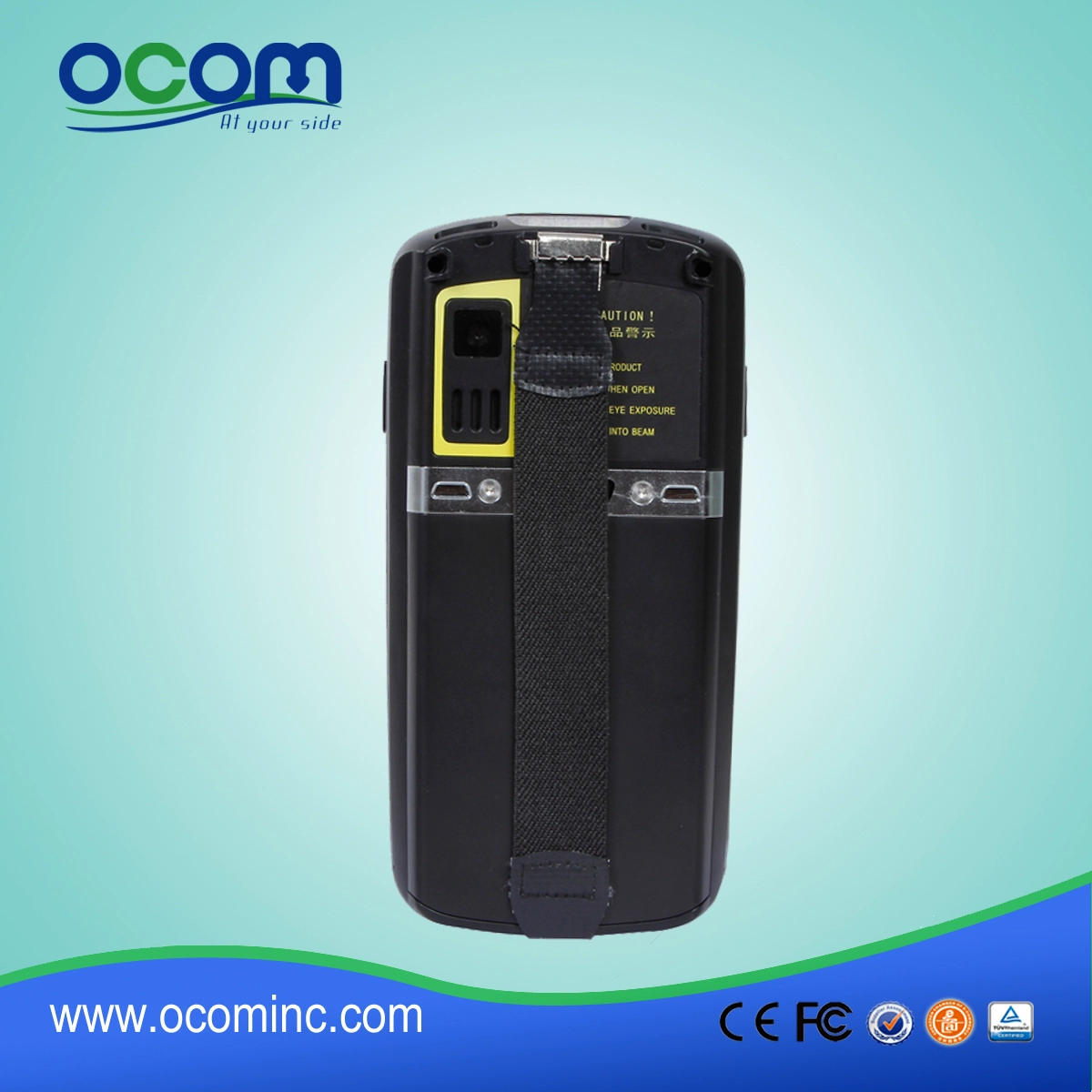

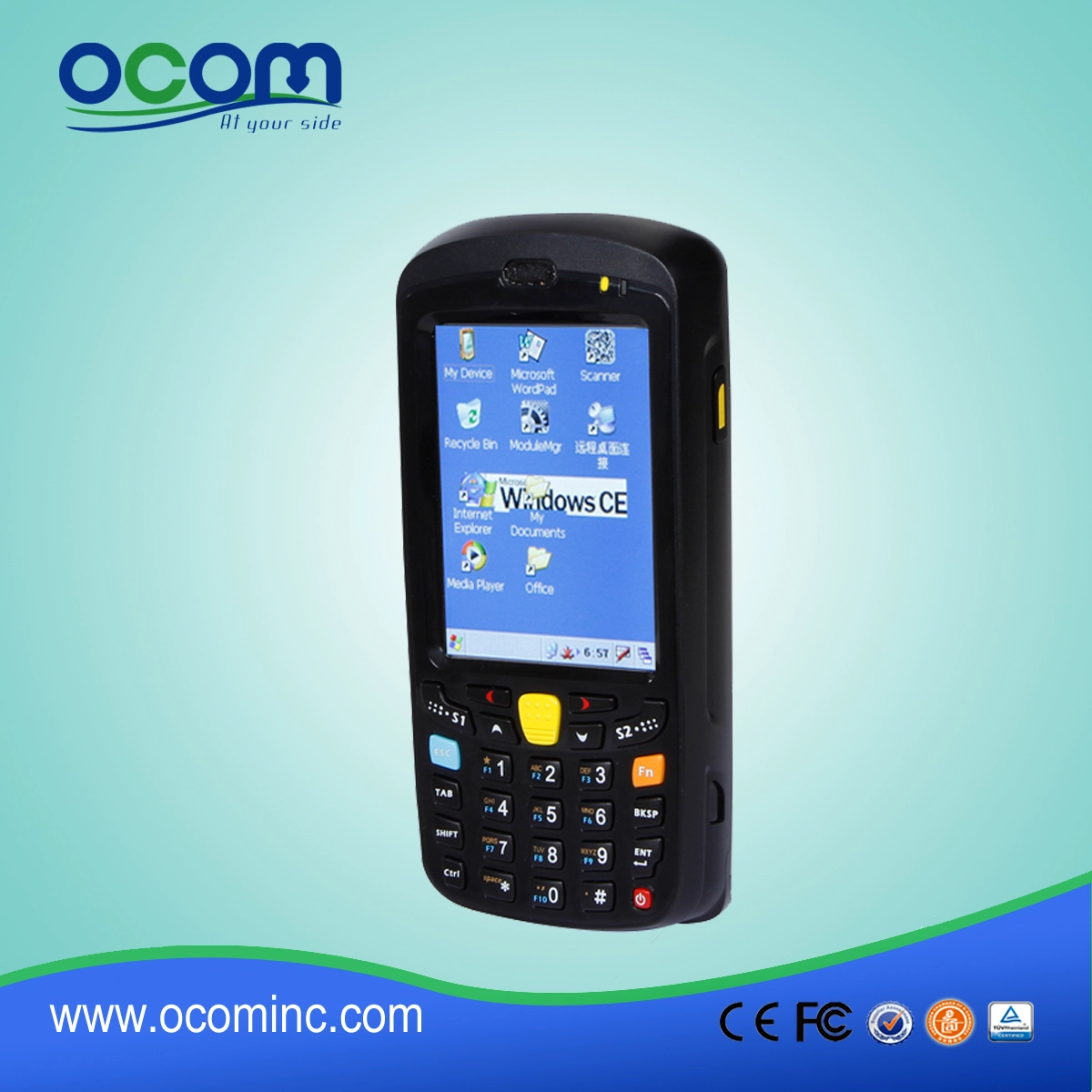

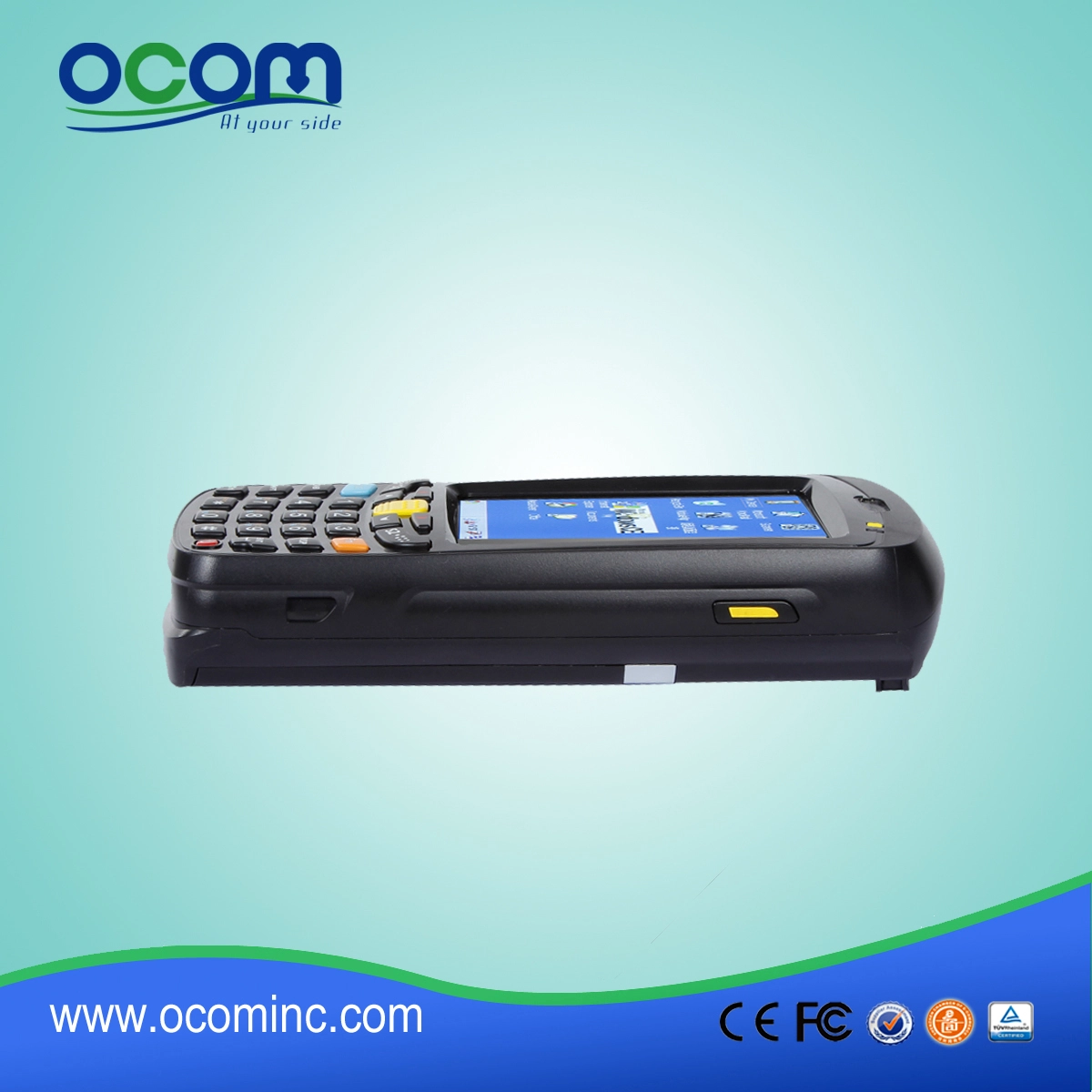

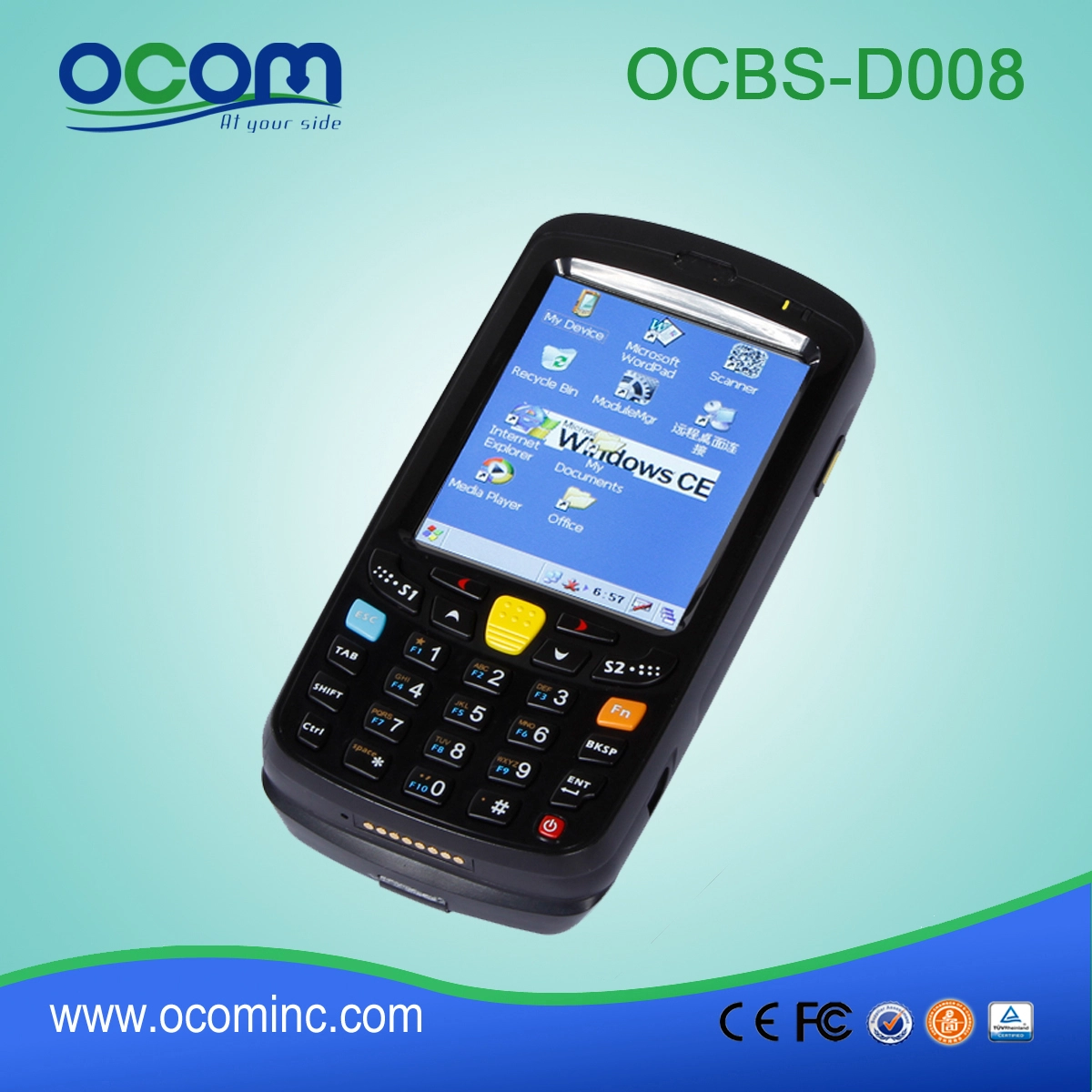

Support Win CE Data Collector Scanner with RFID Reader (OCBS-D008)

  • 1.Win. CE 5.0 multi-language operation system;
  • 2.RAM DDR2 128MB, F-ROM 256MB or 512MB for option;
  • 3. High capacity 2800mA battery and low consumption;
  • 4.Easy secondary development, compatible with different software ;
  • 5. Industrial rugged design, water-proof and protection grade(IP65) ;
  • 6. High pixel performance camera, store important docs ;

Support Win CE Data Collector Scanner with RFID Reader (OCBS-D008)

(Model:OCBS-D008)

Feature:

1.Win. CE 5.0 multi-language operation system;
2.RAM DDR2 128MB, F-ROM 256MB or 512MB for option;
3. High capacity 2800mA battery and low consumption;
4.Easy secondary development, compatible with different software ;
5. Industrial rugged design, water-proof and protection grade(IP65) ;
6. High pixel performance camera, store important docs ;

SPECIFICATION:



Operation system

Windows CE 5.0,SDK for multiple programming languages including C#, VB.net, VC++ to assist system developer

CPU

SAMNSUN S3C2450 533MHZ

Memory

RAM DDR2 128MB, F-ROM 256MB or 512MB for option.

Display

TFT-LED QVGA 3.5 inch LCD color touch screen, resolution 240*320

Keyboard

27+2 keys







Communication

Wi-Fi

Built in 802 11b/g wireless communication function, rate: 54MB/Sec, can meet CISCO CCX2,3 security standard

Bluetooth

V2.1+EDR

Camera

Built in 3M camera

GPS

Built in GPS

GPRS

Support GMS/GPRS 10,GSM27,10



Data collection

1D barcode scanner

1D laser scanner

RFID

LF 125K; HF 13.56MHZ ISO14443A/B; UHF 860-960MHZ, ISO 18000-6B\C, EPC Class1Gen2

2D

Support all 1D barcode and 2D barcode: PDF417、microPDF417、MaxiCode, DataMatrix (ECC 200)、Composite Codes  and QR Code



Power

Battery

3.7V 2800MAH

Standby battery

160MA

Working time

Over 10 hours

Expand port

Support Micro SD/TF card up to 32GB

Industrial grade

IP65

Dimensions

155*76*29mm

Weight

320g (include battery)





Working environment

Operate temperature

-15°~+50°

Stock temperature

-20°~+60°

Operate humidity

5-95%

Stock humidity

5-95%

Height of Anti-seismic

1.2m-1.5m cement floor

Certificates

CE,CCC
