TM1202 China Factory 12 inch Resistance Touch Screen LED MonitorTM1202 China Factory 12 inch Resistance Touch Screen LED MonitorTM1202 China Factory 12 inch Resistance Touch Screen LED MonitorTM1202 China Factory 12 inch Resistance Touch Screen LED MonitorTM1202 China Factory 12 inch Resistance Touch Screen LED MonitorTM1202 China Factory 12 inch Resistance Touch Screen LED Monitor

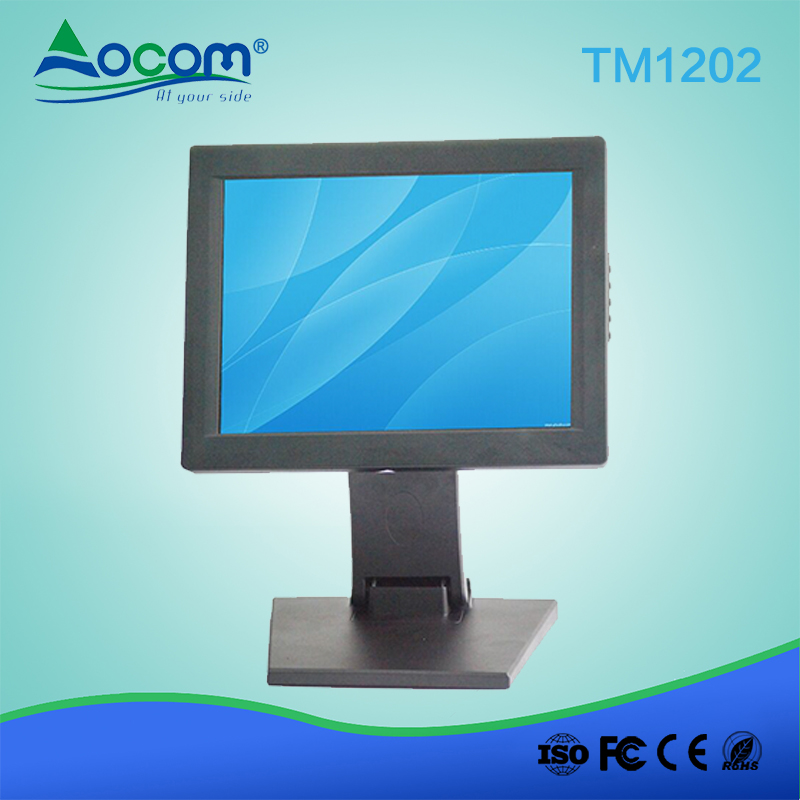

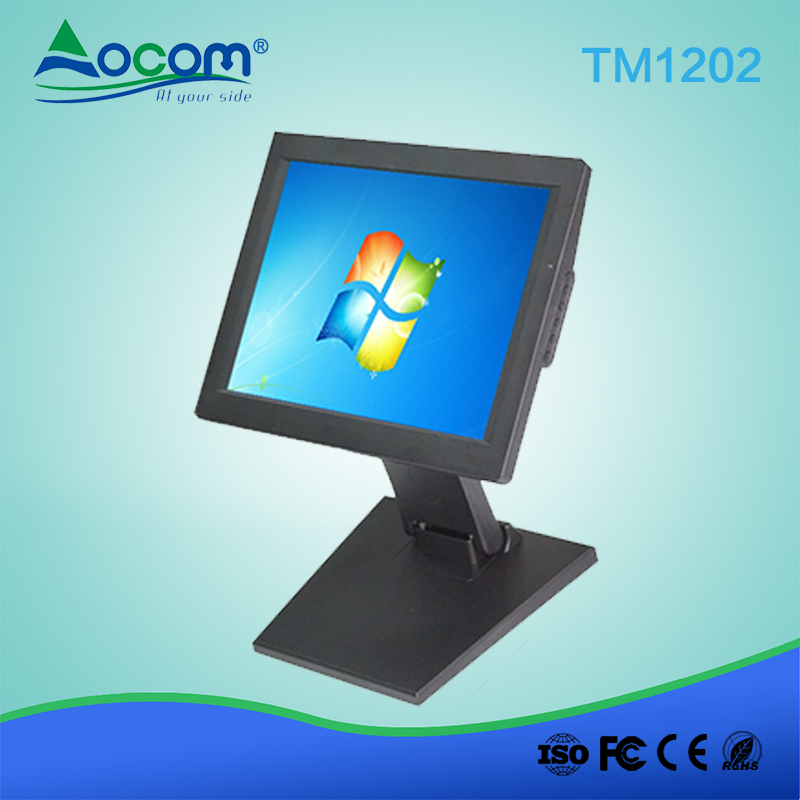

TM1202 China Factory 12 inch Resistance Touch Screen LED Monitor

  • Brightness, contrast, color saturation, sharpness and other indicators adjusted automatically.
  • Low radiation, saving energy.

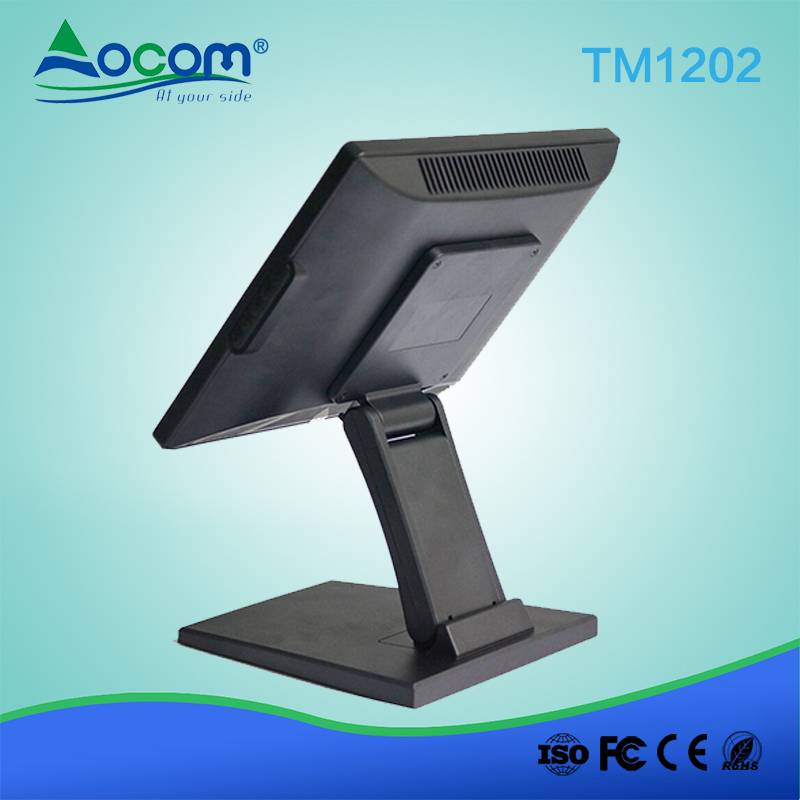

  • Foldable base to adjust the angle
  • Used as computer monitors, LED TV triple play, control LED AV combo, touch screen LED, etc.

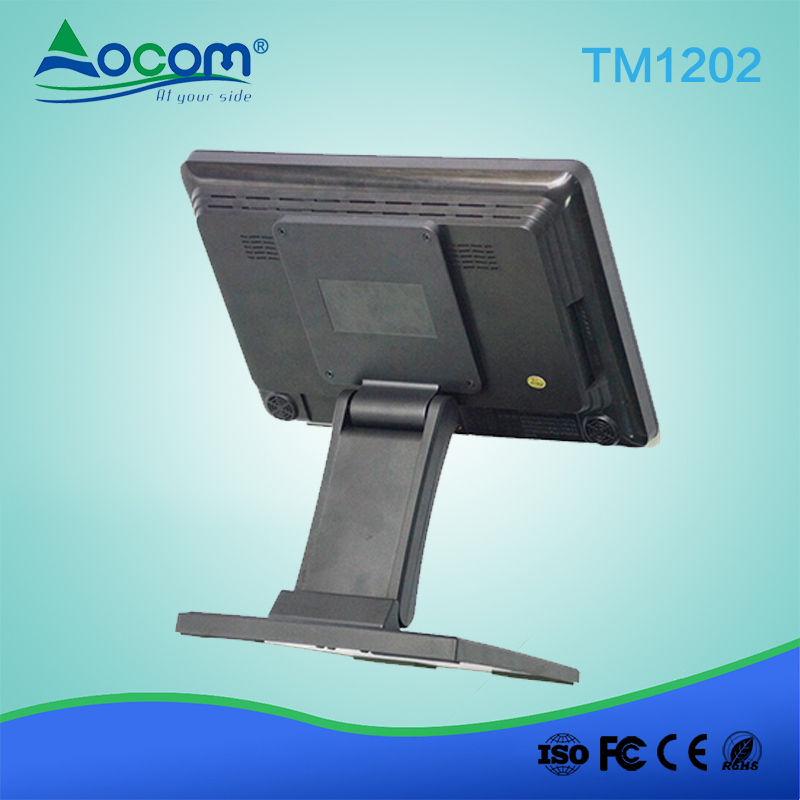

  • Can be hanged on the wall.

China Factory 12 inch Resistance Touch Screen LED Monitor

(Model No: TM1202)



FEATURES:





n Brightness, contrast,color saturation, sharpness and other indicators adjusted automatically.

n Low radiation, savingenergy.

n Foldable base to adjust the angle

n Used as computer monitors, LED TV tripleplay, control LED AV combo, touch screen LED, etc.

n Can be hanged on thewall.



SPECIFICATIONS:



Display size

12.1” diagonal

Contrast ratio

500:01:00

Brightness

400cd/m2

Resolution

800*600

Response time

16ms

Color depth

16.7M

Line frequency

30KHz~61KHz

Field frequency

50Hz~75Hz

Display mode

XGA  800*600

Pixel pitch

0.1025 (H) * 0.3075 (V) mm

Viewing angle

-65°~+65°(U/D) ; -50°~+60°(L/R)

Active Area

246.0x184.5 mm

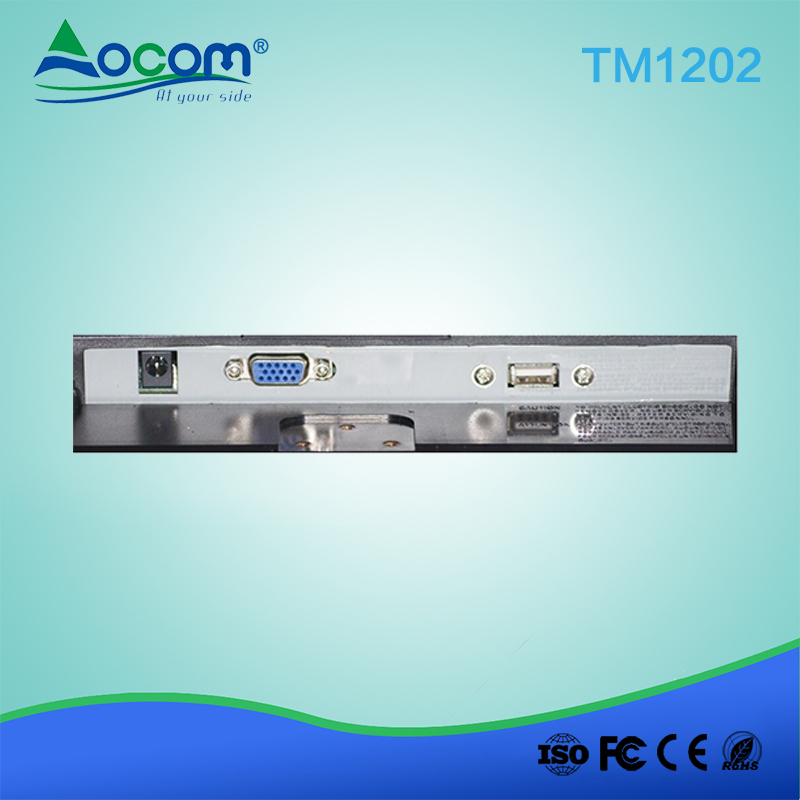

Signal input

RGB      (AV/TV Optional)

Interface

Parallel RGB    (Video frequency /TV input Optional)

Power input

AC input, 100240V, 5060Hz, 3.5A be in common use

Power consumption

≤20W    (sleeping mode 5W)

Touch the form

5 wire resistance touch
